porsche 2016 (981 cayman) manual gearbox parts diagram

302-015 - MANUAL GEARBOX

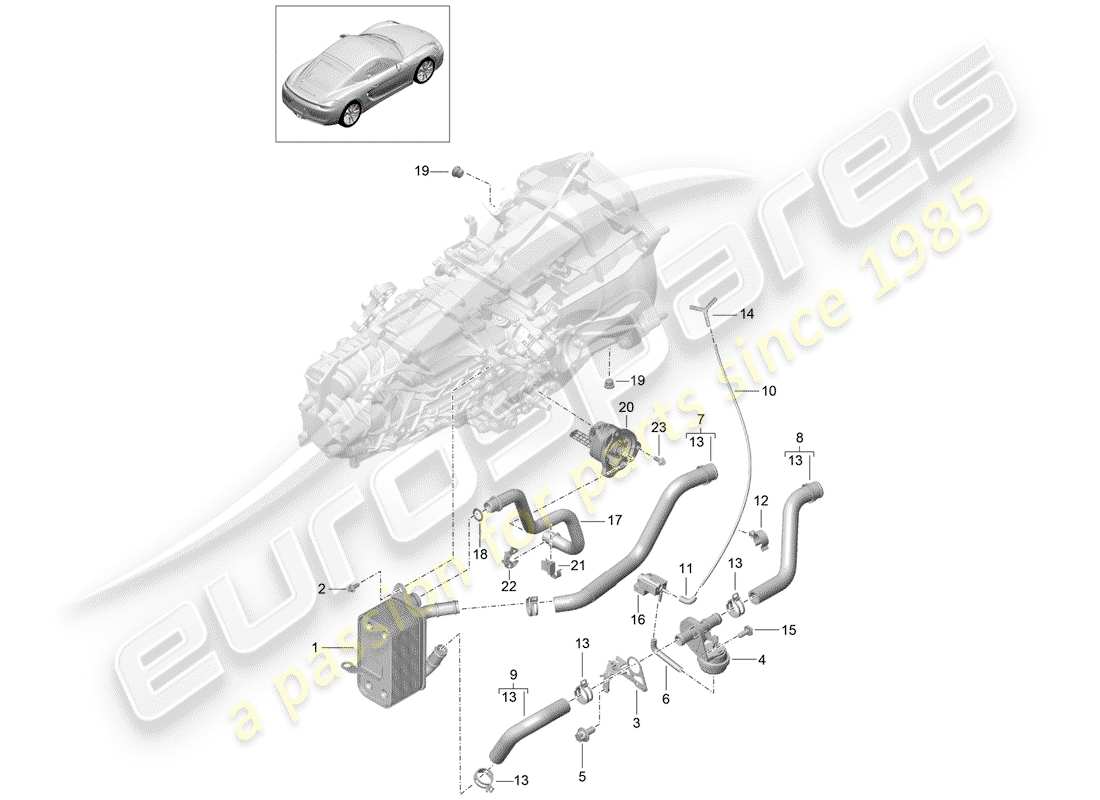

Porsche 2016 (981 Cayman) MANUAL GEARBOX Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 98130701700
                            HEATER CORE
                            from £238.43
                            from £238.43
                            HEATER CORE Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 98130782100
                            SCREW, ROUND HD.
                            from £2.69
                            from £2.69
                            SCREW, ROUND HD Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 98130740100
                            BRACKET
                            DISC VALVE
                            from £9.39
                            from £9.39
                            BRACKET Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 99130757300
                            VALVE UNIT
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 5
                            MPN: 90038504101
                            HEXAGON HEAD BOLT
                            M 6 X 12
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 6
                            MPN: 9G130767300
                            MOLDED HOSE
                            from £6.94
                            from £6.94
                            MOLDED HOSE Genuine Porsche Part - New (to order)
                            # 7
                            MPN: 98130707700
                            WATER HOSE
                            Coolant | Return line
                            from £28.05
                            from £28.05
                            WATER HOSE Genuine Porsche Part - New (to order)
                            # 8
                            MPN: 98130707400
                            WATER HOSE
                            Coolant | Supply
                            from £26.24
                            from £26.24
                            WATER HOSE Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 98130707500
                            WATER HOSE
                            Coolant | Supply
                            from £23.07
                            from £23.07
                            WATER HOSE Genuine Porsche Part - New (to order)
                            # -
                            -
                            TUBE
                            4,0 X 1,0 | to fit use workshop material | Shorten
                            # 10
                            -
                            VACUUM LINE
                            L = 400 mm
                            # 11
                            MPN: 92857471706
                            MOLDED HOSE
                            Discontinued part
                            MOLDED HOSE Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 92857471707
                            MOLDED HOSE
                            No longer use the part here
                            MOLDED HOSE Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 9P1129487
                            MOLDED HOSE
                            from £5.97
                            from £5.97
                            This part replaces part number 92857471703 - and 1 more. Click to view details
                            MOLDED HOSE Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 99950787240
                            BRACKET
                            from £1.93
                            from £1.93
                            BRACKET Genuine Porsche Part - New (to order)
                            # 14
                            MPN: 99923904040
                            CONNECTING PIECE
                            3,5 X 2,0 X 28
                            from £5.49
                            from £5.49
                            connecting piece - 3,5 X 2 X 28 Genuine Porsche Part - New (to order)
                            # 14
                            MPN: 92857372705
                            DISTRIBUTOR PIECE
                            (PR:XLF)
                            from £11.71
                            from £11.71
                            This part replaces part number 92857372703
                            DISTRIBUTOR PIECE Genuine Porsche Part - New (to order)
                            # 15
                            MPN: N 91068201
                            HEXAGON SOCKET FLAT
                            head bolt | M 4 X 10
                            from £0.47
                            from £0.47
                            HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                            HEXALOBULAR SOCKETM4X10 Genuine Lamborghini - New In stock
                            # 16
                            MPN: 7PP906270
                            Change-over valve
                            from £36.78
                            from £36.78
                            This part replaces part number 99660512301
                            Change-over valve - M 61T 02072 >> Genuine Porsche Part - New In stock
                            # 17
                            MPN: 98130705300
                            OIL PIPE
                            from £71.52
                            from £71.52
                            OIL PIPE Genuine Porsche Part - New (to order)
                            # 18
                            MPN: 98130785300
                            O-RING
                            from £2.56
                            from £2.56
                            O-RING Genuine Porsche Part - New (to order)
                            # 19
                            MPN: N 91059701
                            THREADED PLUG
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 20
                            MPN: 98130702300
                            oil pump
                            from £840.66
                            from £840.66
                            oil pump Genuine Porsche Part - New (to order)
                            # 21
                            MPN: 98130781500
                            CLIP
                            from £3.06
                            from £3.06
                            CLIP Genuine Porsche Part - New (to order)
                            # 22
                            MPN: 98130782500
                            BRACKET
                            from £6.50
                            from £6.50
                            BRACKET Genuine Porsche Part - New (to order)
                            # 23
                            MPN: 98130785000
                            SCREW, ROUND HD.
                            from £3.14
                            from £3.14
                            SCREW, ROUND HD Genuine Porsche Part - New (to order)
