porsche 2016 (981 cayman gt4) water cooling 2 parts diagram

105-015 - water cooling 2

Porsche 2016 (981 Cayman GT4) WATER COOLING 2 Parts Diagram

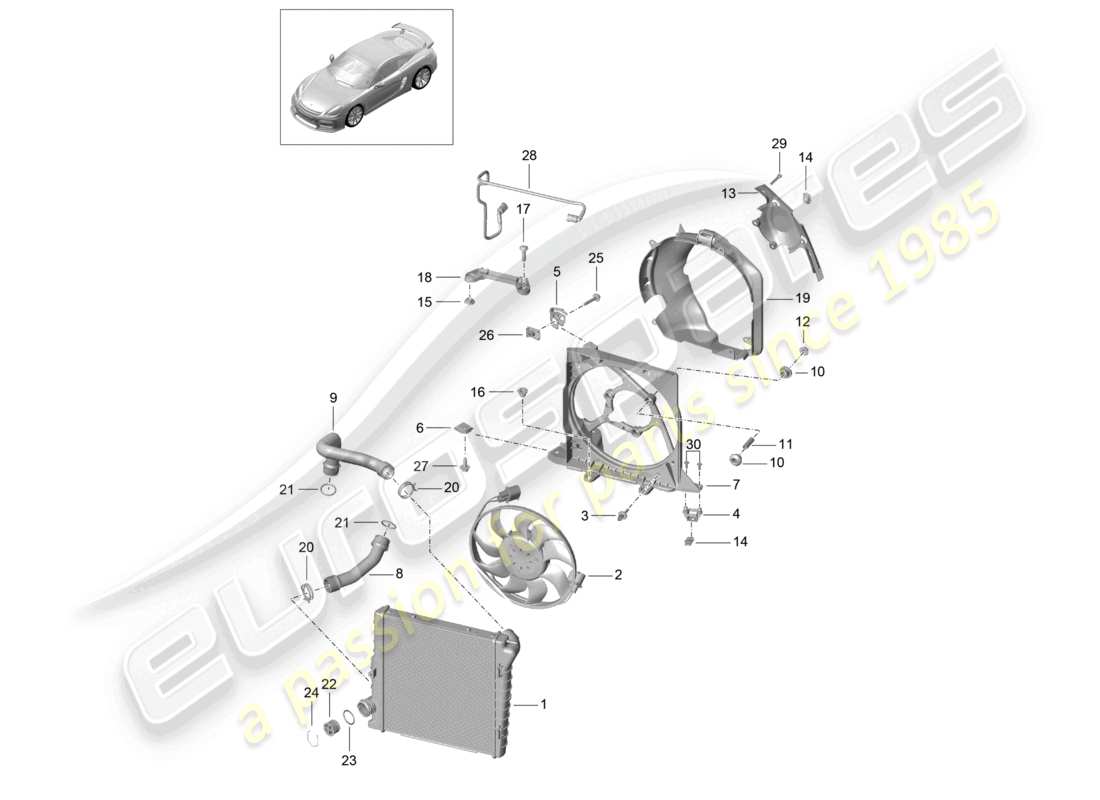

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 99110613103
                    RADIATOR
                    LEFT
                    from £488.49
                    from £488.49
                    RADIATOR Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 99110613203
                    RADIATOR
                    RIGHT
                    from £488.49
                    from £488.49
                    RADIATOR Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99162493501
                    ELECTRIC FAN
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 3
                    MPN: 99959152540
                    RIVET
                    7,0 X 14,05
                    from £0.59
                    from £0.59
                    RIVET Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99110675502
                    BRACKET
                    No longer use the part here
                    BRACKET Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99110675503
                    BRACKET
                    also use: 999 919 306 01
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 5
                    MPN: 99110625502
                    CAP
                    Assembly aux. material
                    from £2.79
                    from £2.79
                    CAP Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99110635503
                    CLAMP
                    from £1.26
                    from £1.26
                    This part replaces part number 99110635502
                    CLAMP Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99110615502
                    BRACKET
                    LEFT
                    from £127.62
                    from £127.62
                    BRACKET Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99110615602
                    BRACKET
                    RIGHT
                    from £127.62
                    from £127.62
                    BRACKET Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 99110662502
                    WATER HOSE
                    left | Return line | Short
                    from £41.68
                    from £41.68
                    WATER HOSE Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 99110662602
                    WATER HOSE
                    right | Return line | Short
                    from £41.68
                    from £41.68
                    WATER HOSE Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 99110662102
                    WATER HOSE
                    left | supply | Long
                    from £53.21
                    from £53.21
                    WATER HOSE Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 99110662202
                    WATER HOSE
                    right | supply | Long
                    from £53.21
                    from £53.21
                    WATER HOSE Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99162417300
                    RUBBER ISOLATOR
                    FAN
                    from £4.27
                    from £4.27
                    RUBBER ISOLATOR Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99162417503
                    SPACER SLEEVE
                    FAN
                    from £4.58
                    from £4.58
                    SPACER SLEEVE Genuine Porsche Part - New (to order)
                    # 12
                    MPN: 99907606609
                    HEX. NUT
                    M 6
                    from £0.59
                    from £0.59
                    hex. nut - M 6 Genuine Porsche Part - New In stock
                    # 13
                    MPN: 98162413180
                    CAP
                    left | Fan
                    from £13.66
                    from £13.66
                    CAP Genuine Porsche Part - New (to order)
                    # 13
                    MPN: 98162413280
                    CAP
                    right | Fan
                    from £13.66
                    from £13.66
                    CAP Genuine Porsche Part - New (to order)
                    # 14
                    MPN: 99959149903
                    SPEED NUT
                    ST 4,8
                    from £0.59
                    from £0.59
                    SPEED NUT Genuine Porsche Part - New (to order)
                    # 15
                    MPN: 99110633101
                    RUBBER ISOLATOR
                    UPPER
                    from £2.79
                    from £2.79
                    RUBBER ISOLATOR Genuine Porsche Part - New (to order)
                    # 16
                    MPN: 99110633200
                    RUBBER ISOLATOR
                    LOWER
                    from £2.79
                    from £2.79
                    RUBBER ISOLATOR Genuine Porsche Part - New (to order)
                    # 17
                    MPN: 99991925801
                    FILLISTER HD. SCREW
                    6,0 X 25,0
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 18
                    MPN: 99110623201
                    BRACKET
                    from £6.58
                    from £6.58
                    BRACKET Genuine Porsche Part - New (to order)
                    # 19
                    MPN: 99110634100
                    AIR DUCT
                    LEFT
                    from £23.67
                    from £23.67
                    AIR DUCT Genuine Porsche Part - New (to order)
                    # 19
                    MPN: 99110634200
                    AIR DUCT
                    RIGHT
                    from £23.67
                    from £23.67
                    AIR DUCT Genuine Porsche Part - New (to order)
                    # 20
                    MPN: 99951266609
                    HOSE CLAMP
                    B 42 X 12
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 21
                    MPN: 99610680102
                    O-RING
                    from £3.79
                    from £3.79
                    O-RING Genuine Porsche Part - New In stock
                    # 22
                    MPN: 99110654601
                    PLUG
                    from £16.80
                    from £16.80
                    PLUG Genuine Porsche Part - New (to order)
                    # 23
                    MPN: 99610680105
                    O-RING
                    from £3.79
                    from £3.79
                    O-RING Genuine Porsche Part - New (to order)
                    # 24
                    MPN: 99710680200
                    SPRING
                    from £2.11
                    from £2.11
                    SPRING Genuine Porsche Part - New (to order)
                    # 25
                    MPN: N 10572802
                    BOLT,HEX.HD.WITH SHOUL.(COMBI)
                    AM 8 X 50
                    from £2.32
                    from £2.32
                    BOLT,HEX.HD.WITH SHOUL.(COMBI) Genuine Porsche Part - New (to order)
                    # 26
                    MPN: 99959186903
                    SPEED NUT
                    from £2.29
                    from £2.29
                    SPEED NUT Genuine Porsche Part - New (to order)
                    # 27
                    MPN: N 10240003
                    BOLT, HEX. HD. WITH SHOULDER
                    M 8 X 32
                    from £1.62
                    from £1.62
                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                    HEXAGON FLANGE M8X32 Genuine Lamborghini - New (to order)
                    # 28
                    MPN: 99110676502
                    breather line
                    LEFT
                    from £27.72
                    from £27.72
                    breather line Genuine Porsche Part - New (to order)
                    # 28
                    MPN: 99110676602
                    breather line
                    RIGHT
                    from £27.72
                    from £27.72
                    breather line Genuine Porsche Part - New (to order)
                    # 29
                    MPN: 99951307940
                    TIE WRAP
                    from £0.47
                    from £0.47
                    TIE WRAP Genuine Porsche Part - New (to order)
                    # 30
                    MPN: 99991930601
                    SCREW
                    Use |
                    with: | 991.106.755.03
                    from £1.15
                    from £1.15
                    SCREW Genuine Porsche Part - New (to order)
