803-007 - REAR SPOILER

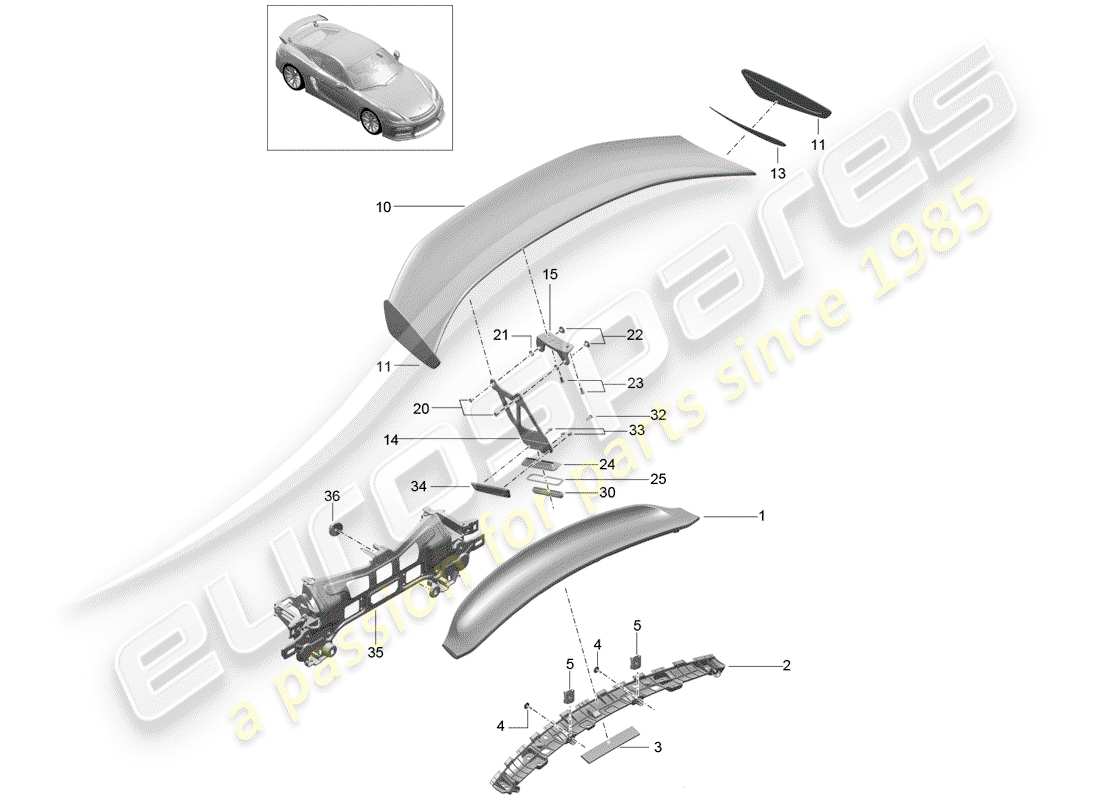

Porsche 2016 (981 Cayman GT4) Rear spoiler Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 98150551381
SPOILER COVER PRIMED
from £464.53
from £464.53
# 2
MPN: 98150581380
ADAPTER
ADAPTER
# 2
MPN: 98150581381
ADAPTER
from £212.85
from £212.85
# 3
MPN: 98150584380
ADHESIVE TAPE SPOILER ADAPTER
from £27.04
from £27.04
# 4
MPN: 99907322709
PANEL SCREW ST4,8X19
Supersession
Supersession
# 5
MPN: 99950730902
panel nut ST4,8
Supersession
Supersession
# 10
MPN: 98151226583
REAR SPOILER PRIMED
from £3,833.28
from £3,833.28
# 11
MPN: 98151246383
WING PLATE FOR REAR SPOILER LEFT PRIMED
from £323.96
from £323.96
# 11
MPN: 98151246483
WING PLATE FOR REAR SPOILER RIGHT PRIMED
from £323.96
from £323.96
# 13
MPN: 98151246581
ADHESIVE FILM LEFT WING PLATE FOR REAR SPOILER
from £15.69
from £15.69
# 13
MPN: 98151246681
ADHESIVE FILM RIGHT WING PLATE FOR REAR SPOILER
from £15.69
from £15.69
# 14
MPN: 98151268180
SUPPORT LEFT BLACK
P802 (Sycamore package, light (matt satin finish))
# 14
MPN: 98151268280
SUPPORT RIGHT BLACK
P802 (Sycamore package, light (matt satin finish))
# 14
MPN: 98151268181
SUPPORT LEFT SILVER
from £494.38
from £494.38
# 14
MPN: 98151268281
SUPPORT RIGHT SILVER
from £494.38
from £494.38
# 15
MPN: 98151268380
CONNECTING PIECE LEFT BLACK
P802 (Sycamore package, light (matt satin finish))
from £305.77
from £305.77
# 15
MPN: 98151268480
CONNECTING PIECE RIGHT BLACK
P802 (Sycamore package, light (matt satin finish))
from £305.77
from £305.77
# 15
MPN: 98151268381
CONNECTING PIECE LEFT SILVER
P without 802
from £305.77
from £305.77
# 15
MPN: 98151268481
CONNECTING PIECE RIGHT SILVER
P without 802
from £305.77
from £305.77
# 20
MPN: 99907350901
COUNTERSUNK BOLT M6X12-MK MICRO-SELF-LOCKING REAR SILVER
P without 802
# 20
MPN: 99907350902
countersunk bolt M6X12-MK Micro-self-locking Black
P802 (Sycamore package, light (matt satin finish))
from £9.09
from £9.09
# 21
MPN: 99751278391
SHIM
from £8.72
from £8.72
# 22
MPN: 99908505102
HEXAGON NUT M6 SILVER REAR
P without 802
from £17.30
from £17.30
# 22
MPN: 99908505103
Hexagon nut M6 Black
P802 (Sycamore package, light (matt satin finish))
from £20.45
from £20.45
# 23
MPN: 99901504801
FILLISTER HD. BOLT M6X16
from £5.19
from £5.19
# 24
MPN: 98151258380
COVER LEFT Black
P802 (Sycamore package, light (matt satin finish))
from £509.61
from £509.61
# 24
MPN: 98151258480
COVER RIGHT BLACK
P802 (Sycamore package, light (matt satin finish))
from £509.61
from £509.61
# 24
MPN: 98151258381
COVER LEFT SILVER
P without 802
from £51.65
from £51.65
# 24
MPN: 98151258481
COVER RIGHT SILVER
P without 802
from £51.65
from £51.65
# 25
MPN: 98151278380
ADHESIVE TAPE LEFT
from £28.31
from £28.31
# 25
MPN: 98151278480
ADHESIVE TAPE RIGHT
from £27.76
from £27.76
# 30
MPN: 98151268580
SEAL
from £35.12
from £35.12
# 32
MPN: 99907363201
FILLISTER HD. BOLT M6X20-W
from £6.00
from £6.00
# 33
MPN: 99950426101
THREADED INSERT M6X9,4
from £42.64
from £42.64
# 34
MPN: 98151251380
COVER PANEL LEFT
from £35.77
from £35.77
# 34
MPN: 98151251480
COVER PANEL RIGHT
from £32.11
from £32.11
# 35
MPN: 98150410980
DRIVE UNIT (COMPLETE)
from £301.70
from £301.70
# 36
MPN: 99907609401
HEX. NUT WITH WASHER M6
from £4.00
from £4.00
# 37
MPN: 99950727401
PANEL NUT M5
from £0.97
from £0.97
# 38
MPN: 999073446A1
FILLISTER HD. BOLT
from £4.11
from £4.11
# 39
MPN: 99970319840
SEALING CAP
from £0.61
from £0.61
