porsche 2020 (718 cayman) engine lifting tackle parts diagram

109-010 - ENGINE LIFTING TACKLE

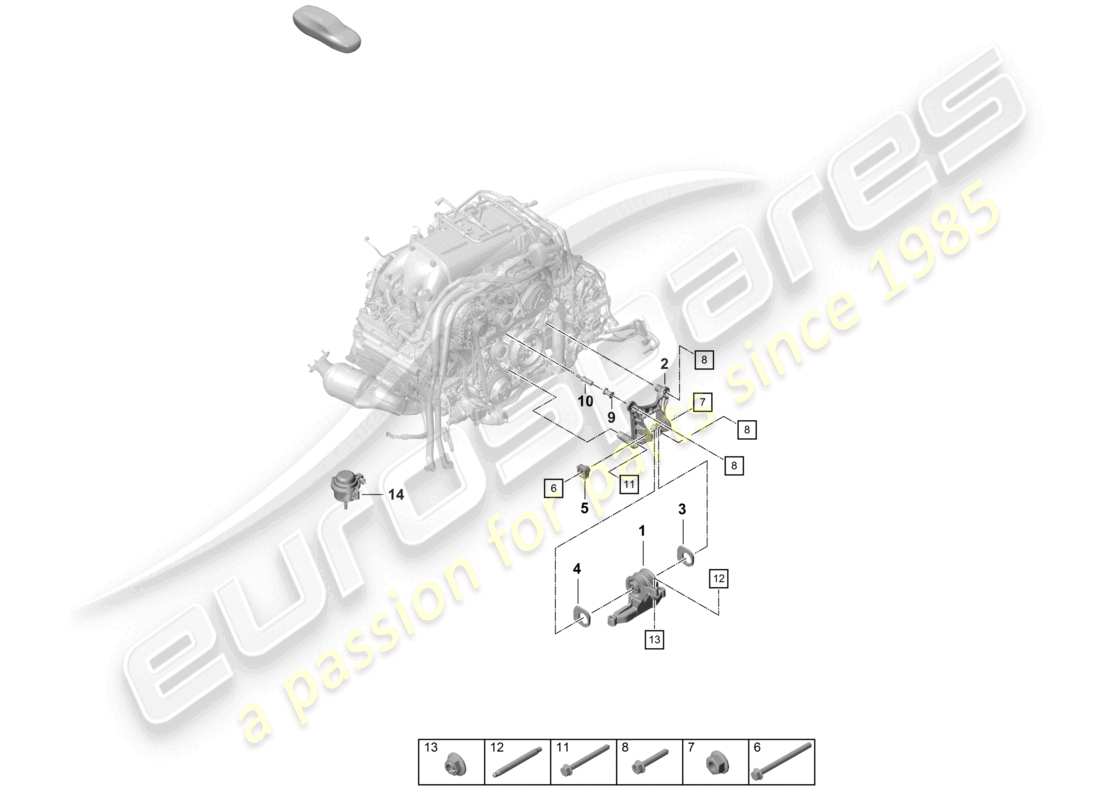

Porsche 2020 (718 Cayman) Engine lifting tackle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 9A237504610
                              ENGINE BRACKETS
                              from £265.97
                              from £265.97
                              ENGINE BRACKETS Genuine Porsche Part - New (to order)
                              # 2
                              MPN: 9A237512480
                              CONSOLE FOR ENGINE MOUNTING
                              from £100.99
                              from £100.99
                              CONSOLE FOR ENGINE MOUNTING Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 9A137526703
                              STOP LEFT
                              from £14.31
                              from £14.31
                              This part replaces part number 9A137526702
                              STOP Genuine Porsche Part - New (to order)
                              # 4
                              MPN: 9A137526803
                              STOP RIGHT
                              from £14.31
                              from £14.31
                              STOP Genuine Porsche Part - New (to order)
                              # 5
                              MPN: 9A137526200
                              VIBRATION DAMPER
                              from £35.04
                              from £35.04
                              VIBRATION DAMPER Genuine Porsche Part - New (to order)
                              # 6
                              MPN: 90037835201
                              HEXAGON BOLT M12X1,5X145 TO USE FOR: 9A1 375 262 00
                              from £3.94
                              from £3.94
                              SCREW, HEX. HD Genuine Porsche Part - New (to order)
                              # 7
                              MPN: 99908444501
                              LOCKNUT M12X1,5
                              from £2.29
                              from £2.29
                              This part replaces part number 99908444509
                              lock nut - VM 12 X 1,5 Genuine Porsche Part - New In stock
                              # 8
                              MPN: PAF107738
                              HEXAGON COLLARED BOLT WITH M10X60 MULTI-POINT SOCKET HEAD (DUO)
                              from £2.96
                              from £2.96
                              HEX BOLT WITH INTERNAL TORX Genuine Porsche Part - New (to order)
                              # 9
                              MPN: PAF009050
                              SPACER SLEEVE 16,5X36
                              from £7.77
                              from £7.77
                              SPACER SLEEVE Genuine Porsche Part - New (to order)
                              # 10
                              MPN: PAF008985
                              SPACER PIN M10X77
                              from £13.31
                              from £13.31
                              SPACER PIN Genuine Porsche Part - New (to order)
                              # 11
                              MPN: PAF106727
                              HEX COLLARED BOLT BM10X100X90
                              from £4.16
                              from £4.16
                              BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                              # 12
                              MPN: 99906100902
                              THREADED PIN M10X102,5
                              from £3.42
                              from £3.42
                              STUD Genuine Porsche Part - New (to order)
                              # 13
                              MPN: PAF008660
                              HEXAGON NUT M10
                              from £2.29
                              from £2.29
                              This part replaces part number 99908464801
                              HEX. NUT Genuine Porsche Part - New (to order)
                              # 14
                              -
                              ENGINE MOUNTING SEE ILLUSTRATION: 306-000
