porsche 2020 (718 cayman) starter alternator parts diagram

902-004 - Starter Alternator

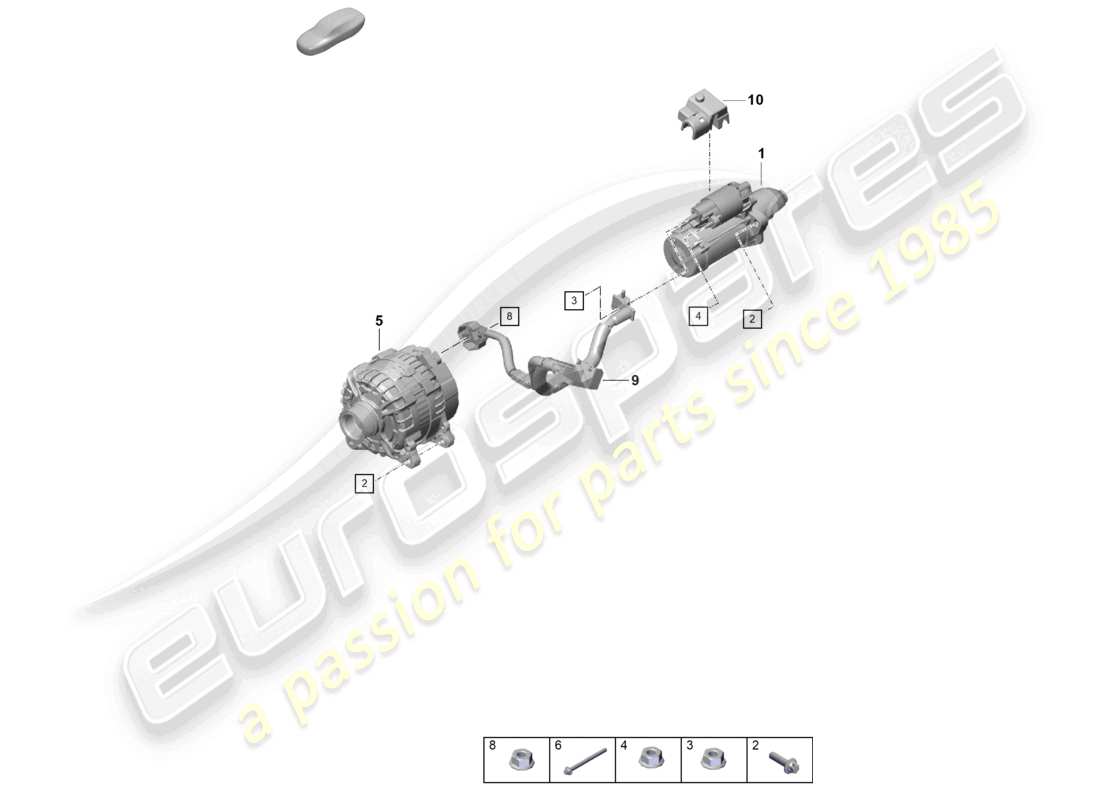

Porsche 2020 (718 Cayman) Starter Alternator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 9A260410901
                        STARTER
                        from £700.34
                        from £700.34
                        STARTER Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 9A2604109AX
                        STARTER
                        from £490.38
                        from £490.38
                        STARTER Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 9A700815900
                        TORX SCREW M10X35
                        from £4.52
                        from £4.52
                        TORX SCREW Genuine Porsche Part - New In stock
                        # 3
                        MPN: N 10609207
                        HEXAGON COLLAR NUT M8 LOCKNUT
                        from £0.47
                        from £0.47
                        This part replaces part number 90037700301
                        shouldered hex. nut Genuine Porsche Part - New (to order)
                        HEXAGON COLLAR NUT Genuine Bentley Part - New (to order)
                        # 4
                        MPN: N 01508210
                        HEXAGON COLLAR NUT M6
                        from £0.47
                        from £0.47
                        Genuine Porsche Part (no longer available to order)
                        Genuine Bentley Part (no longer available to order)
                        HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                        # 5
                        MPN: 0PB903018A
                        ALTERNATOR
                        from £1,139.34
                        from £1,139.34
                        ALTERNATOR Genuine Porsche Part - New (to order)
                        # 6
                        MPN: PAF008155
                        HEXAGON HEAD BOLT BM 8X90
                        from £2.29
                        from £2.29
                        This part replaces part number 90038510201
                        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                        # 8
                        MPN: N 10609207
                        HEXAGON COLLAR NUT M8 LOCKNUT
                        from £0.47
                        from £0.47
                        This part replaces part number 90037700301
                        shouldered hex. nut Genuine Porsche Part - New (to order)
                        HEXAGON COLLAR NUT Genuine Bentley Part - New (to order)
                        # 9
                        MPN: 0PB971793C
                        WIRING HARNESS FOR BATTERY +, STARTER AND ALTERNATOR
                        from £82.47
                        from £82.47
                        harness for battery +, Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 0PB971883A
                        COVER CAP FOR STARTER
                        from £9.50
                        from £9.50
                        CAP Genuine Porsche Part - New (to order)
                        # 11
                        MPN: 0PB971537A
                        EARTH LINE ENGINE
                        from £29.89
                        from £29.89
                        EARTH LINE Genuine Porsche Part - New (to order)
                        # 12
                        MPN: PAF008145
                        HEXAGON HEAD BOLT M8
                        from £0.69
                        from £0.69
                        HEXAGON HEAD BOLT Genuine Porsche Part - New In stock
