porsche 2020 (718 cayman) loudspeaker parts diagram

911-005 - loudspeaker

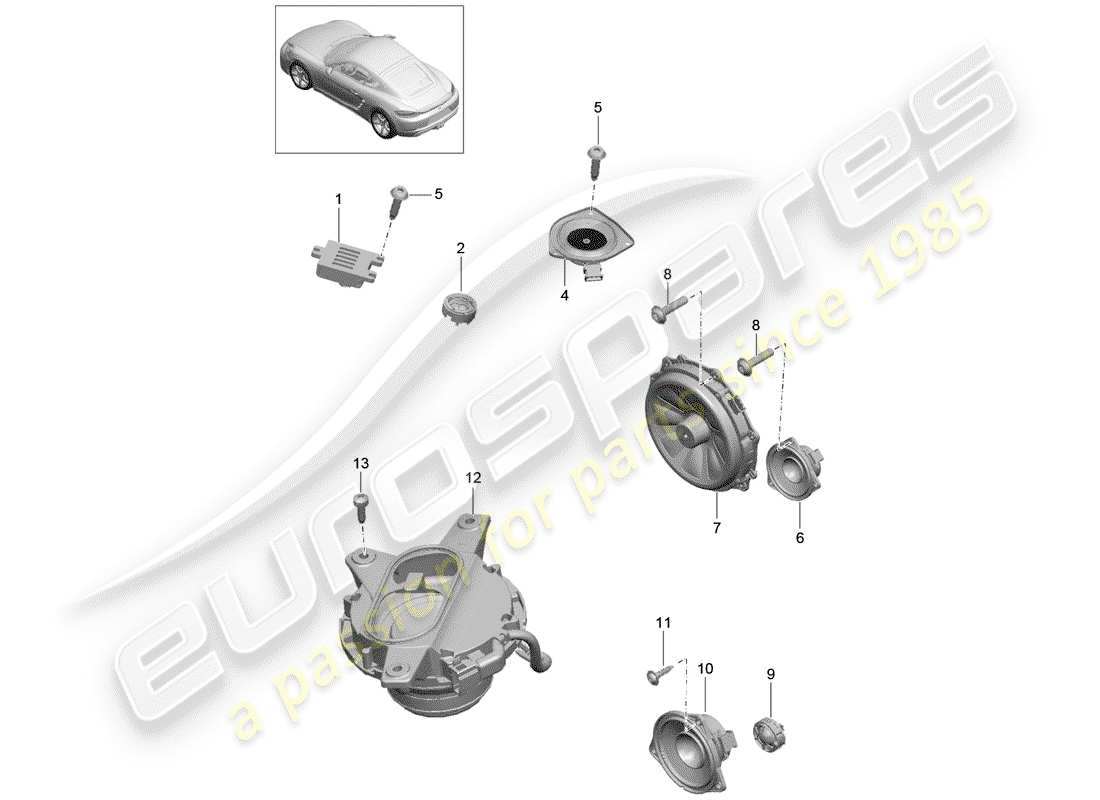

Porsche 2020 (718 Cayman) Loudspeaker Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 7PP035411E
          TREBLE SPEAKER DASHBOARD
          P9VJ (Burmester High-End sound system)
          from £190.97
          from £190.97
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 2
          MPN: 7PP035411D
          TREBLE SPEAKER DASHBOARD
          P9VL (Bose Premium sound system)
          from £54.23
          from £54.23
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 2
          MPN: 7PP035411
          TREBLE SPEAKER DASHBOARD
          P9VK (Sound package 1/sound package)
          from £39.53
          from £39.53
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 4
          MPN: 7PP035828E
          LOUDSPEAKER CENTER DASHBOARD
          P9VJ (Burmester High-End sound system)
          from £81.31
          from £81.31
          loudspeaker Genuine Porsche Part - New (to order)
          # 4
          MPN: 7PP035828D
          LOUDSPEAKER CENTER DASHBOARD
          P9VL (Bose Premium sound system)
          from £71.87
          from £71.87
          loudspeaker Genuine Porsche Part - New (to order)
          # 5
          MPN: 99907349801
          FILLISTER HD. BOLT M5X20
          from £0.47
          from £0.47
          FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
          # 6
          MPN: 7PP035415G
          MID TONE SPEAKER DOOR
          P9VJ (Burmester High-End sound system)
          from £116.83
          from £116.83
          MID-RANGE SPEAKER Genuine Porsche Part - New (to order)
          # 6
          MPN: 7PP035415F
          MID TONE SPEAKER DOOR
          P9VL (Bose Premium sound system)
          from £79.92
          from £79.92
          MID-RANGE SPEAKER Genuine Porsche Part - New (to order)
          # 6
          MPN: 7PP035415J
          MID TONE SPEAKER DOOR
          P9VK (Sound package 1/sound package)
          from £59.77
          from £59.77
          MID-RANGE SPEAKER Genuine Porsche Part - New (to order)
          # 7
          MPN: 7PP035454H
          BASS LOUDSPEAKER DOOR
          P9VJ (Burmester High-End sound system)
          from £164.31
          from £164.31
          WOOFER Genuine Porsche Part - New (to order)
          # 7
          MPN: 9A764555514
          BASS LOUDSPEAKER DOOR
          P9VL (Bose Premium sound system)
          from £150.12
          from £150.12
          WOOFER Genuine Porsche Part - New (to order)
          # 7
          MPN: 7PP035454L
          BASS LOUDSPEAKER DOOR
          P9VK (Sound package 1/sound package)
          from £87.82
          from £87.82
          WOOFER Genuine Porsche Part - New (to order)
          # 7
          MPN: 99164585190
          COVER FOR LOUDSPEAKER LEFT APERTURE
          P8AA (without radio)
          from £124.09
          from £124.09
          COVER FOR SPEAKER Genuine Porsche Part - New (to order)
          # 7
          MPN: 99164585290
          COVER FOR LOUDSPEAKER RIGHT APERTURE
          P8AA (without radio)
          from £124.09
          from £124.09
          COVER FOR SPEAKER Genuine Porsche Part - New (to order)
          # 8
          MPN: 99991920909
          FILLISTER HD. BOLT 5X22
          from £0.59
          from £0.59
          FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
          # 9
          MPN: 7PP035411
          TREBLE SPEAKER REAR
          P9VK (Sound package 1/sound package)
          from £39.53
          from £39.53
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 9
          MPN: 7PP035411D
          TREBLE SPEAKER REAR
          P9VL (Bose Premium sound system)
          from £54.23
          from £54.23
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 9
          MPN: 7PP035411E
          TREBLE SPEAKER REAR
          P9VJ (Burmester High-End sound system)
          from £190.97
          from £190.97
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 9
          MPN: 7PP035412A
          TREBLE SPEAKER REAR DOOR
          P9VJ (Burmester High-End sound system)
          from £75.50
          from £75.50
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 10
          MPN: 7PP035415G
          MID TONE SPEAKER REAR
          P9VJ (Burmester High-End sound system)
          from £116.83
          from £116.83
          MID-RANGE SPEAKER Genuine Porsche Part - New (to order)
          # 10
          MPN: 7PP035415F
          MID TONE SPEAKER REAR
          P9VL (Bose Premium sound system)
          from £79.92
          from £79.92
          MID-RANGE SPEAKER Genuine Porsche Part - New (to order)
          # 10
          MPN: 7PP035415J
          MID TONE SPEAKER REAR
          P9VK (Sound package 1/sound package)
          from £59.77
          from £59.77
          MID-RANGE SPEAKER Genuine Porsche Part - New (to order)
          # 11
          MPN: 99991925001
          Oval-head screw 4X16
          from £0.59
          from £0.59
          OVAL-HEAD SCREW Genuine Porsche Part - New (to order)
          # 12
          MPN: 99164557500
          Subwoofer lhd
          P098 (Left-hand drive version) | P9VJ (Burmester High-End sound system)
          from £825.08
          from £825.08
          SUBWOOFER Genuine Porsche Part - New (to order)
          # 12
          MPN: 99164556500
          Subwoofer lhd
          Subwoofer lhd
          from £214.89
          from £214.89
          SUBWOOFER Genuine Porsche Part - New (to order)
          # 12
          MPN: 99164556501
          Subwoofer lhd
          P098 (Left-hand drive version) | P9VL (Bose Premium sound system)
          from £258.01
          from £258.01
          SUBWOOFER Genuine Porsche Part - New (to order)
          # 12
          MPN: 99164557600
          SUBWOOFER RHD
          P099 (Right-hand drive version) | P9VJ (Burmester High-End sound system)
          from £825.08
          from £825.08
          SUBWOOFER Genuine Porsche Part - New (to order)
          # 12
          MPN: 99164556600
          SUBWOOFER RHD
          P099 (Right-hand drive version) | P9VL (Bose Premium sound system)
          from £258.01
          from £258.01
          SUBWOOFER Genuine Porsche Part - New (to order)
          # 13
          MPN: 99907338201
          BOLT WITH WASHER M6X20
          from £0.91
          from £0.91
          BOLT WITH WASHER Genuine Porsche Part - New (to order)
