porsche 2021 (718 cayman gt4) crankshaft engine (oil press./lubrica.) parts diagram

102-100 - Crankshaft Engine (oil press./lubrica.)

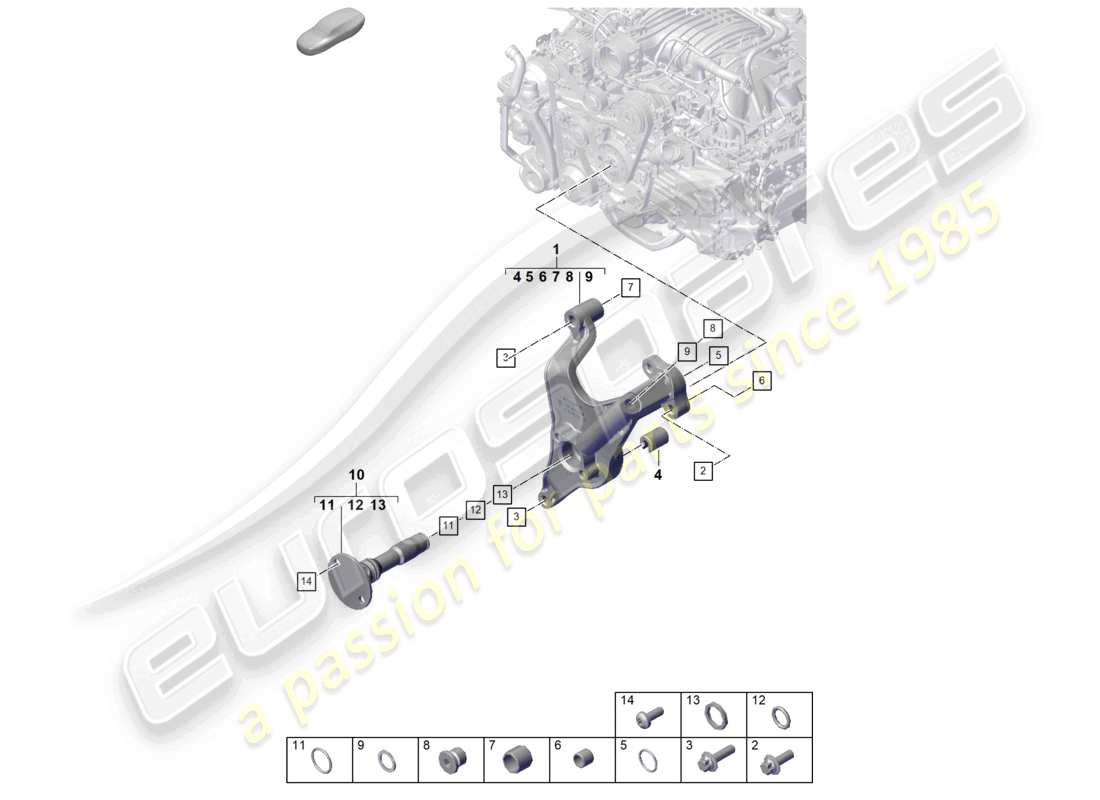

Porsche 2021 (718 Cayman GT4) Crankshaft Engine (oil press./lubrica.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 0PB115241B
                              Oil-conducting housing oil guide
                              from £52.70
                              from £52.70
                              oil-conducting housing Genuine Porsche Part - New (to order)
                              # 2
                              MPN: PAF008127
                              HEXAGON HEAD BOLT M6X25
                              from £0.84
                              from £0.84
                              HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 9A700813000
                              HEXAGON HEAD BOLT M6X40
                              from £0.91
                              from £0.91
                              This part replaces part number 90038504501
                              TORX SCREW Genuine Porsche Part - New (to order)
                              # 4
                              MPN: PAF009912
                              SPACER SLEEVE
                              from £5.09
                              from £5.09
                              SPACER SLEEVE Genuine Porsche Part - New (to order)
                              # 5
                              MPN: 9A700826300
                              O-RING 18X2,5
                              from £2.47
                              from £2.47
                              O-RING Genuine Porsche Part - New (to order)
                              # 6
                              MPN: PAF009431
                              DOWEL SLEEVE 8.2X7
                              from £4.16
                              from £4.16
                              DOWEL SLEEVE Genuine Porsche Part - New (to order)
                              # 7
                              MPN: PAF008703
                              dowel sleeve 12M6X10
                              from £8.96
                              from £8.96
                              DOWEL SLEEVE Genuine Porsche Part - New (to order)
                              # 8
                              MPN: PAF008319
                              sealing plug M10X1X11
                              from £4.83
                              from £4.83
                              THREADED PLUG Genuine Porsche Part - New (to order)
                              # 9
                              MPN: PAF108405
                              SEAL RING 10X13,5
                              from £1.78
                              from £1.78
                              SEAL RING Genuine Porsche Part - New (to order)
                              # 10
                              MPN: 0PB105191A
                              oil pipe oil guide
                              from £210.83
                              from £210.83
                              Z SLEEVE Genuine Porsche Part - New (to order)
                              # 11
                              MPN: PAF003220
                              O-RING 20X2.00
                              from £2.00
                              from £2.00
                              O-RING Genuine Porsche Part - New (to order)
                              # 12
                              MPN: PAF009835
                              O-RING 13X3.00
                              from £2.00
                              from £2.00
                              O-RING Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 0PB105193
                              FRICTION RING
                              from £21.84
                              from £21.84
                              FRICTION RING Genuine Porsche Part - New (to order)
                              # 14
                              MPN: N 10451405
                              OVAL HEXAGON SOCKET HEAD BOLT M6X16 FLAT ROUND HEAD BOLT
                              from £0.78
                              from £0.78
                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
