105-300 - Coolant cooling system Front end

Porsche 2021 (718 Cayman GT4) Coolant cooling system Front end Parts Diagram

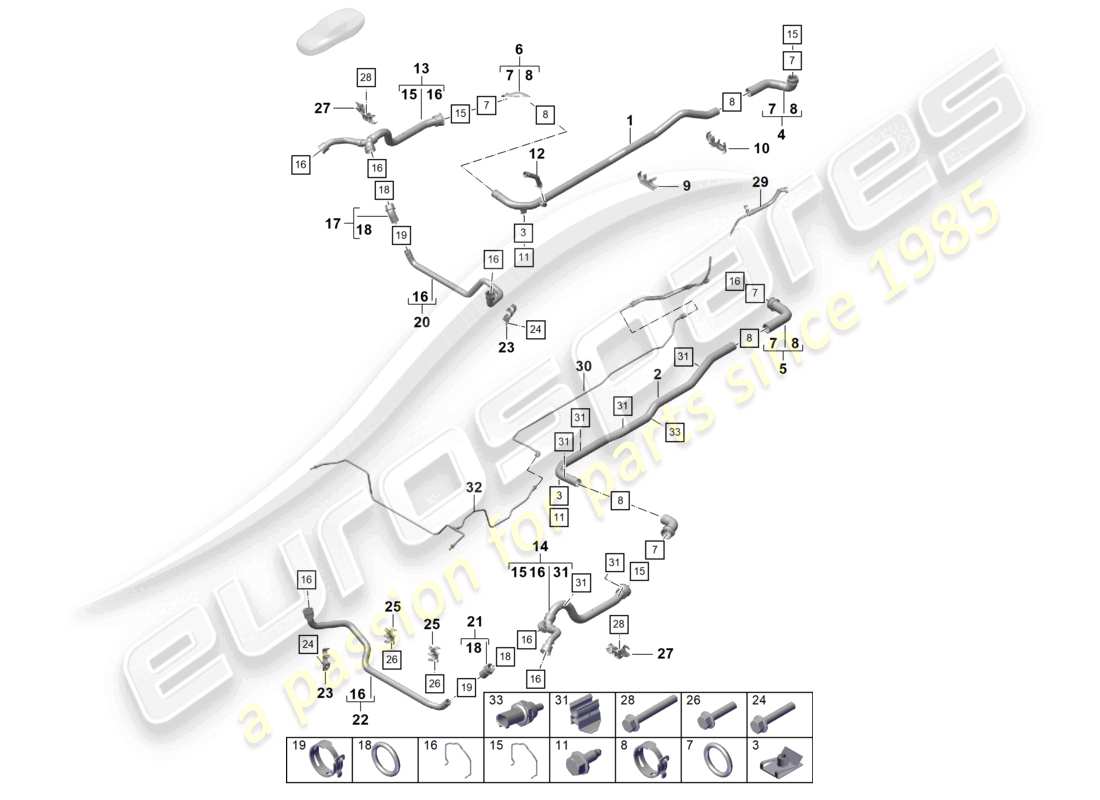

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Key
                                                                    Price
                                                                    # 1
                                                                    MPN: 98110665102
                                                                    COOLANT PIPE FEED PIPE
                                                                    from £66.11
                                                                    from £66.11
                                                                    water tube Genuine Porsche Part - New (to order)
                                                                    # 2
                                                                    MPN: 98110665202
                                                                    COOLANT PIPE RETURN PIPE
                                                                    from £73.79
                                                                    from £73.79
                                                                    water tube Genuine Porsche Part - New (to order)
                                                                    # 3
                                                                    MPN: 99950724601
                                                                    PANEL NUT M6
                                                                    from £0.97
                                                                    from £0.97
                                                                    SPEED NUT - M 6 Genuine Porsche Part - New (to order)
                                                                    # 4
                                                                    MPN: 98110650201
                                                                    COOLANT HOSE RETURN HOSE
                                                                    from £35.83
                                                                    from £35.83
                                                                    WATER HOSE Genuine Porsche Part - New (to order)
                                                                    # 5
                                                                    MPN: 98110650101
                                                                    COOLANT HOSE SUPPLY PIPE
                                                                    from £40.51
                                                                    from £40.51
                                                                    WATER HOSE Genuine Porsche Part - New (to order)
                                                                    # 6
                                                                    MPN: 99110655101
                                                                    COOLANT HOSE
                                                                    from £48.10
                                                                    from £48.10
                                                                    WATER HOSE Genuine Porsche Part - New (to order)
                                                                    # 7
                                                                    MPN: 99610680103
                                                                    O-RING
                                                                    from £3.83
                                                                    from £3.83
                                                                    O-RING Genuine Porsche Part - New (to order)
                                                                    # 8
                                                                    MPN: 99951266709
                                                                    HOSE CLAMP B44X12
                                                                    from £4.52
                                                                    from £4.52
                                                                    Hose Clamp - 44 X 12 - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                                                    # 9
                                                                    MPN: 99110654001
                                                                    BRACKET
                                                                    from £2.76
                                                                    from £2.76
                                                                    BRACKET Genuine Porsche Part - New (to order)
                                                                    # 10
                                                                    MPN: 982121522
                                                                    BRACKET
                                                                    from £3.45
                                                                    from £3.45
                                                                    BRACKET Genuine Porsche Part - New (to order)
                                                                    # 11
                                                                    MPN: 90037815501
                                                                    HEXAGON BOLT M6X16-PA
                                                                    from £0.59
                                                                    from £0.59
                                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                                    # 12
                                                                    MPN: 98110621202
                                                                    COOLANT HOSE SUPPLY PIPE
                                                                    from £19.22
                                                                    from £19.22
                                                                    WATER HOSE Genuine Porsche Part - New (to order)
                                                                    # 13
                                                                    MPN: 99110675203
                                                                    Distributor tube
                                                                    from £96.96
                                                                    from £96.96
                                                                    Distributor tube Genuine Porsche Part - New (to order)
                                                                    # 14
                                                                    MPN: 99110675103
                                                                    Distributor tube
                                                                    from £96.96
                                                                    from £96.96
                                                                    Distributor tube Genuine Porsche Part - New (to order)
                                                                    # 15
                                                                    MPN: 99710680203
                                                                    SPRING
                                                                    Supersession
                                                                    Supersession
                                                                    Genuine Porsche Part (no longer available to order)
                                                                    # 16
                                                                    MPN: 99710680201
                                                                    SPRING
                                                                    from £2.13
                                                                    from £2.13
                                                                    SPRING Genuine Porsche Part - New In stock
                                                                    # 17
                                                                    MPN: 99110672400
                                                                    COOLANT HOSE
                                                                    from £20.09
                                                                    from £20.09
                                                                    WATER HOSE Genuine Porsche Part - New (to order)
                                                                    # 18
                                                                    MPN: 99610680102
                                                                    O-RING
                                                                    from £3.83
                                                                    from £3.83
                                                                    O-RING Genuine Porsche Part - New In stock
                                                                    # 19
                                                                    MPN: 99951255101
                                                                    HOSE CLAMP B36X12
                                                                    from £4.52
                                                                    from £4.52
                                                                    This part replaces part number 99951255100 - and 1 more. Click to view details
                                                                    HOSE CLAMP - 36 X 12 Genuine Porsche Part - New In stock
                                                                    # 20
                                                                    MPN: 99110671102
                                                                    CROSS TUBE
                                                                    from £46.43
                                                                    from £46.43
                                                                    CROSS TUBE Genuine Porsche Part - New (to order)
                                                                    # 21
                                                                    MPN: 99110672300
                                                                    COOLANT HOSE
                                                                    from £19.69
                                                                    from £19.69
                                                                    WATER HOSE Genuine Porsche Part - New (to order)
                                                                    # 22
                                                                    MPN: 99110672002
                                                                    CROSS TUBE
                                                                    from £48.10
                                                                    from £48.10
                                                                    CROSS TUBE Genuine Porsche Part - New (to order)
                                                                    # 23
                                                                    MPN: 99110652502
                                                                    BRACKET
                                                                    from £4.12
                                                                    from £4.12
                                                                    BRACKET Genuine Porsche Part - New (to order)
                                                                    # 24
                                                                    MPN: 90037814101
                                                                    HEXAGON BOLT M6X35
                                                                    from £1.32
                                                                    from £1.32
                                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                                    # 25
                                                                    MPN: 99110652702
                                                                    BRACKET
                                                                    from £4.12
                                                                    from £4.12
                                                                    BRACKET Genuine Porsche Part - New (to order)
                                                                    # 26
                                                                    MPN: 90037817301
                                                                    HEXAGON BOLT M6X20
                                                                    from £0.91
                                                                    from £0.91
                                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                                    # 27
                                                                    MPN: 99110641303
                                                                    BRACKET
                                                                    from £9.06
                                                                    from £9.06
                                                                    BRACKET Genuine Porsche Part - New (to order)
                                                                    # 28
                                                                    MPN: 90037827001
                                                                    HEXAGON BOLT M6X45
                                                                    from £0.65
                                                                    from £0.65
                                                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                                    # 29
                                                                    MPN: 982121801
                                                                    Breather line rear
                                                                    from £26.21
                                                                    from £26.21
                                                                    breather line Genuine Porsche Part - New (to order)
                                                                    # 30
                                                                    MPN: 98110622702
                                                                    breather line
                                                                    from £39.69
                                                                    from £39.69
                                                                    breather line Genuine Porsche Part - New (to order)
                                                                    # 31
                                                                    MPN: 992121129
                                                                    BRACKET
                                                                    from £4.12
                                                                    from £4.12
                                                                    This part replaces part number 99110651202
                                                                    BRACKET Genuine Porsche Part - New (to order)
                                                                    # 32
                                                                    MPN: 99110676703
                                                                    breather line
                                                                    from £27.84
                                                                    from £27.84
                                                                    breather line Genuine Porsche Part - New (to order)
                                                                    # 33
                                                                    MPN: 94860642000
                                                                    TEMPERATURE SENSOR INCLUDED SEAL RING
                                                                    from £25.25
                                                                    from £25.25
                                                                    TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
