porsche 2021 (718 cayman gt4) shock absorbers coil spring parts diagram

502-100 - Shock absorbers Coil spring

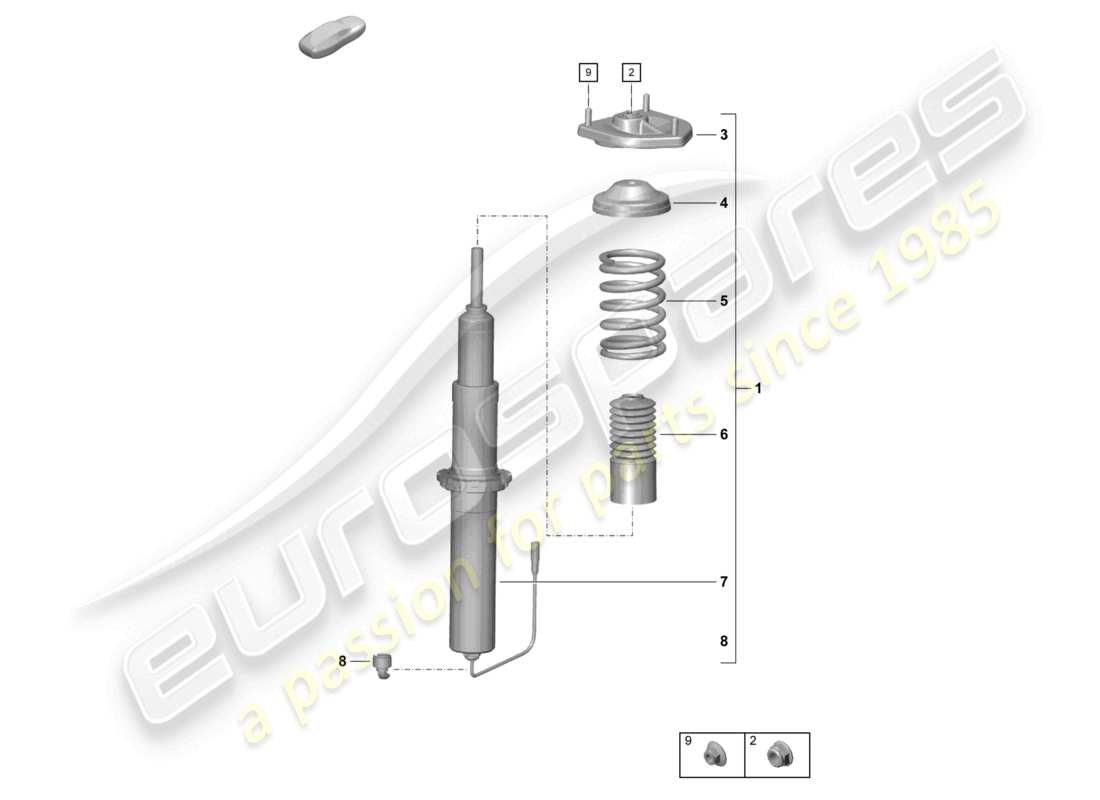

Porsche 2021 (718 Cayman GT4) Shock absorbers Coil spring Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 98133303591
                    Shock absorbers (complete)
                    Shock absorbers (complete)
                    from £933.46
                    from £933.46
                    Shock Absorbers Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 98133303594
                    Shock absorbers (complete)
                    from £961.84
                    from £961.84
                    Shock Absorbers Genuine Porsche Part - New (to order)
                    # 2
                    MPN: PAF00855000
                    HEXAGON NUT M14X1,5
                    from £1.77
                    from £1.77
                    HEX. NUT Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 98133306182
                    SHOCK ABSORBER BEARING
                    from £280.32
                    from £280.32
                    This part replaces part number 98133306181
                    SHOCK ABSORBER BEARING Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 98133351580
                    SPRING DISC
                    from £77.85
                    from £77.85
                    SPRING SEAT Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 98133353184504
                    Coil spring - 1 pair of springs
                    from £319.33
                    from £319.33
                    COIL SPRING 1 PAIR OF SPRINGS Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99734356790
                    PROTECTIVE PIPE
                    from £29.66
                    from £29.66
                    PROTECTIVE PIPE Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99133351171
                    INTERMEDIATE RING SHOCK ABSORBERS
                    from £102.25
                    from £102.25
                    INTERMEDIATE RING Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 9GT512159A
                    HELPER SPRING
                    from £129.66
                    from £129.66
                    HELPER SPRING Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 98133304583
                    VIBRATION DAMPER
                    VIBRATION DAMPER
                    from £786.39
                    from £786.39
                    VIBRATION DAMPER Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 98133304588
                    VIBRATION DAMPER
                    from £836.50
                    from £836.50
                    VIBRATION DAMPER Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 9A751232700
                    CABLE GUIDE DAMPER
                    from £4.16
                    from £4.16
                    WIRING CONDUIT Genuine Porsche Part - New (to order)
                    # 11
                    MPN: PAF003923
                    HEXAGON NUT M8
                    from £0.87
                    from £0.87
                    This part replaces part number 99908444709
                    hex. nut - M 8 Genuine Porsche Part - New (to order)
