P450 (Ceramic brake (PCCB)) | PE1T (RS version)
porsche 2021 (718 cayman gt4) disc brake rear axle parts diagram

603-030 - Disc brake Rear axle

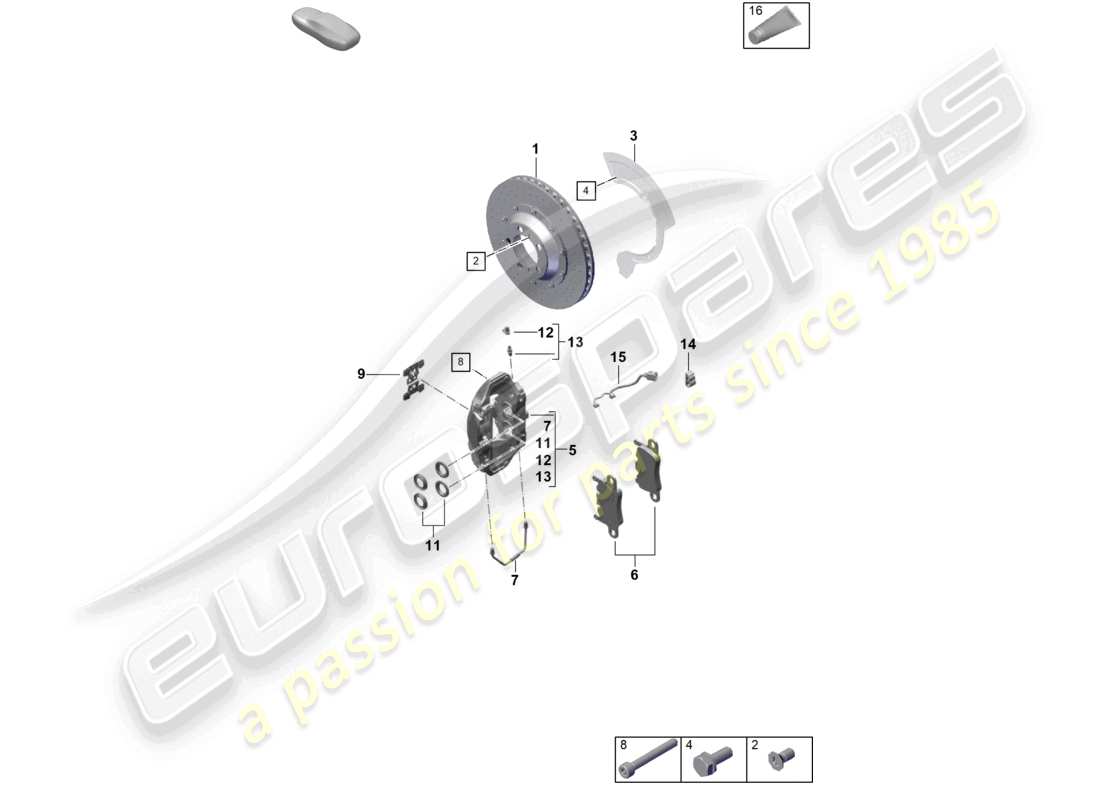

Porsche 2021 (718 Cayman GT4) Disc brake Rear axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 9GT615601A
                          Brake disc left also use: 1x 9GT 615 602 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          Brake disc left also use: 1x 9GT 615 602 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          from £4,211.69
                          from £4,211.69
                          BRAKE DISC Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 9GT615601C
                          Brake disc left also use: 1x 9GT 615 602 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          Brake disc left also use: 1x 9GT 615 602 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          from £4,211.69
                          from £4,211.69
                          BRAKE DISC Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 9GT615601D
                          Brake disc left also use: 1x 9GT 615 602 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          P450 (Ceramic brake (PCCB))
                          from £3,394.39
                          from £3,394.39
                          This part replaces part number 99135240985 - and 1 more. Click to view details
                          BRAKE DISC Genuine Porsche Part - New (to order)
                          BRAKE DISC Genuine Porsche Part - Used In stock
                          # 1
                          MPN: 9GT615602A
                          Brake disc right also use: 1x 9GT 615 601 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          Brake disc right also use: 1x 9GT 615 601 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          Supersession
                          Supersession
                          Genuine Porsche Part (no longer available to order)
                          # 1
                          MPN: 9GT615602C
                          Brake disc right 1x 9GT 615 601 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          Brake disc right 1x 9GT 615 601 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          from £4,211.69
                          from £4,211.69
                          This part replaces part number 99135241080 - and 1 more. Click to view details
                          BRAKE DISC Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 9GT615602D
                          Brake disc right 1x 9GT 615 601 A 2x 9A7 007 585 00 1x 9GT 698 451 D
                          P450 (Ceramic brake (PCCB))
                          from £3,394.39
                          from £3,394.39
                          This part replaces part number 99135241083 - and 3 more. Click to view details
                          BRAKE DISC Genuine Porsche Part - New (to order)
                          BRAKE DISC Genuine Porsche Part - Used In stock
                          # 2
                          MPN: PAF009830
                          Hexagon socket head bolt, M6X8 self-locking
                          from £0.61
                          from £0.61
                          HEXAGON SOCKET HEAD BOLT, SELF-LOCKING Genuine Porsche Part - New (to order)
                          # 3
                          -
                          COVER PLATE WHEEL CARRIER SEE ILLUSTRATION, ITEM: 501-000,5
                          # 4
                          MPN: PAF100829
                          HEXAGON HEAD BOLT (COMBI) M6X16
                          from £0.61
                          from £0.61
                          This part replaces part number 99921711601 - and 1 more. Click to view details
                          BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                          # 5
                          MPN: 9GT615423J
                          CALIPER WITHOUT BRAKE PADS LEFT YELLOW ALSO USE: 2X 9A7 007 585 00 1X 971 698 995 B
                          P450 (Ceramic brake (PCCB)) | P without XBS
                          from £915.56
                          from £915.56
                          CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 9GT615424J
                          CALIPER WITHOUT BRAKE PADS RIGHT YELLOW ALSO USE: 2X 9A7 007 585 00 1X 971 698 995 B
                          P450 (Ceramic brake (PCCB)) | P without XBS
                          from £915.56
                          from £915.56
                          CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 9GT615423K
                          CALIPER WITHOUT BRAKE PADS LEFT BLACK ALSO USE: 2X 9A7 007 585 00 1X 971 698 995 B
                          P450 (Ceramic brake (PCCB)) | PXBS (Brake calliper, painted black, highly polished)
                          from £1,293.96
                          from £1,293.96
                          CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 9GT615424K
                          CALIPER WITHOUT BRAKE PADS RIGHT BLACK ALSO USE: 2X 9A7 007 585 00 1X 971 698 995 B
                          P450 (Ceramic brake (PCCB)) | PXBS (Brake calliper, painted black, highly polished)
                          from £1,293.91
                          from £1,293.91
                          CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                          # 6
                          MPN: 9GT698451J
                          1 set of brake pads for disk brake 2x use only in conjunction with: 9GT 698 151 L
                          1 set of brake pads for disk brake 2x use only in conjunction with: 9GT 698 151 L
                          from £566.90
                          from £566.90
                          This part replaces part number 9GT698451D
                          1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                          # 6
                          MPN: 9GT698451R
                          1 SET OF BRAKE PADS FOR DISK BRAKE ALSO USE: 2X 9A7 007 585 00 1X 971 698 995 B 9Y0 907 637 A USE ONLY IN CONJUNCTION WITH: 9GT 698 151 AA
                          P450 (Ceramic brake (PCCB))
                          from £567.70
                          from £567.70
                          1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                          # 7
                          MPN: 99135296100
                          connecting line
                          from £29.76
                          from £29.76
                          connecting line Genuine Porsche Part - New (to order)
                          # 8
                          MPN: 9A700758500
                          SOCKET HEAD BOLT M12X1,5X85 FIXED CALLIPER
                          from £4.03
                          from £4.03
                          This part replaces part number 99906705309
                          BRAKE CALIPER MOUNTING BOLT, M12 X 1.5 X 85 Genuine Porsche Part - New In stock
                          # 9
                          MPN: 971698995B
                          CUP EXPANDER SPRING CABLE HOLDER
                          from £12.65
                          from £12.65
                          SPEADER SPRING Genuine Porsche Part - New (to order)
                          CUP EXPANDER SPRING Genuine Lamborghini - New (to order)
                          # 11
                          MPN: 9P1698671A
                          1 SET PROTECTIVE CAPS 32 MM CONTAINS: 6 PCS
                          from £13.66
                          from £13.66
                          1 set protective caps (4 pcs) Genuine Porsche Part - New (to order)
                          # 12
                          MPN: 211611483
                          DUST CAP CONTAINS: 20 PC
                          from £3.60
                          from £3.60
                          dust cap - D >> - MJ 1983 Genuine Porsche Part - New (to order)
                          DUST CAP Genuine Lamborghini - New (to order)
                          # 13
                          MPN: 8A0615273
                          1 SET BLEEDER VALVES WITH FRONT DUST CAP WITH COVER CAP
                          from £9.05
                          from £9.05
                          BLEEDER VALVE Genuine Porsche Part - New (to order)
                          BLEEDER SCREW Genuine Lamborghini - New (to order)
                          # 14
                          MPN: PAF105165
                          CLIP 10-6,5X1-4,3 FOR SENDER WIRE (PAD WEAR INDICATOR)
                          from £1.17
                          from £1.17
                          CLIP Genuine Porsche Part - New (to order)
                          # 15
                          MPN: 9Y0907637A
                          SENDER WIRE (PAD WEAR INDICATOR)
                          from £25.38
                          from £25.38
                          SENDER WIRE (PAD WEAR INDICATOR) Genuine Porsche Part - New (to order)
                          SENDER WIRE (PAD WEAR INDICATOR) Genuine Lamborghini - New (to order)
                          # 16
                          MPN: 00004330508
                          ASSEMBLY PASTE 100 GRAM
                          from £17.99
                          from £17.99
                          This part replaces part number 00004302000
                          ASSEMBLY PASTE Genuine Porsche Part - New (to order)
