porsche 2021 (718 cayman gt4) air guide parts diagram

814-100 - AIR GUIDE

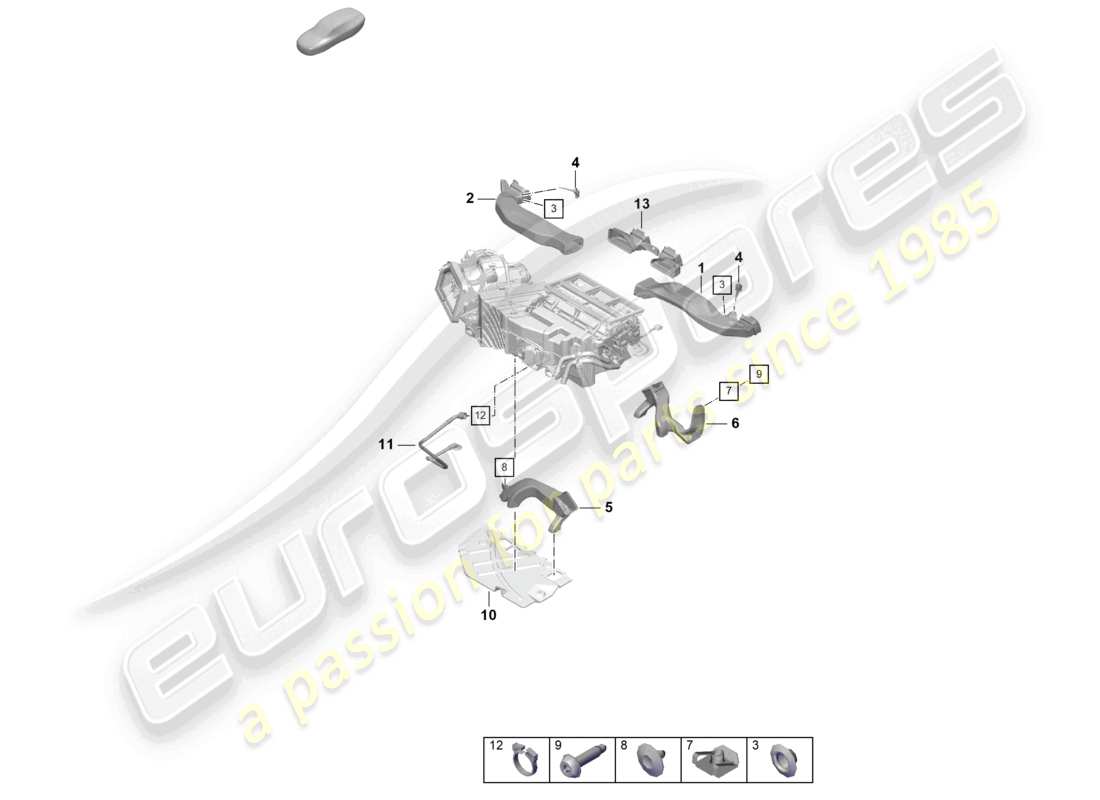

Porsche 2021 (718 Cayman GT4) Air guide Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 982820157
            AIR GUIDE SIDE LEFT
            P098 (Left-hand drive version)
            from £48.51
            from £48.51
            AIR DUCT Genuine Porsche Part - New (to order)
            # 1
            MPN: 982820157A
            AIR GUIDE SIDE LEFT
            P099 (Right-hand drive version)
            from £52.69
            from £52.69
            AIR DUCT Genuine Porsche Part - New (to order)
            # 2
            MPN: 982820158
            AIR GUIDE SIDE RIGHT
            P098 (Left-hand drive version)
            from £48.51
            from £48.51
            AIR DUCT Genuine Porsche Part - New (to order)
            # 2
            MPN: 982820158A
            AIR GUIDE SIDE RIGHT
            P099 (Right-hand drive version)
            from £52.69
            from £52.69
            AIR DUCT Genuine Porsche Part - New (to order)
            # 3
            MPN: 99970346240
            END CAP 10,0X6,5
            P572 (Manual air-conditioning system)
            from £0.78
            from £0.78
            SEALING CAP Genuine Porsche Part - New (to order)
            # 4
            MPN: 97065325300
            TEMPERATURE SENSOR TEMPERATURE SENSOR
            from £28.80
            from £28.80
            TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
            # 5
            MPN: 99157269300
            FOOTWELL VENT (DRIVERS SIDE)
            P098 (Left-hand drive version)
            from £64.16
            from £64.16
            FOOTWELL VENT Genuine Porsche Part - New (to order)
            # 5
            MPN: 99157269400
            FOOTWELL VENT (DRIVERS SIDE)
            P099 (Right-hand drive version)
            from £64.16
            from £64.16
            FOOTWELL VENT Genuine Porsche Part - New (to order)
            # 6
            MPN: 99157279302
            FOOTWELL VENT (PASSENGER SIDE)
            P099 (Right-hand drive version)
            from £64.16
            from £64.16
            FOOTWELL VENT Genuine Porsche Part - New (to order)
            # 6
            MPN: 99157279402
            FOOTWELL VENT (PASSENGER SIDE)
            P098 (Left-hand drive version)
            from £64.16
            from £64.16
            FOOTWELL VENT Genuine Porsche Part - New (to order)
            # 7
            MPN: 99950755601
            PANEL NUT M5
            P098 (Left-hand drive version)
            from £0.65
            from £0.65
            SPEED NUT Genuine Porsche Part - New (to order)
            # 8
            MPN: 1H0819943
            ROUND HD. SCREW
            from £0.65
            from £0.65
            ROUND HD. SCREW Genuine Porsche Part - New (to order)
            # 9
            MPN: 99907349801
            FILLISTER HD. BOLT M5X20-PA8.8
            from £0.47
            from £0.47
            FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
            # 10
            -
            TRIM COVER SEE ILLUSTRATION: 809-100
            # 11
            MPN: 99157379400
            WATER DRAIN PIPE
            P572 (Manual air-conditioning system) | P573 (Electronic air-conditioning system (high))
            from £33.75
            from £33.75
            WATER DRAIN PIPE Genuine Porsche Part - New (to order)
            # 12
            MPN: PAF008496
            HOSE CLAMP 22,7-24,7
            P572 (Manual air-conditioning system) | P573 (Electronic air-conditioning system (high))
            from £2.14
            from £2.14
            HOSE CLAMP Genuine Porsche Part - New (to order)
            # 13
            MPN: 982820560
            AIR GUIDE CENTER INTERMEDIATE PIECE
            from £21.75
            from £21.75
            AIR DUCT Genuine Porsche Part - New (to order)
