porsche 2021 (718 cayman gt4) compressor air conditioning parts diagram

814-200 - Compressor Air Conditioning

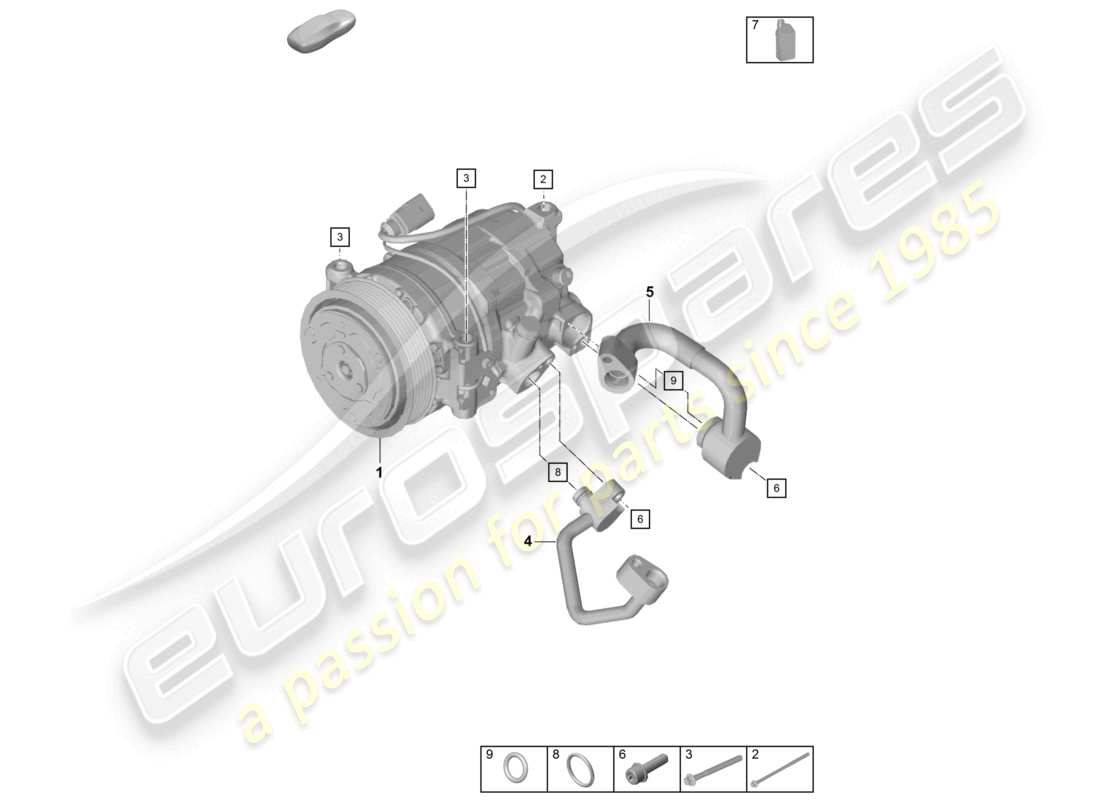

Porsche 2021 (718 Cayman GT4) Compressor Air conditioning Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 9P1820803D
                          Compressor Air Conditioning
                          from £1,359.84
                          from £1,359.84
                          COMPRESSOR Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 9P1820803DX
                          COMPRESSOR EXCHANGE PARTS
                          from £876.23
                          from £876.23
                          COMPRESSOR Genuine Porsche Part - New (to order)
                          # 2
                          MPN: PAF008143
                          HEXAGON HEAD BOLT M8X170
                          from £3.42
                          from £3.42
                          HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                          # 3
                          MPN: PAF008155
                          HEXAGON HEAD BOLT M8X95
                          from £2.29
                          from £2.29
                          This part replaces part number 90038510201
                          HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                          # 4
                          MPN: 982260350B
                          SUCTION LINE ENGINE
                          from £103.99
                          from £103.99
                          SUCTION LINE Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 982260336
                          PRESSURE LINE ENGINE
                          from £94.62
                          from £94.62
                          PRESSURE LINE Genuine Porsche Part - New (to order)
                          # 6
                          MPN: N 10414402
                          Socket head bolt with M8X28 hexagon socket head
                          from £1.62
                          from £1.62
                          BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                          HEXALOBULAR SOCKETM8X28-S10-N Genuine Lamborghini - New In stock
                          # 7
                          MPN: 9A757374903
                          O-RING 16,25X2,50
                          from £3.81
                          from £3.81
                          O-RING Genuine Porsche Part - New (to order)
                          # 8
                          MPN: 95557374903
                          O-RING 23,80X2,40
                          from £3.87
                          from £3.87
                          O-RING Genuine Porsche Part - New (to order)
                          # 9
                          MPN: 982260511
                          BRACKET SUCTION LINE PRESSURE LINE
                          from £19.97
                          from £19.97
                          BRACKET Genuine Porsche Part - New (to order)
                          # 10
                          MPN: PAF008344
                          HOSE BRACKET 0,8-2,0X21X6, 50
                          from £1.95
                          from £1.95
                          BRACKET FOR HOSE Genuine Porsche Part - New (to order)
                          # 11
                          MPN: 99157382501
                          BRACKET FOR COOLANT LINE
                          from £5.14
                          from £5.14
                          BRACKET FOR COOLANT Genuine Porsche Part - New (to order)
                          # 12
                          MPN: 9A757390000
                          COMPRESSOR OIL 250ML
                          from £71.73
                          from £71.73
                          COMPRESSOR OIL Genuine Porsche Part - New (to order)
