V6 TDI, PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI) | PDD7 (6-cylinder diesel engine 3.0 l/190 kW TDI)
porsche 2016 (macan) heating hose basic supply pipe return line parts diagram

813-000 - Heating hose basic supply pipe return line

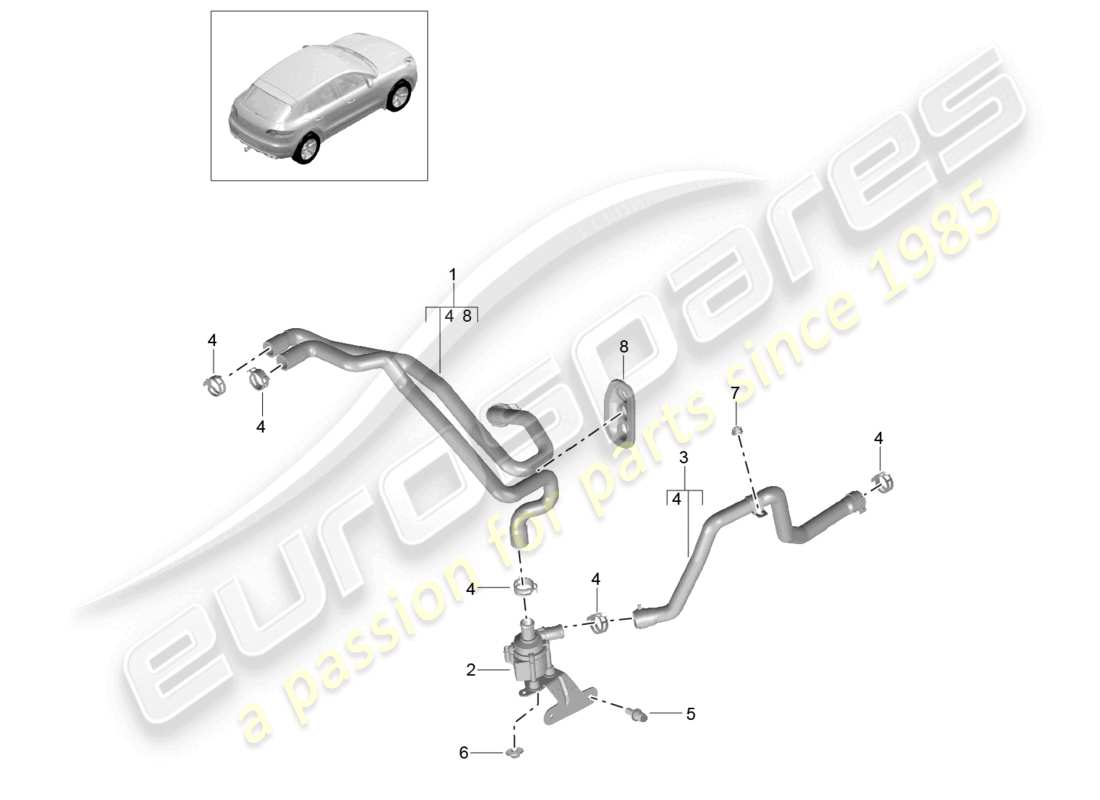

Porsche 2016 (Macan) Heating hose basic supply pipe return line Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 8R0819350BB
            HEATING HOSE HOSE SET WITH CLIPS
            P7E6 (Auxiliary heater) | P9MO (Without auxiliary heater or engine-indep. heating)
            from £35.94
            from £35.94
            heater hose Genuine Porsche Part - New (to order)
            # 2
            MPN: 8R0819025J
            ADDITIONAL COOLANT PUMP INCLUDED BRACKET
            P9MO (Without auxiliary heater or engine-indep. heating)
            from £156.69
            from £156.69
            ADDITIONAL WATER PUMP Genuine Porsche Part - New (to order)
            # 3
            MPN: 8R0819376T
            HEATING HOSE
            P7E6 (Auxiliary heater) | P9MO (Without auxiliary heater or engine-indep. heating)
            from £18.33
            from £18.33
            heater hose Genuine Porsche Part - New (to order)
            # 4
            MPN: 99951265809
            HOSE CLAMP B27X12X1,7
            from £2.29
            from £2.29
            HOSE CLAMP Genuine Porsche Part - New (to order)
            # 5
            MPN: N 10585401
            BLIND RIVET STUD M6X16,5/0,5-3
            from £1.62
            from £1.62
            rivetted bolt Genuine Porsche Part - New (to order)
            BLIND RIVET STUD Genuine Bentley Part - New (to order)
            BLIND RIVET SCREW M6X16.5/0.5-3 Genuine Lamborghini - New (to order)
            # 6
            MPN: N 90570802
            HEX. NUT WITH WASHER M6
            from £0.96
            from £0.96
            HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
            HEX. NUT WITH WASHER Genuine Bentley Part - New (to order)
            # 7
            MPN: N 01508210
            HEXAGON COLLAR NUT M6
            from £0.47
            from £0.47
            Genuine Porsche Part (no longer available to order)
            Genuine Bentley Part (no longer available to order)
            HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
            # 8
            MPN: 8K0819345E
            DOUBLE GROMMET HEATING HOSE
            from £6.91
            from £6.91
            DOUBLE GROMMET Genuine Porsche Part - New (to order)
