porsche 2020 (macan) crankshaft conrod dual-mass flywheel parts diagram

102-005 - Crankshaft conrod Dual-mass flywheel

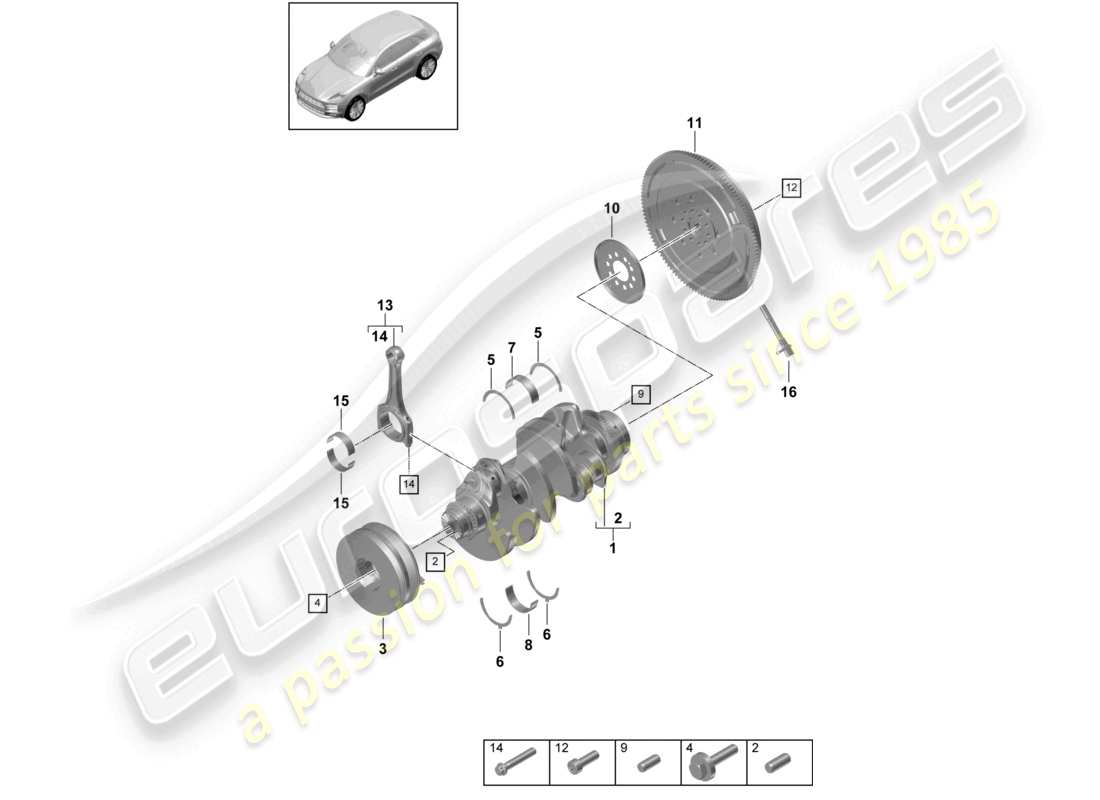

Porsche 2020 (Macan) Crankshaft conrod Dual-mass flywheel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: PAC105019A
                                  crankshaft
                                  from £2,171.40
                                  from £2,171.40
                                  crankshaft Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: N 10738601
                                  SPRING PIN 4X20
                                  from £0.49
                                  from £0.49
                                  PIN Genuine Porsche Part - New (to order)
                                  ROLL PIN Genuine Lamborghini - New (to order)
                                  # 3
                                  MPN: 9A710525110
                                  VIBRATION DAMPER ALSO USE: 1X N 907 740 02
                                  from £186.87
                                  from £186.87
                                  VIBRATION DAMPER Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: N 90774002
                                  HEXAGON HEAD BOLT (COMBI) M16X1,5X75
                                  from £9.81
                                  from £9.81
                                  BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                                  HEXAGON HEAD BOLT Genuine Lamborghini - New (to order)
                                  # 5
                                  MPN: 9A700763700
                                  THRUST WASHER UPPER
                                  from £6.89
                                  from £6.89
                                  THRUST WASHER Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 9A700763800
                                  THRUST WASHER LOWER
                                  from £6.89
                                  from £6.89
                                  THRUST WASHER Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 9A710556110
                                  CRANKSHAFT BEARING SHELL UPPER IDENTIFICATION: >>>>RED
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 9A710556111
                                  CRANKSHAFT BEARING SHELL UPPER IDENTIFICATION: >>>>BLACK
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 9A710556112
                                  crankshaft bearing shell upper Identification: >>>>yellow
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 9A710556113
                                  CRANKSHAFT BEARING SHELL UPPER IDENTIFICATION: >>>>GREEN
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 9A710556114
                                  CRANKSHAFT BEARING SHELL UPPER IDENTIFICATION: >>>>BLUE
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 9A710559110
                                  CRANKSHAFT BEARING SHELL LOWER IDENTIFICATION: >>>>RED
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 9A710559111
                                  CRANKSHAFT BEARING SHELL LOWER IDENTIFICATION: >>>>BLACK
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 9A710559112
                                  CRANKSHAFT BEARING SHELL LOWER IDENTIFICATION: >>>>YELLOW
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 9A710559113
                                  CRANKSHAFT BEARING SHELL LOWER IDENTIFICATION: >>>>GREEN
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 9A710559114
                                  CRANKSHAFT BEARING SHELL LOWER IDENTIFICATION: >>>>BLUE
                                  from £11.78
                                  from £11.78
                                  CRANKSHAFT BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: N 0131991
                                  CYLINDER PIN 6M6X12
                                  from £0.74
                                  from £0.74
                                  dowel pin - 6 X 12 Genuine Porsche Part - New (to order)
                                  PARALLEL PIN 6M6X14 Genuine Lamborghini - New In stock
                                  # 10
                                  MPN: 95810218900
                                  CLUTCH PLATE
                                  from £33.05
                                  from £33.05
                                  DRIVING DISK Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 95810232712
                                  CLUTCH PLATE ALSO USE: 10X N 909 294 01
                                  from £363.72
                                  from £363.72
                                  DRIVING DISK Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: N 90929401
                                  SOCKET HEAD BOLT WITH INNER M10X1X27 MULTIPOINT HEAD
                                  from £3.89
                                  from £3.89
                                  BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: PAC198401A
                                  1 SET: CONNECTING RODS
                                  from £1,237.37
                                  from £1,237.37
                                  1 SET OF CONNECTING RODS Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: WHT003466
                                  BOLT - CONNECTING ROD M9X49
                                  from £2.43
                                  from £2.43
                                  BOLT - CONNECTING ROD Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 9A710570200
                                  connecting rod bearing shell Identification: >>>>blue
                                  from £9.22
                                  from £9.22
                                  CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 9A710570210
                                  connecting rod bearing shell Identification: >>>>yellow
                                  from £9.22
                                  from £9.22
                                  CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 9A710570220
                                  connecting rod bearing shell Identification: >>>>red
                                  from £9.22
                                  from £9.22
                                  CONNECTING ROD BEARING SHELL Genuine Porsche Part - New (to order)
                                  # 16
                                  -
                                  IMPULSE SENDER SEE ILLUSTRATION, ITEM: 101-105,26
