porsche 2020 (macan) cylinder head parts diagram

103-005 - CYLINDER HEAD

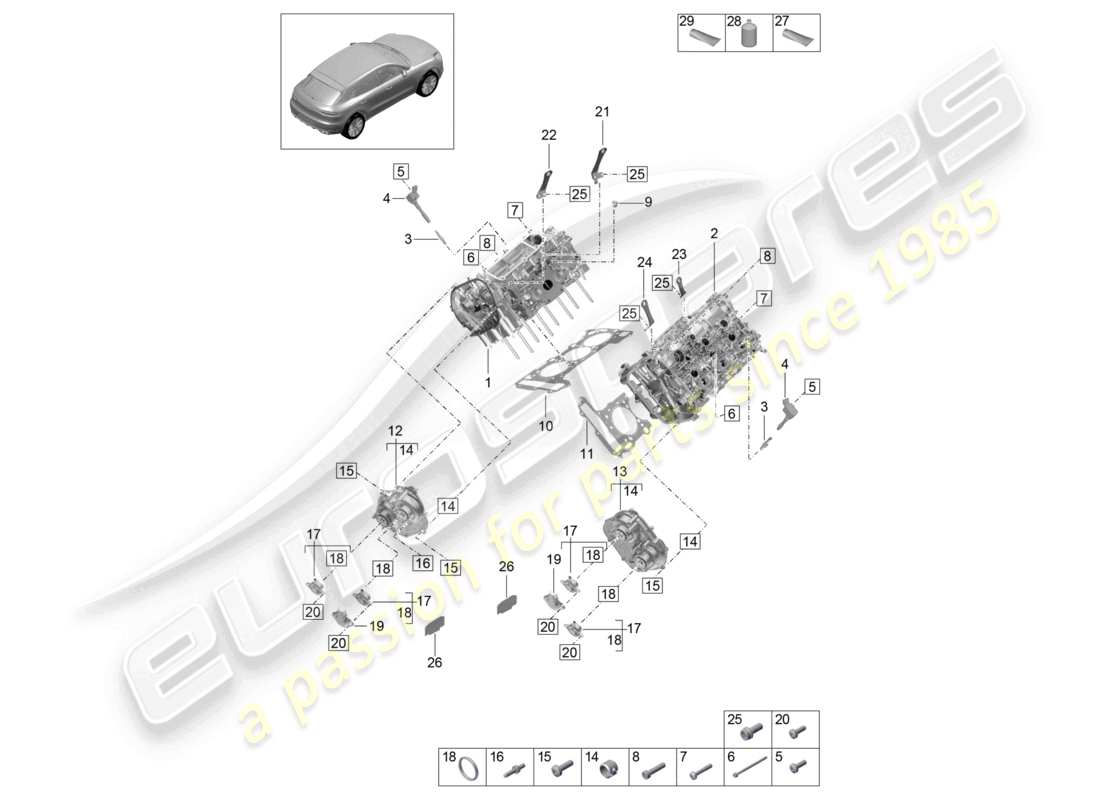

Porsche 2020 (Macan) Cylinder head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 1
                                                            MPN: PAC103061A
                                                            COMPLETE CYLINDER HEAD CYLINDERS 4-6 (WITHOUT CAMSHAFT)
                                                            from £2,520.41
                                                            from £2,520.41
                                                            This part replaces part number 9A710306110
                                                            COMPLETE CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: PAC103062A
                                                            COMPLETE CYLINDER HEAD CYLINDERS 1-3 (WITHOUT CAMSHAFT)
                                                            from £2,574.03
                                                            from £2,574.03
                                                            COMPLETE CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                            # 3
                                                            MPN: 9A790560150
                                                            SPARK PLUG NGK ALSO USE: 000 043 210 83
                                                            from £29.04
                                                            from £29.04
                                                            SPARK PLUG Genuine Porsche Part - New In stock
                                                            # 4
                                                            MPN: 9A7905110
                                                            IGNITION COIL WITH SPARK PLUG CONNECTOR
                                                            from £64.96
                                                            from £64.96
                                                            This part replaces part number 95890511001 - and 1 more. Click to view details
                                                            IGNITION COIL WITH SPARK PLUG CONNECTOR Genuine Porsche Part - New (to order)
                                                            # 5
                                                            MPN: N 10405702
                                                            Hexagon socket head M6X45 bolt
                                                            from £0.63
                                                            from £0.63
                                                            HEXAGONAL SOCKET HEAD Genuine Porsche Part - New (to order)
                                                            HEXALOBULAR SOCKET M6X45 Genuine Lamborghini - New In stock
                                                            # 6
                                                            MPN: WHT005739
                                                            SOCKET HEAD BOLT WITH INNER M10X170 MULTIPOINT HEAD
                                                            from £6.67
                                                            from £6.67
                                                            BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
                                                            # 7
                                                            MPN: N 91127602
                                                            HEXAGON SOCKET FLAT M6X35X16 HEAD BOLT
                                                            from £1.00
                                                            from £1.00
                                                            HEXAGON SOCKET FLAT HEAD BOLT Genuine Porsche Part - New (to order)
                                                            HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                                                            # 8
                                                            MPN: N 90903502
                                                            SOCKET HEAD BOLT WITH INNER M8X35 MULTIPOINT HEAD
                                                            from £1.84
                                                            from £1.84
                                                            BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
                                                            # 9
                                                            MPN: 9A712134901
                                                            NON-RETURN VALVE
                                                            from £9.88
                                                            from £9.88
                                                            CHECK VALVE Genuine Porsche Part - New (to order)
                                                            # 10
                                                            MPN: 9A710314900
                                                            CYLINDER HEAD GASKET CYLINDERS 4-6
                                                            Supersession
                                                            Supersession
                                                            Genuine Porsche Part (no longer available to order)
                                                            # 11
                                                            MPN: 9A710314800
                                                            CYLINDER HEAD GASKET CYLINDERS 1-3
                                                            Supersession
                                                            Supersession
                                                            Genuine Porsche Part (no longer available to order)
                                                            # 12
                                                            MPN: 9A710928506
                                                            COVER CYLINDERS 4-6 TIMING CHAIN ALSO USE: 1X 000 043 305 10
                                                            from £42.70
                                                            from £42.70
                                                            COVER Genuine Porsche Part - New (to order)
                                                            # 13
                                                            MPN: 9A710928606
                                                            COVER CYLINDERS 1-3 TIMING CHAIN ALSO USE: 1X 000 043 305 10
                                                            from £43.56
                                                            from £43.56
                                                            COVER Genuine Porsche Part - New (to order)
                                                            # 14
                                                            MPN: 95810113900
                                                            DOWEL SLEEVE 8,2X6,5
                                                            from £0.47
                                                            from £0.47
                                                            SLEEVE Genuine Porsche Part - New (to order)
                                                            # 15
                                                            MPN: N 10124306
                                                            Hexagon socket flat M6X20 head bolt
                                                            from £0.87
                                                            from £0.87
                                                            This part replaces part number 99907334401 - and 1 more. Click to view details
                                                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                            HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
                                                            # 16
                                                            MPN: N 91004802
                                                            DOUBLE STUD WITH HEXAGON DRIVE M6X22/M6X12
                                                            from £6.11
                                                            from £6.11
                                                            DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                                            DOUBLE HEX. HD. BOLT Genuine Lamborghini - New (to order)
                                                            # 17
                                                            MPN: PAC109259
                                                            SOLENOID VALVE
                                                            from £45.69
                                                            from £45.69
                                                            SOLENOID VALVE Genuine Porsche Part - New (to order)
                                                            # 18
                                                            MPN: 9A790614500
                                                            SEAL RING
                                                            from £3.93
                                                            from £3.93
                                                            SEAL RING Genuine Porsche Part - New (to order)
                                                            # 19
                                                            MPN: 9A710355503
                                                            GUARD PLATE
                                                            from £10.17
                                                            from £10.17
                                                            SHIELD Genuine Porsche Part - New (to order)
                                                            # 20
                                                            MPN: N 10196103
                                                            Oval socket head bolt M6X18 with hex drive
                                                            from £0.78
                                                            from £0.78
                                                            oval socket head bolt Genuine Porsche Part - New In stock
                                                            HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
                                                            # 21
                                                            MPN: 9A710339204
                                                            TRANSPORTATION SHACKLE LEFT
                                                            from £10.46
                                                            from £10.46
                                                            TRANSPORTATION SHACKLE Genuine Porsche Part - New (to order)
                                                            # 22
                                                            MPN: PAC103390
                                                            TRANSPORTATION SHACKLE LEFT
                                                            from £10.52
                                                            from £10.52
                                                            TRANSPORTATION SHACKLE Genuine Porsche Part - New (to order)
                                                            # 23
                                                            MPN: 9A710339203
                                                            TRANSPORTATION SHACKLE RIGHT
                                                            from £10.46
                                                            from £10.46
                                                            TRANSPORTATION SHACKLE Genuine Porsche Part - New (to order)
                                                            # 24
                                                            MPN: 9A710339001
                                                            TRANSPORTATION SHACKLE RIGHT
                                                            from £10.46
                                                            from £10.46
                                                            TRANSPORTATION SHACKLE Genuine Porsche Part - New (to order)
                                                            # 25
                                                            MPN: N 91048802
                                                            SCREW WITH INT. SERRATIONS M8X20
                                                            from £1.67
                                                            from £1.67
                                                            SCREW WITH INT. SERRATIONS Genuine Porsche Part - New (to order)
                                                            12-POINT SOCKET M8X20 Genuine Lamborghini - New In stock
                                                            # 26
                                                            MPN: PAB97146100
                                                            HEAT INSULATION
                                                            from £11.93
                                                            from £11.93
                                                            heat deflector Genuine Porsche Part - New (to order)
                                                            # 27
                                                            MPN: 00004330510
                                                            SEALANT 50ML 1 TUBE
                                                            from £27.36
                                                            from £27.36
                                                            This part replaces part number 00004330039 - and 1 more. Click to view details
                                                            SEALANT Genuine Porsche Part - New (to order)
                                                            # 28
                                                            MPN: 00004320993
                                                            CLEANING SOLUTION 100ML ANTI-CORROSION AGENT
                                                            from £18.50
                                                            from £18.50
                                                            CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                                            # 29
                                                            MPN: 00004321083
                                                            GREASE FOR IGNITION COIL
                                                            from £22.74
                                                            from £22.74
                                                            GREASE Genuine Porsche Part - New (to order)
