PT2G (4-cylinder SI engine 2.0 l unit 06L.D)
porsche 2020 (macan) cylinder head parts diagram

103-010 - CYLINDER HEAD

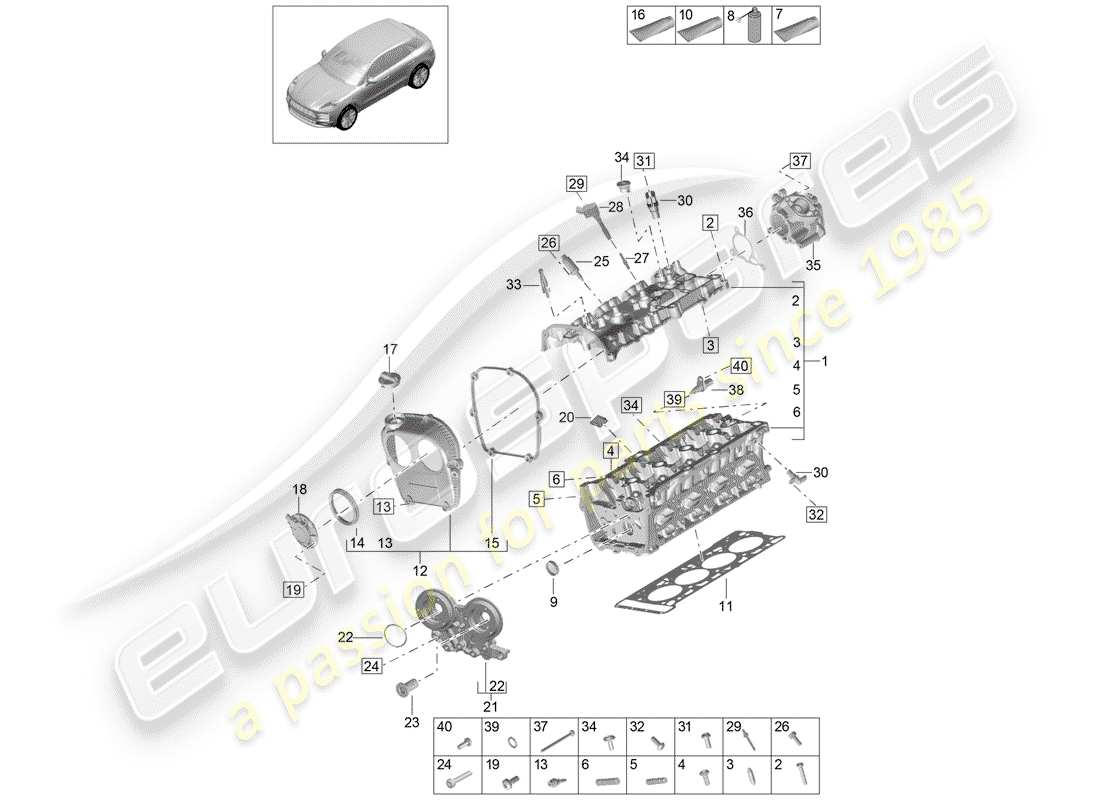

Porsche 2020 (Macan) Cylinder head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 1
                                                                          MPN: PAC103063
                                                                          Complete cylinder head (without camshaft)
                                                                          Complete cylinder head (without camshaft)
                                                                          from £1,754.65
                                                                          from £1,754.65
                                                                          COMPLETE CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                                          # 1
                                                                          MPN: PAC103063B
                                                                          Complete cylinder head (without camshaft)
                                                                          from £2,789.55
                                                                          from £2,789.55
                                                                          CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                                          # 2
                                                                          MPN: N 10554005
                                                                          ROUND HD. SCREW M6X35
                                                                          ROUND HD. SCREW M6X35
                                                                          from £1.79
                                                                          from £1.79
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          SCREW M6X35 Genuine Lamborghini - New In stock
                                                                          # 2
                                                                          MPN: PAF105540
                                                                          ROUND HD. SCREW M6X35
                                                                          from £2.04
                                                                          from £2.04
                                                                          This part replaces part number N 10554005
                                                                          ROUND HD. SCREW Genuine Porsche Part - New (to order)
                                                                          # 3
                                                                          MPN: 95510425100
                                                                          DOWEL SLEEVE M8X32
                                                                          from £8.73
                                                                          from £8.73
                                                                          SLEEVE Genuine Porsche Part - New (to order)
                                                                          # 4
                                                                          MPN: 9A700530502
                                                                          SOCKET HEAD BOLT M10X115X85
                                                                          from £3.93
                                                                          from £3.93
                                                                          SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                                                          # 5
                                                                          MPN: N 91231701
                                                                          THREADED PIN M8X25
                                                                          from £0.78
                                                                          from £0.78
                                                                          STUD Genuine Porsche Part - New (to order)
                                                                          # 6
                                                                          MPN: N 10770201
                                                                          THREADED PIN M6FOX40
                                                                          from £0.82
                                                                          from £0.82
                                                                          STUD Genuine Porsche Part - New (to order)
                                                                          # 7
                                                                          MPN: 00004330510
                                                                          SEALANT 50ML 1 TUBE (BETWEEN THE CAMSHAFT COVER AND THE CYLINDER HEAD)
                                                                          from £27.36
                                                                          from £27.36
                                                                          This part replaces part number 00004330039 - and 1 more. Click to view details
                                                                          SEALANT Genuine Porsche Part - New (to order)
                                                                          # 8
                                                                          MPN: 00004321094
                                                                          CLEANING SOLUTION 300ML SPRAY CAN
                                                                          from £18.49
                                                                          from £18.49
                                                                          CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                                                          # 9
                                                                          MPN: 95810311300
                                                                          END CAP 36,6
                                                                          from £2.02
                                                                          from £2.02
                                                                          SEALING CAP Genuine Porsche Part - New (to order)
                                                                          # 10
                                                                          MPN: 00004330636
                                                                          sealant 18ml to be used for item: 9
                                                                          sealant 18ml to be used for item: 9
                                                                          from £24.77
                                                                          from £24.77
                                                                          SEALANT Genuine Porsche Part - New (to order)
                                                                          # 10
                                                                          MPN: V04015005G
                                                                          sealant 18ml to be used for item: 9
                                                                          from £28.25
                                                                          from £28.25
                                                                          SEALANT Genuine Porsche Part - New (to order)
                                                                          # 11
                                                                          MPN: 95810338310
                                                                          CYLINDER HEAD GASKET
                                                                          from £75.63
                                                                          from £75.63
                                                                          CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                                          # 12
                                                                          MPN: 95810326910
                                                                          cover for timing case upper
                                                                          from £83.07
                                                                          from £83.07
                                                                          timing case cover Genuine Porsche Part - New (to order)
                                                                          # 13
                                                                          MPN: 95810534301
                                                                          SECURING ELEMENT
                                                                          from £8.75
                                                                          from £8.75
                                                                          ATTACHMENT ELEMENT Genuine Porsche Part - New (to order)
                                                                          # 14
                                                                          MPN: 95810358300
                                                                          SEAL MAGNET
                                                                          from £12.21
                                                                          from £12.21
                                                                          GASKET Genuine Porsche Part - New (to order)
                                                                          # 15
                                                                          MPN: 95810348300
                                                                          SEAL
                                                                          from £23.26
                                                                          from £23.26
                                                                          GASKET Genuine Porsche Part - New (to order)
                                                                          # 16
                                                                          MPN: 00004330510
                                                                          SEALANT 50ML TO BE USED FOR ITEM: 12 ALSO USE: 1X 000 043 210 94
                                                                          from £27.36
                                                                          from £27.36
                                                                          This part replaces part number 00004330039 - and 1 more. Click to view details
                                                                          SEALANT Genuine Porsche Part - New (to order)
                                                                          # 17
                                                                          MPN: 95810348500
                                                                          END CAP WITH SEAL OEL
                                                                          from £15.02
                                                                          from £15.02
                                                                          END CAP WITH SEAL Genuine Porsche Part - New (to order)
                                                                          # 18
                                                                          MPN: 95810925911
                                                                          MAGNET
                                                                          from £64.95
                                                                          from £64.95
                                                                          MAGNET Genuine Porsche Part - New (to order)
                                                                          # 19
                                                                          MPN: N 10451409
                                                                          HEXAGON SOCKET FLAT HEAD M6X16 BOLT, SELF-LOCKING ONLY TO BE USED FOR: 1X 958 103 144 10
                                                                          from £0.91
                                                                          from £0.91
                                                                          BOLT, WITH HEX. SOCKET HD. Genuine Porsche Part - New (to order)
                                                                          EXAGON SOCKET Genuine Lamborghini - New (to order)
                                                                          # 19
                                                                          MPN: N 10451405
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X16 ONLY TO BE USED FOR: PAB 103 144
                                                                          from £0.78
                                                                          from £0.78
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                          HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                          # 20
                                                                          MPN: 95810341100
                                                                          PARTITION
                                                                          from £7.19
                                                                          from £7.19
                                                                          PARTITION Genuine Porsche Part - New (to order)
                                                                          # 21
                                                                          MPN: 95810314410
                                                                          BRACKET ALSO USE: 6X N 104 514 09
                                                                          from £113.85
                                                                          from £113.85
                                                                          BRACKET Genuine Porsche Part - New (to order)
                                                                          # 22
                                                                          MPN: 9A700721200
                                                                          O-RING 52X3
                                                                          from £3.38
                                                                          from £3.38
                                                                          O-RING Genuine Porsche Part - New (to order)
                                                                          # 23
                                                                          MPN: PAC109257
                                                                          CONTROL VALVE
                                                                          CONTROL VALVE
                                                                          from £42.75
                                                                          from £42.75
                                                                          CONTROL VALVE Genuine Porsche Part - New (to order)
                                                                          # 23
                                                                          MPN: PAB109257A
                                                                          CONTROL VALVE
                                                                          from £51.92
                                                                          from £51.92
                                                                          CONTROL VALVE Genuine Porsche Part - New (to order)
                                                                          # 24
                                                                          MPN: N 91232801
                                                                          SOCKET HEAD BOLT WITH M6X52 INNER MULTIPOINT HEAD
                                                                          from £1.15
                                                                          from £1.15
                                                                          SOCKET HD. SCREW WITH Genuine Porsche Part - New (to order)
                                                                          # 25
                                                                          MPN: 95810369702
                                                                          THROTTLE CONTROL ELEMENT
                                                                          THROTTLE CONTROL ELEMENT
                                                                          from £24.44
                                                                          from £24.44
                                                                          ACTUATOR Genuine Porsche Part - New (to order)
                                                                          # 26
                                                                          MPN: N 10622502
                                                                          Socket head bolt with M5X12 hexagon socket head
                                                                          from £0.61
                                                                          from £0.61
                                                                          BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                                                          # 27
                                                                          -

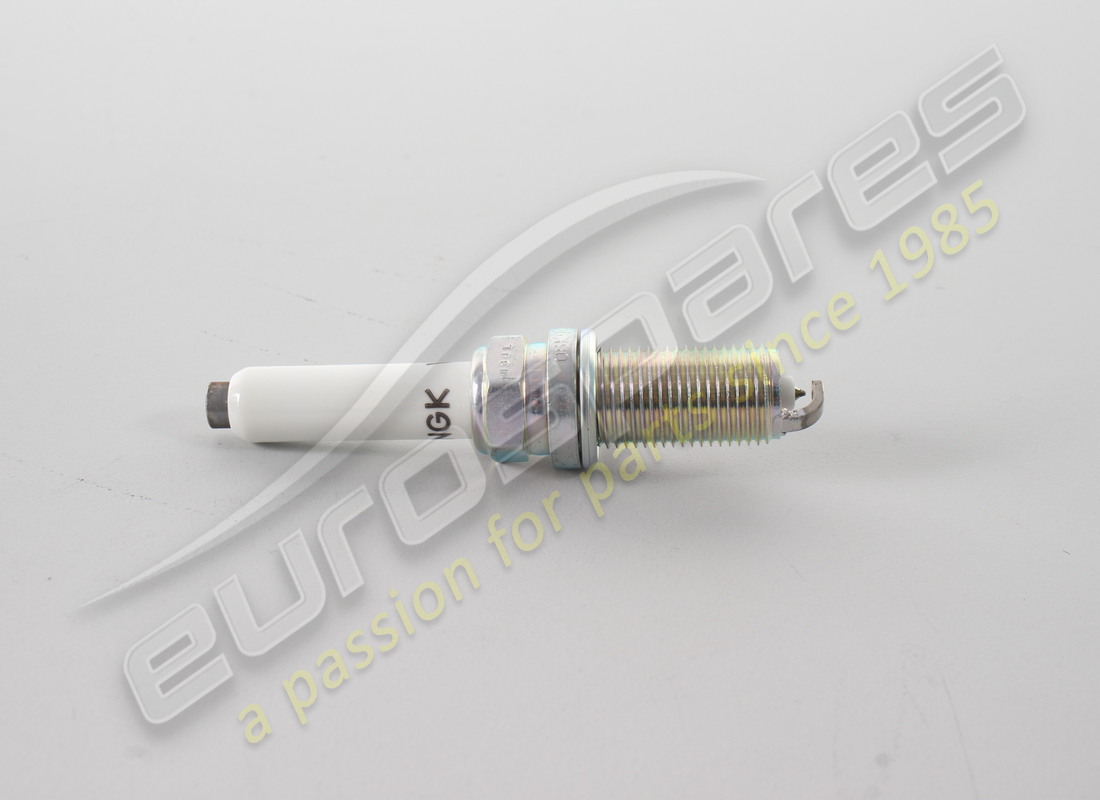

                                                                          SPARK PLUG SEE ILLUSTRATION: 103-030
                                                                          # 28
                                                                          -
                                                                          IGNITION COIL SEE ILLUSTRATION: 103-030
                                                                          # 29
                                                                          MPN: PAF912292
                                                                          DOUBLE STUD WITH HEXAGON DRIVE M6GFX45-M6X12
                                                                          from £3.74
                                                                          from £3.74
                                                                          DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                                                          # 30
                                                                          MPN: PAE907601
                                                                          IMPULSE SENDER
                                                                          from £61.95
                                                                          from £61.95
                                                                          IMPULSE SENDER Genuine Porsche Part - New (to order)
                                                                          # 31
                                                                          MPN: N 10654902
                                                                          FLAT HEAD BOLT WITH HEXAGON M6X16 SOCKET HEAD, THREAD FORMING
                                                                          from £0.51
                                                                          from £0.51
                                                                          FLAT HEAD BOLT WITH HEXAGON Genuine Porsche Part - New (to order)
                                                                          IN-6RD-FL-KOPF-SHR Genuine Lamborghini - New (to order)
                                                                          # 32
                                                                          MPN: N 10451405
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                          from £0.78
                                                                          from £0.78
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                          HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                          # 33
                                                                          MPN: WHT005404
                                                                          BALL PIN M6X12
                                                                          from £3.05
                                                                          from £3.05
                                                                          BALLPIN Genuine Porsche Part - New (to order)
                                                                          # 34
                                                                          MPN: 95811541810
                                                                          SEALING CAP M6X16
                                                                          from £5.30
                                                                          from £5.30
                                                                          SEALING CAP Genuine Porsche Part - New (to order)
                                                                          # 35
                                                                          MPN: PAC145100
                                                                          VACUUM PUMP
                                                                          VACUUM PUMP
                                                                          from £272.38
                                                                          from £272.38
                                                                          VACUUM PUMP Genuine Porsche Part - New (to order)
                                                                          # 35
                                                                          MPN: PAC145100B
                                                                          VACUUM PUMP
                                                                          from £364.12
                                                                          from £364.12
                                                                          VACUUM PUMP Genuine Porsche Part - New (to order)
                                                                          # 36
                                                                          MPN: 95810312100
                                                                          SEAL
                                                                          from £17.58
                                                                          from £17.58
                                                                          GASKET Genuine Porsche Part - New (to order)
                                                                          # 37
                                                                          MPN: N 10739401
                                                                          BOLT,HEX.HD.WITH SHOUL.(COMBI) M6X90X70
                                                                          from £2.29
                                                                          from £2.29
                                                                          BOLT,HEX.HD.WITH SHOUL.(COMBI) Genuine Porsche Part - New (to order)
                                                                          DUO HEXAGON FLANGEBM6X90X70 Genuine Lamborghini - New (to order)
                                                                          # 38
                                                                          MPN: PAB919523
                                                                          TEMPERATURE SENSOR
                                                                          from £58.66
                                                                          from £58.66
                                                                          TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                                          # 39
                                                                          MPN: WHT002287B
                                                                          O-RING 5,6X2
                                                                          from £2.76
                                                                          from £2.76
                                                                          O-RING Genuine Porsche Part - New (to order)
                                                                          O-RING Genuine Lamborghini - New (to order)
                                                                          # 40
                                                                          MPN: N 91096701
                                                                          OVAL HEXAGON SOCKET HEAD BOLT
                                                                          from £0.78
                                                                          from £0.78
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                                          # 41
                                                                          MPN: N 10156206
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X30
                                                                          from £0.87
                                                                          from £0.87
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          HEXALOBULAR SOCKETM6X30 Genuine Lamborghini - New (to order)
                                                                          # 42
                                                                          MPN: 00004321083
                                                                          GREASE MOLYCOTE FOR G5008 IGNITION COIL
                                                                          from £22.74
                                                                          from £22.74
                                                                          GREASE Genuine Porsche Part - New (to order)
