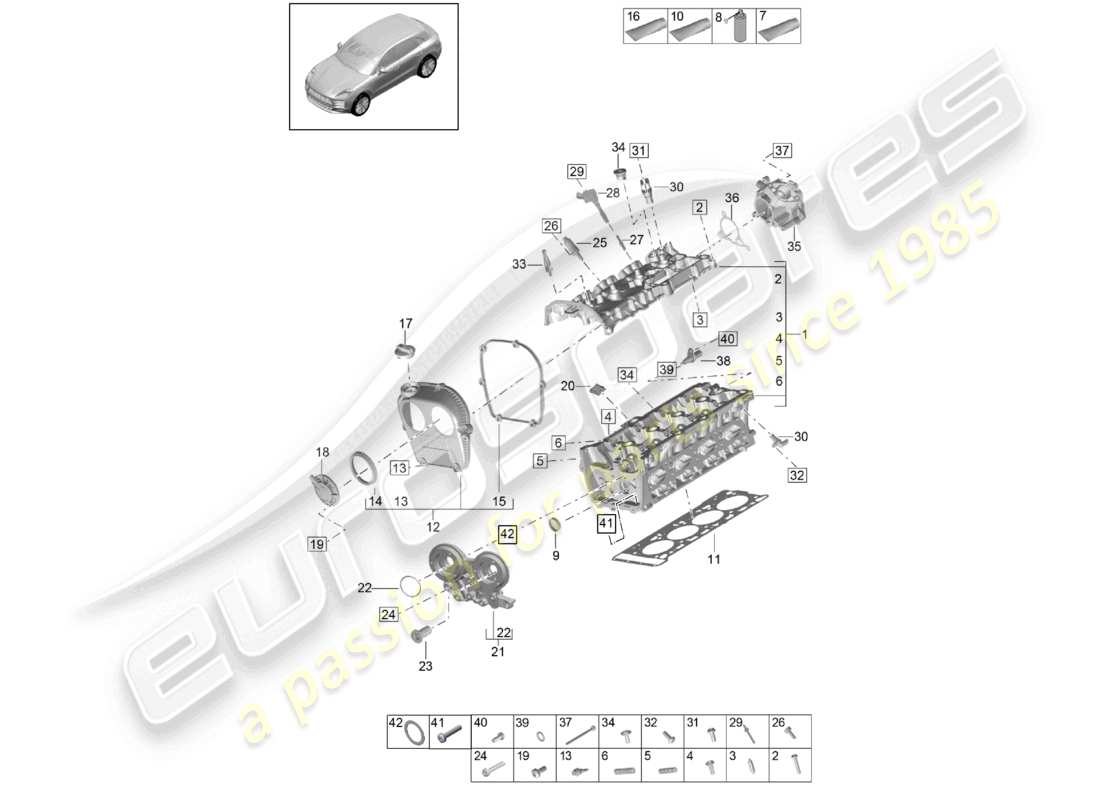

103-020 - CYLINDER HEAD

Porsche 2020 (Macan) Cylinder head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Key
                                                                                    Price
                                                                                    # 1
                                                                                    MPN: 9A7103063
                                                                                    Complete cylinder head (without camshaft)
                                                                                    from £2,790.47
                                                                                    from £2,790.47
                                                                                    CYLINDER HEAD Genuine Porsche Part - New (to order)
                                                                                    # 2
                                                                                    MPN: PAF105540
                                                                                    ROUND HD. SCREW M6X35
                                                                                    from £2.04
                                                                                    from £2.04
                                                                                    This part replaces part number N 10554005
                                                                                    ROUND HD. SCREW Genuine Porsche Part - New (to order)
                                                                                    # 3
                                                                                    MPN: 95510425100
                                                                                    DOWEL SLEEVE M8X32
                                                                                    from £8.73
                                                                                    from £8.73
                                                                                    SLEEVE Genuine Porsche Part - New (to order)
                                                                                    # 4
                                                                                    MPN: PAF009271
                                                                                    FLAT HEAD MULTI-POINT M10X115X85 SOCKET BOLT
                                                                                    from £3.81
                                                                                    from £3.81
                                                                                    FLAT HEAD MULTI-POINT SOCKET BOLT Genuine Porsche Part - New (to order)
                                                                                    # 5
                                                                                    MPN: PAF009402A
                                                                                    THREADED PIN M8X53 EXHAUST GAS TURBOCHARGER
                                                                                    from £2.19
                                                                                    from £2.19
                                                                                    THREADED PIN Genuine Porsche Part - New (to order)
                                                                                    # 6
                                                                                    -
                                                                                    NOT FOR THIS EQUIPMENT VARIANT 1X
                                                                                    # 7
                                                                                    MPN: 00004330510
                                                                                    SEALANT 50ML 1 TUBE (BETWEEN THE CAMSHAFT COVER AND THE CYLINDER HEAD)
                                                                                    from £27.36
                                                                                    from £27.36
                                                                                    This part replaces part number 00004330039 - and 1 more. Click to view details
                                                                                    SEALANT Genuine Porsche Part - New (to order)
                                                                                    # 8
                                                                                    MPN: 00004321094
                                                                                    CLEANING SOLUTION 300ML SPRAY CAN
                                                                                    from £18.49
                                                                                    from £18.49
                                                                                    CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                                                                    # 9
                                                                                    MPN: PAF008983
                                                                                    END CAP 36,5
                                                                                    from £7.01
                                                                                    from £7.01
                                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                                    # 10
                                                                                    MPN: 00004330636
                                                                                    sealant 18ml to be used for item: 9
                                                                                    from £24.77
                                                                                    from £24.77
                                                                                    SEALANT Genuine Porsche Part - New (to order)
                                                                                    # 10
                                                                                    MPN: V04015005G
                                                                                    sealant 18ml to be used for item: 9
                                                                                    sealant 18ml to be used for item: 9
                                                                                    from £28.25
                                                                                    from £28.25
                                                                                    SEALANT Genuine Porsche Part - New (to order)
                                                                                    # 11
                                                                                    MPN: 9A7103383
                                                                                    CYLINDER HEAD GASKET
                                                                                    from £75.44
                                                                                    from £75.44
                                                                                    CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                                                                    # 12
                                                                                    MPN: 9A7103269
                                                                                    COVER
                                                                                    from £84.80
                                                                                    from £84.80
                                                                                    COVER Genuine Porsche Part - New (to order)
                                                                                    # 13
                                                                                    MPN: 95810534301
                                                                                    SECURING ELEMENT
                                                                                    from £8.75
                                                                                    from £8.75
                                                                                    ATTACHMENT ELEMENT Genuine Porsche Part - New (to order)
                                                                                    # 14
                                                                                    MPN: 9A7103583
                                                                                    SEAL MAGNET
                                                                                    from £14.46
                                                                                    from £14.46
                                                                                    SEAL Genuine Porsche Part - New (to order)
                                                                                    # 15
                                                                                    MPN: 9A7103483
                                                                                    SEAL
                                                                                    from £25.87
                                                                                    from £25.87
                                                                                    SEAL Genuine Porsche Part - New (to order)
                                                                                    # 16
                                                                                    -
                                                                                    NOT FOR THIS EQUIPMENT VARIANT
                                                                                    # 17
                                                                                    MPN: 9A7103485
                                                                                    END CAP
                                                                                    from £16.31
                                                                                    from £16.31
                                                                                    END CAP Genuine Porsche Part - New (to order)
                                                                                    # 18
                                                                                    MPN: 9A7109259
                                                                                    MAGNET
                                                                                    from £49.26
                                                                                    from £49.26
                                                                                    MAGNET Genuine Porsche Part - New (to order)
                                                                                    # 19
                                                                                    MPN: N 10451405
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                                    from £0.78
                                                                                    from £0.78
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                                    HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                                    # 20
                                                                                    MPN: 95810341100
                                                                                    PARTITION
                                                                                    from £7.19
                                                                                    from £7.19
                                                                                    PARTITION Genuine Porsche Part - New (to order)
                                                                                    # 21
                                                                                    MPN: PAC103144
                                                                                    BRACKET
                                                                                    from £167.24
                                                                                    from £167.24
                                                                                    BRACKET Genuine Porsche Part - New (to order)
                                                                                    # 22
                                                                                    MPN: 9A700721200
                                                                                    O-RING 52X3
                                                                                    from £3.38
                                                                                    from £3.38
                                                                                    O-RING Genuine Porsche Part - New (to order)
                                                                                    # 23
                                                                                    MPN: PAC109257B
                                                                                    CONTROL VALVE VALVE
                                                                                    from £62.30
                                                                                    from £62.30
                                                                                    CONTROL VALVE Genuine Porsche Part - New (to order)
                                                                                    # 24
                                                                                    MPN: N 91232801
                                                                                    SOCKET HEAD BOLT WITH M6X52 INNER MULTIPOINT HEAD
                                                                                    from £1.15
                                                                                    from £1.15
                                                                                    SOCKET HD. SCREW WITH Genuine Porsche Part - New (to order)
                                                                                    # 25
                                                                                    MPN: PAB103697
                                                                                    ADJUSTER UNIT
                                                                                    from £35.45
                                                                                    from £35.45
                                                                                    ADJUSTER UNIT Genuine Porsche Part - New (to order)
                                                                                    # 26
                                                                                    MPN: N 10622502
                                                                                    Socket head bolt with M5X12 hexagon socket head
                                                                                    from £0.61
                                                                                    from £0.61
                                                                                    BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                                                                    # 27
                                                                                    -
                                                                                    SPARK PLUG SEE ILLUSTRATION: 103-040
                                                                                    # 28
                                                                                    -
                                                                                    IGNITION COIL SEE ILLUSTRATION: 103-040
                                                                                    # 29
                                                                                    MPN: PAF912292
                                                                                    DOUBLE STUD WITH HEXAGON DRIVE M6GFX45-M6X12
                                                                                    from £3.74
                                                                                    from £3.74
                                                                                    DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                                                                    # 30
                                                                                    MPN: 9A7907601
                                                                                    impulse sender Camshaft With seal
                                                                                    from £53.66
                                                                                    from £53.66
                                                                                    IMPULSE SENDER Genuine Porsche Part - New (to order)
                                                                                    # 31
                                                                                    MPN: N 10654902
                                                                                    FLAT HEAD BOLT WITH HEXAGON M6X16 SOCKET HEAD, THREAD FORMING
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    FLAT HEAD BOLT WITH HEXAGON Genuine Porsche Part - New (to order)
                                                                                    IN-6RD-FL-KOPF-SHR Genuine Lamborghini - New (to order)
                                                                                    # 32
                                                                                    MPN: N 10451405
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                                    from £0.78
                                                                                    from £0.78
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                                    HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                                    # 33
                                                                                    MPN: WHT005404
                                                                                    BALL PIN M6X12
                                                                                    from £3.05
                                                                                    from £3.05
                                                                                    BALLPIN Genuine Porsche Part - New (to order)
                                                                                    # 34
                                                                                    MPN: 95811541810
                                                                                    SEALING CAP M6X16
                                                                                    from £5.30
                                                                                    from £5.30
                                                                                    SEALING CAP Genuine Porsche Part - New (to order)
                                                                                    # 35
                                                                                    MPN: 9A7145100
                                                                                    VACUUM PUMP
                                                                                    from £333.02
                                                                                    from £333.02
                                                                                    VACUUM PUMP Genuine Porsche Part - New (to order)
                                                                                    # 36
                                                                                    MPN: 9A7103121
                                                                                    SEAL
                                                                                    from £19.30
                                                                                    from £19.30
                                                                                    SEAL Genuine Porsche Part - New (to order)
                                                                                    # 37
                                                                                    MPN: N 10739401
                                                                                    BOLT,HEX.HD.WITH SHOUL.(COMBI) M6X90X70
                                                                                    from £2.29
                                                                                    from £2.29
                                                                                    BOLT,HEX.HD.WITH SHOUL.(COMBI) Genuine Porsche Part - New (to order)
                                                                                    DUO HEXAGON FLANGEBM6X90X70 Genuine Lamborghini - New (to order)
                                                                                    # 38
                                                                                    MPN: PAB919523
                                                                                    TEMPERATURE SENSOR
                                                                                    from £58.66
                                                                                    from £58.66
                                                                                    TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                                                    # 39
                                                                                    MPN: WHT002287B
                                                                                    O-RING 5,6X2
                                                                                    from £2.76
                                                                                    from £2.76
                                                                                    O-RING Genuine Porsche Part - New (to order)
                                                                                    O-RING Genuine Lamborghini - New (to order)
                                                                                    # 40
                                                                                    MPN: N 91096701
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                                    from £0.78
                                                                                    from £0.78
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                                    HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                                                    # 41
                                                                                    MPN: N 10156206
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT M6X30 D >>- 17.03.2022
                                                                                    from £0.87
                                                                                    from £0.87
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                                    HEXALOBULAR SOCKETM6X30 Genuine Lamborghini - New (to order)
                                                                                    # 41
                                                                                    MPN: N 10156207
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT M6X30 D - 18.03.2022>>
                                                                                    from £0.56
                                                                                    from £0.56
                                                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                                    HEXALOBULAR SOCKETM6X30 Genuine Lamborghini - New (to order)
                                                                                    # 42
                                                                                    MPN: WHT010095
                                                                                    SPACER
                                                                                    from £0.56
                                                                                    from £0.56
                                                                                    SPACER Genuine Porsche Part - New (to order)
