PTV8 (6-cylinder SI engine 2.9 l unit 06M.A) with GP2
porsche 2020 (macan) coolant cooling system parts diagram

105-055 - COOLANT COOLING SYSTEM

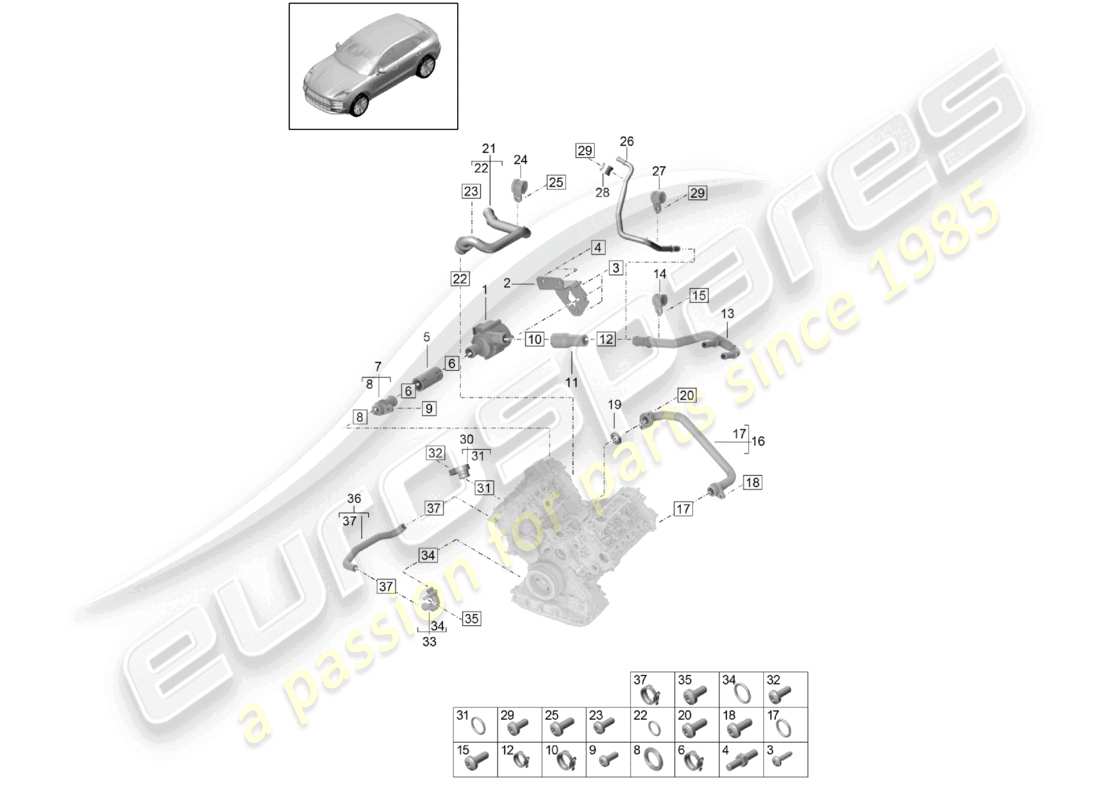

Porsche 2020 (Macan) Coolant cooling system Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 1
                                                                          MPN: 9A712160100
                                                                          COOLANT PUMP ELECTRIC
                                                                          COOLANT PUMP ELECTRIC
                                                                          from £124.59
                                                                          from £124.59
                                                                          WATER PUMP / COOLANT PUMP Genuine Porsche Part - New (to order)
                                                                          # 2
                                                                          MPN: 9A712109302
                                                                          BRACKET
                                                                          from £99.03
                                                                          from £99.03
                                                                          BRACKET Genuine Porsche Part - New (to order)
                                                                          # 3
                                                                          MPN: 9A700336100
                                                                          flat round head bolt TP3,5X20-R
                                                                          from £0.78
                                                                          from £0.78
                                                                          SCREW, ROUND HD Genuine Porsche Part - New (to order)
                                                                          # 4
                                                                          MPN: PAF910448
                                                                          DOUBLE STUD WITH HEXAGON DRIVE M6X14/M6X14
                                                                          from £1.70
                                                                          from £1.70
                                                                          DOUBLE STUD WITH HEXAGON DRIVE Genuine Porsche Part - New (to order)
                                                                          # 5
                                                                          MPN: 9A712105210
                                                                          HOSE
                                                                          from £8.25
                                                                          from £8.25
                                                                          HOSE Genuine Porsche Part - New (to order)
                                                                          # 6
                                                                          MPN: 99951265809
                                                                          HOSE CLAMP B27X12X1,7
                                                                          from £2.29
                                                                          from £2.29
                                                                          HOSE CLAMP Genuine Porsche Part - New In stock
                                                                          # 7
                                                                          MPN: 9A712115900
                                                                          CONNECTION PIECE
                                                                          from £16.22
                                                                          from £16.22
                                                                          ADAPTER Genuine Porsche Part - New (to order)
                                                                          # 8
                                                                          MPN: 9A700565200
                                                                          O-RING 17X3
                                                                          from £4.26
                                                                          from £4.26
                                                                          O-RING Genuine Porsche Part - New (to order)
                                                                          # 9
                                                                          MPN: N 10124309
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X20
                                                                          from £0.54
                                                                          from £0.54
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New (to order)
                                                                          # 10
                                                                          MPN: 99951265809
                                                                          HOSE CLAMP B27X12X1,7
                                                                          from £2.29
                                                                          from £2.29
                                                                          HOSE CLAMP Genuine Porsche Part - New In stock
                                                                          # 11
                                                                          MPN: 9A712105410
                                                                          COOLANT HOSE
                                                                          from £8.25
                                                                          from £8.25
                                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                                          # 12
                                                                          MPN: 95810651710
                                                                          HOSE CLAMP B21X12
                                                                          from £5.61
                                                                          from £5.61
                                                                          HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                          # 13
                                                                          MPN: PAC121085
                                                                          COOLANT PIPE
                                                                          from £35.72
                                                                          from £35.72
                                                                          water tube Genuine Porsche Part - New (to order)
                                                                          # 14
                                                                          MPN: N 10845201
                                                                          CLAMP 14X15
                                                                          from £1.77
                                                                          from £1.77
                                                                          CLAMP Genuine Porsche Part - New (to order)
                                                                          # 15
                                                                          MPN: N 10405604
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X14
                                                                          from £0.72
                                                                          from £0.72
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
                                                                          # 16
                                                                          MPN: PAC121071A
                                                                          COOLANT PIPE
                                                                          from £77.27
                                                                          from £77.27
                                                                          water tube Genuine Porsche Part - New (to order)
                                                                          # 17
                                                                          MPN: N 90365302
                                                                          O-RING 20X3
                                                                          from £2.04
                                                                          from £2.04
                                                                          O-RING Genuine Porsche Part - New (to order)
                                                                          O-RING Genuine Lamborghini - New (to order)
                                                                          # 18
                                                                          MPN: N 10124306
                                                                          Hexagon socket flat M6X20 head bolt
                                                                          from £0.87
                                                                          from £0.87
                                                                          This part replaces part number 99907334401 - and 1 more. Click to view details
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                          HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
                                                                          # 19
                                                                          MPN: 9A712107000
                                                                          SEAL
                                                                          from £3.05
                                                                          from £3.05
                                                                          GASKET Genuine Porsche Part - New In stock
                                                                          # 20
                                                                          MPN: N 10124306
                                                                          Hexagon socket flat M6X20 head bolt
                                                                          from £0.87
                                                                          from £0.87
                                                                          This part replaces part number 99907334401 - and 1 more. Click to view details
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                          HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
                                                                          # 21
                                                                          MPN: PAB12107501
                                                                          COOLANT PIPE
                                                                          from £59.57
                                                                          from £59.57
                                                                          water tube Genuine Porsche Part - New (to order)
                                                                          # 22
                                                                          MPN: 9A700565200
                                                                          O-RING 17X3
                                                                          from £4.26
                                                                          from £4.26
                                                                          O-RING Genuine Porsche Part - New (to order)
                                                                          # 23
                                                                          MPN: N 10124306
                                                                          Hexagon socket flat M6X20 head bolt
                                                                          from £0.87
                                                                          from £0.87
                                                                          This part replaces part number 99907334401 - and 1 more. Click to view details
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                          HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
                                                                          # 24
                                                                          MPN: N 0206267
                                                                          CLAMP 16X15
                                                                          from £1.13
                                                                          from £1.13
                                                                          CLAMP Genuine Porsche Part - New (to order)
                                                                          RETAINING CLAMP D1-16X15 Genuine Lamborghini - New In stock
                                                                          # 25
                                                                          MPN: N 10405604
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X14
                                                                          from £0.72
                                                                          from £0.72
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
                                                                          # 26
                                                                          -
                                                                          COOLANT PIPE NOT FOR THIS MODEL
                                                                          # 27
                                                                          -
                                                                          CLAMP NOT FOR THIS MODEL
                                                                          # 28
                                                                          -
                                                                          CLAMP NOT FOR THIS MODEL
                                                                          # 29
                                                                          MPN: N 10405604
                                                                          OVAL HEXAGON SOCKET HEAD BOLT NOT FOR THIS MODEL
                                                                          from £0.72
                                                                          from £0.72
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
                                                                          # 30
                                                                          MPN: PAB12141800
                                                                          SEALING CAP
                                                                          from £9.41
                                                                          from £9.41
                                                                          SEALING CAP Genuine Porsche Part - New (to order)
                                                                          # 31
                                                                          MPN: PAF00101100
                                                                          O-RING 12,2X1,65
                                                                          from £3.38
                                                                          from £3.38
                                                                          O-RING Genuine Porsche Part - New (to order)
                                                                          # 32
                                                                          MPN: N 10451408
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                          from £0.84
                                                                          from £0.84
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                                          # 33
                                                                          -
                                                                          PIPE UNION NOT FOR THIS MODEL
                                                                          # 34
                                                                          -
                                                                          O-RING NOT FOR THIS MODEL
                                                                          # 35
                                                                          -
                                                                          OVAL HEXAGON SOCKET HEAD BOLT NOT FOR THIS MODEL
                                                                          # 36
                                                                          -
                                                                          COOLANT HOSE NOT FOR THIS MODEL
                                                                          # 37
                                                                          -
                                                                          HOSE CLAMP NOT FOR THIS MODEL
