813-200 - heater V6 TURBO water box lhd

Porsche 2020 (Macan) heater V6 TURBO water box lhd Parts Diagram

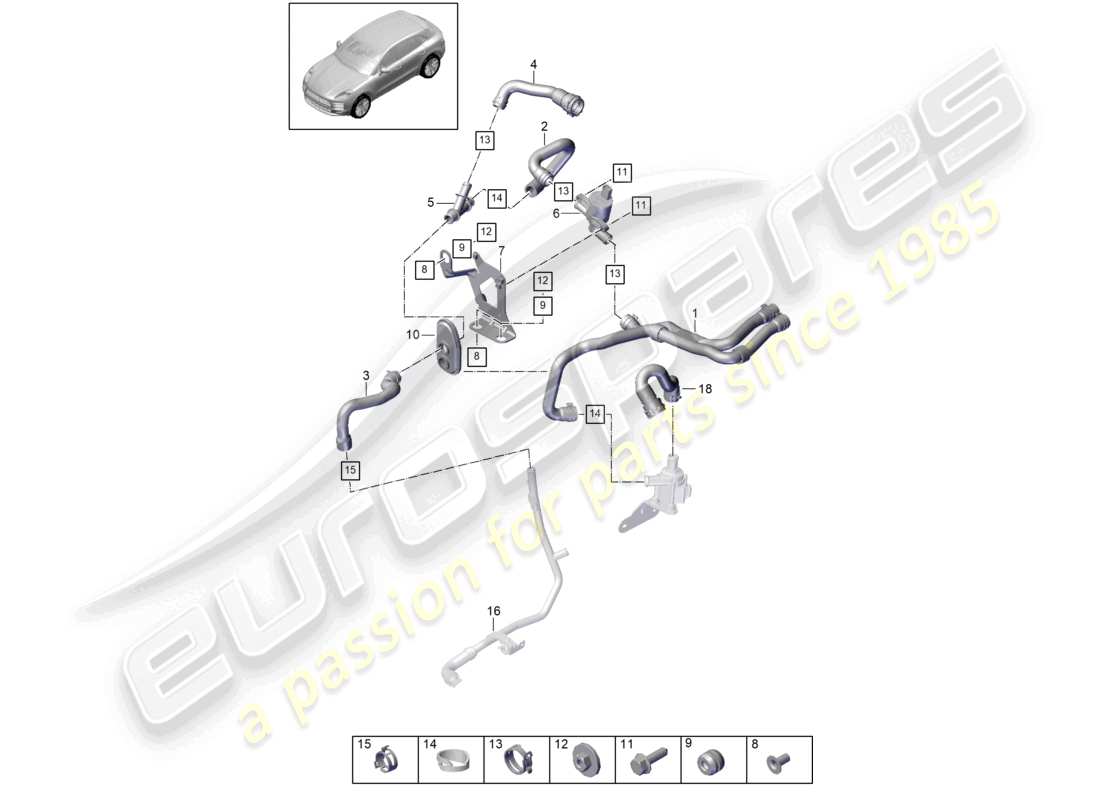

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 95B819198K
                                    1 SET COOLANT HOSES
                                    from £100.57
                                    from £100.57
                                    1 SET COOLANT HOSES Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 95B265387A
                                    COOLANT HOSE
                                    from £15.75
                                    from £15.75
                                    WATER HOSE Genuine Porsche Part - New (to order)
                                    # 3
                                    MPN: 95B265357C
                                    COOLANT HOSE WITHOUT: SPRING BAND CLAMP
                                    from £14.81
                                    from £14.81
                                    COOLANT HOSE Genuine Porsche Part - New (to order)
                                    # 4
                                    MPN: 95B121049N
                                    COOLANT HOSE
                                    from £21.86
                                    from £21.86
                                    WATER HOSE Genuine Porsche Part - New (to order)
                                    # 5
                                    MPN: 95B121237A
                                    Y-PIECE COOLANT HOSES
                                    from £13.90
                                    from £13.90
                                    Y-PIECE Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: PAB12167100
                                    SOLENOID VALVE
                                    from £141.23
                                    from £141.23
                                    SOLENOID VALVE Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 95B819735A
                                    RETAINER FOR VALVE
                                    from £15.70
                                    from £15.70
                                    BRACKET FOR VALVE Genuine Porsche Part - New (to order)
                                    # 8
                                    MPN: 4D0614177A
                                    STOP BUFFER
                                    from £2.43
                                    from £2.43
                                    JOUNCE BUMPER Genuine Porsche Part - New (to order)
                                    BUFFER Genuine Lamborghini - New (to order)
                                    # 9
                                    MPN: 4D0614173B
                                    BEARING BUSH
                                    from £6.20
                                    from £6.20
                                    BUSHING Genuine Porsche Part - New (to order)
                                    BUSH Genuine Lamborghini - New (to order)
                                    # 10
                                    MPN: PAB81934550
                                    DOUBLE GROMMET
                                    from £4.23
                                    from £4.23
                                    DOUBLE GROMMET Genuine Porsche Part - New (to order)
                                    # 11
                                    MPN: N 10653301
                                    Hex collared bolt M6X20
                                    from £1.15
                                    from £1.15
                                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New In stock
                                    HEXAGON FLANGE BOLT Genuine Lamborghini - New In stock
                                    # 12
                                    MPN: N 90570802
                                    HEX. NUT WITH WASHER M6
                                    from £1.15
                                    from £1.15
                                    HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                    # 13
                                    MPN: 99951265809
                                    HOSE CLAMP B27X12X1,7
                                    from £2.29
                                    from £2.29
                                    HOSE CLAMP Genuine Porsche Part - New In stock
                                    # 14
                                    MPN: N 10558701
                                    SPRING BAND CLAMP 27X12 HOSE CLAMP
                                    from £1.06
                                    from £1.06
                                    SPRING CLIP Genuine Porsche Part - New (to order)
                                    # 15
                                    MPN: 99951260109
                                    HOSE CLAMP A23X12
                                    from £1.45
                                    from £1.45
                                    HOSE CLAMP Genuine Porsche Part - New (to order)
                                    # 16
                                    -
                                    COOLANT PIPE SEE ILLUSTRATION: 105-300
                                    # 18
                                    MPN: 95B819332G
                                    HEATING HOSE
                                    from £8.49
                                    from £8.49
                                    HEATING HOSE Genuine Porsche Part - New (to order)
