porsche 2025 (macan-e) air conditioning refrigerant line with: heat pump parts diagram

814-402 - Air conditioning Refrigerant line with: Heat pump

Porsche 2025 (Macan-E) Air conditioning Refrigerant line with: Heat pump Parts Diagram

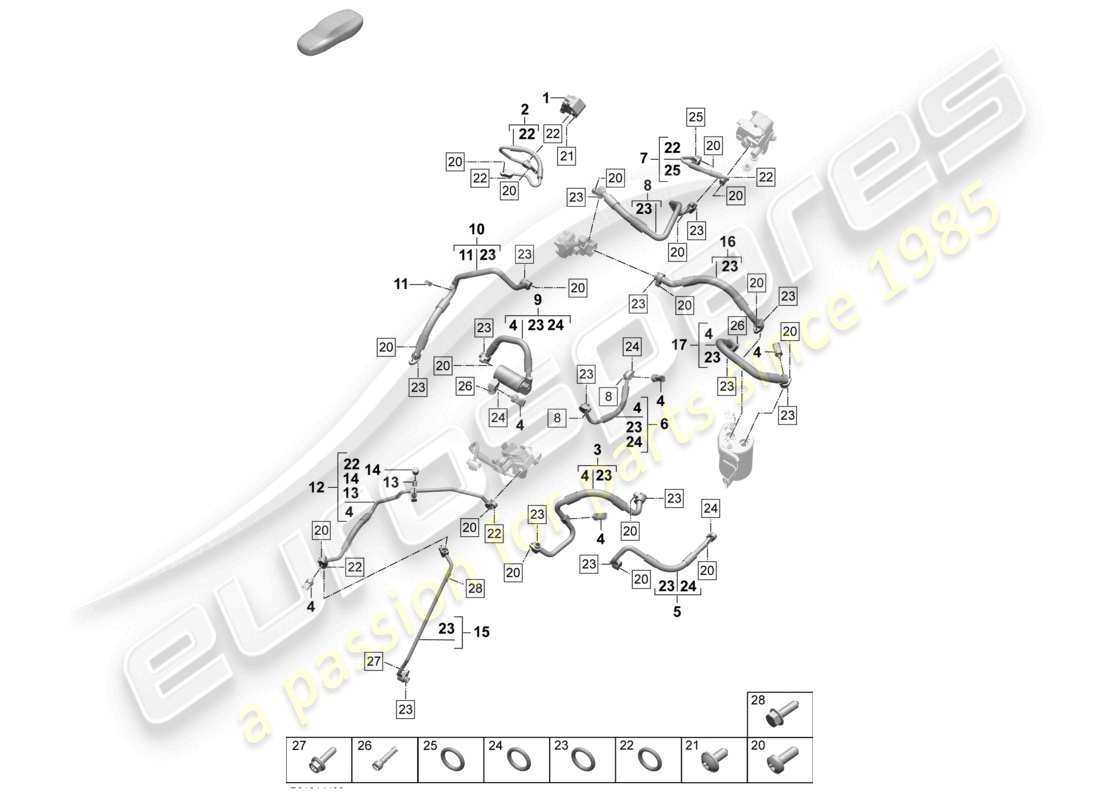

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 958816590
                                                    EXPANSION VALVE
                                                    from £126.69
                                                    from £126.69
                                                    EXPANSION VALVE Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: PAD816720A
                                                    REFRIGERANT LINE EXPANSION VALVE
                                                    from £45.21
                                                    from £45.21
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: PAD816740
                                                    REFRIGERANT LINE
                                                    from £131.94
                                                    from £131.94
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 4
                                                    MPN: PAB959603B
                                                    PRESSURE & TEMPERATURE SENSOR
                                                    from £97.49
                                                    from £97.49
                                                    PRESSURE & TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: PAD816732
                                                    REFRIGERANT LINE
                                                    from £55.82
                                                    from £55.82
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 6
                                                    MPN: PAD816706A
                                                    REFRIGERANT LINE
                                                    from £114.03
                                                    from £114.03
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 7
                                                    MPN: PAD816728
                                                    REFRIGERANT LINE
                                                    from £34.38
                                                    from £34.38
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 8
                                                    MPN: PAD816727
                                                    REFRIGERANT LINE
                                                    from £56.45
                                                    from £56.45
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: PAD816721A
                                                    REFRIGERANT LINE
                                                    from £185.90
                                                    from £185.90
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: PAD816700
                                                    REFRIGERANT LINE
                                                    from £64.47
                                                    from £64.47
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 11
                                                    MPN: PAD820769B
                                                    BRACKET FOR COOLANT LINE
                                                    from £2.30
                                                    from £2.30
                                                    BRACKET FOR COOLANT LINE Genuine Porsche Part - New (to order)
                                                    # 12
                                                    MPN: PAD816741
                                                    REFRIGERANT LINE
                                                    from £131.94
                                                    from £131.94
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 13
                                                    MPN: PAD820855
                                                    VALVE INSERT
                                                    from £15.30
                                                    from £15.30
                                                    VALVE INSERT Genuine Porsche Part - New (to order)
                                                    # 14
                                                    MPN: 9A781658100
                                                    COVER VALVE
                                                    from £5.14
                                                    from £5.14
                                                    COVER Genuine Porsche Part - New (to order)
                                                    # 15
                                                    MPN: PAD816704
                                                    REFRIGERANT LINE
                                                    from £35.21
                                                    from £35.21
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: PAD816740A
                                                    REFRIGERANT LINE
                                                    P2DK (Vehicle class differentiation -95C-)
                                                    from £55.01
                                                    from £55.01
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 17
                                                    MPN: PAD816743
                                                    REFRIGERANT LINE
                                                    from £154.25
                                                    from £154.25
                                                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                                                    # 20
                                                    MPN: N 10632102
                                                    OVAL HEXAGON SOCKET HEAD BOLT M6X25 FILLISTER HD. BOLT
                                                    from £0.72
                                                    from £0.72
                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                    HEXALOBULAR SOCKETM6X25 Genuine Lamborghini - New (to order)
                                                    # 21
                                                    MPN: PAF910896
                                                    Hexagon socket flat M6X60 head bolt
                                                    from £3.72
                                                    from £3.72
                                                    HEXAGON SOCKET FLAT HEAD BOLT Genuine Porsche Part - New (to order)
                                                    # 22
                                                    MPN: 95557374902
                                                    O-RING 13.7X2.5-N
                                                    from £4.32
                                                    from £4.32
                                                    O-RING Genuine Porsche Part - New (to order)
                                                    # 23
                                                    MPN: 9A757374903
                                                    O-RING 16.25X2.5-N
                                                    from £3.81
                                                    from £3.81
                                                    O-RING Genuine Porsche Part - New (to order)
                                                    # 24
                                                    MPN: 95557374901
                                                    O-RING 11X2.5-N
                                                    from £4.53
                                                    from £4.53
                                                    O-RING Genuine Porsche Part - New (to order)
                                                    # 25
                                                    MPN: 95557374900
                                                    O-RING 9.5X2.5-N
                                                    from £4.34
                                                    from £4.34
                                                    O-RING Genuine Porsche Part - New In stock
                                                    # 26
                                                    MPN: N 10414402
                                                    Socket head bolt with M8X28 hexagon socket head
                                                    from £1.62
                                                    from £1.62
                                                    BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                                    HEXALOBULAR SOCKETM8X28-S10-N Genuine Lamborghini - New In stock
                                                    # 27
                                                    MPN: N 91108701
                                                    HEXAGON COLLARED BOLT WITH M6X25 MULTI-POINT SOCKET HEAD (DUO)
                                                    from £0.91
                                                    from £0.91
                                                    HEX BOLT WITH INTERNAL TORX Genuine Porsche Part - New (to order)
                                                    DUO HEXAGON FLANGE Genuine Lamborghini - New (to order)
                                                    # 28
                                                    MPN: PAF905426
                                                    HEX. HD. SELF-TAP BOLT (COMBI) 6,6X19
                                                    from £23.23
                                                    from £23.23
                                                    HEX. HD. SELF-TAP BOLT (COMBI) Genuine Porsche Part - New (to order)
