porsche 2011 (panamera 970) rear axle parts diagram

501-000 - rear axle

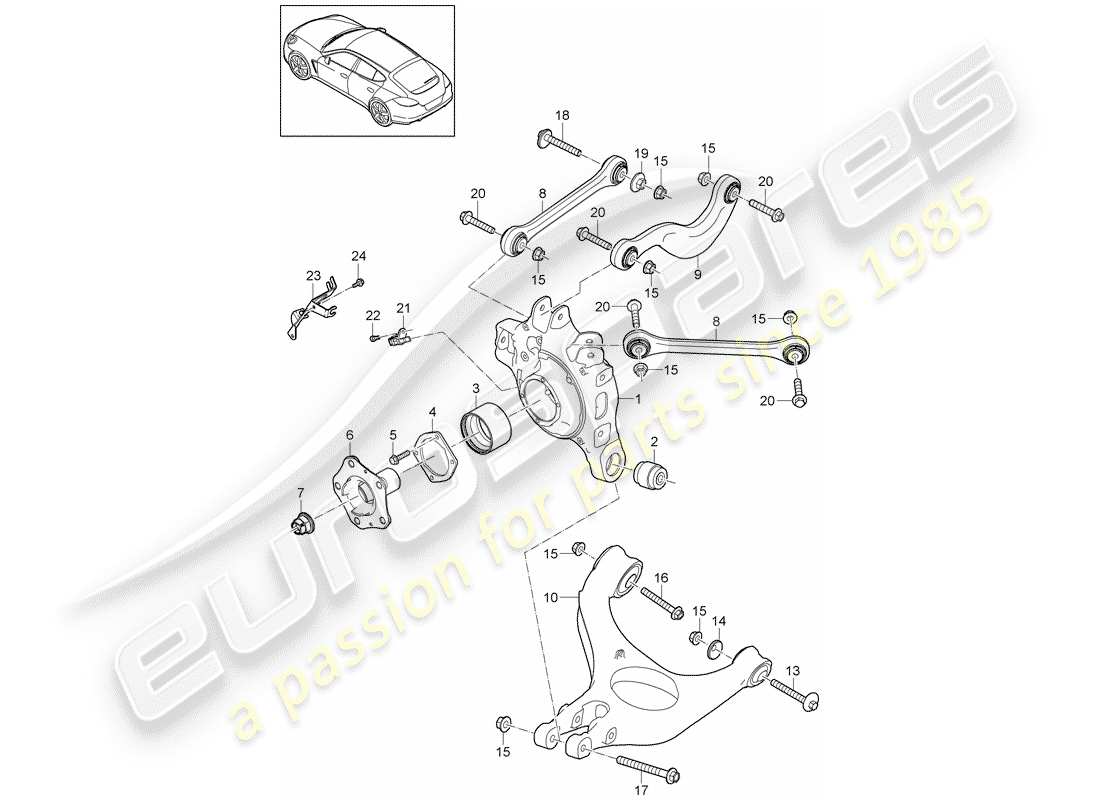

Porsche 2011 (Panamera 970) REAR AXLE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # -
      -
      SPACER WASHER
      See technical manual | 43/09
      # 1
      MPN: 97033161102
      wheel carrier
      left |
      D >> - MJ 2013 | Discontinued part
      wheel carrier Genuine Porsche Part - New (to order)
      # 1
      MPN: 97033161103
      wheel carrier
      left |
      D - MJ 2013>>
      from £404.86
      from £404.86
      wheel carrier Genuine Porsche Part - New (to order)
      # 1
      MPN: 97033161120
      wheel carrier
      left |
      D - MJ 2014>>
      from £538.93
      from £538.93
      wheel carrier Genuine Porsche Part - New (to order)
      # 1
      MPN: 97033161202
      wheel carrier
      right |
      D >> - MJ 2013 | Discontinued part
      wheel carrier Genuine Porsche Part - New (to order)
      # 1
      MPN: 97033161203
      wheel carrier
      right |
      D - MJ 2013>>
      from £404.86
      from £404.86
      wheel carrier Genuine Porsche Part - New (to order)
      # 1
      MPN: 97033161220
      wheel carrier
      right |
      D - MJ 2014>>
      from £404.86
      from £404.86
      wheel carrier Genuine Porsche Part - New (to order)
      # 2
      MPN: 97033124400
      RUBBER ISOLATOR
      Wheel carrier |
      D >> - MJ 2013
      RUBBER ISOLATOR Genuine Porsche Part - New (to order)
      # 2
      MPN: 298501341
      BUSHING
      Wheel carrier |
      D - MJ 2014>>
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 3
      MPN: 99905305701
      BALL BEARING
      47 X 85 X 52
      BALL BEARING Genuine Porsche Part - New (to order)
      # 3
      MPN: 298407621
      BALL BEARING
      47 X 85 X 52 | Discontinued part
      BALL BEARING Genuine Porsche Part - New (to order)
      # 3
      MPN: 971407621
      BALL BEARING
      47 X 85 X 52
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 4
      MPN: 97033166100
      SECURING PLATE
      ball bearing |
      D >> - MJ 2013
      SECURING PLATE Genuine Porsche Part - New (to order)
      # 4
      MPN: 298501375
      SECURING PLATE
      ball bearing |
      D - MJ 2014>>
      from £15.96
      from £15.96
      SECURING PLATE Genuine Porsche Part - New (to order)
      # 5
      MPN: 99921704204
      SCREW, HEX. HD.
      M 8 X 35
      from £2.29
      from £2.29
      SCREW, HEX. HD Genuine Porsche Part - New (to order)
      # 6
      MPN: 97033160502
      WHEEL HUB
      D >> - MJ 2013
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 6
      MPN: 99133160503
      WHEEL HUB
      D - MJ 2014>>
      WHEEL HUB Genuine Porsche Part - New (to order)
      # -
      -
      SPACER RING
      5 mm |
      D - MJ 2012>> (PR:856)
      # 7
      MPN: 99908465001
      LOCK NUT
      M 22 X 1,5
      LOCK NUT Genuine Porsche Part - New (to order)
      # 8
      MPN: 97033104300
      track control arm
      upper | outer
      from £132.50
      from £132.50
      track control arm Genuine Porsche Part - New (to order)
      # 9
      MPN: 97033104700
      track control arm
      upper | center
      from £113.36
      from £113.36
      track control arm Genuine Porsche Part - New (to order)
      # 10
      MPN: 97033104102
      track control arm
      left | lower | Discontinued part
      track control arm Genuine Porsche Part - New (to order)
      # 10
      MPN: 97033104103
      track control arm
      left | lower
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 10
      MPN: 97033104202
      track control arm
      right | lower | Discontinued part
      track control arm Genuine Porsche Part - New (to order)
      # 10
      MPN: 97033104203
      track control arm
      right | lower
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 11
      MPN: 97033124103
      Link bearing
      FRONT
      from £58.00
      from £58.00
      Link bearing Genuine Porsche Part - New (to order)
      # 12
      MPN: 97034124101
      Link bearing
      rear
      from £20.45
      from £20.45
      Link bearing Genuine Porsche Part - New (to order)
      # 13
      MPN: 97034121700
      ECCENTRIC SCREW
      lower | M 12 X 1,5 X 97 | track control arm
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 14
      MPN: 99633121900
      ECCENTRIC WASHER
      lower | track control arm
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 15
      MPN: 99908444501
      LOCK NUT
      M 12 X 1,5
      from £2.29
      from £2.29
      lock nut - VM 12 X 1,5 Genuine Porsche Part - New In stock
      # 16
      MPN: 99907285401
      SCREW, HEX. HD.
      lower | M 12 X 1,5 X 100 | track control arm
      from £3.59
      from £3.59
      SCREW, HEX. HD Genuine Porsche Part - New (to order)
      # 17
      MPN: 99907285701
      SCREW, HEX. HD.
      lower | M 12 X 1,5 X 115 | track control arm | Wheel carrier
      from £4.70
      from £4.70
      SCREW, HEX. HD Genuine Porsche Part - New (to order)
      # 18
      MPN: 99733121702
      ECCENTRIC SCREW
      upper | M 12 X 1,5 X 83 | track control arm
      from £7.96
      from £7.96
      ECCENTRIC SCREW Genuine Porsche Part - New In stock
      # 19
      MPN: 97033121900
      ECCENTRIC WASHER
      ECCENTRIC WASHER Genuine Porsche Part - New (to order)
      # 20
      MPN: 99907285101
      SCREW, HEX. HD.
      upper | M 12 X 1,5 X 70 | track control arm
      from £2.96
      from £2.96
      SCREW, HEX. HD Genuine Porsche Part - New In stock
      # 21
      MPN: 97060640701

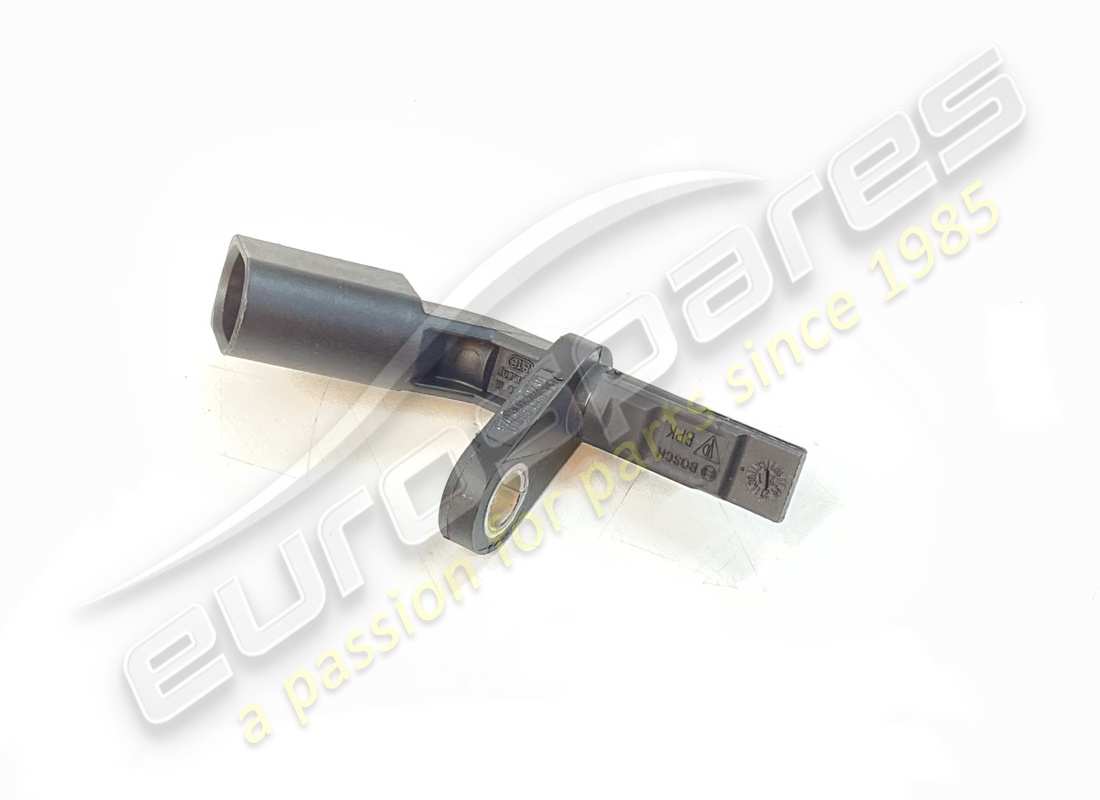

      SPEED SENSOR
      from £295.38
      from £295.38
      SPEED SENSOR Genuine Porsche Part - New In stock
      # 22
      MPN: N 01474011
      BOLT, WITH HEX. SOCKET
      hd. | M 6 X 16
      from £1.26
      from £1.26
      bolt, with hex. socket - hd. - M 6 X 16 - F 94-MS400 096>> - F 94-MS430 324>> Genuine Porsche Part - New In stock
      PAN HEAD BOLT M6X16 Genuine Lamborghini - New In stock
      # 23
      MPN: 97061011100
      BRACKET
      left | harness | self levelling sensor
      from £6.50
      from £6.50
      BRACKET Genuine Porsche Part - New (to order)
      # 23
      MPN: 97061011200
      BRACKET
      right | harness | self levelling sensor
      BRACKET Genuine Porsche Part - New (to order)
      # 24
      MPN: 99921711601
      SCREW, HEX. HD.
      M 6 X 16
      from £0.71
      from £0.71
      SCREW, HEX. HD Genuine Porsche Part - New (to order)
      # 24
      MPN: N 90999502
      BOLT, HEX. HD. WITH SHOULDER
      screw, hex. hd. | M 6 X 16
      from £0.87
      from £0.87
      BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
      HEXAGON FLANGE M6X25 Genuine Lamborghini - New (to order)
      # 25
      MPN: 97033148100
      SPOILER
      left | track control arm |
      D - MJ 2014>> (CWDA,CWD, CWFA,CWF, CWBA,CWB+ PR:-450)
      from £10.54
      from £10.54
      SPOILER Genuine Porsche Part - New (to order)
      # 25
      MPN: 97033148100
      SPOILER
      left | track control arm |
      D - MJ 2014>> (CWDA,CWD, CWBA,CWB+ PR:450,0E2)
      from £10.54
      from £10.54
      SPOILER Genuine Porsche Part - New (to order)
      # 25
      MPN: 97033148200
      SPOILER
      right | track control arm |
      D - MJ 2014>> (CWDA,CWD, CWBA,CWB+ PR:-450)
      from £10.54
      from £10.54
      SPOILER Genuine Porsche Part - New (to order)
      # 25
      MPN: 97033148200
      SPOILER
      right | track control arm |
      D - MJ 2014>> (CWDA,CWD, CWBA,CWB+ PR:450,0E2)
      from £10.54
      from £10.54
      SPOILER Genuine Porsche Part - New (to order)
      # 26
      MPN: 90037801301
      SCREW, HEX. HD.
      M 6 X 25
      from £0.59
      from £0.59
      SCREW, HEX. HD. - M 6 X 25 Genuine Porsche Part - New In stock
