CVDD (4.0 Litre 8 Cyliner Engine (460 Horsepower / 338 Kilowatt with Engine Code: CVDD and installed 10/2018-12/2020) | CVD (4.0 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: CVD and installed 05/2017-12/2020) | PE0W (GTS version)
porsche 2017 (panamera 971-1) fuel collection pipe high-pressure injector high pressure pump parts diagram

107-003 - Fuel collection pipe high-pressure injector high pressure pump

Porsche 2017 (Panamera 971-1) Fuel collection pipe high-pressure injector high pressure pump Parts Diagram

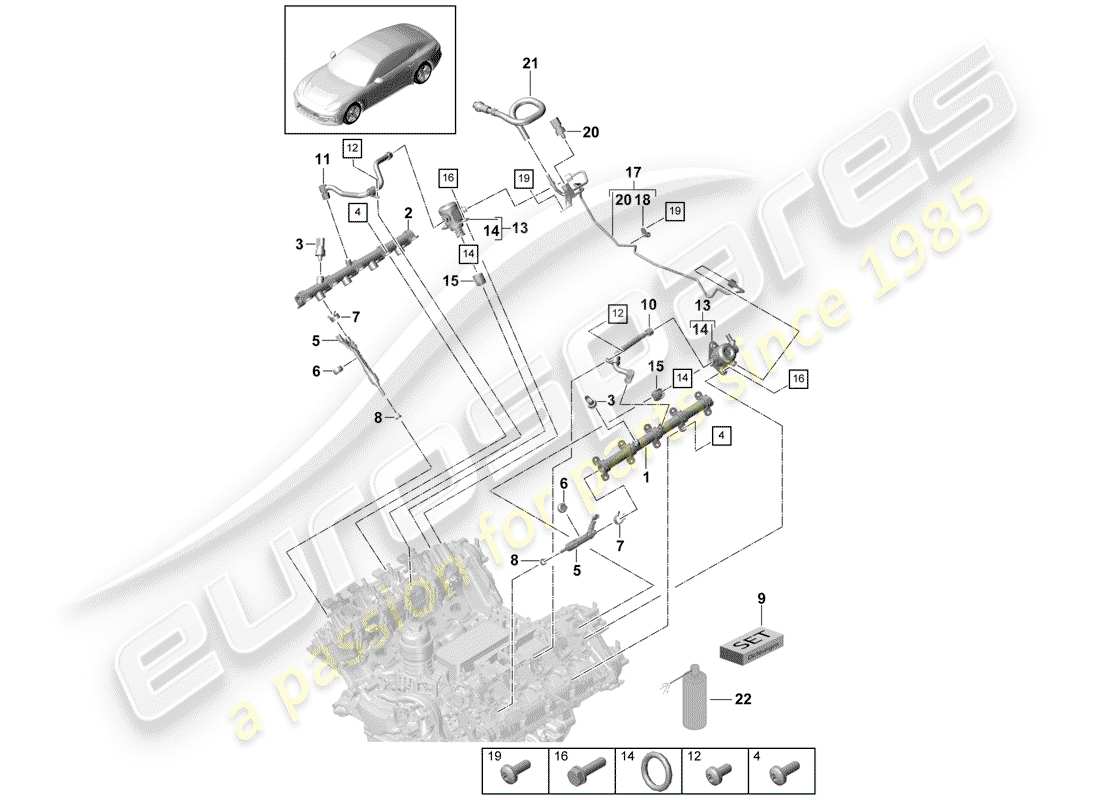

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 9A713331501
                                      Fuel collection pipe Cylinder 5-8
                                      from £259.46
                                      from £259.46
                                      FUEL COLLECTION PIPE Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 9A713331601
                                      Fuel collection pipe cylinders 1-4
                                      from £259.46
                                      from £259.46
                                      FUEL COLLECTION PIPE Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: 9A790605400
                                      PRESSURE SENSOR
                                      PRESSURE SENSOR
                                      from £180.86
                                      from £180.86
                                      PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: PAC906054E
                                      PRESSURE SENSOR
                                      from £80.34
                                      from £80.34
                                      HIGH THRUST SENSOR Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: PAB127026
                                      HIGH PRESSURE PUMP ALSO USE: 1X 9A7 109 311 00 D - 08.02.2019>>
                                      from £525.65
                                      from £525.65
                                      This part replaces part number 9A712702600
                                      high pressure pump Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: N 91126601
                                      OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                      from £0.48
                                      from £0.48
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                      # 5
                                      MPN: PAB90603600
                                      HIGH-PRESSURE INJECTOR
                                      HIGH-PRESSURE INJECTOR
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 5
                                      MPN: PAC906036H
                                      HIGH-PRESSURE INJECTOR
                                      from £107.58
                                      from £107.58
                                      HIGH-PRESSURE INJECTOR Genuine Porsche Part - New (to order)
                                      # 6
                                      MPN: 9A713387511
                                      NOISE INSULATION
                                      from £23.14
                                      from £23.14
                                      SOUND BAFFLE Genuine Porsche Part - New (to order)
                                      # 7
                                      MPN: 9A713303600
                                      SUPPORT PLATE
                                      from £2.13
                                      from £2.13
                                      SUPPORT PLATE Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 9A790618900
                                      INTERMEDIATE RING
                                      from £6.04
                                      from £6.04
                                      INTERMEDIATE RING Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: 9A799890701
                                      REPAIR SET FOR HIGH-PRESSURE INJECTOR
                                      from £13.05
                                      from £13.05
                                      This part replaces part number 9A799890700
                                      repair kit Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: 9A712750700
                                      PRESSURE LINE LEFT
                                      from £73.46
                                      from £73.46
                                      PRESSURE LINE Genuine Porsche Part - New (to order)
                                      # 11
                                      MPN: 9A712750710
                                      PRESSURE LINE RIGHT
                                      from £76.35
                                      from £76.35
                                      PRESSURE LINE Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: N 10335206
                                      Hexagon socket flat M6X12 head bolt
                                      from £0.78
                                      from £0.78
                                      HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                      HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                      HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                      # 13
                                      MPN: 9A712702600
                                      HIGH PRESSURE PUMP ALSO USE: 1X 9A7 109 311 00 D >>- 07.02.2019
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 14
                                      MPN: 9A700782100
                                      O-RING HIGH PRESSURE PUMP
                                      O-RING Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: 9A710931100
                                      TAPPETS
                                      from £31.30
                                      from £31.30
                                      This part replaces part number 06L109311
                                      CAM FOLLOWER Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: N 10458202
                                      HEXAGON BOLT M6X22
                                      from £0.66
                                      from £0.66
                                      SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                      HEXAGON BOLT Genuine Bentley Part - New (to order)
                                      SCREW, HEX. HD Genuine Lamborghini - New (to order)
                                      # 17
                                      MPN: 9A712750300
                                      Fuel line also use: 1x 9A7 133 986 00
                                      Fuel line also use: 1x 9A7 133 986 00
                                      from £137.58
                                      from £137.58
                                      FUEL LINE Genuine Porsche Part - New (to order)
                                      # 17
                                      MPN: PAB127503
                                      Fuel line also use: 1x 9A7 133 986 00
                                      from £160.58
                                      from £160.58
                                      FUEL LINE Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 9A712723300
                                      RETAINER FOR FUEL LINE
                                      from £2.41
                                      from £2.41
                                      BRACKET FOR FUEL LINE Genuine Porsche Part - New (to order)
                                      # 19
                                      MPN: N 91126601
                                      OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                      from £0.48
                                      from £0.48
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                      # 20
                                      MPN: 9A790605410
                                      Pressure sensor D >>- 29.11.2018
                                      Pressure sensor D >>- 29.11.2018
                                      from £58.35
                                      from £58.35
                                      PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: PAB906054
                                      LOW-PRESSURE SENSOR D - 30.11.2018>>
                                      from £69.55
                                      from £69.55
                                      LOW PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                      # 21
                                      MPN: 9A713398600
                                      FUEL LINE
                                      from £54.38
                                      from £54.38
                                      FUEL LINE Genuine Porsche Part - New (to order)
                                      # 22
                                      MPN: 00004320935
                                      SPECIAL LUBRICANT SPRAY CAN FOR 400ML FUEL LINE MICROGLEIT DF 977 S
                                      from £61.45
                                      from £61.45
                                      SPECIAL LUBRICANT Genuine Porsche Part - New (to order)
                                      SPECIAL LUBRICANT Genuine Bentley Part - New (to order)
