CVDD (4.0 Litre 8 Cyliner Engine (460 Horsepower / 338 Kilowatt with Engine Code: CVDD and installed 10/2018-12/2020) | CVD (4.0 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: CVD and installed 05/2017-12/2020) | PE0W (GTS version)
porsche 2017 (panamera 971-1) coolant cooling system for turbocharger oil pressure line for exhaust gas turbocharger parts diagram

202-033 - Coolant cooling system for turbocharger Oil pressure line for Exhaust gas turbocharger

Porsche 2017 (Panamera 971-1) Coolant cooling system for turbocharger Oil pressure line for Exhaust gas turbocharger Parts Diagram

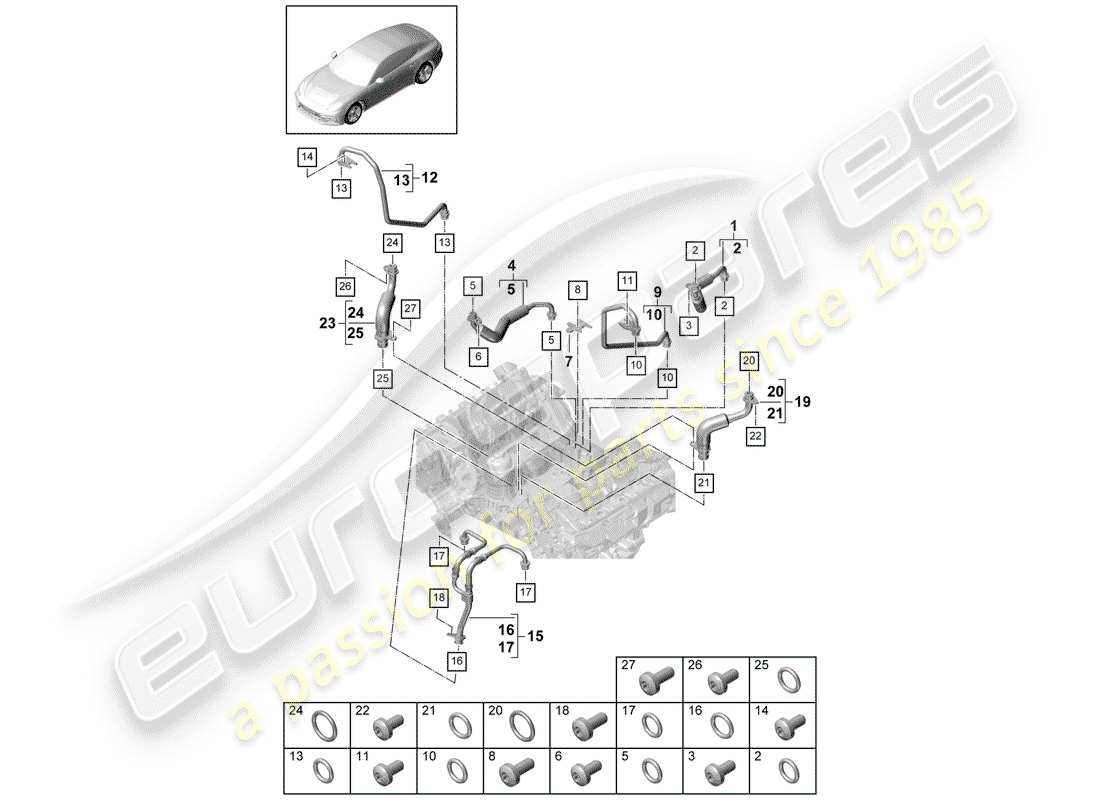

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: 9A714590900
                                                        COOLANT PIPE FEED
                                                        from £136.85
                                                        from £136.85
                                                        water tube Genuine Porsche Part - New (to order)
                                                        # 2
                                                        MPN: 9A700653700
                                                        O-RING 11X2,8
                                                        from £3.68
                                                        from £3.68
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        # 3
                                                        MPN: N 10335206
                                                        Hexagon socket flat M6X12 head bolt
                                                        from £0.78
                                                        from £0.78
                                                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                        # 4
                                                        MPN: 9A714591000
                                                        COOLANT PIPE FEED
                                                        from £136.89
                                                        from £136.89
                                                        water tube Genuine Porsche Part - New (to order)
                                                        # 5
                                                        MPN: 9A700653700
                                                        O-RING 11X2,8
                                                        from £3.68
                                                        from £3.68
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        # 6
                                                        MPN: N 10335206
                                                        Hexagon socket flat M6X12 head bolt
                                                        from £0.78
                                                        from £0.78
                                                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                        # 7
                                                        MPN: 9A714533700
                                                        BRACKET
                                                        from £6.59
                                                        from £6.59
                                                        BRACKET Genuine Porsche Part - New (to order)
                                                        # 8
                                                        MPN: N 10335206
                                                        Hexagon socket flat M6X12 head bolt
                                                        from £0.78
                                                        from £0.78
                                                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                        # 9
                                                        MPN: 9A714594700
                                                        COOLANT PIPE RETURN
                                                        from £89.08
                                                        from £89.08
                                                        water tube Genuine Porsche Part - New (to order)
                                                        # 10
                                                        MPN: 9A700653700
                                                        O-RING 11X2,8
                                                        from £3.68
                                                        from £3.68
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        # 11
                                                        MPN: N 10335206
                                                        Hexagon socket flat M6X12 head bolt
                                                        from £0.78
                                                        from £0.78
                                                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                        # 12
                                                        MPN: 9A714594800
                                                        COOLANT PIPE RETURN
                                                        from £89.08
                                                        from £89.08
                                                        water tube Genuine Porsche Part - New (to order)
                                                        # 13
                                                        MPN: 9A700653700
                                                        O-RING 11X2,8
                                                        from £3.68
                                                        from £3.68
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        # 14
                                                        MPN: N 10335206
                                                        Hexagon socket flat M6X12 head bolt
                                                        from £0.78
                                                        from £0.78
                                                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                        # 15
                                                        MPN: 9A714514001
                                                        OIL PRESSURE LINE FEED
                                                        from £105.16
                                                        from £105.16
                                                        oil pressure line Genuine Porsche Part - New (to order)
                                                        # 16
                                                        MPN: 9A700875500
                                                        O-RING 13,00X3,00-N
                                                        from £4.52
                                                        from £4.52
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        # 17
                                                        MPN: 9A700653700
                                                        O-RING 11X2,8
                                                        from £3.68
                                                        from £3.68
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: N 91126601
                                                        OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                        from £0.48
                                                        from £0.48
                                                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                                        # 19
                                                        MPN: 9A714577100
                                                        oil return line
                                                        from £199.17
                                                        from £199.17
                                                        oil return line Genuine Porsche Part - New (to order)
                                                        # 20
                                                        MPN: 9A700875500
                                                        O-RING 13,00X3,00-N
                                                        from £4.52
                                                        from £4.52
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        # 21
                                                        MPN: N 90925002
                                                        O-RING 17X3
                                                        from £3.06
                                                        from £3.06
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        Genuine Bentley Part (no longer available to order)
                                                        O-RING Genuine Lamborghini - New (to order)
                                                        # 22
                                                        MPN: N 10335206
                                                        Hexagon socket flat M6X12 head bolt
                                                        from £0.78
                                                        from £0.78
                                                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                        # 23
                                                        MPN: 9A714577200
                                                        oil return line
                                                        from £112.65
                                                        from £112.65
                                                        oil return line Genuine Porsche Part - New (to order)
                                                        # 24
                                                        MPN: 9A700875500
                                                        O-RING 13,00X3,00-N
                                                        from £4.52
                                                        from £4.52
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        # 25
                                                        MPN: N 90925001
                                                        O-RING 17X3
                                                        from £2.06
                                                        from £2.06
                                                        O-RING Genuine Porsche Part - New (to order)
                                                        O-RING Genuine Bentley Part - New (to order)
                                                        O-RING Genuine Lamborghini - New In stock
                                                        # 26
                                                        MPN: N 10335206
                                                        Hexagon socket flat M6X12 head bolt
                                                        from £0.78
                                                        from £0.78
                                                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                        HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                        # 27
                                                        MPN: N 91126601
                                                        OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                        from £0.48
                                                        from £0.48
                                                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                        HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
