CXTA (3.0 Litre 6 Cyliner Engine (330 Horsepower / 243 Kilowatt with Engine Code: CXTA and installed 05/2016-12/2020) | CXT (3.0 Litre 6 Cyliner Engine (330 Horsepower / 243 Kilowatt with Engine Code: CXT and installed 05/2016-05/2017)
porsche 2017 (panamera 971-1) exhaust system front silencer rear silencer tailpipe parts diagram

203-015 - exhaust system Front silencer Rear silencer Tailpipe

Porsche 2017 (Panamera 971-1) exhaust system Front silencer Rear silencer Tailpipe Parts Diagram

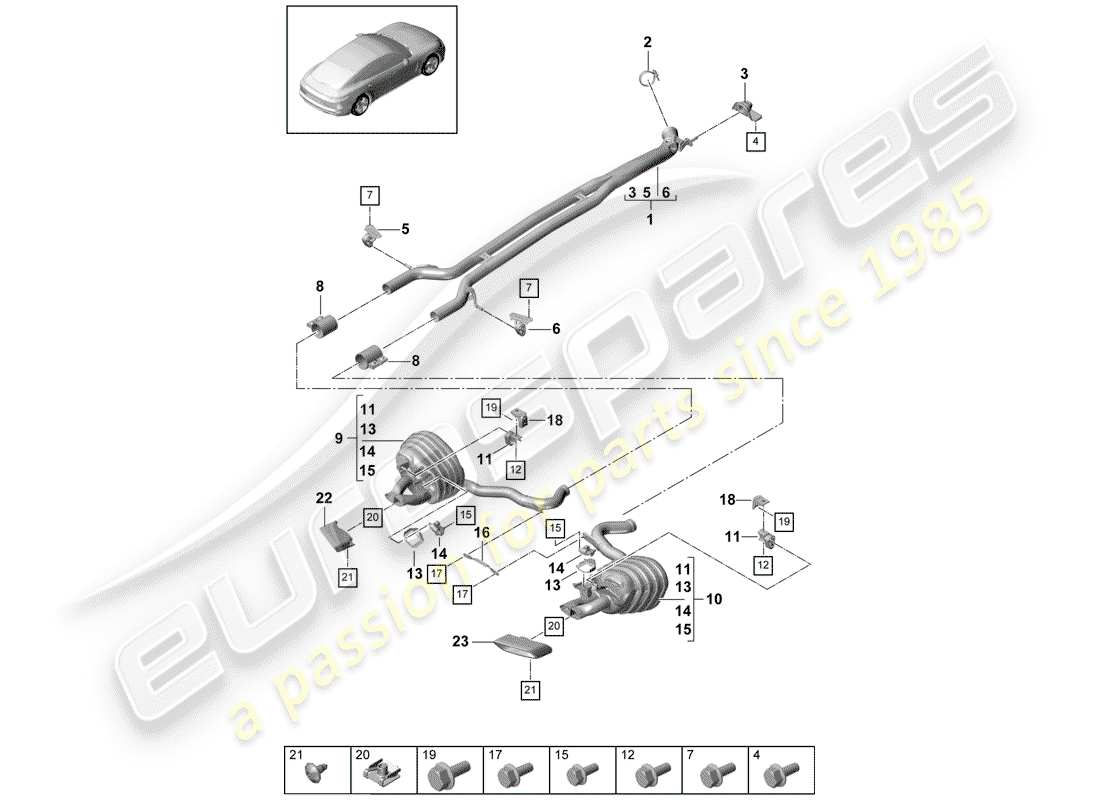

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 971253209 Y
                                    FRONT SILENCER
                                    FRONT SILENCER
                                    EXHAUST SILENCER, FRONT Genuine Porsche Part - New (to order)
                                    # 1
                                    MPN: 971253209HY
                                    FRONT SILENCER
                                    FRONT SILENCER
                                    from £574.23
                                    from £574.23
                                    EXHAUST SILENCER, FRONT Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 95511110830
                                    CLAMP
                                    from £21.10
                                    from £21.10
                                    Retaining Clip Genuine Porsche Part - New (to order)
                                    # 3
                                    MPN: 9A725314400
                                    BRACKET
                                    from £40.86
                                    from £40.86
                                    BRACKET Genuine Porsche Part - New (to order)
                                    # 4
                                    MPN: N 91079301
                                    Hex collared bolt M8X16
                                    from £0.64
                                    from £0.64
                                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                                    HEX COLLARED BOLT Genuine Bentley Part - New (to order)
                                    HEXAGON FLANGE BOL Genuine Lamborghini - New (to order)
                                    # 5
                                    MPN: 9A725324500
                                    RETAINER FOR EXHAUST SYSTEM LEFT
                                    from £38.66
                                    from £38.66
                                    BRACKET FOR EXHAUST SYSTEM Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 9A725324600
                                    RETAINER FOR EXHAUST SYSTEM RIGHT
                                    from £38.66
                                    from £38.66
                                    BRACKET FOR EXHAUST SYSTEM Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: N 91079301
                                    Hex collared bolt M8X16
                                    from £0.64
                                    from £0.64
                                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                                    HEX COLLARED BOLT Genuine Bentley Part - New (to order)
                                    HEXAGON FLANGE BOL Genuine Lamborghini - New (to order)
                                    # 8
                                    MPN: 95811122000
                                    CLAMPING SLEEVE 60X88MM
                                    from £28.56
                                    from £28.56
                                    CLAMPING SLEEVE Genuine Porsche Part - New (to order)
                                    # 9
                                    MPN: 971253607 Y
                                    REAR SILENCER LEFT
                                    P0P0 (Standard tailpipe)
                                    from £1,078.22
                                    from £1,078.22
                                    EXHAUST SILENCER, REAR Genuine Porsche Part - New (to order)
                                    # 10
                                    MPN: 971253608 Y
                                    REAR SILENCER RIGHT
                                    P0P0 (Standard tailpipe)
                                    from £1,078.22
                                    from £1,078.22
                                    EXHAUST SILENCER, REAR Genuine Porsche Part - New (to order)
                                    # 11
                                    MPN: 9A725324510
                                    RETAINER FOR EXHAUST SYSTEM
                                    from £32.49
                                    from £32.49
                                    BRACKET FOR EXHAUST SYSTEM Genuine Porsche Part - New (to order)
                                    # 12
                                    MPN: N 91079301
                                    Hex collared bolt M8X16
                                    from £0.64
                                    from £0.64
                                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                                    HEX COLLARED BOLT Genuine Bentley Part - New (to order)
                                    HEXAGON FLANGE BOL Genuine Lamborghini - New (to order)
                                    # 13
                                    MPN: 971253235A
                                    GUARD PLATE
                                    from £17.14
                                    from £17.14
                                    SHIELD Genuine Porsche Part - New (to order)
                                    # 14
                                    MPN: 9A713324600
                                    SERVOMOTOR FOR EXHAUST FLAP
                                    SERVOMOTOR FOR EXHAUST FLAP
                                    SERVOMOTOR FOR EXHAUST FLAP Genuine Porsche Part - New (to order)
                                    # 14
                                    MPN: 9A713324605
                                    SERVOMOTOR FOR EXHAUST FLAP
                                    SERVOMOTOR FOR EXHAUST FLAP
                                    from £114.18
                                    from £114.18
                                    SERVOMOTOR FOR EXHAUST FLAP Genuine Porsche Part - New (to order)
                                    Genuine Bentley Part (no longer available to order)
                                    # 14
                                    MPN: 9A713324606
                                    Servomotor for exhaust flap for this use: 2x 9A7 133 246
                                    Servomotor for exhaust flap for this use: 2x 9A7 133 246
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 15
                                    MPN: PAF10653202
                                    HEXAGON BOLT M6X16
                                    from £1.26
                                    from £1.26
                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                    # 16
                                    MPN: 9A725352100
                                    BRACE
                                    from £17.89
                                    from £17.89
                                    cross support Genuine Porsche Part - New (to order)
                                    # 17
                                    MPN: N 91079301
                                    Hex collared bolt M8X16
                                    from £0.64
                                    from £0.64
                                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                                    HEX COLLARED BOLT Genuine Bentley Part - New (to order)
                                    HEXAGON FLANGE BOL Genuine Lamborghini - New (to order)
                                    # 18
                                    MPN: 9A725327700
                                    SUPPORT
                                    from £25.91
                                    from £25.91
                                    SUPPORT Genuine Porsche Part - New (to order)
                                    # 19
                                    MPN: N 90921002
                                    HEXAGON BOLT M8X22
                                    from £0.96
                                    from £0.96
                                    This part replaces part number N 90921001
                                    SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                    HEXAGON BOLT Genuine Bentley Part - New (to order)
                                    # 20
                                    MPN: N 90342502
                                    SPEED NUT M6X19,5X18
                                    from £0.82
                                    from £0.82
                                    SPEED NUT Genuine Porsche Part - New (to order)
                                    SPEED NUT Genuine Bentley Part - New (to order)
                                    SNAP NUT CLAMP Genuine Lamborghini - New In stock
                                    # 21
                                    MPN: 9A700801900
                                    flat round head bolt M6X12
                                    from £1.23
                                    from £1.23
                                    SCREW, ROUND HD Genuine Porsche Part - New In stock
                                    # 22
                                    MPN: 9A725382350
                                    TAILPIPE LEFT
                                    P0P0 (Standard tailpipe)
                                    from £286.18
                                    from £286.18
                                    TAILPIPE Genuine Porsche Part - New (to order)
                                    # 23
                                    MPN: 9A725382450
                                    TAILPIPE RIGHT
                                    P0P0 (Standard tailpipe)
                                    from £286.18
                                    from £286.18
                                    TAILPIPE Genuine Porsche Part - New (to order)
