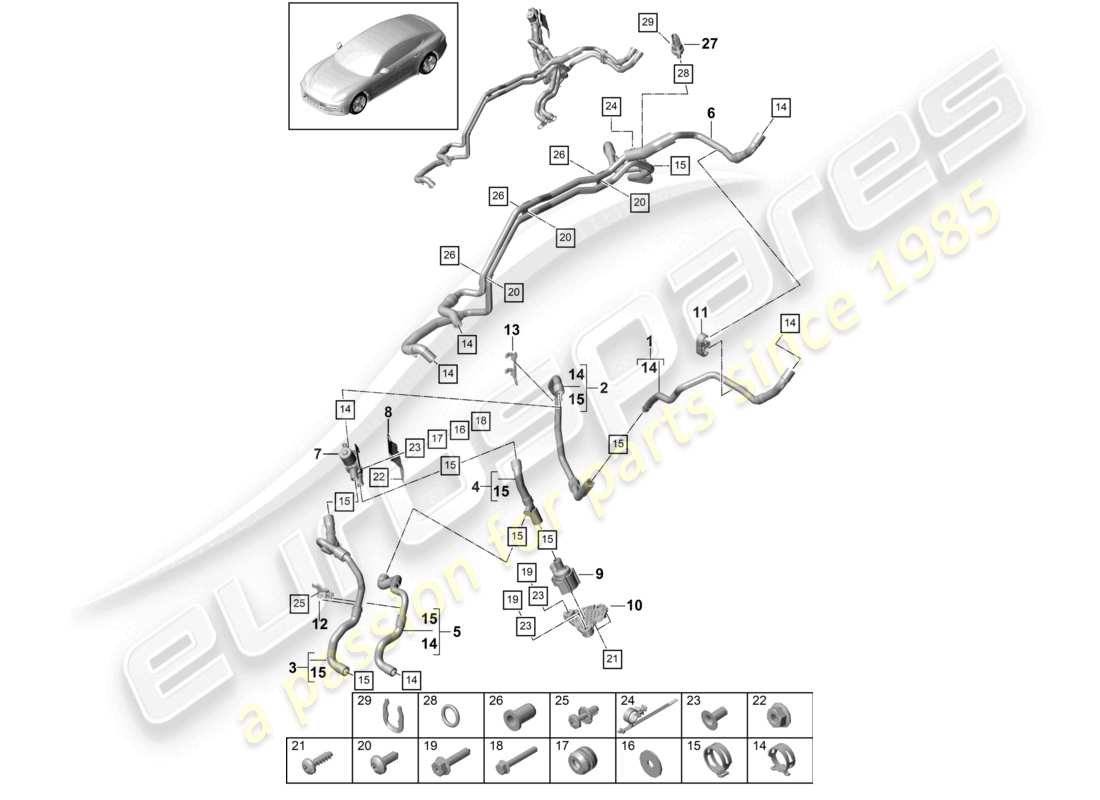

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 1
                                                            MPN: 9A781933420
                                                            HEATING HOSE
                                                            from £88.98
                                                            from £88.98
                                                            heater hose Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: 9A781555501
                                                            HEATING HOSE
                                                            from £96.90
                                                            from £96.90
                                                            heater hose Genuine Porsche Part - New (to order)
                                                            # 3
                                                            MPN: 971819375D
                                                            HEATING HOSE WITH: TEMPERATURE SENSOR
                                                            from £101.02
                                                            from £101.02
                                                            heater hose Genuine Porsche Part - New (to order)
                                                            # 4
                                                            MPN: PAE819452
                                                            HEATING HOSE
                                                            from £83.98
                                                            from £83.98
                                                            HEATING HOSE Genuine Porsche Part - New (to order)
                                                            # 5
                                                            MPN: 971819314K
                                                            HEATING HOSE WITH: HOSE CLAMP
                                                            from £96.90
                                                            from £96.90
                                                            HEATING HOSE Genuine Porsche Part - New (to order)
                                                            # 6
                                                            MPN: 971819284B
                                                            COOLANT PIPE
                                                            from £324.26
                                                            from £324.26
                                                            COOLANT PIPE Genuine Porsche Part - New (to order)
                                                            # 7
                                                            MPN: 9A790645710
                                                            COOLING AGENT SHUT-OFF VALVE
                                                            from £162.56
                                                            from £162.56
                                                            COOLING AGENT SHUT-OFF VALVE Genuine Porsche Part - New (to order)
                                                            # 8
                                                            MPN: 9A781913400
                                                            RETAINER FOR VALVE
                                                            from £7.64
                                                            from £7.64
                                                            BRACKET FOR VALVE Genuine Porsche Part - New (to order)
                                                            # 9
                                                            MPN: 9A712160110
                                                            COOLANT PUMP
                                                            from £157.96
                                                            from £157.96
                                                            WATER PUMP Genuine Porsche Part - New (to order)
                                                            # 10
                                                            MPN: 9A781959511
                                                            BRACKET COOLANT PUMP
                                                            from £17.90
                                                            from £17.90
                                                            SUPPORT Genuine Porsche Part - New (to order)
                                                            # 11
                                                            MPN: 95557205503
                                                            CLIP HEATING HOSE
                                                            from £4.95
                                                            from £4.95
                                                            CLIP Genuine Porsche Part - New (to order)
                                                            # 12
                                                            MPN: 971819565C
                                                            BRACKET FOR COOLANT PIPE
                                                            from £7.15
                                                            from £7.15
                                                            HALTER FUER KUEHLROHR Genuine Porsche Part - New (to order)
                                                            # 13
                                                            MPN: 971819259A
                                                            BRACKET FOR COOLANT PIPE HEATER
                                                            from £9.18
                                                            from £9.18
                                                            HALTER FUER KUEHLROHR Genuine Porsche Part - New (to order)
                                                            # 14
                                                            MPN: 99951265609
                                                            HOSE CLAMP B25X12
                                                            from £2.29
                                                            from £2.29
                                                            Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                                            # 15
                                                            MPN: 99951265809
                                                            HOSE CLAMP B27X12X1,7
                                                            from £2.29
                                                            from £2.29
                                                            HOSE CLAMP Genuine Porsche Part - New In stock
                                                            # 16
                                                            MPN: N 90563602
                                                            WASHER 6,4X22X1,6
                                                            from £1.67
                                                            from £1.67
                                                            WASHER Genuine Porsche Part - New (to order)
                                                            RONDELLA Genuine Lamborghini - New (to order)
                                                            # 17
                                                            MPN: 4D0614177A
                                                            STOP BUFFER
                                                            from £2.43
                                                            from £2.43
                                                            JOUNCE BUMPER Genuine Porsche Part - New (to order)
                                                            BUFFER Genuine Lamborghini - New (to order)
                                                            # 18
                                                            MPN: N 10717601
                                                            HEX COLLARED BOLT M6X32 HEXAGON BOLT
                                                            from £1.34
                                                            from £1.34
                                                            BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                                                            # 19
                                                            MPN: N 91108701
                                                            HEXAGON COLLARED BOLT WITH M6X25 MULTI-POINT SOCKET HEAD (DUO)
                                                            from £0.91
                                                            from £0.91
                                                            HEX BOLT WITH INTERNAL TORX Genuine Porsche Part - New (to order)
                                                            DUO HEXAGON FLANGE Genuine Lamborghini - New (to order)
                                                            # 20
                                                            MPN: N 91096701
                                                            OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                            from £0.78
                                                            from £0.78
                                                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                            HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                            # 21
                                                            MPN: WHT002306
                                                            SELF-TAPPING SCREW 3,5X12
                                                            from £0.47
                                                            from £0.47
                                                            SCREW, THREAD CUTTING Genuine Porsche Part - New (to order)
                                                            PAN HEAD BOLT TP3.5X12.0 Genuine Lamborghini - New In stock
                                                            # 22
                                                            MPN: N 01508210
                                                            HEXAGON COLLAR NUT M6
                                                            from £0.47
                                                            from £0.47
                                                            Genuine Porsche Part (no longer available to order)
                                                            HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                                                            # 23
                                                            MPN: 4D0614173B
                                                            BEARING BUSH
                                                            from £6.20
                                                            from £6.20
                                                            BUSHING Genuine Porsche Part - New (to order)
                                                            BUSH Genuine Lamborghini - New (to order)
                                                            # 24
                                                            MPN: N 10478201
                                                            CABLE TIE WITH HOSE RETAINER 7X140/22MM
                                                            from £4.29
                                                            from £4.29
                                                            CABLE TIE WITH HOSE RETAINER Genuine Porsche Part - New (to order)
                                                            # 25
                                                            MPN: 4F0857784
                                                            SPREADER RIVET
                                                            from £0.54
                                                            from £0.54
                                                            RIVET Genuine Porsche Part - New (to order)
                                                            EXPANSION RIVET Genuine Lamborghini - New In stock
                                                            # 26
                                                            MPN: N 90631303
                                                            RIVETTED CAP NUT M6X0,5-3
                                                            from £1.13
                                                            from £1.13
                                                            RIVETTED CAP NUT Genuine Porsche Part - New (to order)
                                                            RIVETED CAP NUT Genuine Lamborghini - New (to order)
                                                            # 27
                                                            MPN: 95510612501
                                                            TEMPERATURE SENSOR
                                                            from £53.39
                                                            from £53.39
                                                            TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                            # 28
                                                            MPN: N 90316801
                                                            O-RING 19,6X3,65
                                                            from £2.96
                                                            from £2.96
                                                            O-RING Genuine Porsche Part - New In stock
                                                            # 29
                                                            MPN: 95510614300
                                                            RETAINING SPRING
                                                            from £1.84
                                                            from £1.84
                                                            RETAINING SPRING Genuine Porsche Part - New (to order)
