902-000 - CENTRAL ELECTRICS

Porsche 2020 (Taycan 9J1-1) central electrics Parts Diagram

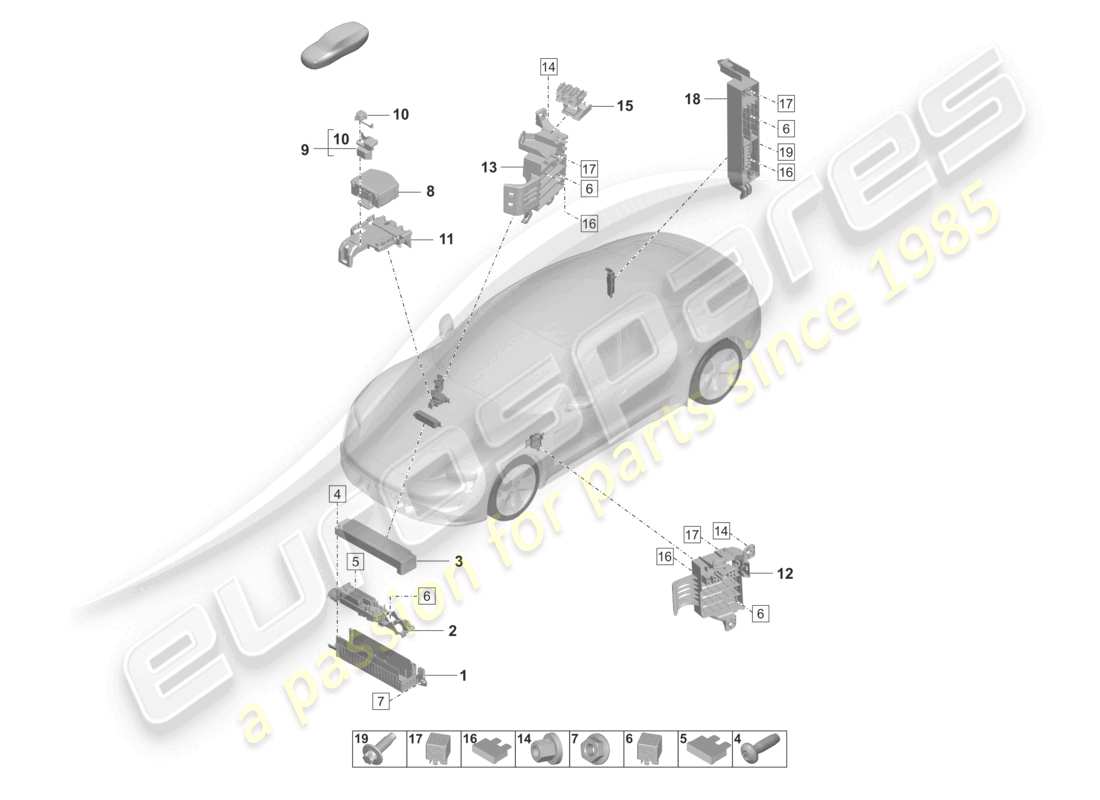

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # -
                                  -
                                  ------------------------------ * CAUTION! NON-APPROVED * PART NUMBERS ARE NOT REPLAC- * EMENT PARTS DUE TO REPAIR * COMPLEXITY. PLEASE OBSERVE * WORKSHOP MANUAL! ------------------------------
                                  # 1
                                  MPN: 9J1907583
                                  HOUSING LOWER PART
                                  from £33.54
                                  from £33.54
                                  HOUSING LOWER PART Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 9J1937508
                                  FUSE HOLDER
                                  from £30.58
                                  from £30.58
                                  FUSE HOLDER Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 9J1907613
                                  HOUSING COVER
                                  from £26.50
                                  from £26.50
                                  HOUSING COVER Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: N 10625802
                                  Hexagon socket flat TP3X10 head bolt
                                  from £0.47
                                  from £0.47
                                  HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                  SCREW Genuine Lamborghini - New In stock
                                  # 5
                                  MPN: N 01713121
                                  FLAT FUSE 19/2X5 2A -GREY-
                                  from £0.47
                                  from £0.47
                                  FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 01713116
                                  FLAT FUSE 19/2X5 5A -LT BROWN-
                                  from £0.86
                                  from £0.86
                                  FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                  BLADE FUSE Genuine Lamborghini - New (to order)
                                  # 5
                                  MPN: N 01713118
                                  FLAT FUSE 19/2X5 7.5A -BROWN-
                                  from £0.69
                                  from £0.69
                                  FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                  FUSE Genuine Lamborghini - New In stock
                                  # 5
                                  MPN: N 01713111
                                  flat fuse 19/2X5 10A -red-
                                  from £0.86
                                  from £0.86
                                  FLAT FUSE 19/2X5 - 10 AMP Genuine Porsche Part - New (to order)
                                  FUSE 10 A Genuine Lamborghini - New In stock
                                  # 5
                                  MPN: N 01713112
                                  FLAT FUSE 19/2X5 15A -LT BLUE-
                                  from £0.69
                                  from £0.69
                                  FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                  FUSE Genuine Lamborghini - New In stock
                                  # 5
                                  MPN: N 01713113
                                  FLAT FUSE 19/2X5 20A -YELLOW-
                                  from £0.86
                                  from £0.86
                                  FLAT FUSE 19/2X5 - 20 AMP Genuine Porsche Part - New (to order)
                                  FUSE Genuine Lamborghini - New In stock
                                  # 5
                                  MPN: N 01713114
                                  flat fuse 19/2X5 25A -white-
                                  from £0.69
                                  from £0.69
                                  FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                  FUSE Genuine Lamborghini - New In stock
                                  # 5
                                  MPN: N 01713115
                                  FLAT FUSE 19/2X5 30A -GREEN-
                                  from £0.47
                                  from £0.47
                                  FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                  FUSE Genuine Lamborghini - New In stock
                                  # 5
                                  MPN: N 01713122
                                  FLAT FUSE 19/2X5 35A -BLUE/GREEN-
                                  from £0.78
                                  from £0.78
                                  FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                  BLADE FUSE Genuine Lamborghini - New (to order)
                                  # 6
                                  MPN: 95861500801
                                  RELAY 70A
                                  from £23.76
                                  from £23.76
                                  This part replaces part number 95561502510
                                  RELAY Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: N 01508210
                                  HEXAGON COLLAR NUT M6
                                  from £0.47
                                  from £0.47
                                  Genuine Porsche Part (no longer available to order)
                                  HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                                  # 8
                                  MPN: 9J1937548
                                  MAIN FUSE SOCKET
                                  PL0L (Left-hand drive)
                                  from £71.12
                                  from £71.12
                                  MAIN FUSE SOCKET Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 9JA937548
                                  MAIN FUSE SOCKET
                                  PL0R (Right-hand drive)
                                  from £71.12
                                  from £71.12
                                  MAIN FUSE SOCKET Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 9J1937587A
                                  COVER SLAVE START SOCKET (COMPLETE) D >>- 14.01.2024
                                  PL0L (Left-hand drive)
                                  from £4.44
                                  from £4.44
                                  COVER Genuine Porsche Part - New (to order)
                                  COVER FREMDSTARTPUNKT Genuine Lamborghini - New (to order)
                                  # 9
                                  MPN: 9J1937587C
                                  COVER SLAVE START SOCKET (COMPLETE) D - 15.01.2024>>
                                  PL0L (Left-hand drive)
                                  from £5.06
                                  from £5.06
                                  COVER Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 9JA937587
                                  COVER SLAVE START SOCKET (COMPLETE)
                                  PL0R (Right-hand drive)
                                  from £4.50
                                  from £4.50
                                  COVER Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 9J1 937 588
                                  COVER SLAVE START SOCKET INCLUDED IN POSITION: 9 NO LONGER AVAILABLE
                                  from £9.30
                                  from £9.30
                                  COVER SLAVE START SOCKET INCLUDED IN POSITION: 9 NO LONGER AVAILABLE Genuine Porsche Part - New (to order)
                                  COVER Genuine Lamborghini - New (to order)
                                  # 11
                                  MPN: 9J1971336
                                  RETAINER FOR FUSE SOCKET D >>- 14.01.2024
                                  PL0L (Left-hand drive)
                                  from £12.08
                                  from £12.08
                                  RETAINER FOR FUSE SOCKET Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: PAD971336
                                  RETAINER FOR FUSE SOCKET D - 15.01.2024>>
                                  PL0L (Left-hand drive)
                                  from £11.66
                                  from £11.66
                                  RETAINER FOR FUSE SOCKET Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 9JA971336
                                  RETAINER FOR FUSE SOCKET
                                  PL0R (Right-hand drive)
                                  from £12.08
                                  from £12.08
                                  RETAINER FOR FUSE SOCKET Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 9J1 937 592
                                  fuse holder left A-pillar
                                  fuse holder left A-pillar
                                  fuse holder left A-pillar Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 9J1937592B
                                  MOUNTING FOR LEFT FUSE HOLDER A-PILLAR
                                  from £12.48
                                  from £12.48
                                  FUSE HOLDER Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 9J1937592A
                                  FUSE HOLDER RIGHT A-PILLAR
                                  from £12.48
                                  from £12.48
                                  FUSE HOLDER Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: N 91018901
                                  HEXAGON PLASTIC COLLAR NUT C6/16,5
                                  from £1.00
                                  from £1.00
                                  SHOULDERED HEX. NUT PLASTIC Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 9J1971860A
                                  BRACKET FOR CONNECTOR HOUSING
                                  from £19.57
                                  from £19.57
                                  BRACKET FOR CONNECTOR HOUSING Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: PAF912742
                                  FLAT FUSE 16.2/2X6.3 20A -YELLOW-
                                  from £0.68
                                  from £0.68
                                  FLAT FUSE Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: PAF912742A
                                  FLAT FUSE 16.2/2X6.3 30A-LT GREEN-
                                  from £0.75
                                  from £0.75
                                  FLAT FUSE Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: PAF912742B
                                  FLAT FUSE 16.2/2X6.3 40A -ORANGE-
                                  from £0.75
                                  from £0.75
                                  FLAT FUSE Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: PAF912742C
                                  flat fuse 16.2/2X6.3 50A -red-
                                  from £0.75
                                  from £0.75
                                  FLAT FUSE Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: PAB937105
                                  THERMAL FUSE 20A -YELLOW-
                                  from £23.42
                                  from £23.42
                                  THERMO FUSE Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: 95861502900
                                  RELAY 40A
                                  from £23.76
                                  from £23.76
                                  RELAY Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: 4H0951253C
                                  RELAY 40A
                                  from £16.08
                                  from £16.08
                                  RELAY Genuine Porsche Part - New (to order)
                                  RELAY Genuine Lamborghini - New (to order)
                                  # 17
                                  MPN: 99965701690
                                  RELAY 40A
                                  from £12.92
                                  from £12.92
                                  relay - for - Convertible top control Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: 9J1937593
                                  FUSE HOLDER C-PILLAR
                                  from £22.19
                                  from £22.19
                                  FUSE HOLDER Genuine Porsche Part - New (to order)
                                  # 19
                                  MPN: 9A700740400
                                  HEXAGON HEAD BOLT M6X20
                                  from £0.71
                                  from £0.71
                                  HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
