porsche 2026 (taycan 9j1-2) compressor air supply unit parts diagram

504-000 - Compressor Air supply unit

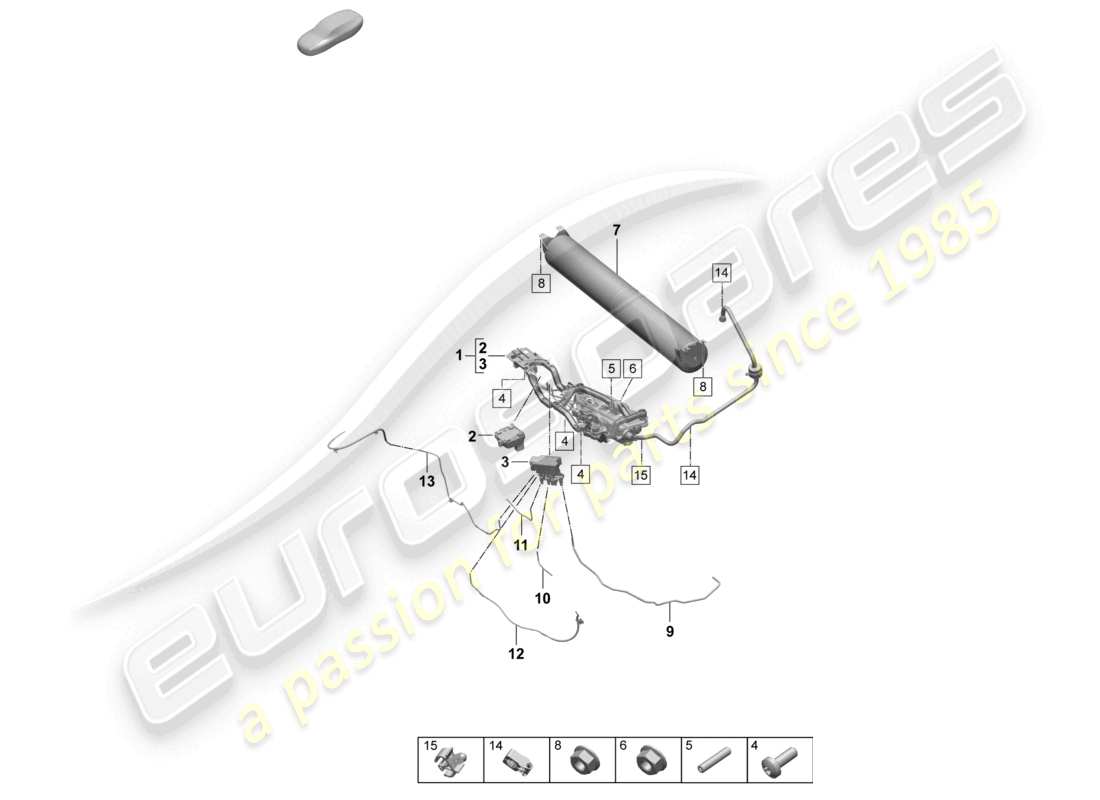

Porsche 2026 (Taycan 9J1-2) Compressor Air supply unit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: PAD616006A
                            AIR SUPPLY UNIT (COMPLETE)
                            from £1,282.27
                            from £1,282.27
                            AIR SUPPLY UNIT Genuine Porsche Part - New (to order)
                            # 2
                            MPN: PAB907778A
                            CONTROL UNIT FOR ADAPTIVE SUSPENSION
                            from £295.45
                            from £295.45
                            CONTROL UNIT FOR ADAPTIVE SUSPENSION Genuine Porsche Part - New (to order)
                            # 3
                            -
                            VALVE BLOCK FOR ADAPTIVE SUSPENSION * SINGLE PARTS NO AVAILABLE * USE ITEM: 1
                            # 4
                            MPN: PAF 912 269
                            HEX SOCKET HEAD BOLT (COMBI) M6X22
                            HEX SOCKET HEAD BOLT (COMBI) M6X22 Genuine Porsche Part - New (to order)
                            # 5
                            MPN: PAF 108 931
                            THREADED PIN M8X40
                            THREADED PIN M8X40 Genuine Porsche Part - New (to order)
                            # 6
                            MPN: PAF907988
                            HEXAGON COLLAR NUT M8
                            from £0.58
                            from £0.58
                            HEXAGON COLLAR NUT Genuine Porsche Part - New (to order)
                            # 7
                            MPN: PAD616202
                            PRESSURE ACCUMULATOR
                            from £248.69
                            from £248.69
                            PRESSURE ACCUMULATOR Genuine Porsche Part - New (to order)
                            # 8
                            MPN: N 91173301
                            HEX. NUT WITH WASHER M6
                            from £1.10
                            from £1.10
                            HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                            HEXAGON NUT W. M6 Genuine Lamborghini - New In stock
                            # 9
                            MPN: PAD616711
                            AIR LINE PRESSURE ACCUMULATOR VIOLET
                            from £16.78
                            from £16.78
                            AIR LINE Genuine Porsche Part - New (to order)
                            # 10
                            MPN: PAD616675B
                            Air line left front red
                            PL0L (Left-hand drive)
                            from £18.35
                            from £18.35
                            AIR LINE Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 9JA 616 675
                            Air line left front red
                            PL0R (Right-hand drive)
                            Air line left front red Genuine Porsche Part - New (to order)
                            # 11
                            MPN: PAD616715B
                            Air line right front green
                            PL0L (Left-hand drive)
                            from £18.35
                            from £18.35
                            AIR LINE Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 9JA 616 715
                            Air line right front green
                            PL0R (Right-hand drive)
                            Air line right front green Genuine Porsche Part - New (to order)
                            # 12
                            MPN: PAD616647B
                            Air line left rear black
                            from £16.78
                            from £16.78
                            AIR LINE Genuine Porsche Part - New (to order)
                            # 13
                            MPN: PAD616649A
                            AIR LINE RIGHT REAR BLUE
                            from £16.78
                            from £16.78
                            AIR LINE Genuine Porsche Part - New (to order)
                            # 14
                            MPN: 95535950900
                            LINE HOLDER
                            from £4.13
                            from £4.13
                            LINE HOLDER Genuine Porsche Part - New (to order)
                            # 15
                            MPN: PAF008611
                            CABLE HOLDER
                            from £3.42
                            from £3.42
                            CABLE HOLDER Genuine Porsche Part - New (to order)
