P1IA (Disc brakes in front)
porsche 2026 (taycan 9j1-2) disc brake 19 front axle neodyme parts diagram

602-400 - Disc brake 19 Front axle Neodyme

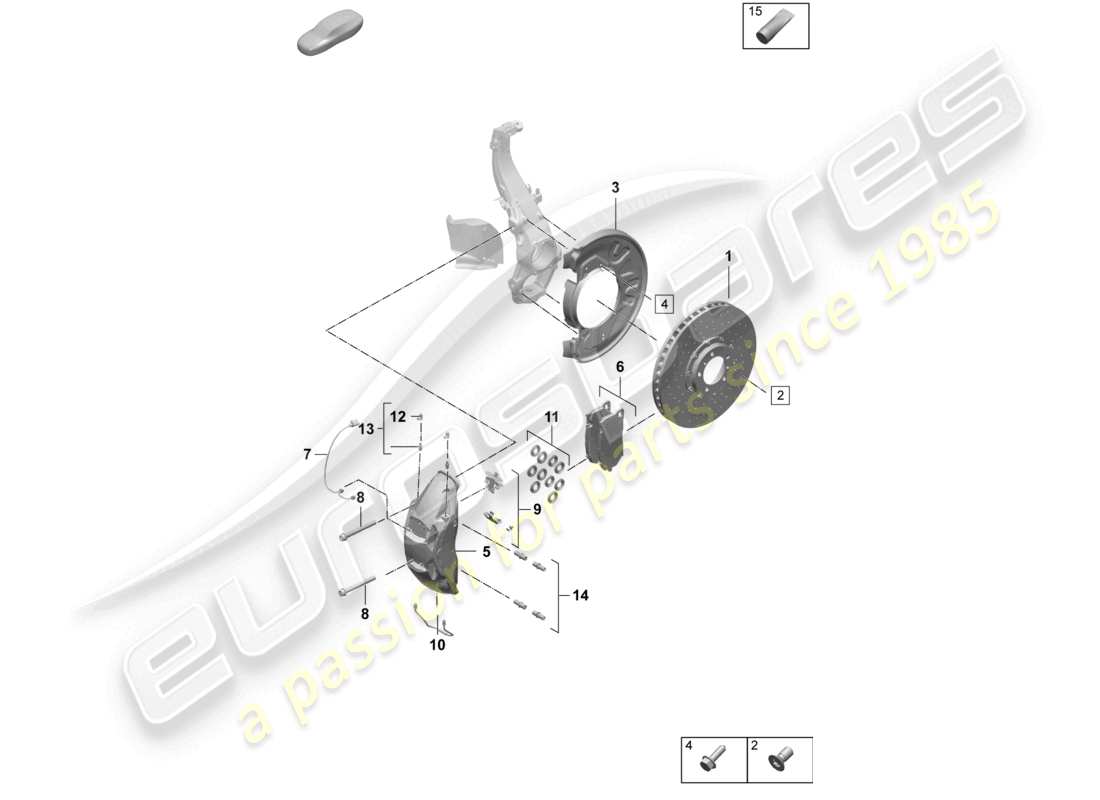

Porsche 2026 (Taycan 9J1-2) Disc brake 19 Front axle Neodyme Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 9J1615301E
                                BRAKE DISC LEFT FRONT FRONT AXLE 1X ALSO USE: 2X 9J1 615 302 E 2X N 104 560 04 2X PAF 004 572 1X 9J1 698 231 1X 9J1 698 151 N 2X 971 907 637
                                from £3,640.11
                                from £3,640.11
                                BRAKE DISC Genuine Porsche Part - New (to order)
                                # 1
                                MPN: 9J1615302E
                                BRAKE DISC RIGHT FRONT AXLE 1X ALSO USE: 2X 9J1 615 301 E 2X N 104 560 04 2X PAF 004 572 1X 9J1 698 231 1X 9J1 698 151 N 2X 971 907 637
                                from £3,640.11
                                from £3,640.11
                                BRAKE DISC Genuine Porsche Part - New (to order)
                                # 2
                                MPN: N 10456004
                                Hexagon socket head bolt, M6X12 self-locking
                                from £0.47
                                from £0.47
                                HEXAGON SOCKET HEAD BOLT, Genuine Porsche Part - New (to order)
                                # 3
                                MPN: PAD615311A
                                COVER PLATE LEFT
                                from £88.08
                                from £88.08
                                COVER PLATE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: PAD615312A
                                COVER PLATE RIGHT
                                from £88.08
                                from £88.08
                                COVER PLATE Genuine Porsche Part - New (to order)
                                # 4
                                MPN: PAF100829
                                HEXAGON HEAD BOLT (COMBI) M6X16
                                from £0.61
                                from £0.61
                                This part replaces part number N 10082913
                                BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                                # 5
                                MPN: 9J1615123AP
                                CALIPER WITHOUT BRAKE PADS LEFT NEODYME ALSO USE: 2X PAF 004 572 1X 9J1 698 231 1X PAE 698 137
                                from £629.26
                                from £629.26
                                CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                                # 5
                                MPN: 9J1615124AP
                                CALIPER WITHOUT BRAKE PADS RIGHT NEODYME ALSO USE: 2X PAF 004 572 1X 9J1 698 231 2X PAE 698 137
                                from £629.26
                                from £629.26
                                CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                                # 6
                                MPN: 9J1698151N
                                1 SET OF BRAKE PADS FOR FRONT DISK BRAKE ALSO USE: 4X PAF 004 572 2X 9J1 698 231 2X 971 907 637 USE IF REQUIRED: 2X PAE 698 137
                                from £462.45
                                from £462.45
                                1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                                # 7
                                MPN: 971907637
                                SENDER WIRE (PAD WEAR INDICATOR)
                                from £25.51
                                from £25.51
                                SENDER WIRE Genuine Porsche Part - New (to order)
                                # 8
                                MPN: PAF004572
                                Socket head bolt with M14X1,5X135 inner multipoint head
                                from £7.79
                                from £7.79
                                This part replaces part number WHT004572
                                SCREW Genuine Porsche Part - New In stock
                                # 9
                                MPN: 9J1698231
                                1 set fixing parts for front disc brake pads
                                from £37.49
                                from £37.49
                                1 SET FIXING PARTS FOR DISC BRAKE PADS Genuine Porsche Part - New (to order)
                                # 10
                                MPN: 95835132700
                                Connecting line left
                                from £22.00
                                from £22.00
                                connecting line Genuine Porsche Part - New (to order)
                                # 10
                                MPN: 95835132800
                                Connecting line right
                                from £22.00
                                from £22.00
                                connecting line Genuine Porsche Part - New (to order)
                                # 11
                                MPN: 95835131300
                                repair set 1 set protective caps
                                from £98.74
                                from £98.74
                                repair kit Genuine Porsche Part - New (to order)
                                # 12
                                MPN: 95835120700
                                DUST CAP
                                from £13.02
                                from £13.02
                                DUST CAP Genuine Porsche Part - New (to order)
                                # 13
                                MPN: 95835112100
                                BREATHER VALVE AND DUST CAP
                                from £20.62
                                from £20.62
                                BLEEDER VALVE Genuine Porsche Part - New (to order)
                                # 14
                                MPN: PAE698137
                                REPAIR SET PIN
                                from £55.52
                                from £55.52
                                REPAIR SET Genuine Porsche Part - New (to order)
                                # 15
                                MPN: 00004330508
                                ASSEMBLY PASTE BRAKE DISC 1 TUBE 100 GRAM
                                from £17.99
                                from £17.99
                                This part replaces part number 00004302000
                                ASSEMBLY PASTE Genuine Porsche Part - New (to order)
