017 - Seating Group - FVN 80

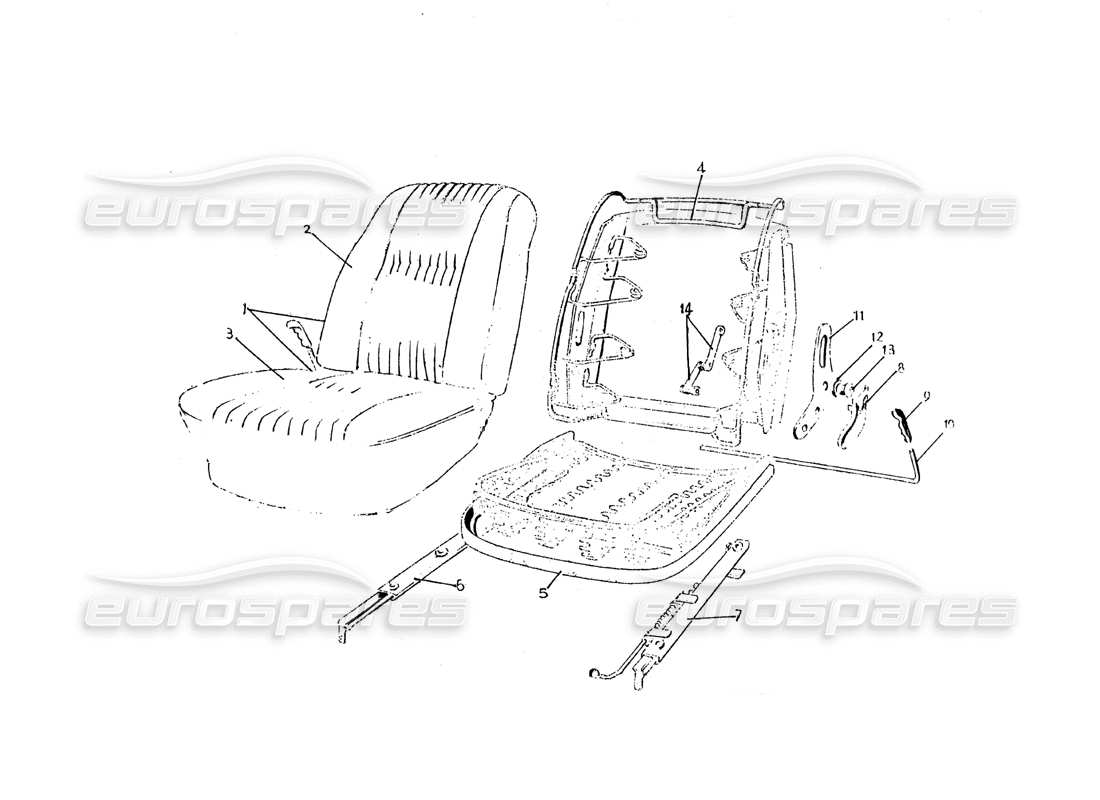

Ferrari 275 (Pininfarina Coachwork) Gruppo Sedili - F.V.N. 80 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 243-66-000-00
SEDILE ANTERIORE B. COMPL.
# 001
MPN: 243-66-001-00
SEDILE ANTERIORE S. COMPL.
# 002
MPN: 213-66-003-00
SCHIENALE POR CODDLE ANT. S. COMPL.
# 002
MPN: 243-66-002-00
SCHIENALE PER SEDILE ANT. D. COMPL.
# 003
MPN: 243-66-004-00
CUSCINO SEDILE ANT. COMPL.
# 004
MPN: 243-66-006-06
OSSATULA SCHIENALE SEDILE ANT. D. COMPL.
# 004
MPN: 243-66-007-06
OASATURA SCHIEHALE SEDILE ANT. S. COMPL.
# 005
MPN: 243-66-168-06
BASE PER SEDILE ART.COMPL.
# 006
MPN: 243-66-202-06
GUIDA EST.PER SCORRIM.SODILO. ANT. D. COMPL.
from £115.50
from £115.50
# 006
MPN: 243-66-203-06
LH SEAT GUIDE
# 007
MPN: 243-66-210-06
GUIDA INT. POR SCCLRIM. SADDLE ANT. D. COMPL.
# 007
MPN: 243-66-211-06
GUIDA INT. PAR SCORRIM. SEDILE ANT. S. COMPL.
# 008
MPN: 243-66-400-08
GUARNIZ. PER SNODO SCHIONALE SEDILE ANT.D.
# 008
MPN: 243-66-401-08
GUARNIZ. PER SNODO SCHIONALE,OEDILE ANT.S.
# 009
MPN: 800-60-390-00
17ANIGLIA PER REGOLAZ. SCHIENALE SEDILE ANT.
# 010
MPN: 243-66-098-02
BARRA CORAANDO REGOL.SCHIANALE SED.ART. D.COMPL.
# 010
MPN: 243-66-099-02
BARRA COMANDO REGOLAZ. SOH ALE SED. ANT. S. COMPL.
# 011
MPN: 243-66-328-01
CORNIERA REGOLAZ. SOHIENLE SEDILE ANT.
# 012
MPN: 243-66-022-00
UHIERA PER CERNIER.SCHIENALE CODDLE ANT.
# 013
MPN: 243-66-330-01
BOCCOLA FITS CERN. A SCHIONALE SED.ANT.
# 014
MPN: 243-66-320-01
LEVE REGOLAZ. ECHSNALE SEDILE ANT. CEPL.D
# 014
MPN: 243-66-321-01
LOVE ROGOIAZ. SCHIONALO SEDILE ANT. S. COMPL.
