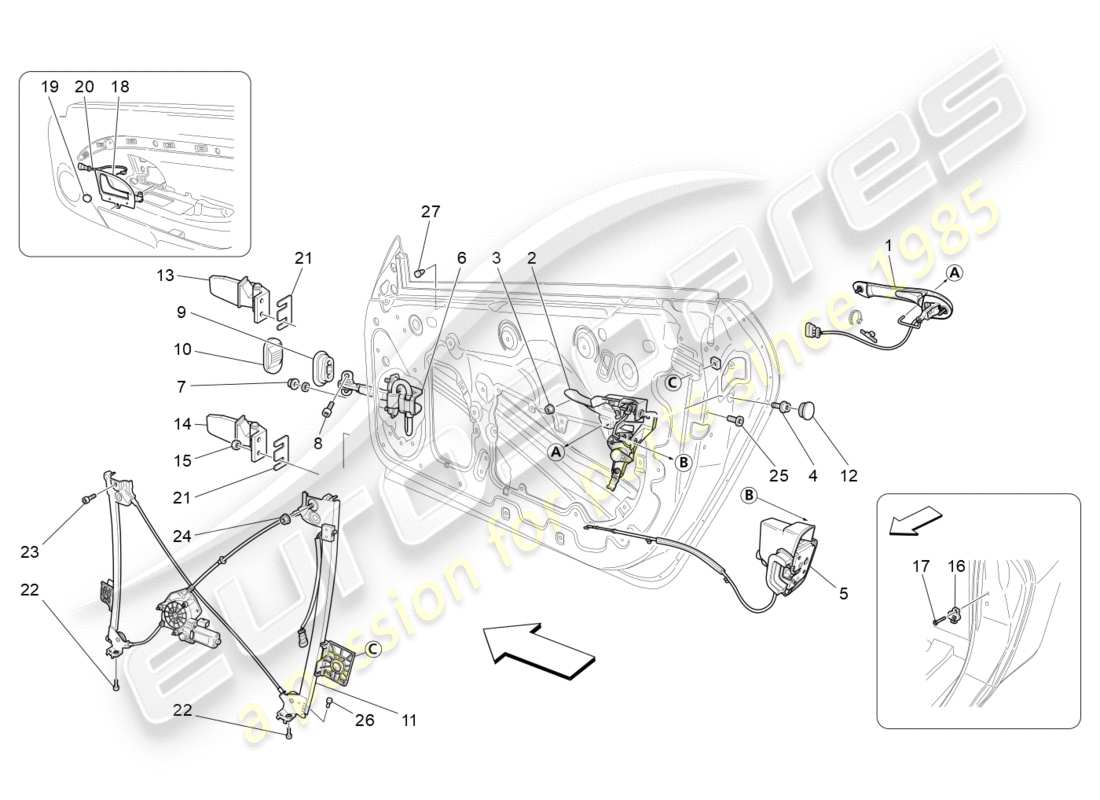

09.31.1 - front doors: mechanisms
Maserati GranTurismo (2009) FRONT DOORS: MECHANISMS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
69287600
RH DOOR EXTERNAL HANDLE #CHROME#
Not for cars with: Special Edition, MC Sport Line Version.
from
£145.04
from
£145.04
#
001
MPN:
69287700
LH DOOR EXTERNAL HANDLE #CHROME#
Not for cars with: Special Edition, MC Sport Line Version.
from
£142.75
from
£142.75
#
002
MPN:
80177300
RH OUTER HANDLE SUPPORT
from
£116.30
from
£116.30
#
002
MPN:
80177400
LH OUTER HANDLE SUPPORT
from
£63.97
from
£63.97
#
003
MPN:
14040514
NUT [M5]
from
£0.47
from
£0.47
#
004
MPN:
46401657
SCREW [M6X12]
from
£0.53
from
£0.53
#
005
MPN:
68893300
RH DOOR LOCK
from
£135.14
from
£135.14
#
005
MPN:
68893400
LH DOOR LOCK
from
£124.62
from
£124.62
#
006
MPN:
80174300
TIE ROD
from
£30.12
from
£30.12
#
007
MPN:
14058411
NUT [M6]
from
£0.53
from
£0.53
#
008
MPN:
80853100
SCREW [M6]
from
£1.69
from
£1.69
#
009
MPN:
67575800
GASKET
from
£11.43
from
£11.43
#
010
MPN:
67079000
GASKET
from
£6.98
from
£6.98
#
011
MPN:
69912100
RH POWER WINDOW WINDER
from
£315.87
from
£315.87
#
011
MPN:
69914400
LH POWER WINDOW WINDER
from
£164.88
from
£164.88
#
012
MPN:
14506787
PLUG
from
£0.75
from
£0.75
#
013
MPN:
67880900
RH UPPER HINGE
from
£55.18
from
£55.18
#
013
MPN:
67881000
LH UPPER HINGE
from
£55.18
from
£55.18
#
014
MPN:
66812400
RH LOWER HINGE
from
£41.12
from
£41.12
#
014
MPN:
66812500
LH LOWER HINGE
from
£41.12
from
£41.12
#
015
MPN:
15501025
NUT
from
£0.83
from
£0.83
#
016
MPN:
68308800
STRIKER
Valid from assembly: 0 - 83237.
from
£6.42
from
£6.42
This part replaces part number 67877100
#
016
MPN:
85321500
STRIKER #FOR ASSEMBLY < 83238 REPLACE ALSO THE STRIKER PLATE ON THE OPPOSITE SIDE#
from
£13.10
from
£13.10
This part replaces part number 68308800
#
017
MPN:
67999500
SCREW [M8]
from
£0.93
from
£0.93
#
018
MPN:
981603000
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: BLACK.
from
£450.48
from
£450.48
This part replaces part number 980145005
- and 1 more. Click to view details
#
018
MPN:
981603001
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: BEIGE MY06.
from
£299.47
from
£299.47
This part replaces part number 9816030..
#
018
MPN:
981603002
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: IVORY.
from
£287.22
from
£287.22
This part replaces part number 9816030..
#
018
MPN:
981603007
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: BORDEAUX.
from
£299.47
from
£299.47
This part replaces part number 9816030..
#
018
MPN:
981603015
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: NAVY BLUE.
from
£299.47
from
£299.47
This part replaces part number 9816030..
#
018
MPN:
981603016
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: MEDIUM GREY.
from
£276.90
from
£276.90
This part replaces part number 9816030..
#
018
MPN:
981603021
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: ICE GREY.
This part replaces part number 9816030..
#
018
MPN:
981603024
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: CORALLO RED.
from
£373.63
from
£373.63
This part replaces part number 9816030..
#
018
MPN:
981603028
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: CORNIOLA BROWN.
from
£299.47
from
£299.47
This part replaces part number 9816030..
#
018
MPN:
981603029
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: NUOVO SABBIA.
from
£299.47
from
£299.47
This part replaces part number 9816030..
#
018
MPN:
981603046
COMPLETE RH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: TAN.
#
018
MPN:
981603100
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: BLACK.
from
£374.04
from
£374.04
This part replaces part number 980145006
- and 1 more. Click to view details
#
018
MPN:
981603101
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: BEIGE MY06.
from
£288.18
from
£288.18
This part replaces part number 9816031..
#
018
MPN:
981603102
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: IVORY.
from
£288.18
from
£288.18
This part replaces part number 9816031..
#
018
MPN:
981603107
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: BORDEAUX.
from
£288.18
from
£288.18
This part replaces part number 9816031..
#
018
MPN:
981603115
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: NAVY BLUE.
This part replaces part number 9816031..
#
018
MPN:
981603116
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: MEDIUM GREY.
from
£264.73
from
£264.73
This part replaces part number 9816031..
#
018
MPN:
981603121
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: ICE GREY.
This part replaces part number 9816031..
#
018
MPN:
981603124
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: CORALLO RED.
from
£436.44
from
£436.44
This part replaces part number 9816031..
#
018
MPN:
981603128
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: CORNIOLA BROWN.
from
£288.18
from
£288.18
This part replaces part number 9816031..
#
018
MPN:
981603129
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: NUOVO SABBIA.
from
£364.69
from
£364.69
This part replaces part number 9816031..
#
018
MPN:
981603146
COMPLETE LH HANDLE FOR DOOR OPENING
Not for cars with: Special Edition. Colour: TAN.
from
£288.18
from
£288.18
#
019
MPN:
66939600
PLUG
from
£6.06
from
£6.06
#
020
MPN:
234823
MICROSWITCH
from
£71.50
from
£71.50
#
021
MPN:
67274900
PLATE
from
£9.12
from
£9.12
#
022
MPN:
11567624
SCREW [M6X14] #M 6X14 - GLASS LIFT FIXING#
from
£2.21
from
£2.21
#
023
MPN:
11570524
SCREW [TCEI M8X20] #M 8X20 - GLASS LIFT FIXING#
from
£2.69
from
£2.69
#
024
MPN:
14039714
NUT [M8] #GLASS LIFT FIXING#
from
£0.53
from
£0.53
#
025
MPN:
67077900
SCREW
from
£0.52
from
£0.52
#
026
MPN:
980145406
RUBBER LIMIT STOP
from
£9.59
from
£9.59
#
027
MPN:
14624587
PLUG
from
£0.54
from
£0.54
-part-diagram-09.34.1.webp "MASERATI GRANTURISMO (2009) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.1.webp "MASERATI GRANTURISMO (2009) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.40.1.webp "MASERATI GRANTURISMO (2009) FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.41.1.webp "MASERATI GRANTURISMO (2009) FRONT SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.42.1.webp "MASERATI GRANTURISMO (2009) REAR SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI GRANTURISMO (2009) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI GRANTURISMO (2009) ROOF AND SUN VISORS PARTS DIAGRAM")
-part-diagram-09.46.1.webp "MASERATI GRANTURISMO (2009) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.50.1.webp "MASERATI GRANTURISMO (2009) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.2.webp "MASERATI GRANTURISMO (2009) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.51.1.webp "MASERATI GRANTURISMO (2009) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.1.webp "MASERATI GRANTURISMO (2009) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI GRANTURISMO (2009) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.1.webp "MASERATI GRANTURISMO (2009) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.2.webp "MASERATI GRANTURISMO (2009) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.3.webp "MASERATI GRANTURISMO (2009) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI GRANTURISMO (2009) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.1.webp "MASERATI GRANTURISMO (2009) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.63.2.webp "MASERATI GRANTURISMO (2009) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-01.00.1.webp "MASERATI GRANTURISMO (2009) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.1.webp "MASERATI GRANTURISMO (2009) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.10.2.webp "MASERATI GRANTURISMO (2009) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI GRANTURISMO (2009) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.1.webp "MASERATI GRANTURISMO (2009) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.1.webp "MASERATI GRANTURISMO (2009) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.1.webp "MASERATI GRANTURISMO (2009) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.1.webp "MASERATI GRANTURISMO (2009) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.1.webp "MASERATI GRANTURISMO (2009) TIMING PARTS DIAGRAM")
-part-diagram-01.25.1.webp "MASERATI GRANTURISMO (2009) VALVES PARTS DIAGRAM")
-part-diagram-01.40.1.webp "MASERATI GRANTURISMO (2009) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI GRANTURISMO (2009) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI GRANTURISMO (2009) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.1.webp "MASERATI GRANTURISMO (2009) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.1.webp "MASERATI GRANTURISMO (2009) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.1.webp "MASERATI GRANTURISMO (2009) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.2.webp "MASERATI GRANTURISMO (2009) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.3.webp "MASERATI GRANTURISMO (2009) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.4.webp "MASERATI GRANTURISMO (2009) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.1.webp "MASERATI GRANTURISMO (2009) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.1.webp "MASERATI GRANTURISMO (2009) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.1.webp "MASERATI GRANTURISMO (2009) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.62.2.webp "MASERATI GRANTURISMO (2009) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.1.webp "MASERATI GRANTURISMO (2009) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI GRANTURISMO (2009) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.70.2.webp "MASERATI GRANTURISMO (2009) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.1.webp "MASERATI GRANTURISMO (2009) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.2.webp "MASERATI GRANTURISMO (2009) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.1.webp "MASERATI GRANTURISMO (2009) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.1.webp "MASERATI GRANTURISMO (2009) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.80.2.webp "MASERATI GRANTURISMO (2009) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI GRANTURISMO (2009) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.2.webp "MASERATI GRANTURISMO (2009) SILENCERS PARTS DIAGRAM")
-part-diagram-01.90.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.3.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.5.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-02.01.1.webp "MASERATI GRANTURISMO (2009) ACTUATION HYDRAULIC PARTS FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-02.11.1.webp "MASERATI GRANTURISMO (2009) FRICTION DISCS AND HOUSING FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-02.90.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CLUTCH CONTROL FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-03.01.1.webp "MASERATI GRANTURISMO (2009) DRIVER CONTROLS FOR F1 GEARBOX PARTS DIAGRAM")
-part-diagram-03.02.1.webp "MASERATI GRANTURISMO (2009) DRIVER CONTROLS FOR AUTOMATIC GEARBOX PARTS DIAGRAM")
-part-diagram-03.10.1.webp "MASERATI GRANTURISMO (2009) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.2.webp "MASERATI GRANTURISMO (2009) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.3.webp "MASERATI GRANTURISMO (2009) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.11.1.webp "MASERATI GRANTURISMO (2009) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-03.12.1.webp "MASERATI GRANTURISMO (2009) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-03.13.1.webp "MASERATI GRANTURISMO (2009) INNER CONTROLS PARTS DIAGRAM")
-part-diagram-03.21.1.webp "MASERATI GRANTURISMO (2009) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.21.2.webp "MASERATI GRANTURISMO (2009) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.30.1.webp "MASERATI GRANTURISMO (2009) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.2.webp "MASERATI GRANTURISMO (2009) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.40.1.webp "MASERATI GRANTURISMO (2009) GEARBOX ACTIVATION HYDRAULICS: POWER UNIT PARTS DIAGRAM")
-part-diagram-03.41.1.webp "MASERATI GRANTURISMO (2009) GEARBOX ACTIVATION HYDRAULICS: TANK AND PUMP PARTS DIAGRAM")
-part-diagram-03.50.1.webp "MASERATI GRANTURISMO (2009) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.50.2.webp "MASERATI GRANTURISMO (2009) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.90.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL (GEARBOX) PARTS DIAGRAM")
-part-diagram-04.00.1.webp "MASERATI GRANTURISMO (2009) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.1.webp "MASERATI GRANTURISMO (2009) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.1.webp "MASERATI GRANTURISMO (2009) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.1.webp "MASERATI GRANTURISMO (2009) LINES PARTS DIAGRAM")
-part-diagram-04.20.2.webp "MASERATI GRANTURISMO (2009) LINES PARTS DIAGRAM")
-part-diagram-04.30.1.webp "MASERATI GRANTURISMO (2009) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.1.webp "MASERATI GRANTURISMO (2009) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI GRANTURISMO (2009) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.1.webp "MASERATI GRANTURISMO (2009) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI GRANTURISMO (2009) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI GRANTURISMO (2009) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI GRANTURISMO (2009) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI GRANTURISMO (2009) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.2.webp "MASERATI GRANTURISMO (2009) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.12.1.webp "MASERATI GRANTURISMO (2009) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.20.1.webp "MASERATI GRANTURISMO (2009) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.21.1.webp "MASERATI GRANTURISMO (2009) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.21.2.webp "MASERATI GRANTURISMO (2009) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.22.1.webp "MASERATI GRANTURISMO (2009) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.22.2.webp "MASERATI GRANTURISMO (2009) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI GRANTURISMO (2009) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI GRANTURISMO (2009) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.00.1.webp "MASERATI GRANTURISMO (2009) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.00.2.webp "MASERATI GRANTURISMO (2009) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.01.1.webp "MASERATI GRANTURISMO (2009) PASSENGER'S AIRBAG-DEACTIVATION PARTS DIAGRAM")
-part-diagram-07.01.3.webp "MASERATI GRANTURISMO (2009) PASSENGER'S AIRBAG-DEACTIVATION PARTS DIAGRAM")
-part-diagram-07.02.1.webp "MASERATI GRANTURISMO (2009) FRONT SIDE BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI GRANTURISMO (2009) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.10.1.webp "MASERATI GRANTURISMO (2009) FRONT SEATBELTS PARTS DIAGRAM")
-part-diagram-07.11.1.webp "MASERATI GRANTURISMO (2009) REAR SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.20.1.webp "MASERATI GRANTURISMO (2009) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-07.30.1.webp "MASERATI GRANTURISMO (2009) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.2.webp "MASERATI GRANTURISMO (2009) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.4.webp "MASERATI GRANTURISMO (2009) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.31.1.webp "MASERATI GRANTURISMO (2009) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-07.31.2.webp "MASERATI GRANTURISMO (2009) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-07.31.3.webp "MASERATI GRANTURISMO (2009) AFTER MARKET ACCESSORIES PARTS DIAGRAM")
-part-diagram-08.00.1.webp "MASERATI GRANTURISMO (2009) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI GRANTURISMO (2009) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.1.webp "MASERATI GRANTURISMO (2009) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.30.1.webp "MASERATI GRANTURISMO (2009) HEADLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.31.1.webp "MASERATI GRANTURISMO (2009) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.32.1.webp "MASERATI GRANTURISMO (2009) SIDE LIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.1.webp "MASERATI GRANTURISMO (2009) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.1.webp "MASERATI GRANTURISMO (2009) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.2.webp "MASERATI GRANTURISMO (2009) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.3.webp "MASERATI GRANTURISMO (2009) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI GRANTURISMO (2009) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI GRANTURISMO (2009) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.1.webp "MASERATI GRANTURISMO (2009) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.1.webp "MASERATI GRANTURISMO (2009) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.1.webp "MASERATI GRANTURISMO (2009) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.51.2.webp "MASERATI GRANTURISMO (2009) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.52.1.webp "MASERATI GRANTURISMO (2009) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.53.1.webp "MASERATI GRANTURISMO (2009) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.2.webp "MASERATI GRANTURISMO (2009) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.1.webp "MASERATI GRANTURISMO (2009) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.3.webp "MASERATI GRANTURISMO (2009) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.5.webp "MASERATI GRANTURISMO (2009) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.6.webp "MASERATI GRANTURISMO (2009) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.1.webp "MASERATI GRANTURISMO (2009) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI GRANTURISMO (2009) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.1.webp "MASERATI GRANTURISMO (2009) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.2.webp "MASERATI GRANTURISMO (2009) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.3.webp "MASERATI GRANTURISMO (2009) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI GRANTURISMO (2009) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-09.00.1.webp "MASERATI GRANTURISMO (2009) BODYWORK AND FRONT OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.2.webp "MASERATI GRANTURISMO (2009) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.3.webp "MASERATI GRANTURISMO (2009) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.4.webp "MASERATI GRANTURISMO (2009) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.02.1.webp "MASERATI GRANTURISMO (2009) BODYWORK AND REAR OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.03.1.webp "MASERATI GRANTURISMO (2009) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.1.webp "MASERATI GRANTURISMO (2009) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.1.webp "MASERATI GRANTURISMO (2009) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.10.1.webp "MASERATI GRANTURISMO (2009) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.11.1.webp "MASERATI GRANTURISMO (2009) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI GRANTURISMO (2009) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI GRANTURISMO (2009) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.1.webp "MASERATI GRANTURISMO (2009) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI GRANTURISMO (2009) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.15.3.webp "MASERATI GRANTURISMO (2009) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.1.webp "MASERATI GRANTURISMO (2009) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI GRANTURISMO (2009) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI GRANTURISMO (2009) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI GRANTURISMO (2009) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI GRANTURISMO (2009) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI GRANTURISMO (2009) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI GRANTURISMO (2009) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.30.1.webp "MASERATI GRANTURISMO (2009) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
