01.44.3 - fuel vapour recirculation system

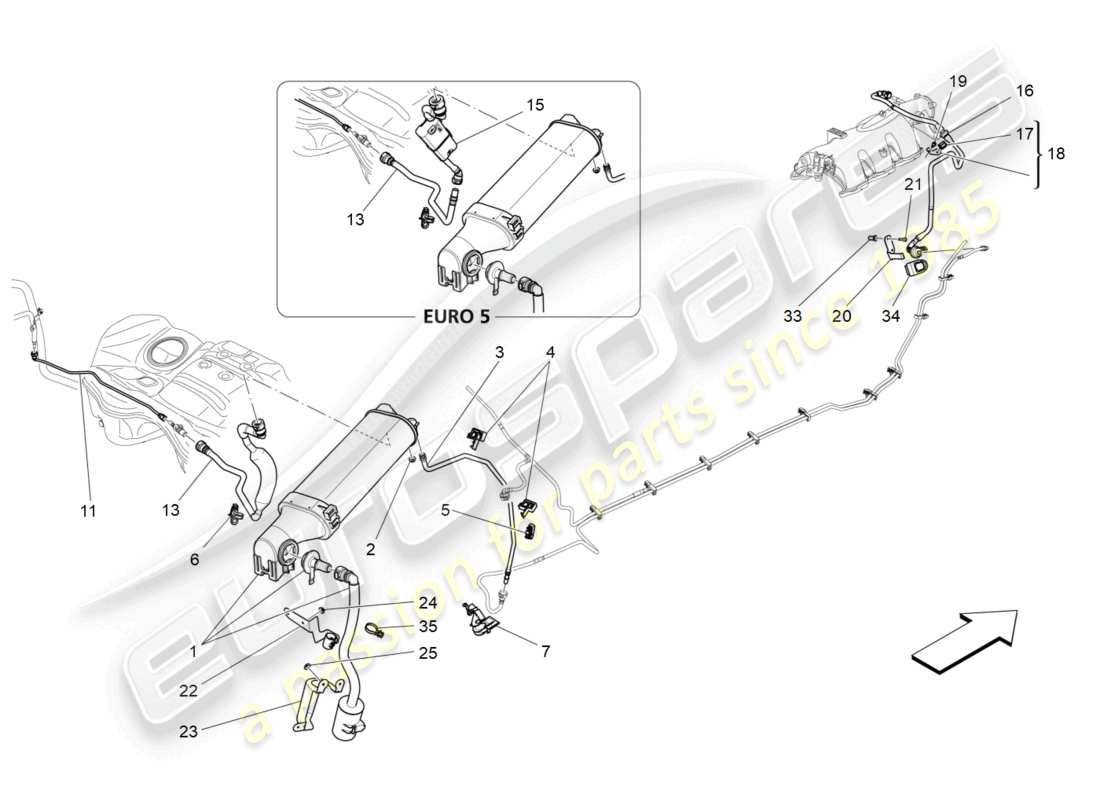

Maserati Ghibli (2014) FUEL VAPOUR RECIRCULATION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670030586
FUEL VAPOUR FILTER #FOR ASSEMBLY< 5006900, ORDER KIT 980157003#
Valid from assembly: 0 - 5058885. Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £83.49
from £83.49
This part replaces part number 670003220
FUEL VAPOUR FILTER Genuine Maserati Part - New In stock
# 002
MPN: 675000114
NUT
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £0.83
from £0.83
NUT Genuine Maserati Part - New In stock
# 003
MPN: 670003253
PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £8.27
from £8.27
REAR ANTI-EVAPOURATION PIPE Genuine Maserati Part - New In stock
REAR ANTI-EVAPOURATION PIPE Genuine Maserati Part - Used In stock
# 004
MPN: 675000069
CLIP
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £0.83
from £0.83
CLIP Genuine Maserati Part - New In stock
# 005
MPN: 675000055
CLIP
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £0.73
from £0.73
CLIP Genuine Maserati Part - New In stock
# 006
MPN: 670005103
BRACKET #For assembly< 5011270, order kit 980157003 and refer to Campaign no. 241 - Canister Upgrade kit -#
Valid from assembly: 0 - 5011269. Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 006
MPN: 670030850
BRACKET
Valid from assembly: 5011270 - 5065101. Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £2.11
from £2.11
This part replaces part number 670005103
FUEL TANK BRACKET Genuine Maserati Part - New (to order)
# 007
MPN: 670007068
CLIP
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £3.52
from £3.52
CLIP Genuine Maserati Part - New In stock
# 011
MPN: 670005215
VAPOUR PIPE
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £10.63
from £10.63
FLEX.HOSE Genuine Maserati Part - New (to order)
FLEX.HOSE Genuine Maserati Part - Used In stock
# 013
MPN: 670005214
VAPOUR PIPE #FOR ASSEMBLY< 5011270, ORDER KIT 980157003 AND REFER TO CAMPAIGN NO. 241 - CANISTER UPGRADE KIT -#
Valid from assembly: 0 - 5011269. Suitable for cars with: EURO 5. Not for cars with: EURO 6. Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £18.84
from £18.84
FUEL VENT PIPE Genuine Maserati Part - New (to order)
FUEL VENT PIPE Genuine Maserati Part - Used In stock
# 013
MPN: 670030557
VAPOUR PIPE
Valid from assembly: 5011270 - 5039253. Suitable for cars with: EURO 5. Not for cars with: EURO 6. Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £34.26
from £34.26
FUEL VENT PIPE Genuine Maserati Part - New (to order)
# 015
MPN: 670001405
VENT PIPE #FOR ASSEMBLY< 5011270, ORDER KIT 980157003 AND REFER TO CAMPAIGN NO. 241 - CANISTER UPGRADE KIT -#
Valid from assembly: 0 - 5011269. Suitable for cars with: EURO 5. Not for cars with: EURO 6. Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £48.03
from £48.03
VENT PIPE ON FUEL TANK Genuine Maserati Part - New (to order)
VENT PIPE ON FUEL TANK Genuine Maserati Part - Used In stock
# 015
MPN: 670030581
VENT PIPE
Valid from assembly: 5011270. Suitable for cars with: EURO 5. Not for cars with: EURO 6. (valid for: 3.0 BT SOFT V6 2WD 330 HP,3.0 BT V6 2WD 410 HP,3.0 BT V6 4WD 410 HP | AUSTRALIA,CHILE,EUROPE,JAPAN,JAPAN (RH DRIVE),UK)
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 015
MPN: 670030581
VENT PIPE
Valid from assembly: 5011270. Suitable for cars with: EURO 5. Not for cars with: EURO 6. Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 015
MPN: 670031056
VENT PIPE
Valid from assembly: 5011270. Suitable for cars with: EURO 5. Not for cars with: EURO 6. Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £87.33
from £87.33
This part replaces part number 670030581
FUEL TANK BLOW-BY DUMP-PIPE Genuine Maserati Part - New (to order)
# 016
MPN: 670161425
PIPE BETWEEN UNION AND INTAKE MANIFOLD
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from £94.06
from £94.06
This part replaces part number 670005258
PIPE FROM UNION TO AIR INTAK Genuine Maserati Part - New (to order)
# 016
MPN: 673012369
PIPE BETWEEN UNION AND INTAKE MANIFOLD
Suitable for: AUTOMATIC | 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £94.06
from £94.06
This part replaces part number 670005257
Pipe From Union To Air Intake Genuine Maserati Part - New (to order)
# 017
MPN: 675000132
CLIP
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £0.73
from £0.73
CLIP Genuine Maserati Part - New (to order)
# 018
MPN: 670005045
BRACKET ASSEMBLY
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £4.54
from £4.54
COMPLETE BRACKET Genuine Maserati Part - New (to order)
# 019
MPN: 675000191
SCREW [M6X14]
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £1.50
from £1.50
SCREW Genuine Maserati Part - New (to order)
# 020
MPN: 670007135
BRACKET
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £2.52
from £2.52
BRACKET Genuine Maserati Part - New (to order)
# 021
MPN: 675000242
SCREW [M6X25]
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £2.86
from £2.86
This part replaces part number 11568424
SCREW Genuine Maserati Part - New In stock
# 022
MPN: 670030588
BRACKET
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £8.41
from £8.41
CANISTER FILTER BRACKET Genuine Maserati Part - New In stock
# 023
MPN: 670030891
HEAT SHIELD
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £12.26
from £12.26
HEAT GUARD Genuine Maserati Part - New In stock
# 024
MPN: 675000114
NUT
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £0.83
from £0.83
NUT Genuine Maserati Part - New In stock
# 025
MPN: 670030917
PLATE
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £0.75
from £0.75
THREADED PLATE Genuine Maserati Part - New In stock
# 033
MPN: 675000576
RIVET
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £0.73
from £0.73
RIVET Genuine Maserati Part - New (to order)
# 034
MPN: 670007319
FLEXIBLE PAD
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £4.54
from £4.54
ANTIVIBRATION BUSHING Genuine Maserati Part - New (to order)
# 035
MPN: 670031653
CLIP
Suitable for: 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 BT V6 4WD 410 HP | AUSTRALIA, CHILE, EUROPE, JAPAN, JAPAN (RH DRIVE), UK
from £14.89
from £14.89
SPRING CLIP A/C LINE Genuine Maserati Part - New In stock
