09.23.1 - FRONT LID OPENING BUTTON

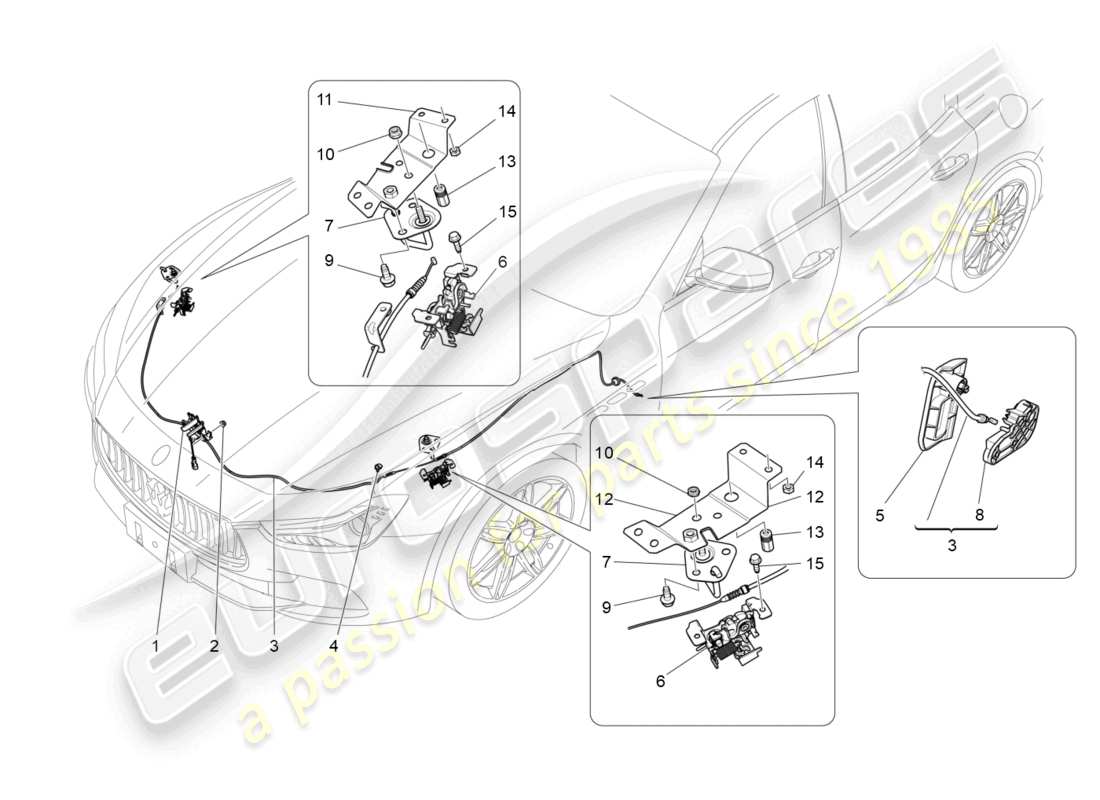

Maserati Ghibli (2014) FRONT LID OPENING BUTTON Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
670002099
SAFETY RELEASE LEVER
Valid from assembly: 0 - 5100666.
Supersession
Supersession
#
002
MPN:
670030861
NUT
from
£1.18
from
£1.18
#
003
MPN:
670007133

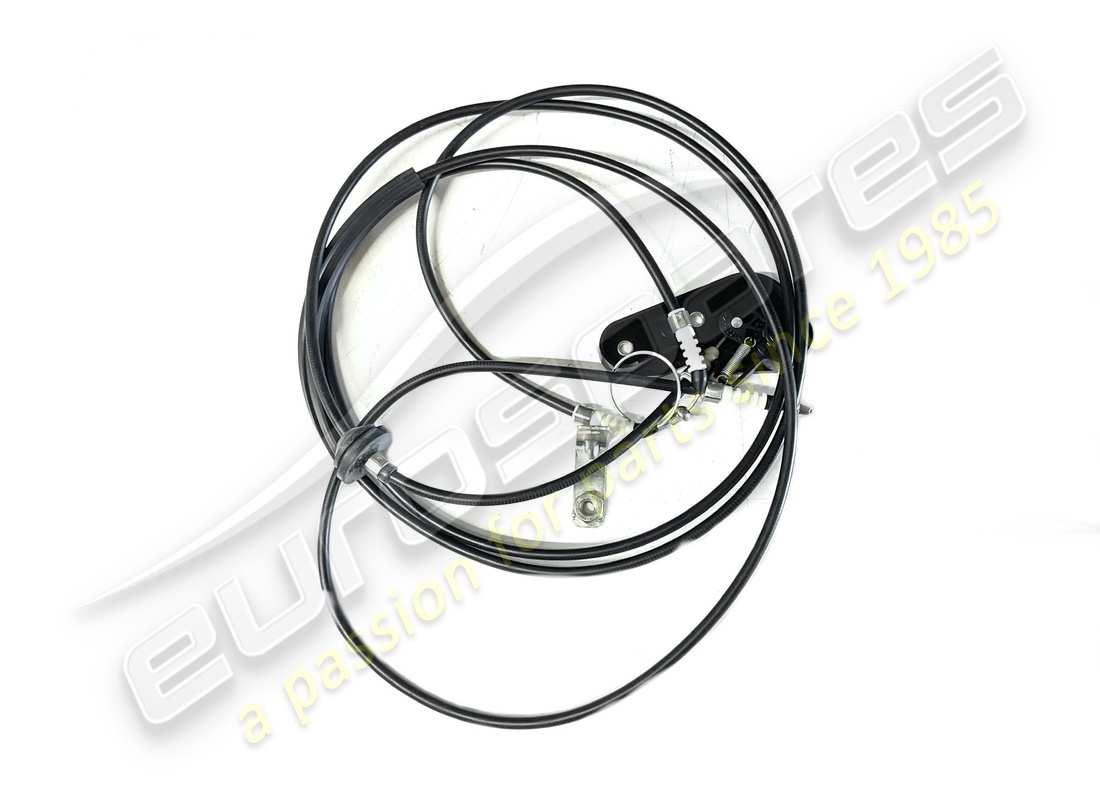

ENGINE BONNET OPENING CABLE
Suitable for: CHILE, EUROPE, ITALY, JAPAN, KOREA, USA
from
£53.07
from
£53.07
#
003
MPN:
670007134
ENGINE BONNET OPENING CABLE
Valid from assembly: 0 - 5002254. Suitable for: AUTOMATIC | 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
Supersession
Supersession
#
003
MPN:
670030108
ENGINE BONNET OPENING CABLE
Valid from assembly: 5002255. Suitable for: AUTOMATIC | 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from
£49.28
from
£49.28
This part replaces part number 670007134
#
004
MPN:
675000353
CLIP
from
£2.74
from
£2.74
#
005
MPN:
675000406
OPENING BONNET LEVER
Colour: BLACK.Suitable for: CHILE, EUROPE, ITALY, JAPAN, KOREA, USA
from
£4.69
from
£4.69
#
005
MPN:
675000407
OPENING BONNET LEVER
Colour: BLACK.Suitable for: AUTOMATIC | 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from
£3.04
from
£3.04
#
006
MPN:
670009673

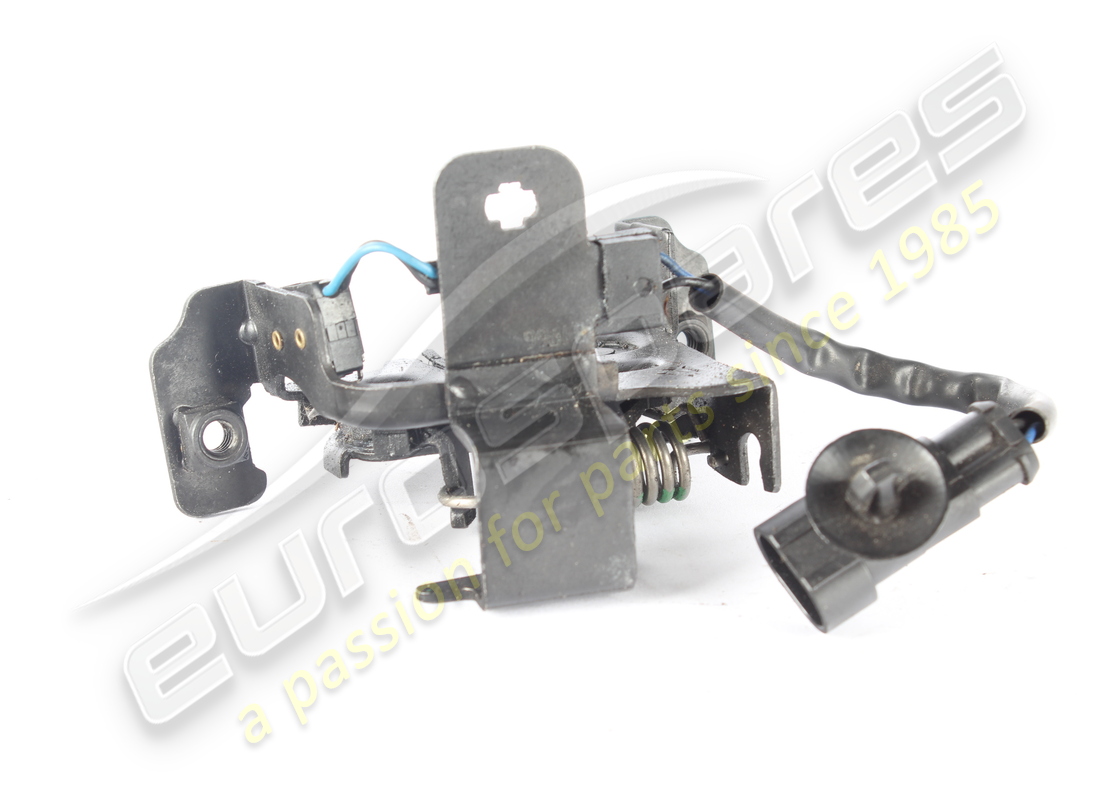

BONNET LOCK
Valid from assembly: 0 - 5068828.
from
£36.82
from
£36.82
#
006
MPN:
670101241
BONNET LOCK
Valid from assembly: 0 - 5099076.
Supersession
Supersession
This part replaces part number 670009673 which we have in stock
#
007
MPN:
670007604
BRACKET
from
£42.89
from
£42.89
#
008
MPN:
675000078
SUPPORT
Suitable for: CHILE, EUROPE, ITALY, JAPAN, KOREA, USA
from
£6.31
from
£6.31
#
008
MPN:
675000079
SUPPORT
Suitable for: AUTOMATIC | 3.0 BT SOFT V6 2WD 330 HP, 3.0 BT V6 2WD 410 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, JAPAN (RH DRIVE), UK
from
£19.01
from
£19.01
#
009
MPN:
670030298
SCREW
from
£1.43
from
£1.43
#
010
MPN:
670030299
NUT
from
£1.18
from
£1.18
#
011
MPN:
670031303
RH BRACKET
Valid from assembly: 0 - 5075944.
Supersession
Supersession
#
012
MPN:
670031301
LH BRACKET
Valid from assembly: 0 - 5075944.
Supersession
Supersession
#
012
MPN:
670105457
LH BRACKET #PLEASE, FOR GHIBLI WITH ASSEMBLY< 5075945 ORDER ALSO THE OTHER SIDE BRACKET WITH P/N 670105456 AND X2 P/N 675000410#
Valid from assembly: 0 - 5075944.
Supersession
Supersession
This part replaces part number 670031301
#
013
MPN:
675000410
ANTIVIBRATING PAD #PLEASE, FOR GHIBLI WITH ASSEMBLY< 5075945 ORDER ONLY IF BOTH BRACKETS WERE REPLACED (#11, #12)#
from
£4.46
from
£4.46
#
014
MPN:
675000092
NUT
from
£0.83
from
£0.83
#
015
MPN:
670030297
SCREW
from
£1.43
from
£1.43
