03.22.1 - front wheels transmission

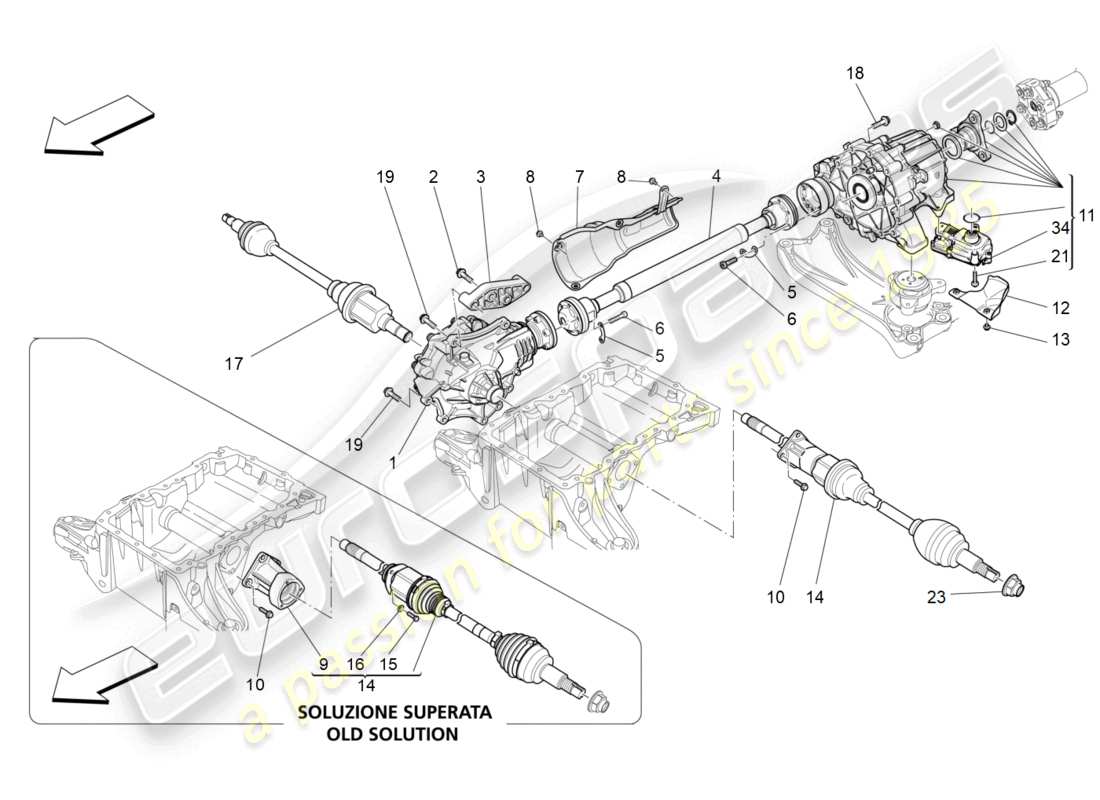

Maserati Ghibli (2014) FRONT WHEELS TRANSMISSION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
670007722
FRONT DIFFERENTIAL #OK SELL-OUT OLD P/N JUST FOR QUATTROPORTE WITH ASSEMBLY< 4018148 AND FOR GHIBLI WITH ASSEMBLY< 5024388; IF ASSEMBLY >= X OR IF OLD STOCK = 0, PLEASE ORDER JUST NEW P/N#
Valid from assembly: 0 - 5024387. (valid for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE,EUROPE,JAPAN)
Supersession
Supersession
#
001
MPN:
670007722
FRONT DIFFERENTIAL #OK SELL-OUT OLD P/N JUST FOR QUATTROPORTE WITH ASSEMBLY< 4018148 AND FOR GHIBLI WITH ASSEMBLY< 5024388; IF ASSEMBLY >= X OR IF OLD STOCK = 0, PLEASE ORDER JUST NEW P/N#
Valid from assembly: 0 - 5024387. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
Supersession
Supersession
#
001
MPN:
670032672
FRONT DIFFERENTIAL
Valid from assembly: 0 - 5076305. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£2,177.98
from
£2,177.98
This part replaces part number 670007722
#
002
MPN:
675000385
SCREW [M10X40]
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£2.30
from
£2.30
#
003
MPN:
670003776
BRACKET
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£74.76
from
£74.76
This part replaces part number 314692
#
004
MPN:
670008548
FRONT DRIVE SHAFT
Valid from assembly: 0 - 5076305. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£554.76
from
£554.76
This part replaces part number 670003770
#
005
MPN:
670003772
PLATE
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£2.52
from
£2.52
#
006
MPN:
675000256
SCREW [M8X40]
Valid from assembly: 0 - 5076305. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£1.43
from
£1.43
#
007
MPN:
670003989
HEAT SHIELD
Valid from assembly: 0 - 5076305. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£35.23
from
£35.23
#
008
MPN:
675000102
SCREW [M6X14]
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£2.17
from
£2.17
#
009
MPN:
670003873
LH SPACER #AVAILABLE ONLY FOR VEHICLES PRODUCED WITH LH AXLE SHAFT 670007077#
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£151.28
from
£151.28
#
010
MPN:
675000384
SCREW [M10X25]
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£3.52
from
£3.52
#
011
MPN:
670008138
ALL WHEEL DRIVE TRANSFER CASE
Valid from assembly: 0 - 5032576. (valid for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE,EUROPE,JAPAN)
Supersession
Supersession
#
011
MPN:
670008138
ALL WHEEL DRIVE TRANSFER CASE
Valid from assembly: 0 - 5032576. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
Supersession
Supersession
#
011
MPN:
670033011
ALL WHEEL DRIVE TRANSFER CASE
Valid from assembly: 0 - 5032576. (valid for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE,EUROPE,JAPAN)
Supersession
Supersession
This part replaces part number 670008138
#
011
MPN:
670033011
ALL WHEEL DRIVE TRANSFER CASE
Valid from assembly: 0 - 5032576. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
Supersession
Supersession
This part replaces part number 670008138
#
011
MPN:
673009767
ALL WHEEL DRIVE TRANSFER CASE
Valid from assembly: 0 - 5076305. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£3,546.92
from
£3,546.92
This part replaces part number 670033011
#
012
MPN:
670004015
HEAT SHIELD
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£21.76
from
£21.76
#
013
MPN:
675000102
SCREW [M6X14]
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£2.17
from
£2.17
#
014
MPN:
670007077
LH AXLE SHAFT ASSEMBLY
Valid from assembly: 0 - 5055263. (valid for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE,EUROPE,JAPAN)
Supersession
Supersession
This part replaces part number 670003582
#
014
MPN:
670007077
LH AXLE SHAFT ASSEMBLY
Valid from assembly: 0 - 5055263. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
Supersession
Supersession
This part replaces part number 670003582
#
014
MPN:
670032034
LH AXLE SHAFT ASSEMBLY
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£606.28
from
£606.28
This part replaces part number 670007077
#
015
MPN:
14305924
SCREW [M6X45] #AVAILABLE ONLY FOR VEHICLES PRODUCED WITH LH AXLE SHAFT 670007077#
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£0.47
from
£0.47
This part replaces part number 14305921
- and 1 more. Click to view details
#
016
MPN:
011197774
WASHER [D.6.4-12X1.2] #AVAILABLE ONLY FOR VEHICLES PRODUCED WITH LH AXLE SHAFT 670007077#
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
#
016
MPN:
11197774
WASHER [D.6.4-12X1.2] #AVAILABLE ONLY FOR VEHICLES PRODUCED WITH LH AXLE SHAFT 670007077#
(valid for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE,EUROPE,JAPAN)
from
£0.54
from
£0.54
#
017
MPN:
670003581
RH AXLE SHAFT
Valid from assembly: 0 - 5055263. (valid for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE,EUROPE,JAPAN)
Supersession
Supersession
#
017
MPN:
670003581
RH AXLE SHAFT
Valid from assembly: 0 - 5055263. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
Supersession
Supersession
#
017
MPN:
670035142
RH AXLE SHAFT
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£693.38
from
£693.38
This part replaces part number 670003581
#
018
MPN:
675000386
SCREW [M10X60]
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£2.83
from
£2.83
#
019
MPN:
675000385
SCREW [M10X40]
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£2.30
from
£2.30
#
021
MPN:
673009049
SCREW
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£3.95
from
£3.95
#
023
MPN:
675000138
NUT
Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
from
£6.06
from
£6.06
#
034
MPN:
670008140
TRANSFER CASE CONTROL UNIT
Valid from assembly: 0 - 5032576. Suitable for: AUTOMATIC 4WD | 3.0 BT V6 4WD 410 HP | CHILE, EUROPE, JAPAN
Supersession
Supersession
-part-diagram-03.30.1.webp "MASERATI GHIBLI (2014) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.2.webp "MASERATI GHIBLI (2014) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.3.webp "MASERATI GHIBLI (2014) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.50.2.webp "MASERATI GHIBLI (2014) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.50.3.webp "MASERATI GHIBLI (2014) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-04.00.3.webp "MASERATI GHIBLI (2014) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.00.4.webp "MASERATI GHIBLI (2014) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.00.5.webp "MASERATI GHIBLI (2014) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.2.webp "MASERATI GHIBLI (2014) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.10.3.webp "MASERATI GHIBLI (2014) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.10.4.webp "MASERATI GHIBLI (2014) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.1.webp "MASERATI GHIBLI (2014) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.11.2.webp "MASERATI GHIBLI (2014) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.11.3.webp "MASERATI GHIBLI (2014) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.1.webp "MASERATI GHIBLI (2014) LINES PARTS DIAGRAM")
-part-diagram-04.20.2.webp "MASERATI GHIBLI (2014) LINES PARTS DIAGRAM")
-part-diagram-04.30.1.webp "MASERATI GHIBLI (2014) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.1.webp "MASERATI GHIBLI (2014) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI GHIBLI (2014) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.2.webp "MASERATI GHIBLI (2014) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.10.4.webp "MASERATI GHIBLI (2014) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.10.6.webp "MASERATI GHIBLI (2014) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI GHIBLI (2014) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI GHIBLI (2014) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI GHIBLI (2014) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI GHIBLI (2014) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.5.webp "MASERATI GHIBLI (2014) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.12.1.webp "MASERATI GHIBLI (2014) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.12.2.webp "MASERATI GHIBLI (2014) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.20.1.webp "MASERATI GHIBLI (2014) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.20.2.webp "MASERATI GHIBLI (2014) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.21.1.webp "MASERATI GHIBLI (2014) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.22.1.webp "MASERATI GHIBLI (2014) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI GHIBLI (2014) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI GHIBLI (2014) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.00.1.webp "MASERATI GHIBLI (2014) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.02.1.webp "MASERATI GHIBLI (2014) FRONT SIDE BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.04.1.webp "MASERATI GHIBLI (2014) WINDOW BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI GHIBLI (2014) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.10.1.webp "MASERATI GHIBLI (2014) FRONT SEATBELTS PARTS DIAGRAM")
-part-diagram-07.11.1.webp "MASERATI GHIBLI (2014) REAR SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.20.1.webp "MASERATI GHIBLI (2014) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-07.30.1.webp "MASERATI GHIBLI (2014) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.32.1.webp "MASERATI GHIBLI (2014) ON BOARD DOCUMENTATION PARTS DIAGRAM")
-part-diagram-08.00.1.webp "MASERATI GHIBLI (2014) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.00.2.webp "MASERATI GHIBLI (2014) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI GHIBLI (2014) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.1.webp "MASERATI GHIBLI (2014) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.20.3.webp "MASERATI GHIBLI (2014) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.30.1.webp "MASERATI GHIBLI (2014) HEADLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.31.1.webp "MASERATI GHIBLI (2014) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.1.webp "MASERATI GHIBLI (2014) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.3.webp "MASERATI GHIBLI (2014) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.5.webp "MASERATI GHIBLI (2014) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI GHIBLI (2014) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.41.2.webp "MASERATI GHIBLI (2014) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI GHIBLI (2014) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.42.2.webp "MASERATI GHIBLI (2014) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.1.webp "MASERATI GHIBLI (2014) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.1.webp "MASERATI GHIBLI (2014) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.1.webp "MASERATI GHIBLI (2014) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.52.1.webp "MASERATI GHIBLI (2014) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.52.3.webp "MASERATI GHIBLI (2014) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.53.1.webp "MASERATI GHIBLI (2014) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.4.webp "MASERATI GHIBLI (2014) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.7.webp "MASERATI GHIBLI (2014) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.1.webp "MASERATI GHIBLI (2014) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.10.webp "MASERATI GHIBLI (2014) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.11.webp "MASERATI GHIBLI (2014) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.6.webp "MASERATI GHIBLI (2014) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.9.webp "MASERATI GHIBLI (2014) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.1.webp "MASERATI GHIBLI (2014) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.61.3.webp "MASERATI GHIBLI (2014) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.62.1.webp "MASERATI GHIBLI (2014) CONNECTORS PARTS DIAGRAM")
-part-diagram-08.63.1.webp "MASERATI GHIBLI (2014) EXTRACTORS PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI GHIBLI (2014) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.70.2.webp "MASERATI GHIBLI (2014) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.1.webp "MASERATI GHIBLI (2014) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.3.webp "MASERATI GHIBLI (2014) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.6.webp "MASERATI GHIBLI (2014) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI GHIBLI (2014) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-09.00.1.webp "MASERATI GHIBLI (2014) BODYWORK AND FRONT OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.1.webp "MASERATI GHIBLI (2014) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.02.1.webp "MASERATI GHIBLI (2014) BODYWORK AND REAR OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.03.1.webp "MASERATI GHIBLI (2014) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.03.2.webp "MASERATI GHIBLI (2014) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.03.3.webp "MASERATI GHIBLI (2014) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.1.webp "MASERATI GHIBLI (2014) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.2.webp "MASERATI GHIBLI (2014) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.1.webp "MASERATI GHIBLI (2014) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.2.webp "MASERATI GHIBLI (2014) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.3.webp "MASERATI GHIBLI (2014) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.10.1.webp "MASERATI GHIBLI (2014) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.11.1.webp "MASERATI GHIBLI (2014) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI GHIBLI (2014) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI GHIBLI (2014) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.1.webp "MASERATI GHIBLI (2014) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.14.2.webp "MASERATI GHIBLI (2014) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI GHIBLI (2014) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.15.2.webp "MASERATI GHIBLI (2014) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.1.webp "MASERATI GHIBLI (2014) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI GHIBLI (2014) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.17.2.webp "MASERATI GHIBLI (2014) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI GHIBLI (2014) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI GHIBLI (2014) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI GHIBLI (2014) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI GHIBLI (2014) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI GHIBLI (2014) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.30.1.webp "MASERATI GHIBLI (2014) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.30.5.webp "MASERATI GHIBLI (2014) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.31.2.webp "MASERATI GHIBLI (2014) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.32.1.webp "MASERATI GHIBLI (2014) REAR DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.33.1.webp "MASERATI GHIBLI (2014) REAR DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.34.1.webp "MASERATI GHIBLI (2014) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.1.webp "MASERATI GHIBLI (2014) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.40.1.webp "MASERATI GHIBLI (2014) FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.41.1.webp "MASERATI GHIBLI (2014) FRONT SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.42.1.webp "MASERATI GHIBLI (2014) REAR SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.43.1.webp "MASERATI GHIBLI (2014) REAR SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI GHIBLI (2014) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI GHIBLI (2014) ROOF AND SUN VISORS PARTS DIAGRAM")
-part-diagram-09.46.1.webp "MASERATI GHIBLI (2014) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.46.2.webp "MASERATI GHIBLI (2014) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.50.1.webp "MASERATI GHIBLI (2014) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.3.webp "MASERATI GHIBLI (2014) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.4.webp "MASERATI GHIBLI (2014) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.6.webp "MASERATI GHIBLI (2014) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.51.1.webp "MASERATI GHIBLI (2014) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.1.webp "MASERATI GHIBLI (2014) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI GHIBLI (2014) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.1.webp "MASERATI GHIBLI (2014) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI GHIBLI (2014) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.62.2.webp "MASERATI GHIBLI (2014) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.62.3.webp "MASERATI GHIBLI (2014) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.1.webp "MASERATI GHIBLI (2014) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.71.1.webp "MASERATI GHIBLI (2014) SUNROOF PARTS DIAGRAM")
-part-diagram-01.00.2.webp "MASERATI GHIBLI (2014) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.00.3.webp "MASERATI GHIBLI (2014) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.00.4.webp "MASERATI GHIBLI (2014) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.2.webp "MASERATI GHIBLI (2014) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.10.3.webp "MASERATI GHIBLI (2014) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI GHIBLI (2014) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.11.4.webp "MASERATI GHIBLI (2014) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.2.webp "MASERATI GHIBLI (2014) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.20.3.webp "MASERATI GHIBLI (2014) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.2.webp "MASERATI GHIBLI (2014) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.3.webp "MASERATI GHIBLI (2014) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.2.webp "MASERATI GHIBLI (2014) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.22.3.webp "MASERATI GHIBLI (2014) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.2.webp "MASERATI GHIBLI (2014) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.3.webp "MASERATI GHIBLI (2014) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.2.webp "MASERATI GHIBLI (2014) TIMING PARTS DIAGRAM")
-part-diagram-01.24.3.webp "MASERATI GHIBLI (2014) TIMING PARTS DIAGRAM")
-part-diagram-01.25.2.webp "MASERATI GHIBLI (2014) VALVES PARTS DIAGRAM")
-part-diagram-01.25.3.webp "MASERATI GHIBLI (2014) VALVES PARTS DIAGRAM")
-part-diagram-01.30.2.webp "MASERATI GHIBLI (2014) TURBOCHARGING SYSTEM: EQUIPMENTS PARTS DIAGRAM")
-part-diagram-01.30.3.webp "MASERATI GHIBLI (2014) TURBOCHARGING SYSTEM: EQUIPMENTS PARTS DIAGRAM")
-part-diagram-01.31.2.webp "MASERATI GHIBLI (2014) TURBOCHARGING SYSTEM: LUBRICATION AND COOLING PARTS DIAGRAM")
-part-diagram-01.31.3.webp "MASERATI GHIBLI (2014) TURBOCHARGING SYSTEM: LUBRICATION AND COOLING PARTS DIAGRAM")
-part-diagram-01.32.2.webp "MASERATI GHIBLI (2014) INTERCOOLER SYSTEM PARTS DIAGRAM")
-part-diagram-01.32.3.webp "MASERATI GHIBLI (2014) INTERCOOLER SYSTEM PARTS DIAGRAM")
-part-diagram-01.40.2.webp "MASERATI GHIBLI (2014) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.40.3.webp "MASERATI GHIBLI (2014) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI GHIBLI (2014) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.41.3.webp "MASERATI GHIBLI (2014) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI GHIBLI (2014) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.3.webp "MASERATI GHIBLI (2014) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.4.webp "MASERATI GHIBLI (2014) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.5.webp "MASERATI GHIBLI (2014) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.7.webp "MASERATI GHIBLI (2014) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.3.webp "MASERATI GHIBLI (2014) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.44.4.webp "MASERATI GHIBLI (2014) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.3.webp "MASERATI GHIBLI (2014) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.4.webp "MASERATI GHIBLI (2014) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.5.webp "MASERATI GHIBLI (2014) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.6.webp "MASERATI GHIBLI (2014) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.2.webp "MASERATI GHIBLI (2014) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.60.3.webp "MASERATI GHIBLI (2014) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.60.4.webp "MASERATI GHIBLI (2014) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.2.webp "MASERATI GHIBLI (2014) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.61.3.webp "MASERATI GHIBLI (2014) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.61.4.webp "MASERATI GHIBLI (2014) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.2.webp "MASERATI GHIBLI (2014) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.2.webp "MASERATI GHIBLI (2014) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.63.3.webp "MASERATI GHIBLI (2014) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.63.4.webp "MASERATI GHIBLI (2014) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI GHIBLI (2014) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.70.3.webp "MASERATI GHIBLI (2014) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.4.webp "MASERATI GHIBLI (2014) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.6.webp "MASERATI GHIBLI (2014) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.8.webp "MASERATI GHIBLI (2014) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.2.webp "MASERATI GHIBLI (2014) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.72.3.webp "MASERATI GHIBLI (2014) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.2.webp "MASERATI GHIBLI (2014) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.80.4.webp "MASERATI GHIBLI (2014) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.80.5.webp "MASERATI GHIBLI (2014) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI GHIBLI (2014) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.2.webp "MASERATI GHIBLI (2014) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.3.webp "MASERATI GHIBLI (2014) SILENCERS PARTS DIAGRAM")
-part-diagram-01.90.2.webp "MASERATI GHIBLI (2014) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.3.webp "MASERATI GHIBLI (2014) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.2.webp "MASERATI GHIBLI (2014) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-01.91.3.webp "MASERATI GHIBLI (2014) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-03.02.1.webp "MASERATI GHIBLI (2014) DRIVER CONTROLS FOR AUTOMATIC GEARBOX PARTS DIAGRAM")
-part-diagram-03.10.2.webp "MASERATI GHIBLI (2014) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.3.webp "MASERATI GHIBLI (2014) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.4.webp "MASERATI GHIBLI (2014) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.6.webp "MASERATI GHIBLI (2014) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.21.1.webp "MASERATI GHIBLI (2014) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
