08.30.1 - headlight clusters

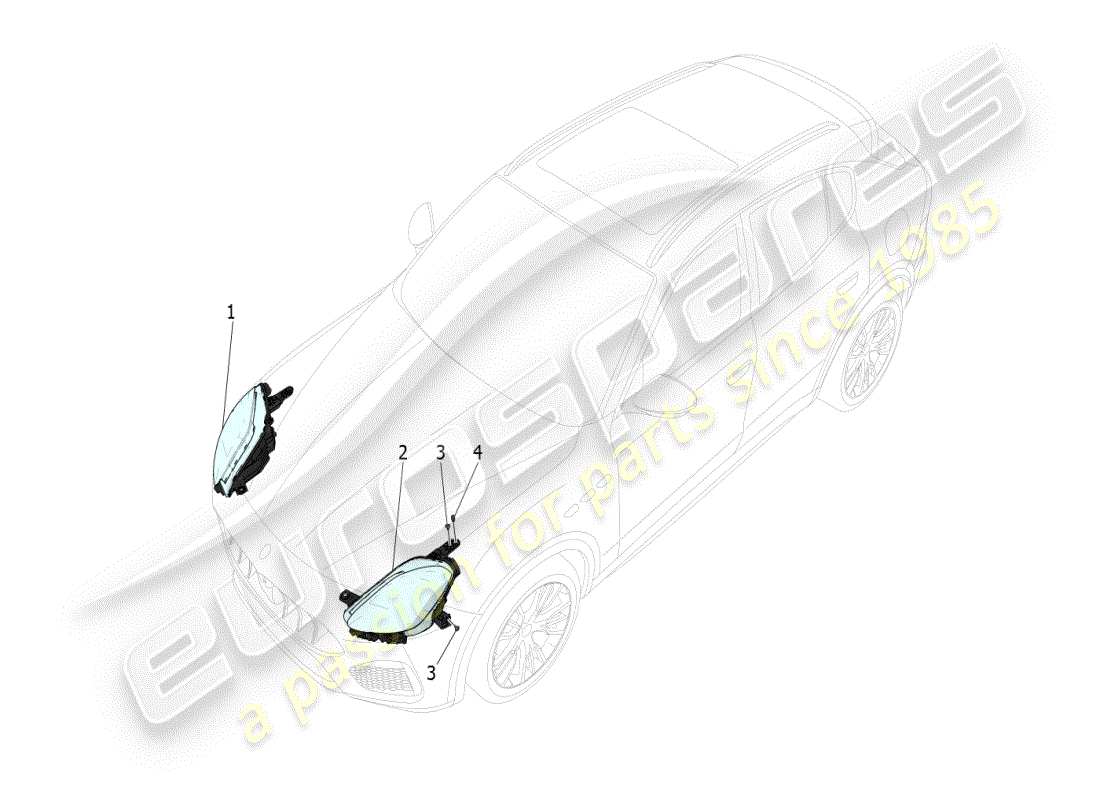

Maserati Grecale Modena (2023) HEADLIGHT CLUSTERS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
670293069
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2026908. Suitable for cars with: HEADLIGHTS - FULL LED. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: CHILE, ITALY, TAIWAN
Supersession
Supersession
#
001
MPN:
670293070
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027426. Suitable for cars with: HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED. Suitable for: USA
from
£1,051.19
from
£1,051.19
#
001
MPN:
670293073
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027043. Suitable for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: CHILE, ITALY, TAIWAN
Supersession
Supersession
#
001
MPN:
670293074
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027218. Suitable for cars with: HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET). Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: USA
from
£1,091.79
from
£1,091.79
#
001
MPN:
670293077
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027739. Suitable for cars with: HEADLIGHTS - FULL LED. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: UK
from
£1,051.19
from
£1,051.19
#
001
MPN:
670293078
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027143. Suitable for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: UK
Supersession
Supersession
#
001
MPN:
670303473
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 2026909. Suitable for cars with: HEADLIGHTS - FULL LED. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: CHILE, ITALY, TAIWAN
from
£1,051.19
from
£1,051.19
This part replaces part number 670293069
#
001
MPN:
670303474
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 2027740. Suitable for cars with: HEADLIGHTS - FULL LED. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: UK
from
£1,051.19
from
£1,051.19
#
001
MPN:
670303475
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Suitable for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: CHILE, ITALY, TAIWAN
from
£1,131.61
from
£1,131.61
This part replaces part number 670293073
#
001
MPN:
670303476
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Suitable for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: UK
from
£1,132.04
from
£1,132.04
This part replaces part number 670293078
#
001
MPN:
670303477
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 2027427. Suitable for cars with: HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED. Suitable for: USA
from
£1,051.19
from
£1,051.19
#
001
MPN:
670303478
RH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 2027219. Suitable for cars with: HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET). Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: USA
from
£1,091.79
from
£1,091.79
#
002
MPN:
670293071
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2026908. Suitable for cars with: HEADLIGHTS - FULL LED. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: CHILE, ITALY, TAIWAN
Supersession
Supersession
#
002
MPN:
670293072
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027426. Suitable for cars with: HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED. Suitable for: USA
from
£1,093.24
from
£1,093.24
#
002
MPN:
670293075
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027218. Suitable for cars with: HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET). Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: USA
from
£1,135.47
from
£1,135.47
#
002
MPN:
670293076
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027043. Suitable for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: CHILE, ITALY, TAIWAN
Supersession
Supersession
#
002
MPN:
670293079
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027739. Suitable for cars with: HEADLIGHTS - FULL LED. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: UK
Supersession
Supersession
#
002
MPN:
670293080
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 0 - 2027143. Suitable for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: UK
Supersession
Supersession
#
002
MPN:
670303481
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Suitable for cars with: HEADLIGHTS - FULL LED. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: CHILE, ITALY, TAIWAN
from
£969.97
from
£969.97
This part replaces part number 670293071
#
002
MPN:
670303482
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Suitable for cars with: HEADLIGHTS - FULL LED. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: UK
from
£925.05
from
£925.05
This part replaces part number 670293079
#
002
MPN:
670303483
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Suitable for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: CHILE, ITALY, TAIWAN
from
£1,176.88
from
£1,176.88
This part replaces part number 670293076
#
002
MPN:
670303484
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Suitable for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE. Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: UK
from
£1,131.61
from
£1,131.61
This part replaces part number 670293080
#
002
MPN:
670303485
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 2027427. Suitable for cars with: HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET), HEADLIGHTS - FULL LED. Suitable for: USA
from
£1,093.24
from
£1,093.24
#
002
MPN:
670303486
LH HEADLIGHT #FOR ASSEMBLY<2011304 UPDATE THE HEADLIGHT SW ON THE OPPOSITE SIDE#
Valid from assembly: 2027219. Suitable for cars with: HEADLIGHTS - FULL LED MATRIX NO ADAPTIVE (NAFTA MARKET). Not for cars with: HEADLIGHTS - FULL LED MATRIX ADAPTIVE (CANADA MARKET), HEADLIGHTS - FULL LED MATRIX ADAPTIVE, HEADLIGHTS - FULL LED, HEADLIGHTS - FULL LED (ONLY NAFTA MARKET). Suitable for: USA
from
£1,135.47
from
£1,135.47
#
003
MPN:
675001750
SCREW
from
£0.75
from
£0.75
#
004
MPN:
675000053
RIVET
from
£1.24
from
£1.24
