025 - Differential & Axle Shafts

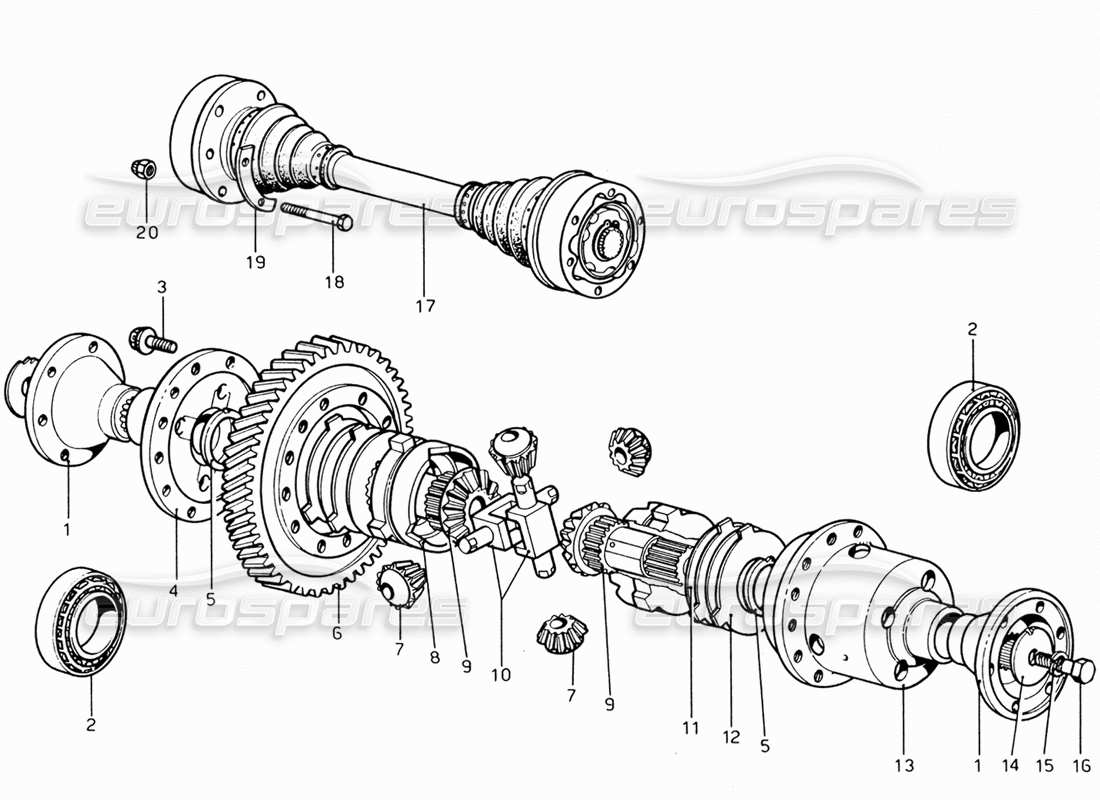

Ferrari 206 GT Dino (1969) Differential & Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
580387
DIFFERENZIALE AUTOBLOCCANTE A LAMELE
#
001
MPN:
580398
FLANGE ON THE DIFFERENTIAL FOR HALF-AXLE CONNECTION
from
£830.46
from
£830.46
#
002
MPN:
368A - 362A - RIV 14240
CUSCINETTO SUPPORTO SCATOLA DIFFERENZIALE
TIMKEN oppure
#
003
MPN:
ZF.0736.020.010
SCREW
Z.F. 0736.020.010
#
004
MPN:
Z.F.4061.306.034
COVER
Z.F. 4061.306.034
#
005
MPN:
ZF-0730-101-038
RING
Z.F. 0730.101.038
#
006
MPN:
580462 (R=16/58)
CROWN ON THE DIFFERENTIAL
#
007
MPN:
Z.F.4061.308.016
SATELLITE
Z.F.4061.308.016
#
008
MPN:
ZF.4061.306.022
RING
Z.F. 4061.306.022
#
009
MPN:
Z.F.4061.306.035
PLANETARIO
Z.F.4061.306.035
#
010
MPN:
ZF.4061.306.024
PINS FOR SATELLITE
Z.F.4i61.306.024
#
011
MPN:
ZF.4061.306.013
LAMELLE INTERNE
Z.F.4061.306.013
#
012
MPN:
Z.F.4081.306.021
LAMELLE ESTERNE
Z.F.4081.306.021
#
012
MPN:
Z.F.4081.308.081
WAVY EXTERNAL SLATS
Z.F. 4081.308.081
#
013
MPN:
ZF-4061 206-004
DIFFERENTIAL BOX
Z.F. 4061.206.004
#
014
MPN:
ZF-0730 000-784
WASHER
Z.F. 0730.000.784
#
015
MPN:
ZF-0630-305-501
WASHER
Z.F. 0630.305.501
#
016
MPN:
ZF.0636.020.143
SCREW
Z.F. 0636.020.143
#
017
MPN:
580386 - 0.153.15.01.02.893
Semiasse << LOBRO >>
607 - Lobro N.
#
018
MPN:
10x65-UNI-5738
BOLT
LOBO 6GM
#
019
MPN:
I 580553
PLATE
#
040
MPN:
10x1,25
NUT
US/NHT 70
