001 - cylinder heads (to 575)

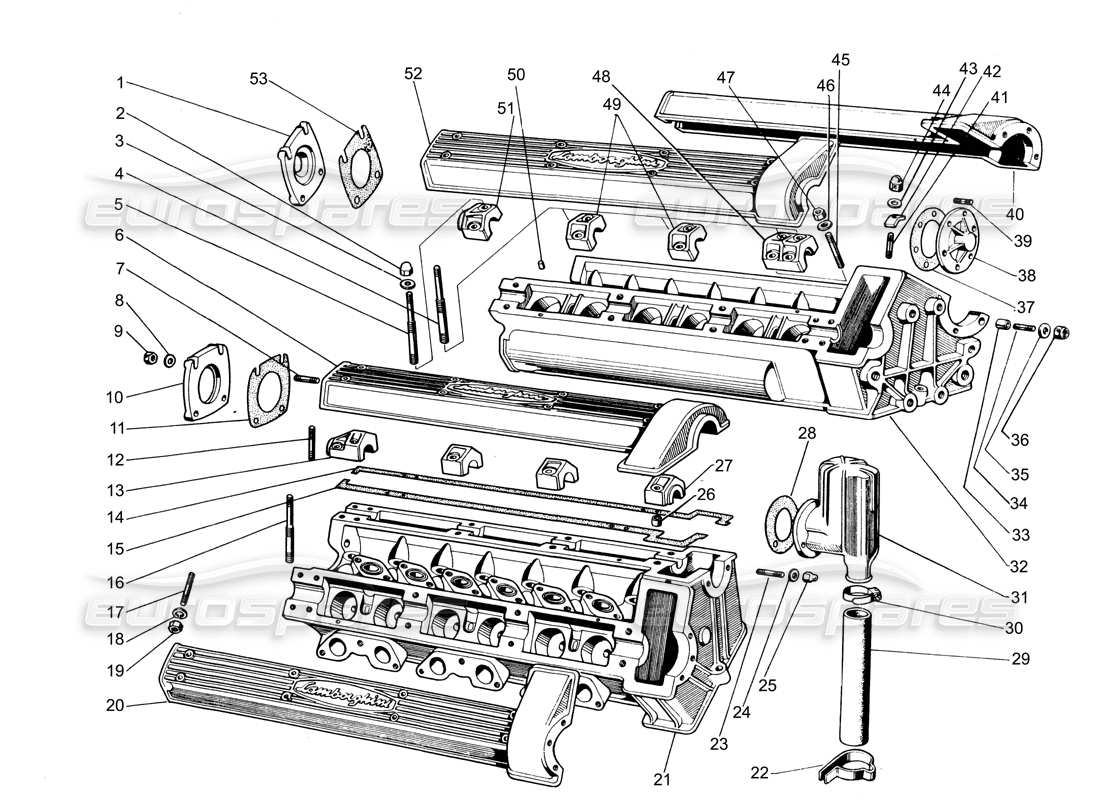

Lamborghini Espada Cylinder Heads (to 575) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
001104689
COVER
Fino alla 574
#
002
MPN:
008200605
NUT
Fino alla 574
from
£1.89
from
£1.89
#
003
MPN:
008400606
WASHER
Fino alla 574
Supersession
Supersession
#
004
MPN:
008300819
WASHER
Fino alla 574
from
£31.55
from
£31.55
#
005
MPN:
008300821
STUD
Fino alla 574
from
£71.64
from
£71.64
#
006
MPN:
001102070
Cam Cover
Fino alla 574
#
007
MPN:
008300801
STUD
Fino alla 574
from
£4.03
from
£4.03
#
008
MPN:
N90179103
WASHER
Fino alla 574
from
£1.06
from
£1.06
This part replaces part number 008400801
#
009
MPN:
008200804
NUT
Fino alla 574
from
£0.74
from
£0.74
#
010
MPN:
001104881
COVER
Fino alla 574
from
£143.85
from
£143.85
#
011
MPN:
001104915
GASKET
Fino alla 574
from
£3.22
from
£3.22
This part replaces part number 001100286
#
012
MPN:
008300820
STUD
Fino alla 574
from
£1.56
from
£1.56
#
013
MPN:
001100269
COVER
Fino alla 574
#
013
MPN:
LCCG001
CAM COVER GASKET SET
from
£51.72
from
£51.72
#
014
MPN:
001104887
GASKET
Complete Kit Use LCCG001
from
£14.00
from
£14.00
#
015
MPN:
001104888
GASKET
Complete Kit Use LCCG001
from
£11.64
from
£11.64
This part replaces part number 001100266 which we have in stock
#
016
MPN:
008300819
STUD
Fino alla 574
from
£31.55
from
£31.55
#
017
MPN:
008300820
STUD
Fino alla 574
from
£1.56
from
£1.56
#
018
MPN:
008410806
WASHER
Fino alla 574
Supersession
Supersession
#
019
MPN:
008200807
NUT
Fino alla 574
from
£14.38
from
£14.38
#
020
MPN:
001100904
Cam Cover
Fino alla 574
from
£630.00
from
£630.00
#
021
MPN:
001100901
RH cylinder head
Fino alla 574
from
£17,387.96
from
£17,387.96
This part replaces part number MT-00901
#
022
MPN:
008830110
STRAP
Fino alla 574
from
£10.87
from
£10.87
#
023
MPN:
008300610
STUD
Fino alla 574
from
£15.47
from
£15.47
#
024
MPN:
008400606
WASHER
Fino alla 574
Supersession
Supersession
#
025
MPN:
008200605
NUT
Fino alla 574
from
£1.89
from
£1.89
#
026
MPN:
008851002
DOWEL
Fino alla 574
from
£3.70
from
£3.70
#
027
MPN:
001101035
COVER
Fino alla 574
#
028
MPN:
001101634
GASKET
Fino alla 574
from
£7.80
from
£7.80
#
029
MPN:
001104880
HOSE
Fino alla 574
from
£18.51
from
£18.51
#
030
MPN:
008835004
COLLAR
Fino alla 574
from
£6.14
from
£6.14
This part replaces part number 008830201
#
031
MPN:
001105040
HOUSING
Fino alla 574
from
£66.67
from
£66.67
#
032
MPN:
001104528
LH cylinder head
from
£17,387.96
from
£17,387.96
#
033
MPN:
008850606
GRANO DI CENTRAGGIO
Fino alla 574
from
£6.43
from
£6.43
#
034
MPN:
008300612
STUD
Fino alla 574
#
035
MPN:
008400606
WASHER
Fino alla 574
Supersession
Supersession
#
036
MPN:
008200606
BUSH
Supersession
Supersession
#
037
MPN:
001600906
GASKET
Fino alla 574
from
£6.53
from
£6.53
#
038
MPN:
001103002
COVER
Fino alla 574
from
£220.55
from
£220.55
#
039
MPN:
008300613
STUD
Fino alla 574
from
£3.07
from
£3.07
#
040
MPN:
001100903
Cam Cover
Fino alla 574
from
£630.00
from
£630.00
#
041
MPN:
008300612
STUD
Fino alla 574
#
042
MPN:
001102055
SPACER
Fino alla 574
from
£168.61
from
£168.61
#
043
MPN:
008400606
WASHER
Fino alla 574
Supersession
Supersession
#
044
MPN:
008200605
NUT
Fino alla 574
from
£1.89
from
£1.89
#
045
MPN:
008300818
STUD
Fino alla 574
from
£2.85
from
£2.85
#
046
MPN:
WHT001514
WASHER
Fino alla 574
from
£15.09
from
£15.09
This part replaces part number 008410805
#
047
MPN:
008200806
NUT
Fino alla 574
Supersession
Supersession
#
048
MPN:
001100271
COVER
Fino alla 574
#
049
MPN:
001101031
COVERS
Fino alla 574
#
050
MPN:
008850501
DOWEL
Fino alla 574
from
£18.55
from
£18.55
#
051
MPN:
001101034
COVER
Fino alla 574
#
052
MPN:
001104529
Cam Cover
Fino alla 574
#
053
MPN:
001104915
GASKET
Fino alla 574
from
£3.22
from
£3.22
This part replaces part number 001100286
