024.2 - Tool Kit (Pirelli)

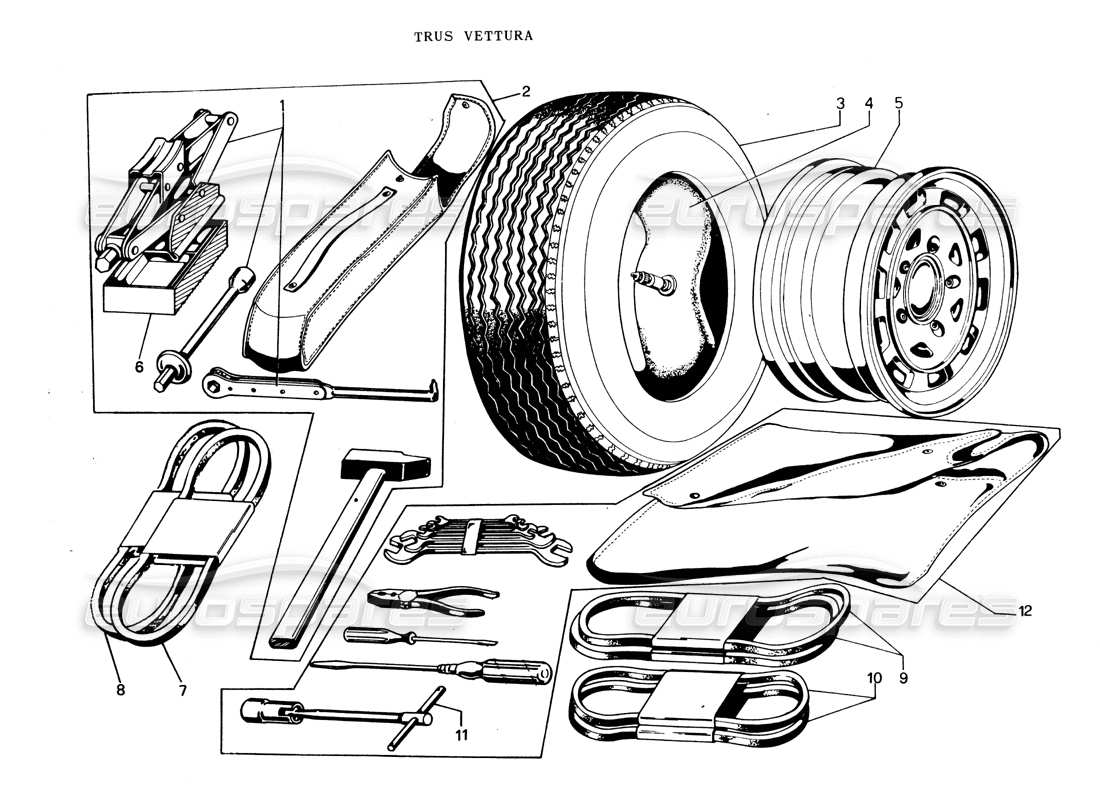

Lamborghini Espada Tool Kit (Pirelli) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
006105143
CRIK
#
001
MPN:
LHAN110
DRIVERS MAINTENANCE HANDBOOK
HANDBOOK
from
£175.00
from
£175.00
#
002
MPN:
006106133
BORSA PER CRIK
#
003
MPN:
005205208
COPERTURA PIRELLI 215 70 VR15 CN 52
from
£2,101.08
from
£2,101.08
#
004
MPN:
005201355
CAMERA D'ARIA
#
005
MPN:
005107642
CERCHIONE COLOR ARGENTO
#
005
MPN:
005109106
CERCHIONE COLOR ORO
#
006
MPN:
006105637
PIEDISTALLO PER CRIK
#
007
MPN:
004608478
CINGHIA PER POMPA ARIA
from
£61.35
from
£61.35
#
008
MPN:
004009744
CINGHIA
from
£62.51
from
£62.51
#
009
MPN:
004504532
CINGHIA PER CONDIZIONATORE
from
£45.15
from
£45.15
#
010
MPN:
001604645
CINGHIA PER ALTERNATORE
from
£13.35
from
£13.35
#
011
MPN:
004805148
CHIAVE PER CANDELA
from
£58.00
from
£58.00
#
012
MPN:
006106094
BORSA ATTREZZI
