022.2 - Air pollution pumps (USA)

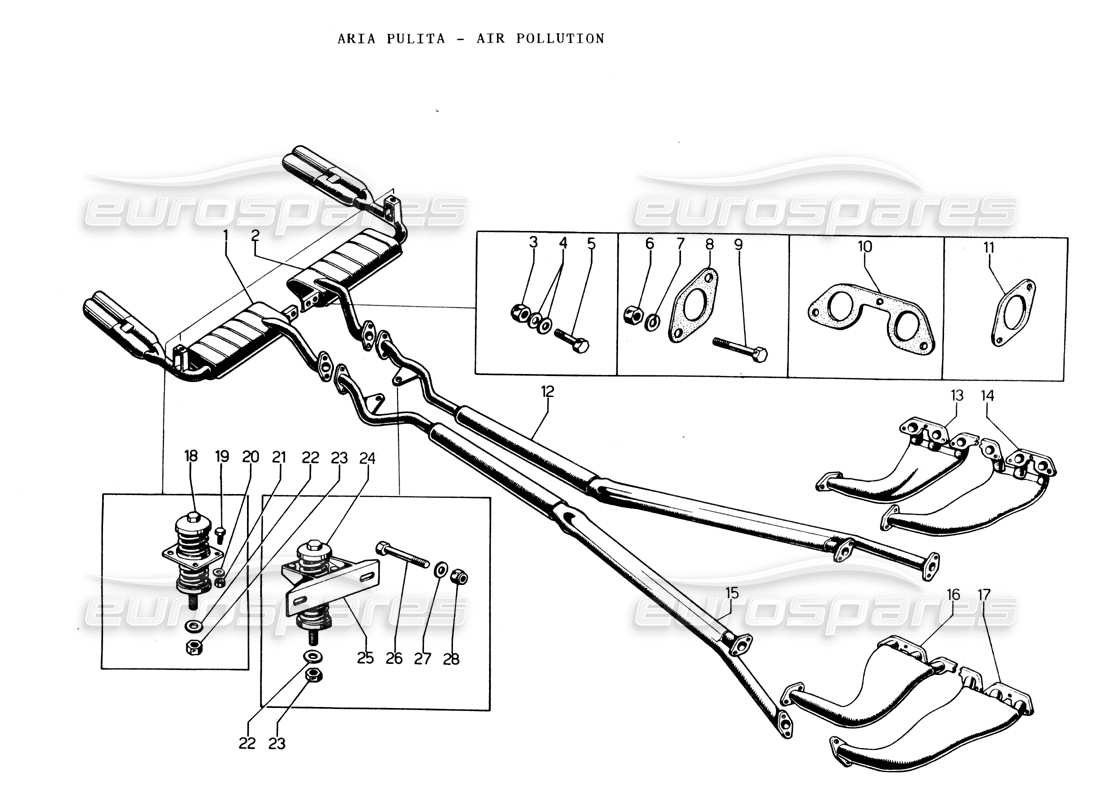

Lamborghini Espada Air pollution pumps (USA) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
004410104
MARMITTA POSTERIORE DESTRA
USA
#
002
MPN:
004410105
MARMITTA POSTERIORE SINISTRA
USA
#
003
MPN:
008200804
NUT
USA
from
£0.73
from
£0.73
#
004
MPN:
008400801
WASHER
USA
Supersession
Supersession
#
005
MPN:
008100827
BOLT
USA
Supersession
Supersession
#
006
MPN:
008200807
NUT
USA
from
£14.38
from
£14.38
#
007
MPN:
008410806
WASHER
USA
Supersession
Supersession
#
008
MPN:
004404026
EXHAUST MANIFOLD GASKET
from
£20.72
from
£20.72
This part replaces part number CM-04026
#
009
MPN:
N01033520
BOLT
USA
from
£0.98
from
£0.98
#
010
MPN:
001101178
DOUBLE EXHAUST GASKET
from
£22.00
from
£22.00
This part replaces part number MT-01178
#
011
MPN:
004401530
EXHAUST GASKET
from
£17.19
from
£17.19
This part replaces part number CM-01530
#
012
MPN:
004609467
MARMITTA CENTRALE SINISTRA
USA
from
£1,048.83
from
£1,048.83
#
013
MPN:
004607622
COLLETTORE POSTERIORE SINISTRO
USA
#
014
MPN:
004607621
COLLETTORE ANTERIORE SINISTRO
USA
#
015
MPN:
004609466
MARMITTA CENTRALE DESTRA
USA
from
£1,144.18
from
£1,144.18
#
016
MPN:
004607620
COLLETTORE POSTERIORE DESTRO
USA
#
017
MPN:
004607621
COLLETTORE ANTERIORE DESTRO
USA
#
018
MPN:
004405143
SUPPORT MOUNT
USA
from
£223.03
from
£223.03
#
019
MPN:
008100502
BOLT
USA
from
£0.53
from
£0.53
#
020
MPN:
WHT001187
WASHER
USA
from
£0.52
from
£0.52
This part replaces part number 008400502
#
021
MPN:
N0211963
NUT
USA
from
£0.50
from
£0.50
#
022
MPN:
008401007
WASHER
USA
from
£0.53
from
£0.53
#
023
MPN:
008201008
NUT
USA
from
£0.55
from
£0.55
#
024
MPN:
400251393A
EXHAUST SUPPORT MOUNT
USA
from
£151.23
from
£151.23
This part replaces part number 004432031
- and 5 more. Click to view details
#
025
MPN:
004405055
SUPPORT
USA
from
£185.72
from
£185.72
#
026
MPN:
008100835
BOLT
USA
from
£2.04
from
£2.04
#
027
MPN:
008400801
WASHER
USA
Supersession
Supersession
#
028
MPN:
008200809
NUT
USA
Supersession
Supersession
