001.2 - Cylinder Heads

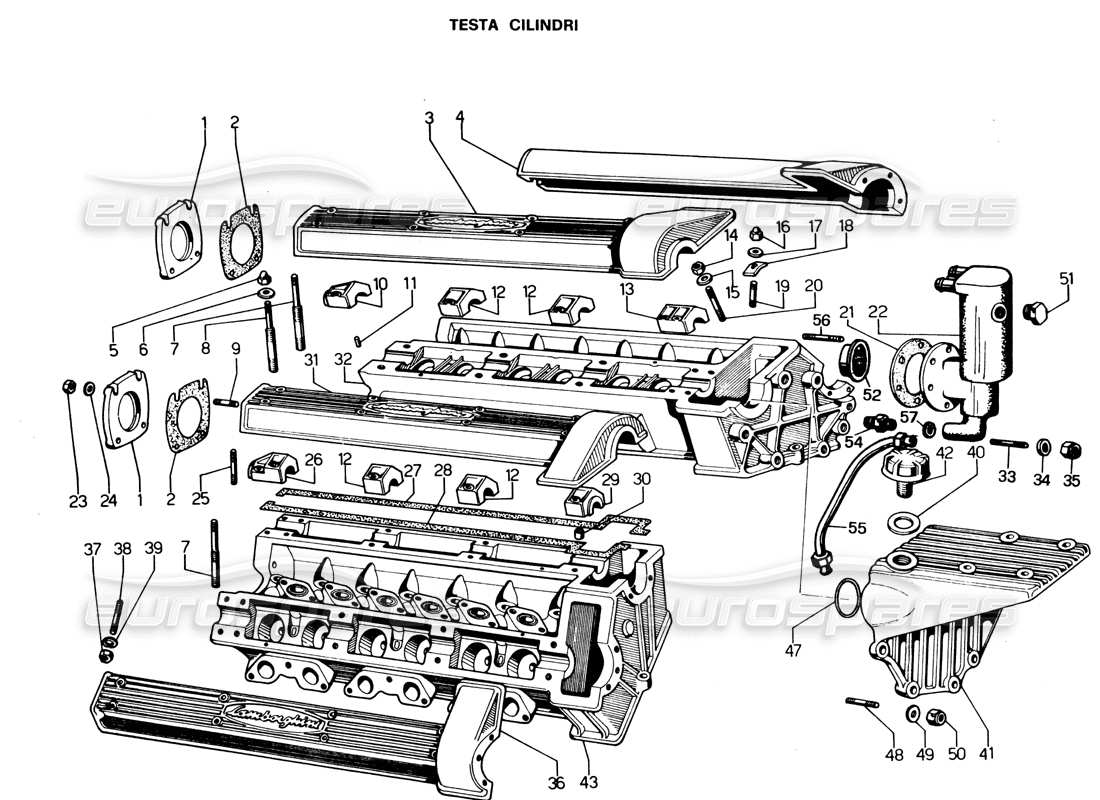

Lamborghini Espada Cylinder Heads Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
001104881
COPERCHIETTO
from
£143.85
from
£143.85
#
002
MPN:
001104915
GASKET
from
£3.22
from
£3.22
This part replaces part number 001100286
#
003
MPN:
001104529
COVER
#
004
MPN:
001100903
COVER
from
£630.00
from
£630.00
#
005
MPN:
008200605
NUT
from
£1.71
from
£1.71
#
006
MPN:
008400616
WASHER
from
£1.89
from
£1.89
#
007
MPN:
008300819
THREADED STUD
from
£31.55
from
£31.55
#
008
MPN:
008300821
THREADED STUD
from
£71.64
from
£71.64
#
009
MPN:
008300822
THREADED STUD
Supersession
Supersession
#
010
MPN:
001107364
SUPPORT
#
011
MPN:
008850501
LOCATING DOWEL
from
£18.55
from
£18.55
#
012
MPN:
001107363
SUPPORT
from
£206.46
from
£206.46
#
013
MPN:
001107362
SUPPORT
#
014
MPN:
008200806
NUT
Supersession
Supersession
#
015
MPN:
WHT001514
WASHER
from
£15.09
from
£15.09
This part replaces part number 008410805
#
016
MPN:
008200605
NUT
from
£1.84
from
£1.84
#
017
MPN:
008400606
WASHER
Supersession
Supersession
#
018
MPN:
001102055
PLATE
from
£168.61
from
£168.61
#
019
MPN:
008300612
THREADED STUD
#
020
MPN:
008300818
THREADED STUD
from
£2.85
from
£2.85
#
021
MPN:
001600906
GASKET
from
£6.53
from
£6.53
#
022
MPN:
001108384
CORPO SFIATO OLIO (DA 576' A 1000)
from
£994.35
from
£994.35
#
022
MPN:
001113103
CORPO SFIATO OLIO
#
023
MPN:
008200806
NUT
Supersession
Supersession
#
024
MPN:
WHT001514
WASHER
from
£15.09
from
£15.09
This part replaces part number 008410805
#
025
MPN:
008300820
THREADED STUD
from
£1.43
from
£1.43
#
026
MPN:
001107365
SUPPORT
#
027
MPN:
001104887
GASKET
Complete Kit Use LCCG001
from
£14.00
from
£14.00
#
027
MPN:
001104887
GUARNIZ.
Complete Kit Use LCCG001
from
£14.00
from
£14.00
#
028
MPN:
001104888
GASKET
Complete Kit Use LCCG001
from
£11.64
from
£11.64
This part replaces part number 001100266 which we have in stock
#
028
MPN:
001104888
GUARNIZ. (TUTTE LE VETTURE)
Complete Kit Use LCCG001
from
£11.64
from
£11.64
This part replaces part number 001100266 which we have in stock
#
029
MPN:
001107361
SUPPORT
#
030
MPN:
008851002
LOCATING DOWEL
from
£3.70
from
£3.70
#
031
MPN:
001110412
COVER
from
£630.00
from
£630.00
#
032
MPN:
001104528
CYLINDER HEAD LH
from
£17,387.96
from
£17,387.96
#
033
MPN:
008300613
THREADED STUD
from
£3.07
from
£3.07
#
034
MPN:
008400606
WASHER
Supersession
Supersession
#
035
MPN:
008200606
NUT
Supersession
Supersession
#
036
MPN:
001100904
COVER
from
£630.00
from
£630.00
#
037
MPN:
008200807
NUT
from
£14.38
from
£14.38
#
038
MPN:
008300820
THREADED STUD
from
£1.41
from
£1.41
#
039
MPN:
008410806
WASHER
Supersession
Supersession
#
040
MPN:
001101401
WASHER
from
£2.25
from
£2.25
#
041
MPN:
004604530
SUPPORT
#
042
MPN:
001102613
TAPPO INTRODUZIONE OLIO
#
043
MPN:
001100901
CYLINDER HEAD RH
from
£17,387.96
from
£17,387.96
This part replaces part number MT-00901
#
044
MPN:
001101634
GASKET
from
£7.80
from
£7.80
#
045
MPN:
004606294
COPERCHIETTO
from
£109.04
from
£109.04
#
046
MPN:
008700618
SCREW
from
£0.53
from
£0.53
#
047
MPN:
008605501
RING
from
£0.54
from
£0.54
#
048
MPN:
008301006
THREADED STUD
from
£7.01
from
£7.01
#
049
MPN:
008401006
WASHER
from
£0.52
from
£0.52
#
050
MPN:
008201008
NUT
from
£0.53
from
£0.53
#
051
MPN:
008922403
PLUG
#
052
MPN:
001113134
FILTRO CORPO SFIATO OLIO
from
£5.60
from
£5.60
#
053
MPN:
001111782
PIPE / TUBE / HOSE
from
£40.91
from
£40.91
#
054
MPN:
001113117
UNION
from
£17.99
from
£17.99
#
055
MPN:
001113121
TUBO DA SFIATO A COPPA
from
£102.40
from
£102.40
#
056
MPN:
008300612
THREADED STUD
#
057
MPN:
008402602
WASHER
from
£6.97
from
£6.97
