023.2 - Heater Matrix Series III

Lamborghini Espada Heater Matrix Series III Parts Diagram

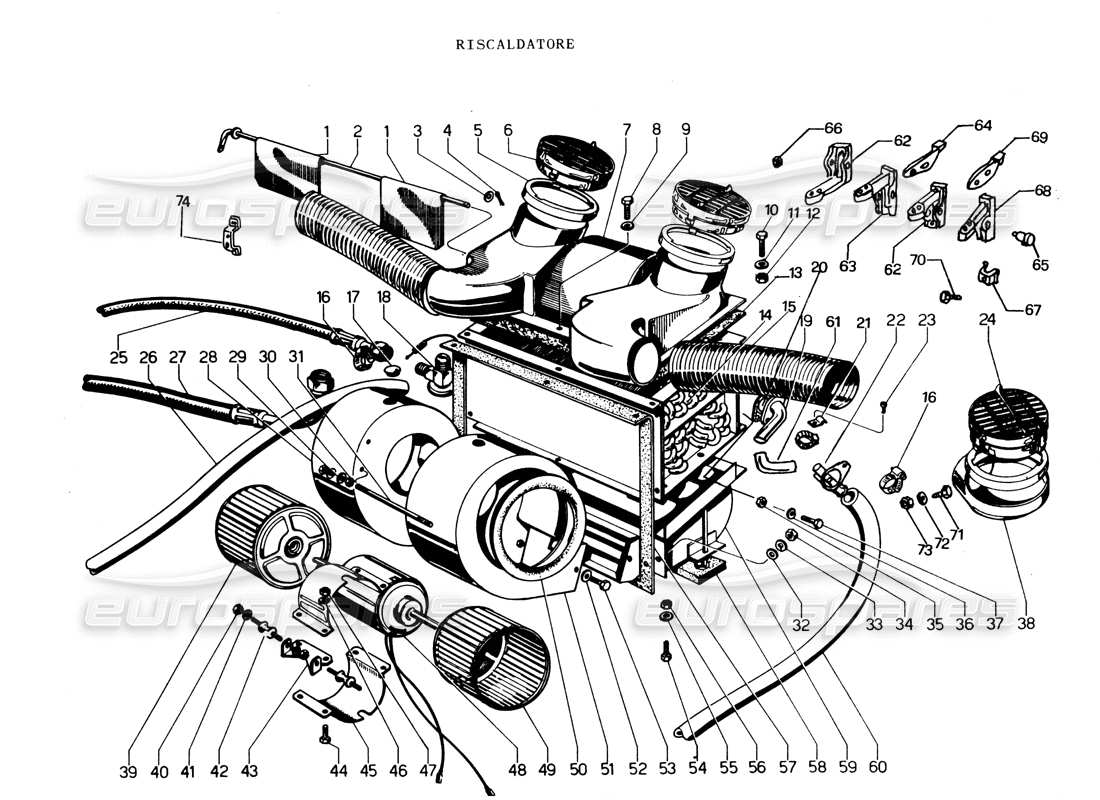

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 000
MPN: 004708778
HEATER METRIX ASSY
from £1,569.75
from £1,569.75
HEATER METRIX ASSY Genuine Lamborghini - New (to order)

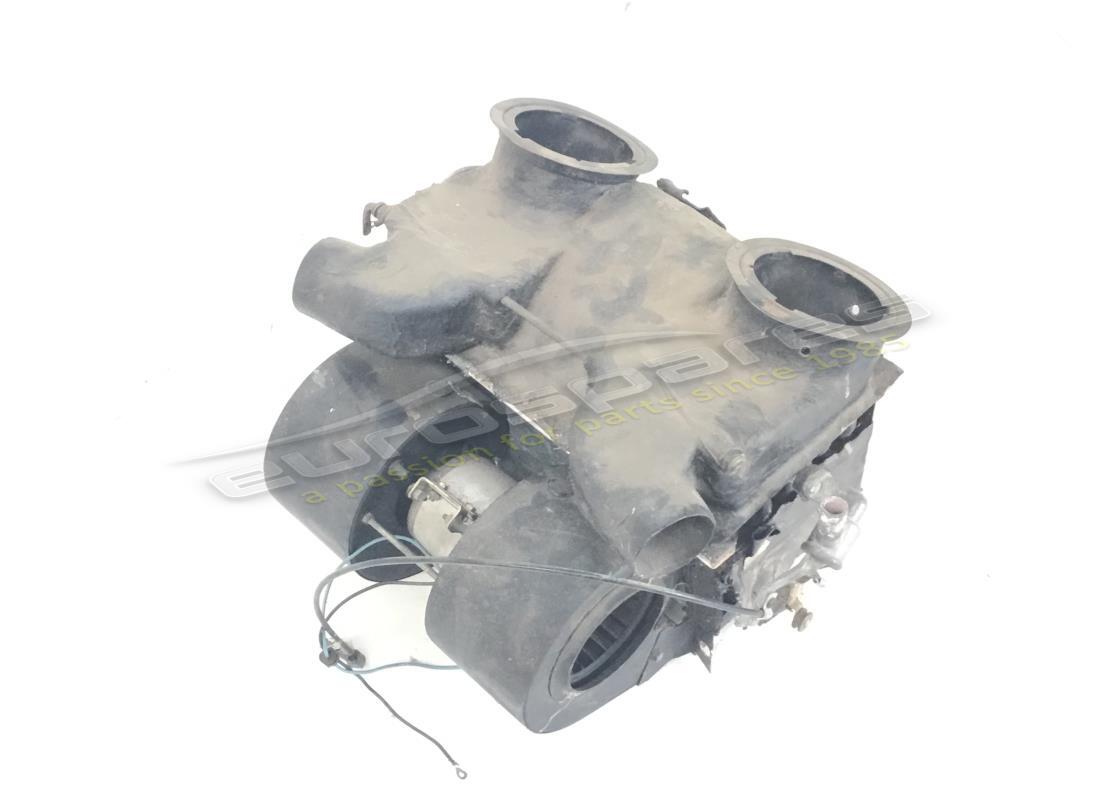

HEATER METRIX ASSY Genuine Lamborghini - Used In stock
HEATER METRIX ASSY Genuine Lamborghini - Damaged In stock
Fan motor moving about in casing
# 001
MPN: 004708794
PORTELLA COMANDO DEFROSTER
from £30.91
from £30.91
DEFROSTER FLAP Genuine Lamborghini - New (to order)
# 002
MPN: 004708793
PIVOT
from £30.91
from £30.91
DEFROSTER FLAP PIN Genuine Lamborghini - New (to order)
# 003
MPN: 008400606
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 004
MPN: 008820101
COPPIGLIA
from £1.71
from £1.71
SPLIT PIN 1.8X12 UNI 1336A Genuine Lamborghini - New In stock

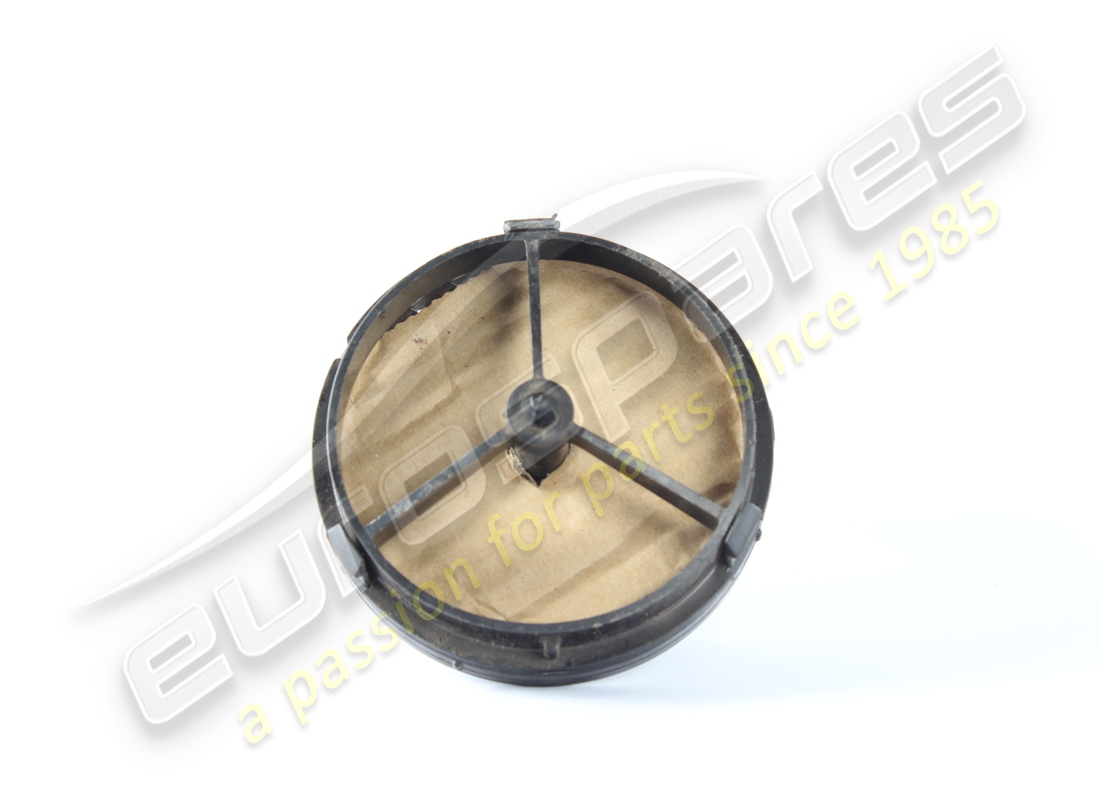

# 005
MPN: 004708773
FERMO PER DIFFUSORE ARIA
from £72.51
from £72.51
AIR VENT RETAINER Genuine Lamborghini - New (to order)
AIR VENT RETAINER Genuine Lamborghini - Used In stock
# 007
MPN: 004708779
COVER
COVER Genuine Lamborghini - New (to order)
# 007
MPN: 004708781
INSIEME COPERCHIO PER BATTERIA
Insieme coperchio per batterla Genuine Lamborghini - New (to order)
# 008
MPN: 008100502
BOLT
from £0.53
from £0.53
SCREW 5X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
# 009
MPN: 008410503
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 010
MPN: N01020717
BOLT
from £0.47
from £0.47
This part replaces part number 008100504
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
screw, hex. hd. - M5 X 12 - D - MJ 1973>> (N 01020717) Genuine Porsche Part - New (to order)
# 011
MPN: 008410503
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 012
MPN: 008200501
NUT
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 013
MPN: 004708776
RIPARO IN FELTRO PER BATTERIA
Lamborghini PART 004708776 Genuine Lamborghini - New (to order)
# 014
MPN: 004708459
BATTERIA DI CONDIZIONAMENTO
Lamborghini PART 004708459 Genuine Lamborghini - New (to order)
# 015
MPN: 004708787
TUBO PORTATA ARIA
from £56.72
from £56.72
WINDSCREEN AIR DELIVERY CORRUG ATED PIPE Genuine Lamborghini - New (to order)
# 016
MPN: 008830206
JUBILEE CLIP
from £12.56
from £12.56
CLAMP Genuine Lamborghini - New In stock
# 017
MPN: 008931405
PLUG
from £1.67
from £1.67
SCROLL HOLE PLUG Genuine Lamborghini - New (to order)
# 018
MPN: 004506860
VALVOLA DI ESPANSIONE
from £59.40
from £59.40
EXPANSION VALVE Genuine Lamborghini - New (to order)
# 019
MPN: 004710824
'RACCORDO
from £46.01
from £46.01
HEATER COOLANT INLETUNION Genuine Lamborghini - New In stock
# 020
MPN: 004710091
GASKET
from £8.78
from £8.78
BATTERY/COCK PIPE SEAL Genuine Lamborghini - New (to order)
# 021
MPN: 006753080
FASCETTA FERMA GUAINA COMANDO RUBINETTO E DEFROSTER .
from £1.48
from £1.48
SHEATH CLAMP Genuine Lamborghini - New In stock
# 022
MPN: 004710876
RUBINETTO PER RISCALDATORE
RUBINETTO PER RISCALDATORE Genuine Lamborghini - New (to order)

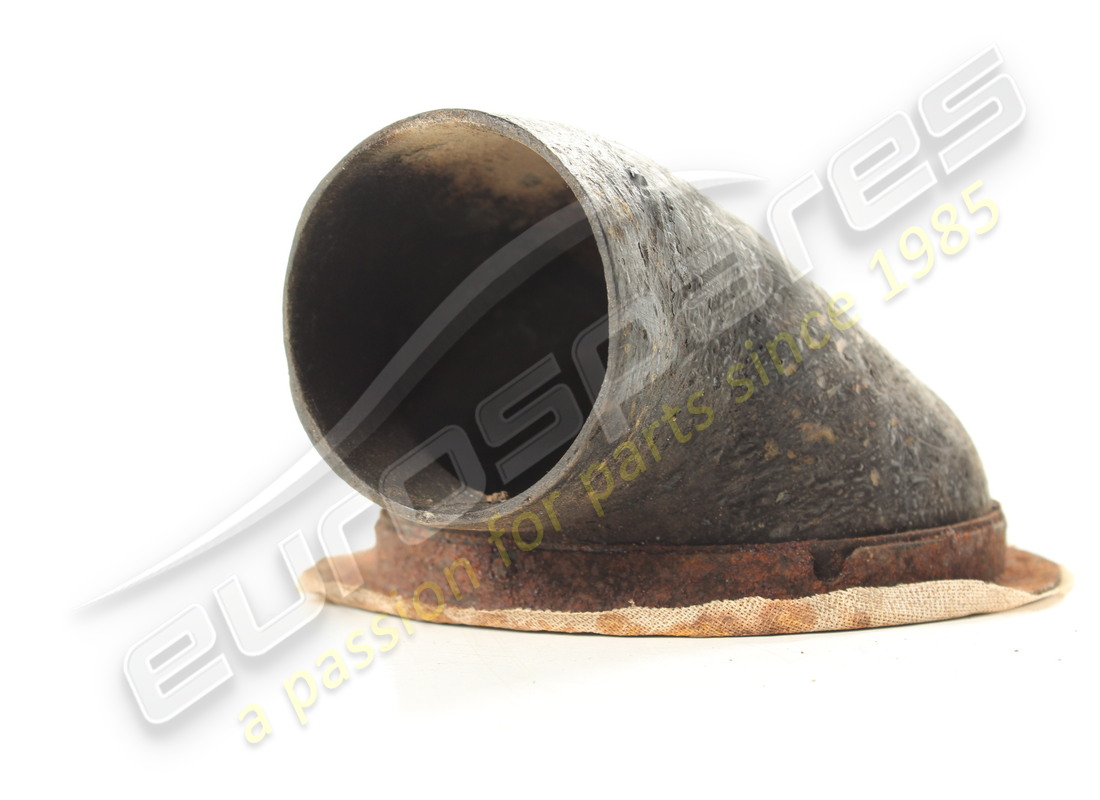

# 024
MPN: 004708760
DIFFUSER
from £115.50
from £115.50
AIR CHOKE Genuine Lamborghini - New (to order)
AIR CHOKE Genuine Lamborghini - Used In stock

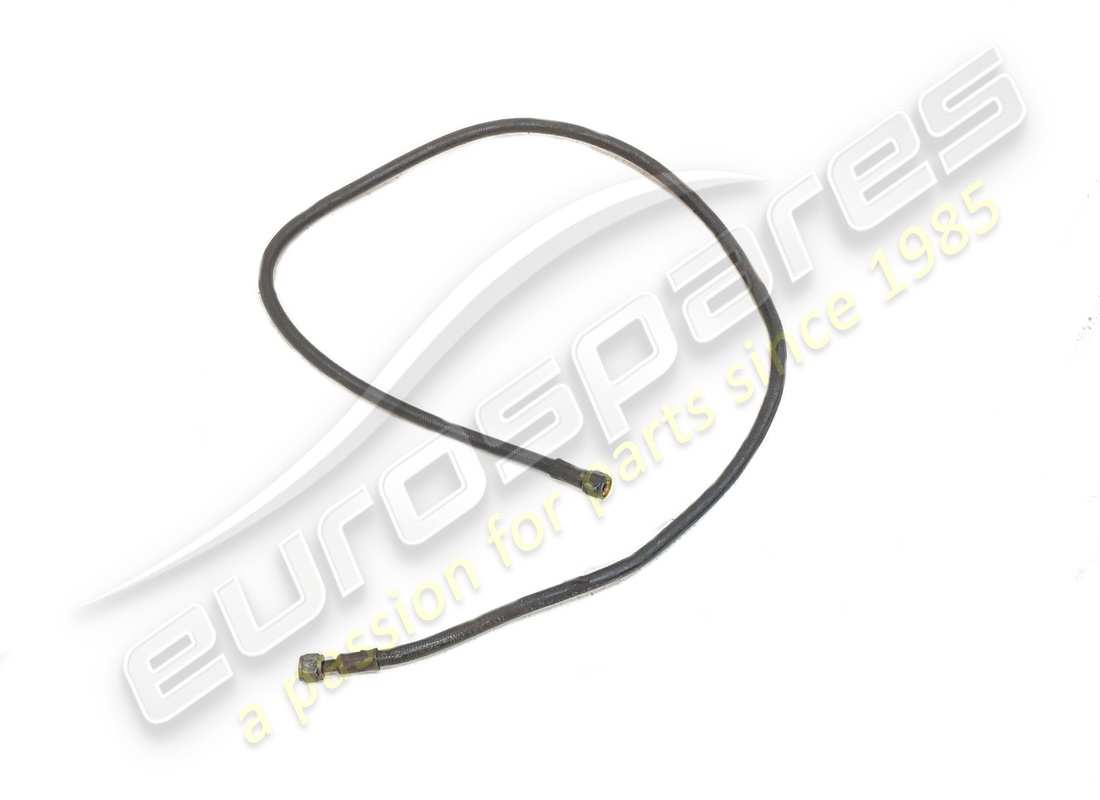

# 025
MPN: 004508754
TUBO DALLA BATTERIA AL FILTRO
from £31.20
from £31.20
FILTER/CONDENSER BATTERY PIPE Genuine Lamborghini - New (to order)
FILTER/CONDENSER BATTERY PIPE Genuine Lamborghini - Used In stock
# 026
MPN: 004708791
TUBO DALLA BATTERIA ALLA POMPA
Tubo dalla batterla alla pompa Genuine Lamborghini - New (to order)
# 027
MPN: 004508753
TUBO DALLA BATTERIA ALLA VALVOLA ISOBARICA
from £39.49
from £39.49
ISOBAR VALVE/CONDENSER BATTERY PIPE Genuine Lamborghini - New (to order)
ISOBAR VALVE/CONDENSER BATTERY PIPE Genuine Lamborghini - Used In stock
# 028
MPN: 004708771
CHIOCCIOLA DESTRA
Lamborghini PART 004708771 Genuine Lamborghini - New (to order)
# 029
MPN: 008410503
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 030
MPN: 008200501
NUT
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 031
MPN: 008300506
THREADED STUD
from £51.07
from £51.07
SPECIAL STUD M5X80 Genuine Lamborghini - New (to order)
# 032
MPN: 008400501
WASHER
from £0.53
from £0.53
WASHER 5.8X18X2 Genuine Lamborghini - New In stock
# 033
MPN: 008410503
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 034
MPN: 008200501
NUT
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 035
MPN: 008200604
NUT
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 036
MPN: 008410603
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 037
MPN: 008100630
BOLT
from £0.53
from £0.53
SCREW M6X14 UNI 5739/8G/Z Genuine Lamborghini - New (to order)
# 038
MPN: 004708784
INSIEME SUPPORTO DIFFUSORE ARIA
INSIEME SUPPORTO DIFFUSORE ARIA Genuine Lamborghini - New (to order)
# 038
MPN: 004708785
SUPPORT
from £25.49
from £25.49
AIR VENT BRACKET Genuine Lamborghini - New (to order)
AIR VENT BRACKET Genuine Lamborghini - Used In stock
# 039
MPN: 004708770
VENTOLA DESTRA
from £154.78
from £154.78
RH IMPELLER Genuine Lamborghini - New (to order)
# 040
MPN: N01100412
NUT
from £0.47
from £0.47
HEX.NUT M4 Genuine Lamborghini - New In stock
6KT-MU M 4 I 4032 8 R645 (N 01100412) Genuine Porsche Part - New (to order)
# 041
MPN: 008410402
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 042
MPN: 008921201
SUPPORT
from £15.05
from £15.05
MOUNT ROCAM F.81011/D.2001 Genuine Lamborghini - New (to order)
# 043
MPN: 004708774
SUPPORT
from £46.34
from £46.34
HEATER MOTOR BRACKET Genuine Lamborghini - New (to order)
# 044
MPN: N01020717
BOLT
from £0.47
from £0.47
This part replaces part number 008100504
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
screw, hex. hd. - M5 X 12 - D - MJ 1973>> (N 01020717) Genuine Porsche Part - New (to order)
# 045
MPN: 006107032
FASCETTA PER MOTORINO RISCALDATORE
from £12.27
from £12.27
HEATER MOTOR BRACKETCLAMP Genuine Lamborghini - New (to order)
# 046
MPN: 008410502
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 047
MPN: 008200501
NUT
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 048
MPN: 006107031
MOTORINO COMANDO VENTOLE
from £73.05
from £73.05
DUAL SHAFT ENGINE Genuine Lamborghini - New (to order)
# 049
MPN: 004708916
VENTOLA SINISTRA
from £154.78
from £154.78
LH IMPELLER Genuine Lamborghini - New (to order)
# 050
MPN: 004708775
GASKET OR SEAL
from £21.94
from £21.94
HEATING SCROLL SEAL Genuine Lamborghini - New (to order)
# 051
MPN: 004708772
CHIOCCIOLA SINISTRA
CHIOCCIOLA SINISTRA Genuine Lamborghini - New (to order)
# 052
MPN: 008410502
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 053
MPN: N01020717
BOLT
from £0.47
from £0.47
This part replaces part number 008100504
HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
screw, hex. hd. - M5 X 12 - D - MJ 1973>> (N 01020717) Genuine Porsche Part - New (to order)
# 054
MPN: 008100508
BOLT
from £3.65
from £3.65
SCREW M5X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
# 055
MPN: 008410502
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 056
MPN: 008200501
NUT
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 057
MPN: 004708782
GASKET
from £29.74
from £29.74
CONDENSER BATTERY SEAL Genuine Lamborghini - New (to order)
# 058
MPN: 004708783
GASKET
from £29.74
from £29.74
HEATER/TUNNEL SEAL Genuine Lamborghini - New (to order)
# 059
MPN: 004708777
CONVOGLIATORE ARIA
from £732.35
from £732.35
SCROLL AIR MANIFOLD Genuine Lamborghini - New (to order)
# 060
MPN: 004710820
TUBO DAL RUBINETTO ALLE TESTE
TUBO DAL RUBINETTO ALLE TESTE Genuine Lamborghini - New (to order)
# 061
MPN: 004710823
PIPE / TUBE / HOSE
from £18.75
from £18.75
UNION/HEATER COCK PIPE Genuine Lamborghini - New (to order)
# 062
MPN: 004708604
SUPPORT
from £244.70
from £244.70
FLAP LEVER BRACKET Genuine Lamborghini - New (to order)
# 063
MPN: 004708792
SUPPORT
SUPPORT Genuine Lamborghini - New (to order)
# 064
MPN: 004710055
LAVA
from £77.30
from £77.30
HEATER SHORT LEVER ASSEMBLY Genuine Lamborghini - New (to order)
# 065
MPN: 006107228
PIVOT
from £8.13
from £8.13
LEVER PIN TO MOUNT Genuine Lamborghini - New (to order)
# 066
MPN: 006107235
WASHER
from £6.02
from £6.02
HEATER FRICTION WASHER Genuine Lamborghini - New (to order)
# 068
MPN: 004710825
SUPPORT
from £411.57
from £411.57
HEATER COCK LEVER BRACKET Genuine Lamborghini - New (to order)
# 069
MPN: 004710822
LE VA
from £76.61
from £76.61
HEATER COCK LEVER ASSEMBLY Genuine Lamborghini - New (to order)
# 070
MPN: 008700503
VITA
from £0.51
from £0.51
SCREW M5X8 UNI 6107 5S/Z Genuine Lamborghini - New In stock
# 071
MPN: 008100508
VITA
from £3.65
from £3.65
SCREW M5X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
# 072
MPN: 008410503
WASHER
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 073
MPN: 008200501
NUT
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 074
MPN: 004708780
PLATE
from £15.47
from £15.47
SHEATH CLAMP PLATE Genuine Lamborghini - New (to order)
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
