003.1 - inlet manifolds

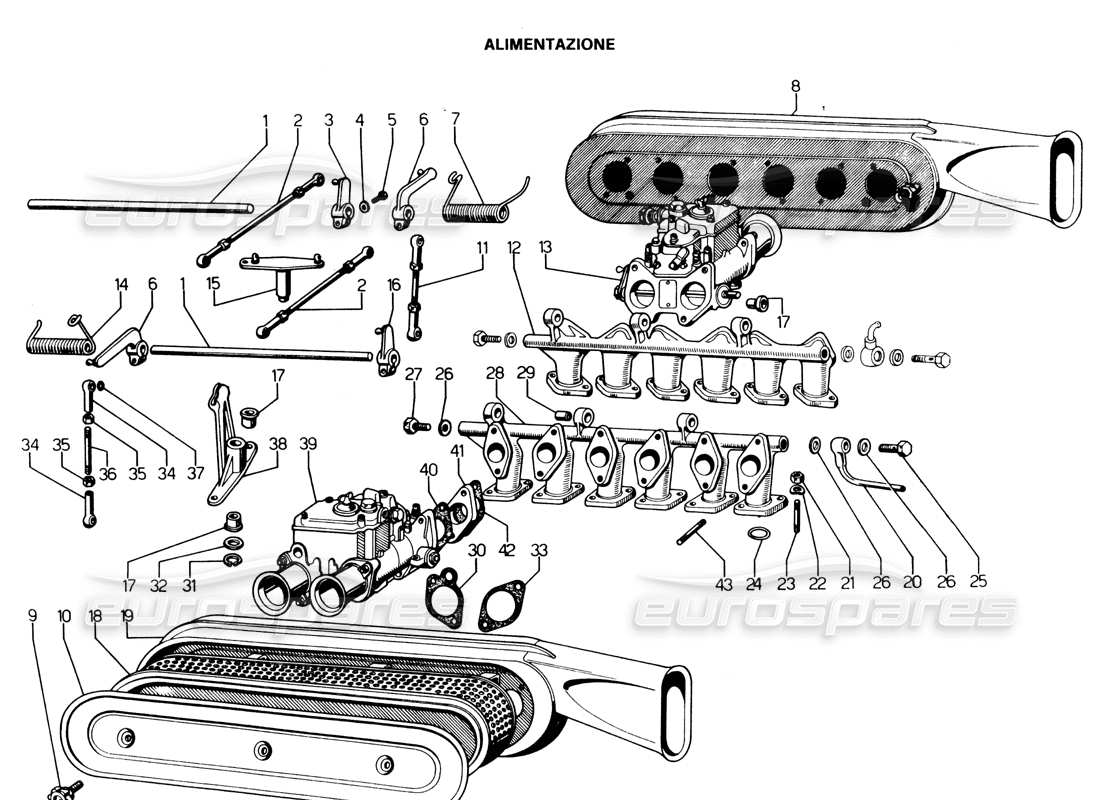

Lamborghini Espada Inlet manifolds Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
40DCOE18
COMPLETE CARBURETTOR
Italian made Weber,40DCOE18
#
000
MPN:
40DCOE31
COMPLETE CARBURETTOR
Italian made Weber,40DCOE31
#
001
MPN:
001301885
CARBURETTOR CONTROL SHAFT
from
£17.46
from
£17.46
#
002
MPN:
001310583
TIE ROD
from
£91.66
from
£91.66
#
003
MPN:
001301093
COMANDO ASTE
from
£143.10
from
£143.10
#
004
MPN:
008410603
WASHER
Supersession
Supersession
#
005
MPN:
008100618
BOLT
Supersession
Supersession
#
006
MPN:
001301095
COMANDO CARBURATORE
from
£326.84
from
£326.84
#
007
MPN:
001301374
SPRING
from
£23.21
from
£23.21
#
008
MPN:
001309191
CORPO DEPURATORE ARIA DESTRO (COMPLETO)
#
008
MPN:
001313192
CORPO DEPURATORE ARIA SINISTRO (COMPLETO)
from
£392.17
from
£392.17
#
009
MPN:
001309421
KNOB
from
£52.20
from
£52.20
#
010
MPN:
001320202
COVER
from
£336.35
from
£336.35
#
010
MPN:
LST003D
FIAAM AIR BOX STICKER RHS
from
£10.50
from
£10.50
#
010
MPN:
LST003S
FIAAM AIR BOX STICKER LHS
from
£10.50
from
£10.50
#
011
MPN:
001310582
TIE ROD
from
£327.70
from
£327.70
#
012
MPN:
001304771
COLLETTORE ASPIRAZIONE SINISTRO
from
£664.12
from
£664.12
#
013
MPN:
001310651
CARBURATORE SINISTRO
from
£366.47
from
£366.47
#
013
MPN:
SK2201
CARBURETTOR GASKET SET
40 DCOE 92/150 - 93/150
from
£427.24
from
£427.24
#
014
MPN:
001301910
MOLLA
from
£15.47
from
£15.47
#
015
MPN:
001303816
PORNO RINVIO ACCELERATORE
#
016
MPN:
001305396
COMANDO ASTE
from
£57.97
from
£57.97
#
017
MPN:
008801204
BUSH
from
£5.85
from
£5.85
#
018
MPN:
001304531
AIR FILTER
from
£95.00
from
£95.00
#
019
MPN:
001309250
INVOLUCRO DEPURATORE ARIA SINISTRO
#
019
MPN:
001313191
INVOLUCRO DEPURATORE ARIA DESTRO
from
£392.17
from
£392.17
#
020
MPN:
003204610
UNION
from
£89.49
from
£89.49
#
021
MPN:
008200808
NUT
Supersession
Supersession
#
022
MPN:
WHT001514
WASHER
from
£15.09
from
£15.09
This part replaces part number 008410805
#
023
MPN:
008300822
THREADED STUD
Supersession
Supersession
#
024
MPN:
008604202
SEALING RING
from
£7.94
from
£7.94
#
025
MPN:
003101941
BOLT
from
£2.64
from
£2.64
#
026
MPN:
008401610
WASHER
from
£6.32
from
£6.32
#
027
MPN:
008931602
PLUG
from
£3.03
from
£3.03
#
028
MPN:
001304770
COLLETTORE ASPIRAZIONE DESTRO
#
029
MPN:
008801205
BUSH
from
£13.69
from
£13.69
#

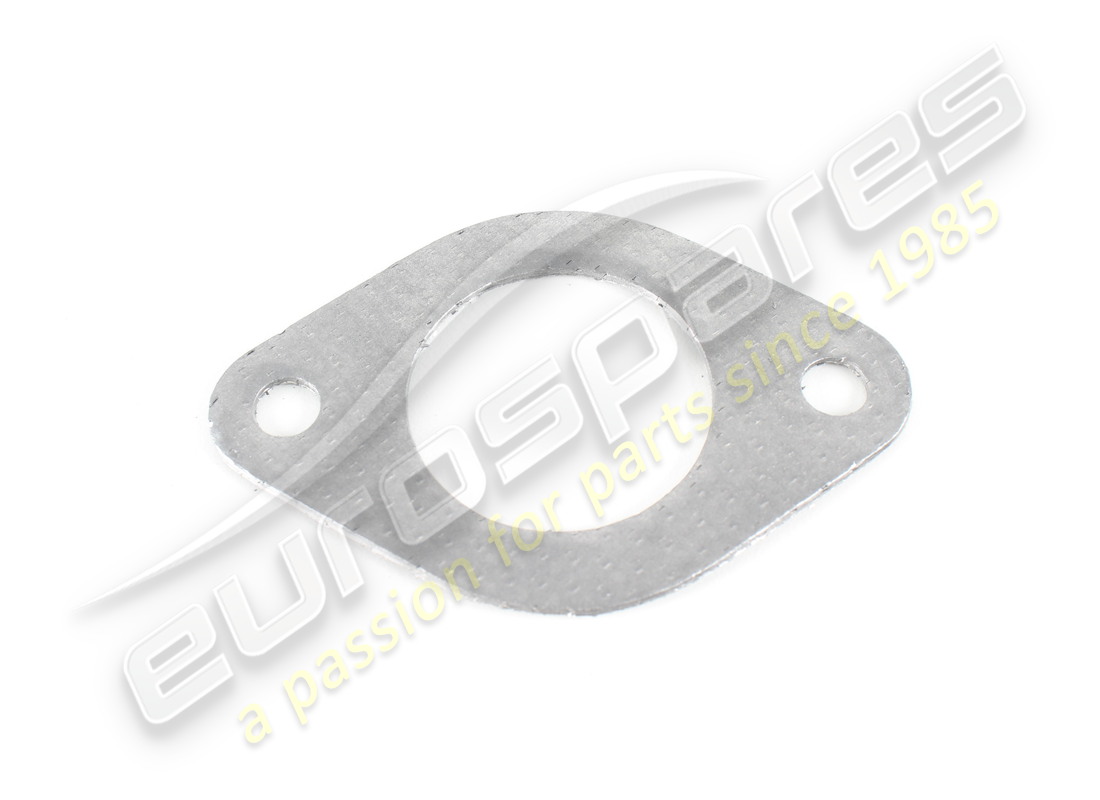

030
MPN:
001301221
GASKET
from
£11.59
from
£11.59
#
031
MPN:
008581101
SEEGER RING
from
£3.65
from
£3.65
#
032
MPN:
008401215
WASHER
from
£7.26
from
£7.26
#
033
MPN:
001301222
GASKET
from
£4.12
from
£4.12
#
034
MPN:
001300804
TESTINA COMANDO CARBURATORE
from
£7.38
from
£7.38
#
035
MPN:
008200501
NUT
Supersession
Supersession
#
036
MPN:
008300506
THREADED STUD
from
£51.07
from
£51.07
#
037
MPN:
001300805
MOLLA
#
038
MPN:
001304706
CAVALLOTTO COMANDO ACCELERATORE
from
£58.29
from
£58.29
#
039
MPN:
001310650
CARBURATORE•DESTRO
from
£366.47
from
£366.47
#
039
MPN:
SK2201
CARBURETTOR GASKET SET
40 DCOE 92/150 - 93/150
from
£427.24
from
£427.24
#
040
MPN:
001300290
GASKET
from
£2.24
from
£2.24
#
041
MPN:
001300289
SPESSORE
from
£39.35
from
£39.35
#
042
MPN:
001300291
GASKET
from
£11.59
from
£11.59
#
043
MPN:
008300823
THREADED STUD
from
£4.37
from
£4.37
