032 - Wiper System

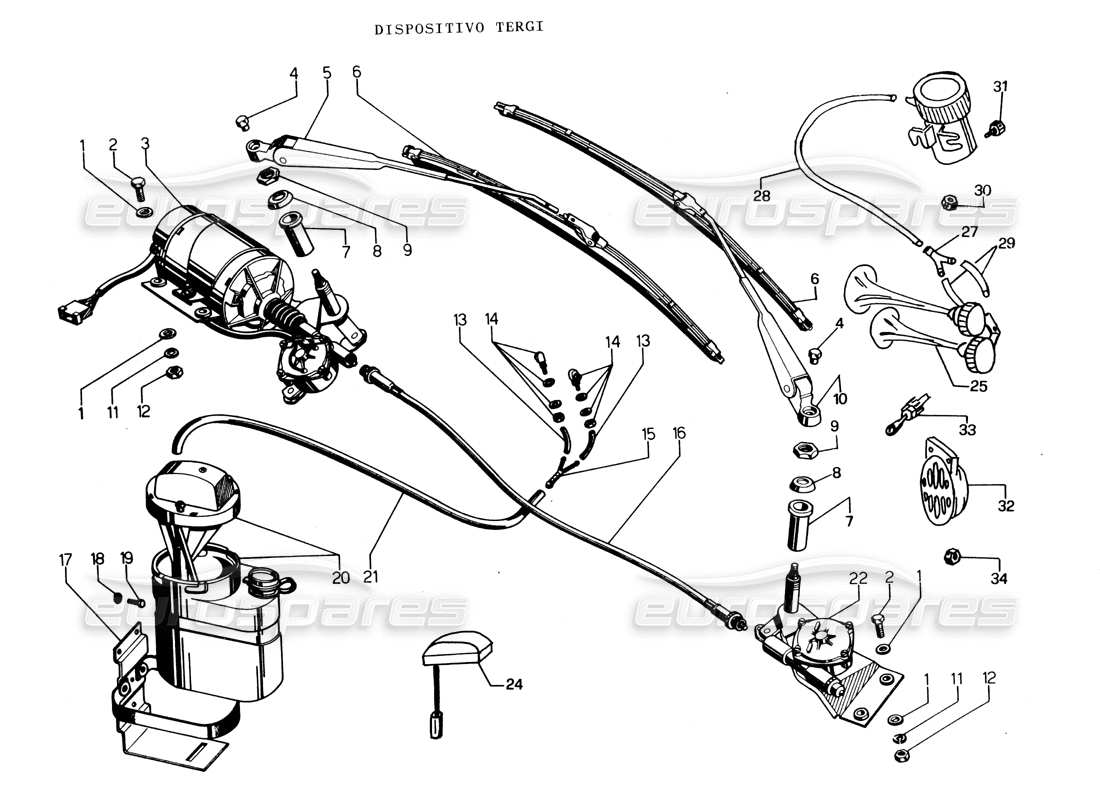

Lamborghini Espada Wiper System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
008400607
WASHER
Supersession
Supersession
#
002
MPN:
008100619
BOLT
from
£1.58
from
£1.58
#
003
MPN:
006107879
MOTORINO CONDUTTORE TERGI
from
£553.38
from
£553.38
#
004
MPN:
006715004
NUT
#
005
MPN:
006715236
ASTA TERGI DESTRA
from
£175.09
from
£175.09
#
006
MPN:
006715235

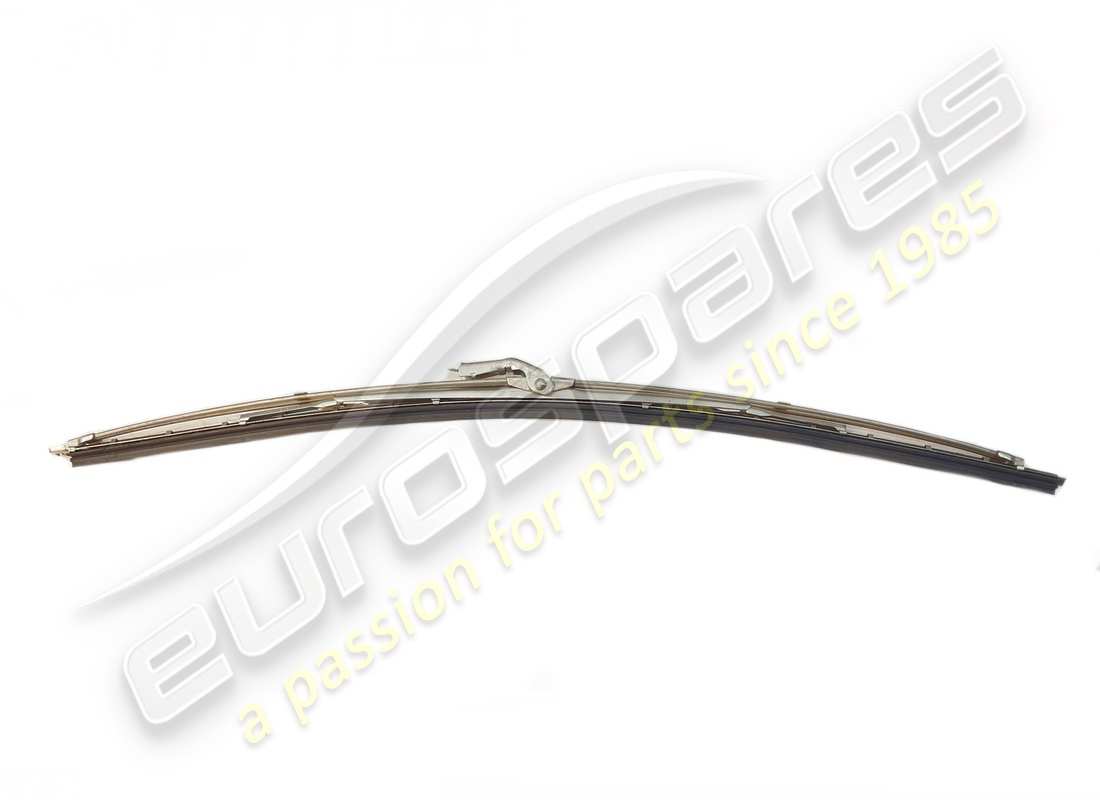

SPAZZOLA
18'' trico
from
£74.22
from
£74.22
#
007
MPN:
006715008
BUSH
#
008
MPN:
006715007
WASHER
#
009
MPN:
006715006
NUT
#
010
MPN:
006715237
ASTA TERGI SINISTRA
from
£175.09
from
£175.09
#
011
MPN:
008410603
WASHER
Supersession
Supersession
#
012
MPN:
008200604
NUT
Supersession
Supersession
#
013
MPN:
006815011
TUBINO PER UGELII
#
014
MPN:
006611012
UGELLI SPRUZZATORI ACQVA
from
£11.95
from
£11.95
#
015
MPN:
006611020
UNION 3-WAY
from
£4.98
from
£4.98
#
016
MPN:
006108133
Cavo collegamento motorini
#
017
MPN:
006515243
SUPPORT
#
018
MPN:
008410502
WASHER
Supersession
Supersession
#
019
MPN:
N01020717
BOLT
from
£0.47
from
£0.47
This part replaces part number 008100504
#
020
MPN:
006112220
VASCHETTA TERGI COMPLETA
from
£105.00
from
£105.00
#
021
MPN:
006815010
TUBO COLLEGAMENTO VASCHETTA TERGI AL 3 VIE
#
022
MPN:
006715238
Motorino condotto tergi
#
023
MPN:
006106703
GRUPPO MOTORE TERGI COMPLETO (3-7-8-9-16-22)
from
£738.75
from
£738.75
#
024
MPN:
006107461
TELERUTTORE
from
£67.99
from
£67.99
#
025
MPN:
005935553
TROMBE
from
£49.71
from
£49.71
#
026
MPN:
006617029
Compressors
#
027
MPN:
006108392
UNION
from
£2.27
from
£2.27
#
028
MPN:
006109929
PIPE / TUBE / HOSE
#
029
MPN:
006109931
PIPE / TUBE / HOSE
#
030
MPN:
008200809
NUT
Supersession
Supersession
#
031
MPN:
008700611
VIDE
from
£0.53
from
£0.53
