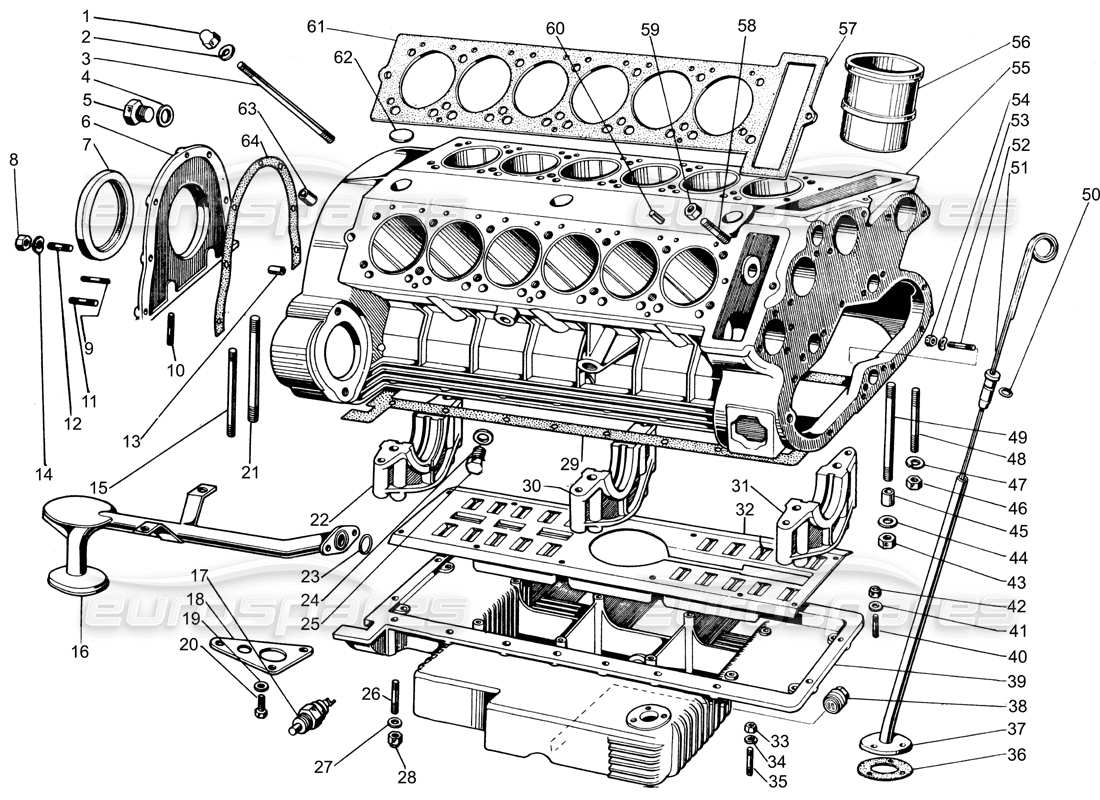

Lamborghini Espada Crankcase Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
001526482

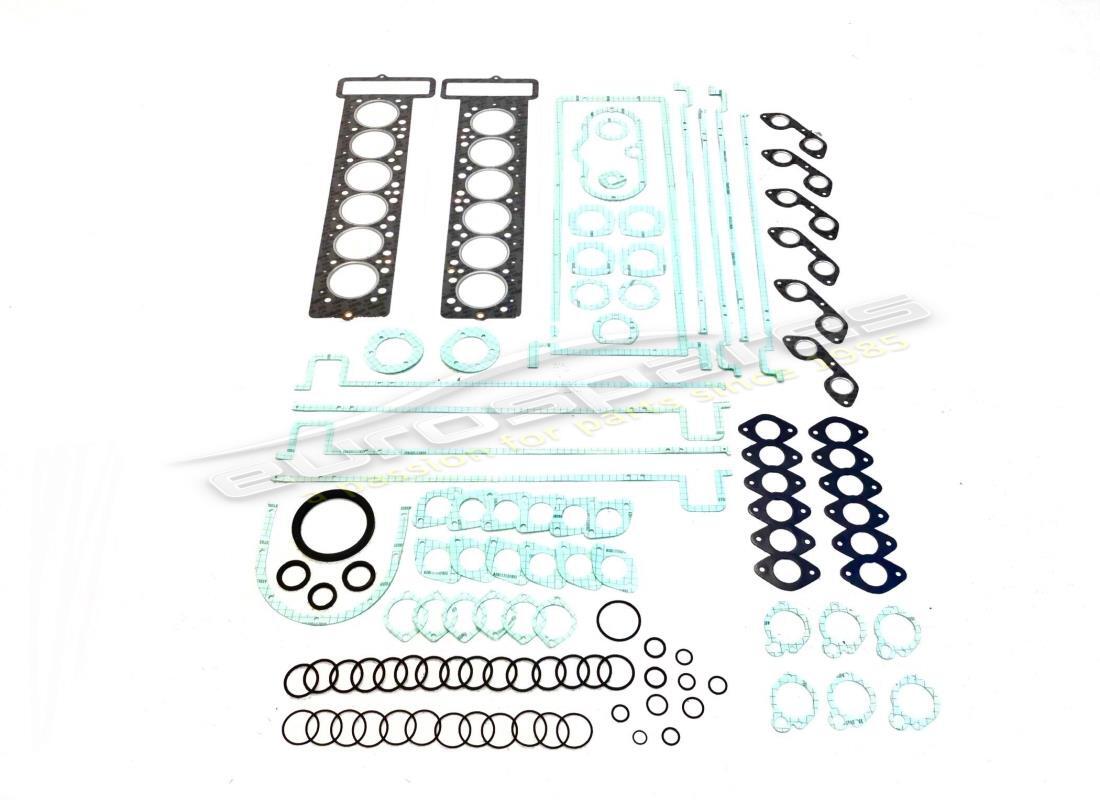

GASKET SET
Full gasket set / No oil seals
from
£846.45
from
£846.45
#
000
MPN:
001800545

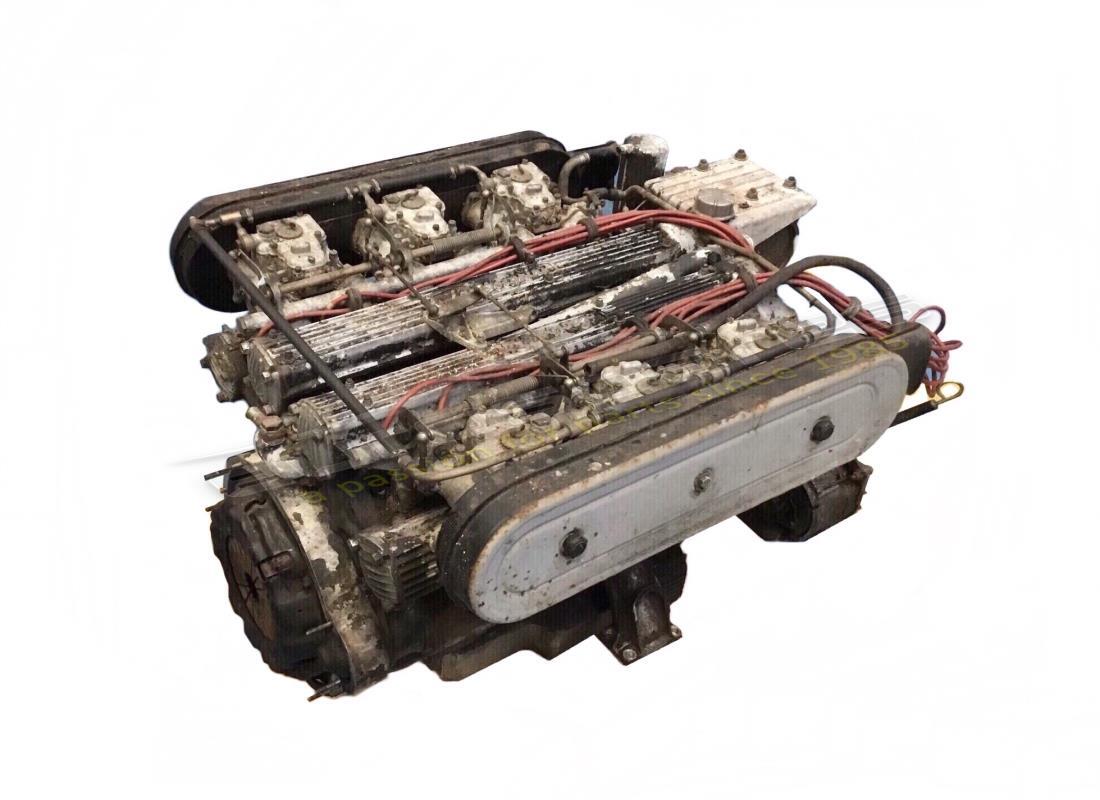

ENGINE COMPLETE
from
£32,500.00
from
£32,500.00
#
000
MPN:
LSGASESPADA
SUMP GASKET FOR Lamborghini ESPADA
#
001
MPN:
008201101
CAP NUT
from
£22.23
from
£22.23
#
002
MPN:
008411101
SNAP RING 11.5X21X1.2
from
£4.86
from
£4.86
#
003
MPN:
008301212

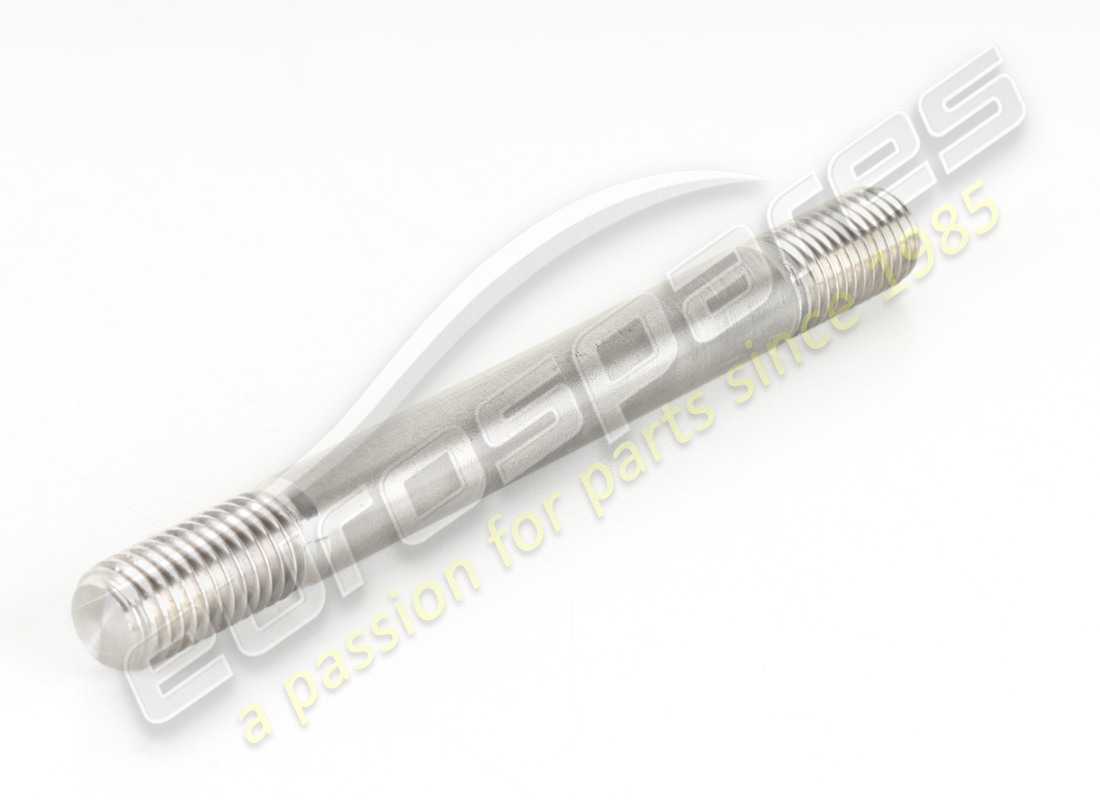

HEAD STUD
from
£19.77
from
£19.77
#
004
MPN:
008602002
RING 21 MM OR
from
£14.31
from
£14.31
#
005
MPN:
008932202
PLUG 22MB
from
£49.83
from
£49.83
#
006
MPN:
001802054
BLOCK COVER
from
£297.78
from
£297.78
#
007
MPN:
001829009
OIL SEAL
from
£38.69
from
£38.69
This part replaces part number 008609902
- and 1 more. Click to view details
#
008
MPN:
008200604
NUT
Supersession
Supersession
#
009
MPN:
008300810
THREADED STUD
from
£8.17
from
£8.17
#
010
MPN:
008300611
STUD 6X30 UNI 5911/8G/Z
from
£4.40
from
£4.40
#
011
MPN:
008300609
STUD M6X25 UNI 5911 8G/ZD
from
£8.84
from
£8.84
#
012
MPN:
008300608
STUD
from
£0.69
from
£0.69
#
013
MPN:
008850605
PIN RIF.8H7X6,25X10
#
014
MPN:
008410602
LOCK WASHER
from
£28.85
from
£28.85
#
015
MPN:
008300816
STUD M8X1X65 UNI 5919 10K
from
£9.66
from
£9.66
#
016
MPN:
001804497
TUBO DI ASPIRAZIONE OLIO
#
017
MPN:
001801333
OIL & COOLANT TEMPERATURE THERMOCOUPLE
from
£126.99
from
£126.99
#
018
MPN:
001805141
STAFFA PER SCATOLA CAMBIO E COPPA OLIO
from
£40.80
from
£40.80
#
019
MPN:
008410806
WASHER
Supersession
Supersession
#
020
MPN:
N01029315
SCREW M8X16 UNI 5739/8G/Z
from
£0.85
from
£0.85
#
021
MPN:
008301213
SPECIAL STUD M12X98
from
£37.40
from
£37.40
#
022
MPN:
001800297
Main Shaft
#
023
MPN:
008602901
RING 30 MM OR
from
£0.54
from
£0.54
#
024
MPN:
008401502
COPPER WASHER 15X28X2
from
£10.41
from
£10.41
#
025
MPN:
008931403
BRONZE PLUG
from
£31.55
from
£31.55
#
026
MPN:
008300608
STUD
from
£0.69
from
£0.69
#
027
MPN:
008400606
WASHER
Supersession
Supersession
#
028
MPN:
008200605
NUT
from
£1.89
from
£1.89
#
029
MPN:
001800311
ENGINE SUMP GASKET
from
£46.43
from
£46.43
#
030
MPN:
001800296
SUPPORT
#
031
MPN:
001800295
SUPPORT
#
032
MPN:
001804650
PARATIA COPPA OLIO
from
£186.56
from
£186.56
#
033
MPN:
N01100412
M4 'UNI 5587/5S/Z' NUT
from
£0.47
from
£0.47
#
034
MPN:
008400402
N/A
from
£1.71
from
£1.71
#
035
MPN:
008300401
SPECIAL STUD M4X7
from
£0.54
from
£0.54
#
036
MPN:
001803094
GASKET
from
£4.56
from
£4.56
#
037
MPN:
001804885
TUBO PER ASTA LIVELLO OLIO
from
£19.07
from
£19.07
#
038
MPN:
086301141A
MAGNETIC PLUG
from
£22.53
from
£22.53
#
039
MPN:
001804507
N/A
from
£1,533.86
from
£1,533.86
#
040
MPN:
008300610
STUD 6X1X16 8G UNI5911 Z.
from
£15.47
from
£15.47
#
041
MPN:
008410606
WASHER
from
£1.71
from
£1.71
#
042
MPN:
008200606
BUSH
Supersession
Supersession
#
043
MPN:
008201210
NUT
from
£8.84
from
£8.84
#
044
MPN:
008411302
WASHER 13X24X1.2 DIN137/B C72
Supersession
Supersession
#
045
MPN:
008851505
N/A
#
046
MPN:
008200805
NUT
from
£0.54
from
£0.54
#
047
MPN:
WHT001514
WASHER
from
£15.09
from
£15.09
This part replaces part number 008410805
#
048
MPN:
008300817
STUD M8X1X60 UNI 5919 10K
from
£10.53
from
£10.53
#
049
MPN:
008301214
SPECIAL STUD M12X94
from
£21.81
from
£21.81
#
050
MPN:
WHT003057
SEAL RING
from
£0.91
from
£0.91
#
051
MPN:
001804886
ASTA LIVELLO OLIO
#
052
MPN:
008300610
STUD 6X1X16 8G UNI5911 Z.
from
£15.47
from
£15.47
#
053
MPN:
008410603
LOCK WASHER
Supersession
Supersession
#
054
MPN:
008200604
NUT
Supersession
Supersession
#
055
MPN:
001800546
crankcase
from
£12,969.64
from
£12,969.64
#
056
MPN:
001801880
CYLINDER LINER
from
£204.75
from
£204.75
#
057
MPN:
001101815
RH HEAD GASKET
from
£189.75
from
£189.75
#
058
MPN:
008300815
STUD
from
£10.53
from
£10.53
#
059
MPN:
008200804
NUT
from
£0.74
from
£0.74
#
060
MPN:
008850804
DOWEL
from
£11.11
from
£11.11
#
061
MPN:
001101815
RH HEAD GASKET
from
£189.75
from
£189.75
#
061
MPN:
001101816
LH HEAD GASKET
from
£189.00
from
£189.00
#
062
MPN:
008932401
EXPANSION PLUG
from
£14.49
from
£14.49
#
063
MPN:
008851101
BUSHING 8.5X11X14 MM
from
£23.35
from
£23.35
#
064
MPN:
001800294
CRANKCASE REAR COVERSEAL
from
£14.93
from
£14.93
#
065
MPN:
001526462
OIL SEALS
Complete engine oil seal kit
from
£195.00
from
£195.00
