lamborghini espada crankshaft (to 400) parts diagram

004 - Crankshaft (to 400)

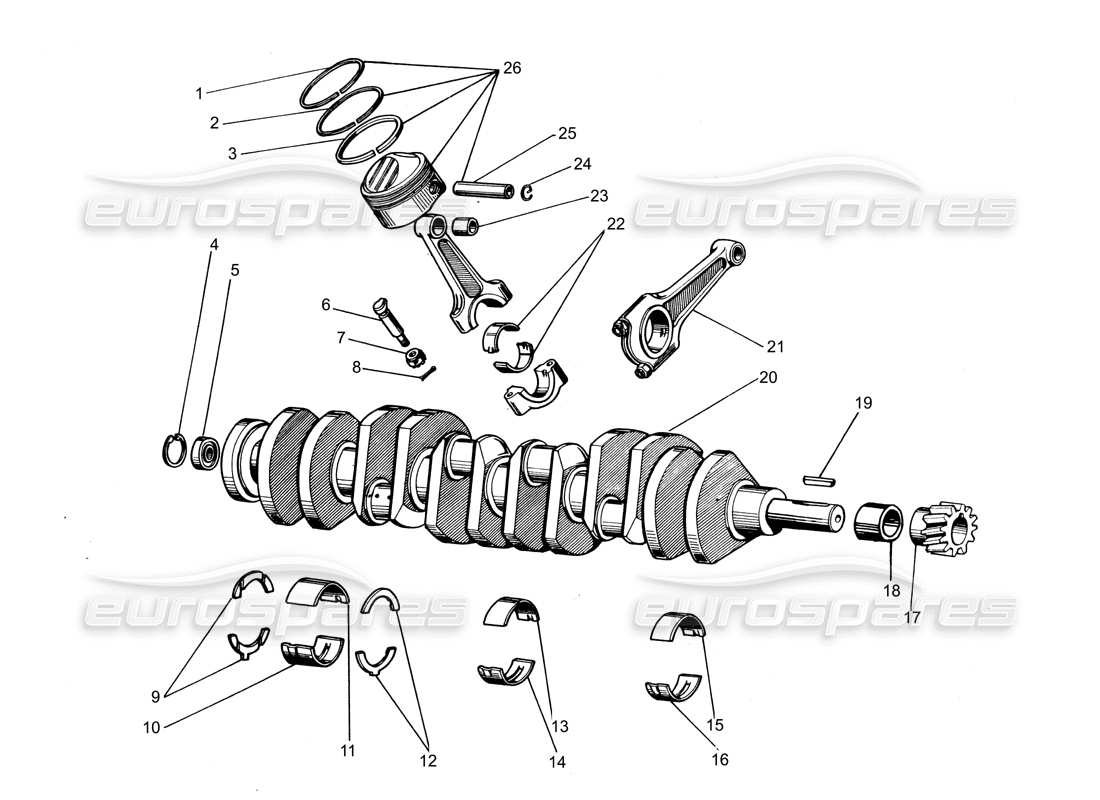

Lamborghini Espada Crankshaft (to 400) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 001406861
MAIN & BIG END SET +10
from £2,995.00
from £2,995.00
# 000
MPN: 001406862
MAINS & BIG END BEARING SET +20
from £2,995.00
from £2,995.00
# 000
MPN: 001436738
MAIN & BIG END SET STD
from £2,995.00
from £2,995.00
# 001
MPN: 001402908
SEGMENTO SUPERIORE
from £86.04
from £86.04
# 002
MPN: 001402907
PISTON RING
from £65.38
from £65.38
# 003
MPN: 001402906
SCRAPER RING
from £45.31
from £45.31
# 004
MPN: 07M109381
SEEGER RING
from £1.16
from £1.16
This part replaces part number 008573501 - and 1 more. Click to view details
# 005
MPN: 410109264
BEARING
from £17.08
from £17.08
This part replaces part number 008501501 - and 2 more. Click to view details
# 006
MPN: 001405755
CON ROD BOLT
from £110.68
from £110.68
This part replaces part number 001400359
# 007
MPN: 001404419
CON ROD NUT
Supersession
Supersession
# 008
MPN: 008820201
LOCK RING
from £4.11
from £4.11
# 009
MPN: 07M105532
THRUST WASHER (PRICE EACH)
use:2x 07M105531A & 2x 07M105532
from £196.28
from £196.28
# 010
MPN: 001400248
LOWER HALF BEARING
from £29.10
from £29.10
# 011
MPN: 001400244
UPPER HALF BEARING
from £29.10
from £29.10
# 012
MPN: 07M105532
THRUST WASHER (PRICE EACH)
use:2x 07M105531A & 2x 07M105532
from £196.28
from £196.28
# 013
MPN: 001400249
UPPER HALF BEARING
not as spare part - use part number: 001400236
from £122.79
from £122.79
# 014
MPN: 001400236
LOWER HALF BEARING
from £105.30
from £105.30
# 015
MPN: 001400243
UPPER HALF BEARING
from £27.62
from £27.62
# 016
MPN: 001400239
LOWER HALF BEARING
from £29.10
from £29.10
# 017
MPN: 001401117
CRANKSHAFT SPROCKET
from £346.72
from £346.72
# 018
MPN: 001404486
BUSH
from £61.31
from £61.31
# 019
MPN: 008860803
WOODRUFF KEY
from £7.31
from £7.31
# 020
MPN: 001407338
crankshaft
from £18,896.76
from £18,896.76
# 021
MPN: 001400802
BIELLA (COMPLETA)
Supersession
Supersession
# 022
MPN: 001419898
BIG ENG BEARING
from £41.01
from £41.01
# 023
MPN: 001413206
LITTLE END BUSH
from £69.96
from £69.96
# 024
MPN: 008572101
CIRCLIP
from £0.50
from £0.50
# 025
MPN: 001400398
GAUGE PIN
from £110.28
from £110.28
# 026
MPN: 001408017
PISTON STD
from £279.66
from £279.66
