lamborghini espada gearbox ( 0 to 800) parts diagram

012.2 - Gearbox ( 0 to 800)

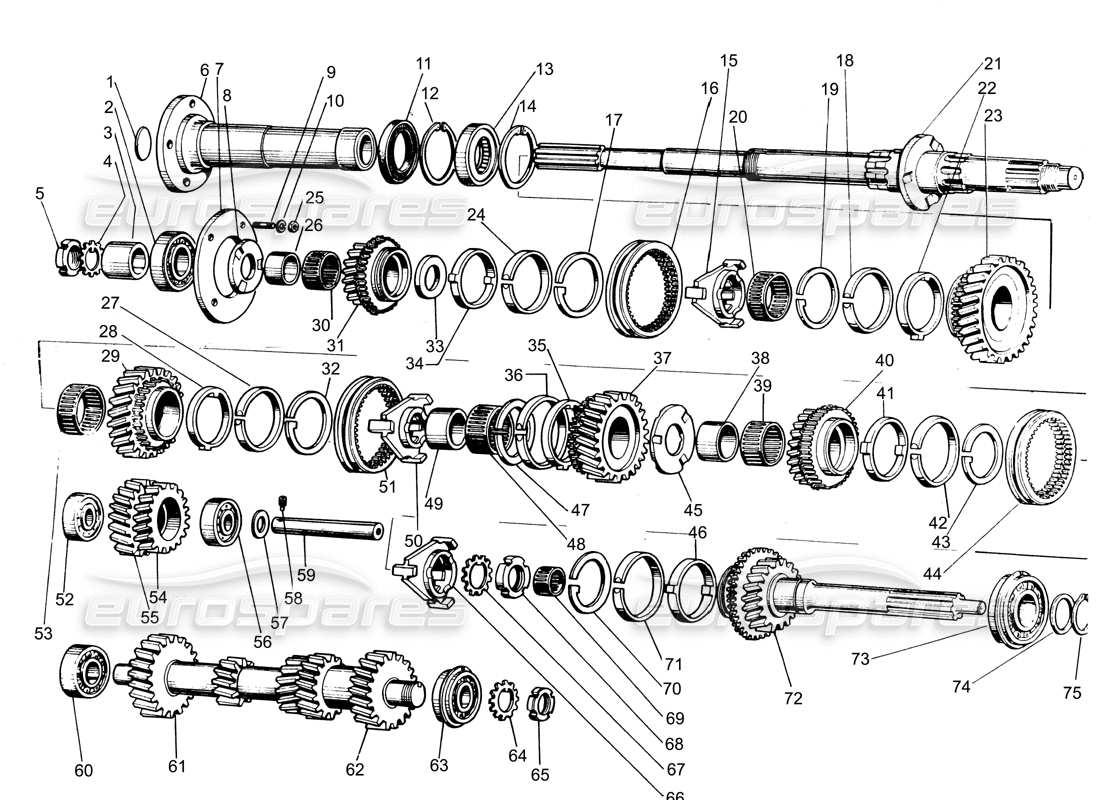

Lamborghini Espada Gearbox ( 0 to 800) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008933501
PLUG
Da 0 a 800
from £1.71
from £1.71
# 002
MPN: 008503503
CUSCINETTO
Da 0 a 800
from £72.50
from £72.50
# 003
MPN: 002404434
DISTATALE
Da 0 a 800
from £15.01
from £15.01
# 004
MPN: 008413502
WASHER SKF MB7
Da 0 a 800
from £3.57
from £3.57
# 005
MPN: 008253506
RING NUT
from £27.06
from £27.06
# 006
MPN: 002402569
MANICOTTO DI USCITA MOTO
Da 0 a 800
from £320.04
from £320.04
# 007
MPN: 002401754
ANELLO DI ARRESTO PER CUSCINETTO
Da 0 a 800
from £40.80
from £40.80
# 008
MPN: 002401734
WASHER
Da 0 a 800
from £252.06
from £252.06
# 009
MPN: 008300613
STUD M6X14 UNI 5911 8G/Z
Da 0 a 800
from £3.07
from £3.07
# 010
MPN: 008410603
LOCK WASHER
Da 0 a 800
Supersession
Supersession
# 011
MPN: 008614203
OIL SEAL
from £9.96
from £9.96
# 012
MPN: 008576601
RETAINER RING
Da 0 a 800
from £0.54
from £0.54
# 013
MPN: 008524203
BEARING
Da 0 a 800
from £124.48
from £124.48
# 014
MPN: 008576601
RETAINER RING
Da 0 a 800
from £0.54
from £0.54
# 015
MPN: 002402004
5TH SPEED DRIVE UNIT
Da 0 a 800
from £2,122.70
from £2,122.70
# 016
MPN: 002402007
GEAR ENGAGING SLEEVE
Da 0 a 800
from £1,292.65
from £1,292.65
# 017
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
# 018
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
# 019
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
# 020
MPN: 008525001
BEARING
Da 0 a 800
from £26.78
from £26.78
# 021
MPN: 002401711
ALBERO PRIMARIO
Da 0 a 800
from £810.87
from £810.87
# 022
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
# 023
MPN: 002401729
RUOTA R.M.
Da 0 a 800
from £344.91
from £344.91
# 024
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
# 025
MPN: 008200604
NUT
Da 0 a 800
Supersession
Supersession
# 026
MPN: 002401737
O-RING
Da 0 a 800
from £49.75
from £49.75
# 027
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
# 028
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
# 029
MPN: 002401731
WHEEL 1A SPEED
Da 0 a 800
from £629.46
from £629.46
# 030
MPN: 008524002
BEARING
Da 0 a 800
from £28.19
from £28.19
# 031
MPN: 002401730
5TH SPEED GEAR
Da 0 a 800
from £986.65
from £986.65
# 032
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
# 033
MPN: 002402572
N/A
Da 0 a 800
# 034
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
# 035
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
# 036
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
# 037
MPN: 002401728
INGRANAGGIO 2DA VELOCITA'
from £1,774.30
from £1,774.30
# 038
MPN: 002401742
O-RING
Da 0 a 800
from £159.52
from £159.52
# 039
MPN: 086311228A
ROLLER BEARING
from £64.59
from £64.59
# 040
MPN: 002401727
3RD SPEED GEAR
Da 0 a 800
from £1,292.65
from £1,292.65
# 041
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
# 042
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
# 043
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
# 044
MPN: 002402007
GEAR ENGAGING SLEEVE
Da 0 a 800
from £1,292.65
from £1,292.65
# 045
MPN: 002401828
2ND-3RD SPEED WASHER
Da 0 a 800
from £44.53
from £44.53
# 046
MPN: 002402017
SYNCHRONISER INNER RING
Da 0 a 800
from £355.37
from £355.37
# 047
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
# 048
MPN: 086311228A
ROLLER BEARING
from £64.59
from £64.59
# 049
MPN: 002401742
O-RING
Da 0 a 800
from £159.52
from £159.52
# 050
MPN: 002402006
SP JOINT
Da 0 a 800
# 051
MPN: 002402007
GEAR ENGAGING SLEEVE
Da 0 a 800
from £1,292.65
from £1,292.65
# 052
MPN: 008502002
SCN 6304-2RS EXBLN20
Da 0 a 800
from £38.27
from £38.27
# 053
MPN: 086311228A
ROLLER BEARING
from £64.59
from £64.59
# 054
MPN: 002401770
REVERSE GUIDE GEAR
Da 0 a 800
from £201.06
from £201.06
# 055
MPN: 002401732
INGRANAGGIO PER GALOPPINO
Da 0 a 800
# 056
MPN: 008502002
SCN 6304-2RS EXBLN20
Da 0 a 800
from £38.27
from £38.27
# 057
MPN: 002401772
DLSTANZLALE
Da 0 a 800
from £7.52
from £7.52
# 058
MPN: 008700806
VITE
Da 0 a 800
from £1.71
from £1.71
# 059
MPN: 002401771
ALBERINO RETROMARCIA
Da 0 a 800
from £37.40
from £37.40
# 060
MPN: 008503002
CUSCINETTO
Da 0 a 800
from £29.68
from £29.68
# 061
MPN: 002401710
ALBERO SECONDARIO
Da 0 a 800
from £247.90
from £247.90
# 062
MPN: 002401709
GEAR 3A SPEED AND TRANSFER
Da 0 a 800
from £181.57
from £181.57
# 063
MPN: 008503003
BEARING
Da 0 a 800
from £14.01
from £14.01
# 064
MPN: 008413001
WASHER SKF MB6
Da 0 a 800
from £1.65
from £1.65
# 065
MPN: 008253002
30X1.5X45 SELF-LOCKING RING NUT
Da 0 a 800
from £54.56
from £54.56
This part replaces part number 009253002
# 066
MPN: 002402005
3RD SPEED DRIVE UNIT
Da 0 a 800
from £2,122.70
from £2,122.70
# 067
MPN: 008413502
WASHER SKF MB7
Da 0 a 800
from £3.57
from £3.57
# 068
MPN: 008253506
RING NUT
from £27.06
from £27.06
# 069
MPN: 008523005
BEARING
Da 0 a 800
from £14.38
from £14.38
# 070
MPN: 002402003
SYNCHRONISER RETAINING RINGS
Da 0 a 800
from £208.94
from £208.94
# 071
MPN: 002409605
SYNCHRO RING
from £331.11
from £331.11
# 072
MPN: 002401726
ALBERO FRIZIONE CAMBIO
Da 0 a 800
from £470.94
from £470.94
# 073
MPN: 008503504
BEARING
Da 0 a 800
from £41.42
from £41.42
# 074
MPN: 002401747
WASHER
Da 0 a 800
from £40.86
from £40.86
# 075
MPN: 008583202
SEEGER RING
Da 0 a 800
from £0.56
from £0.56
