021.4 - Air-Con (Gran Bret, Irlanda, Australia)

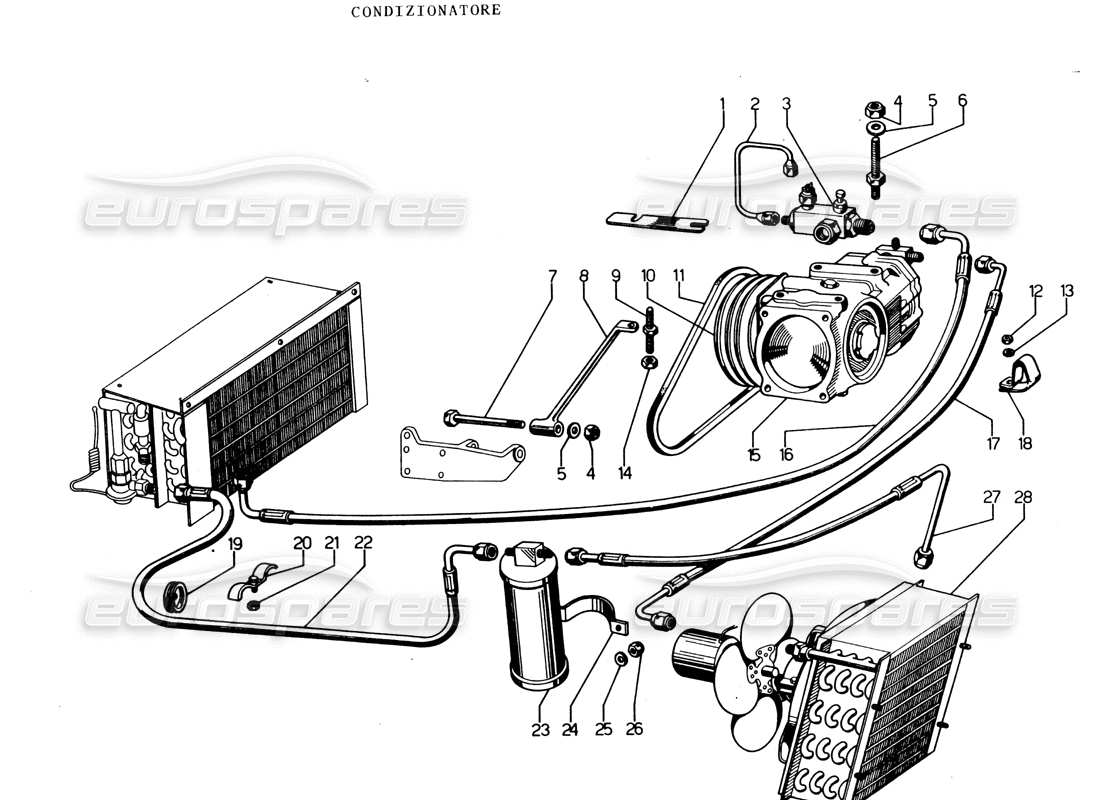

Lamborghini Espada Air-Con (Gran Bret, Irlanda, Australia) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004504637
PLATE
Gran Bret - Irland - Australia
from £5.02
from £5.02
# 002
MPN: 004505585
TUBO DALLA VALVOLA ISOBARICA AL COMPRESSORE
Gran Bret - Irland - Australia
from £37.48
from £37.48
# 003
MPN: 004510015
VALVOLA ISOBARICA
Gran Bret - Irland - Australia
from £125.00
from £125.00
# 004
MPN: 008201008
NUT
Gran Bret - Irland - Australia
from £0.55
from £0.55
# 005
MPN: 008401006
WASHER
Gran Bret - Irland - Australia
from £0.53
from £0.53
# 006
MPN: 004504533
COLONNETTA SUPPORTO COMPRESSORE
Gran Bret - Irland - Australia
from £53.73
from £53.73
# 007
MPN: 008101001
BOLT
Gran Bret - Irland - Australia
from £8.17
from £8.17
# 008
MPN: 004505677
PUNTONE SUPPORTO COMPRESSORE
Gran Bret - Irland - Australia
from £28.23
from £28.23
# 009
MPN: 004505681
REGISTRO PER PUNTONE
Gran Bret - Irland - Australia
from £19.02
from £19.02
# 010
MPN: 004505446
GIUNTO ELETTROMAGNETICO COMPLETO
Gran Bret - Irland - Australia
# 011
MPN: 004504532
CINGHIA COMANDO COMPRESSORE
Gran Bret - Irland - Australia
from £45.15
from £45.15
# 012
MPN: N01100412
NUT
Gran Bret - Irland - Australia
from £0.87
from £0.87
# 013
MPN: 008410403
WASHER
Gran Bret - Irland - Australia
from £4.11
from £4.11
# 014
MPN: 008201011
NUT
Gran Bret - Irland - Australia
from £11.53
from £11.53
# 015
MPN: 004511440
COMPRESSORE
Gran Bret - Irland - Australia
from £2,218.50
from £2,218.50
# 016
MPN: 004508753
TUBO DALLA VALVOLA ISOBARICA AT RADIATORE
Gran Bret - Irland - Australia
from £39.49
from £39.49
# 018
MPN: 004507529
JUBILEE CLIP
Gran Bret - Irland - Australia
# 019
MPN: 008611002
RUBBER GROMMET
Gran Bret - Irland - Australia
from £13.87
from £13.87
# 020
MPN: 004505977
JUBILEE CLIP
Gran Bret - Irland - Australia
from £9.52
from £9.52
# 021
MPN: N0211963
NUT
Gran Bret - Irland - Australia
from £0.53
from £0.53
# 022
MPN: 004508981
PIPE / TUBE / HOSE
Gran Bret - Irland - Australia
from £115.25
from £115.25
# 022
MPN: 004508981
PIPE / TUBE / HOSE
Gran Bret - Irland - Australia
from £115.25
from £115.25
# 023
MPN: 004505322/a
DRYER BOTTLE
use : 004535411 - 004537126 - 004537127
# 024
MPN: 004505600
JUBILEE CLIP
Gran Bret - Irland - Australia
from £3.88
from £3.88
# 025
MPN: 008400606
WASHER
Gran Bret - Irland - Australia
Supersession
Supersession
# 026
MPN: 008200606
NUT
Supersession
Supersession
# 027
MPN: 004506034
PIPE / TUBE / HOSE
Gran Bret - Irland - Australia
from £34.12
from £34.12
# 027
MPN: 004506034
PIPE / TUBE / HOSE
Gran Bret - Irland - Australia
from £34.12
from £34.12
# 028
MPN: 004505247
CONDENSOR
Gran Bret - Irland - Australia
from £894.91
from £894.91
# 029
MPN: 004508798
A/C. MOTOR WITH BLADE
