006.2 - Electrical & Distribution series III

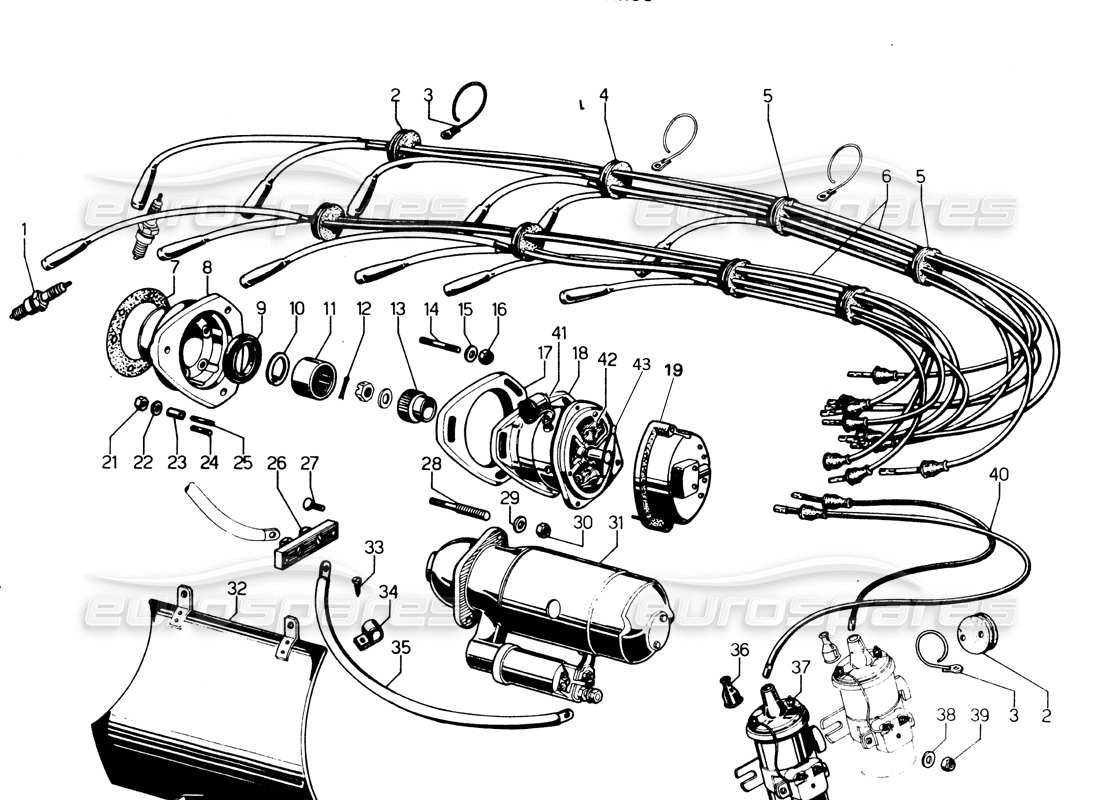

Lamborghini Espada Electrical & Distribution series III Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
001606245
PUNTINE PLATINATE
from
£77.70
from
£77.70
#
000
MPN:
001606251
SPAZZOLA PER CALOTTA
from
£27.70
from
£27.70
#
000
MPN:
001607059
CONDENSOR
can use 95300072
#
000
MPN:
001608470
ROTOR ARM (SINGLE DISTRIBUTOR)
from
£289.66
from
£289.66
#
000
MPN:
95300042/A
DISTRIBUTOR CAP GASKET
from
£11.50
from
£11.50
#
001
MPN:
008811403
SPARK PLUG
from
£35.87
from
£35.87
#
001
MPN:
107603/A
SPARK PLUG
NGK
from
£9.45
from
£9.45
#
002
MPN:
001601566
GOMMINO PASSAFILI
from
£42.33
from
£42.33
#
003
MPN:
001601567
GANCIO SUPPORTO GOMMINO
from
£28.49
from
£28.49
#
004
MPN:
001601565
GOMMINO PASSAFILI
from
£35.80
from
£35.80
#
005
MPN:
001601564
GOMMINO PASSAFILI
from
£28.49
from
£28.49
#
006
MPN:
LHT004
HT LEADS SET
(valid for twin distributor)
from
£396.56
from
£396.56
#
007
MPN:
001600906
GASKET
from
£6.53
from
£6.53
#
008
MPN:
001600905
SUPPORT
from
£474.70
from
£474.70
#
009
MPN:
008613502
SEALING RING
from
£6.19
from
£6.19
#
010
MPN:
008573202
SEEGER RING
from
£3.48
from
£3.48
#
011
MPN:
001600376
CANOTTO PRESA DI FORZA
from
£274.10
from
£274.10
#
012
MPN:
008820201
COPPIGLIA
from
£4.11
from
£4.11
#
013
MPN:
001600377
PRESA DI FORZA SULLO SPINTEROGENO
from
£104.06
from
£104.06
#
014
MPN:
008300818
THREADED STUD
from
£2.85
from
£2.85
#
015
MPN:
008400801
WASHER
Supersession
Supersession
#
016
MPN:
008200809
NUT
Supersession
Supersession
#
017
MPN:
001600371
SPESSORE
from
£50.17
from
£50.17
#
018
MPN:
001608402
SPINTEROGENO COMPL. (DA 0 A 1000)
#
019
MPN:
001608471
DISTRIBUTOR CAP
from
£150.00
from
£150.00
#
020
MPN:
001609187
GANCIO
from
£28.62
from
£28.62
#
021
MPN:
008200604
NUT
Supersession
Supersession
#
022
MPN:
008410602
WASHER
from
£26.77
from
£26.77
#
023
MPN:
008850606
DOWEL
from
£6.43
from
£6.43
#
024
MPN:
008300613
THREADED STUD
from
£3.07
from
£3.07
#
025
MPN:
008300612
THREADED STUD
#
026
MPN:
001606170
GIUNZIONE PER CAVI
from
£35.33
from
£35.33
#
027
MPN:
008700801
SCREW
from
£0.53
from
£0.53
#
028
MPN:
008301221
STUD
from
£12.82
from
£12.82
#
029
MPN:
008411303
WASHER
from
£1.91
from
£1.91
#
030
MPN:
008201211
NUT
from
£5.19
from
£5.19
#
031
MPN:
001604460
STARTER MOTOR
from
£1,995.00
from
£1,995.00
#
032
MPN:
001604957
PARATIA
#
033
MPN:
008700506
SCREW
from
£0.53
from
£0.53
#
034
MPN:
008830104
JUBILEE CLIP
#
035
MPN:
001610446
CAVO (G. BRET. - IRLANDA- AUSTRALIA)
#
036
MPN:
001605394
PIPETTA
from
£3.90
from
£3.90
#
037
MPN:
001601335
IGNITION COIL (BERU)
from
£88.19
from
£88.19
#
038
MPN:
008400801
WASHER
Supersession
Supersession
#
039
MPN:
008200804
NUT
from
£0.72
from
£0.72
#
040
MPN:
001608935
CAY. SPENT. (DA 0 A 1000)
from
£340.76
from
£340.76
#
042
MPN:
95300083
POINTS
Pair
from
£22.03
from
£22.03
#
043
MPN:
124288
ROTOR ARM (TWIN DISTRIBUTOR)
from
£36.48
from
£36.48
