lamborghini espada front & rear bumpers parts diagram

035 - Front & Rear Bumpers

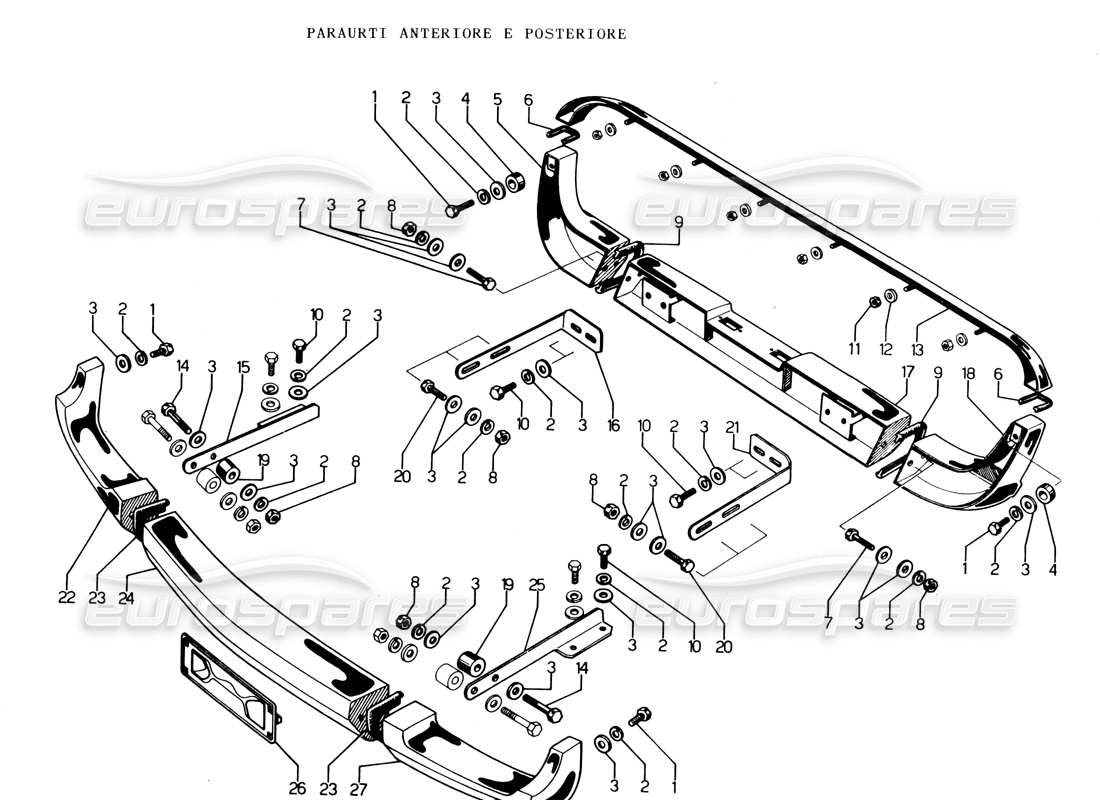

Lamborghini Espada Front & Rear Bumpers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 006763110/A
REAR CHROME BUMPERS SET
from £1,500.00
from £1,500.00
# 000
MPN: 006763118/A
FRONT CHROME BUMPERS SET
from £2,198.00
from £2,198.00
# 001
MPN: 008100827
BOLT
Supersession
Supersession
# 002
MPN: 008410806
WASHER
Supersession
Supersession
# 004
MPN: 006763143
SPACER
# 005
MPN: 006763112
LAMA PARAURTI POSTERIORE (DESTRA) - REAR BUMPER (RIGHT)
from £404.25
from £404.25
# 006
MPN: 006790033
GASKET
# 007
MPN: 008100803
BOLT
Supersession
Supersession
# 008
MPN: N01100845
NUT
from £1.21
from £1.21
This part replaces part number 008200801 - and 2 more. Click to view details
# 009
MPN: 006763140
GASKET
# 010
MPN: 008100801
BOLT
# 011
MPN: 008200501
NUT
Supersession
Supersession
# 012
MPN: 008410502
WASHER
Supersession
Supersession
# 013
MPN: 006790032
MOLURA POSTERIORE
from £339.94
from £339.94
# 014
MPN: N01033520
BOLT
from £0.98
from £0.98
# 015
MPN: 006763124
BRACKET / SUPPORT
from £26.59
from £26.59
# 016
MPN: 006763114
BRACKET / SUPPORT
from £19.62
from £19.62
# 017
MPN: 006763110
LAMA CENTRALE PARAURTI POSTERIORE - CENTRAL REAR BUMPER
from £785.17
from £785.17
# 018
MPN: 006763113
LAMA PARAURTI POSTERIORE (SINISTRA) - REAR BUMPER (LEFT)
from £614.25
from £614.25
# 019
MPN: 006763114
SPACER
from £19.62
from £19.62
# 020
MPN: 008100831
BOLT
from £0.53
from £0.53
# 021
MPN: 006763115
BRACKET / SUPPORT
from £19.62
from £19.62
# 022
MPN: 006763120
LAMA PARAURTI ANTERIORE (DESTRA)
from £1,063.51
from £1,063.51
# 024
MPN: 006763118
LAMA CENTRALE PARAURTI ANTERIORE
# 025
MPN: 006763125
BRACKET / SUPPORT
from £26.59
from £26.59
# 026
MPN: 006613015
PORTA TARGA ANTERIORE
from £45.52
from £45.52
# 027
MPN: 006763121
LAMA PARAURTI ANTERIORE (SINISTRA)
from £877.40
from £877.40
