035.1 - Front & rear bumpers USA

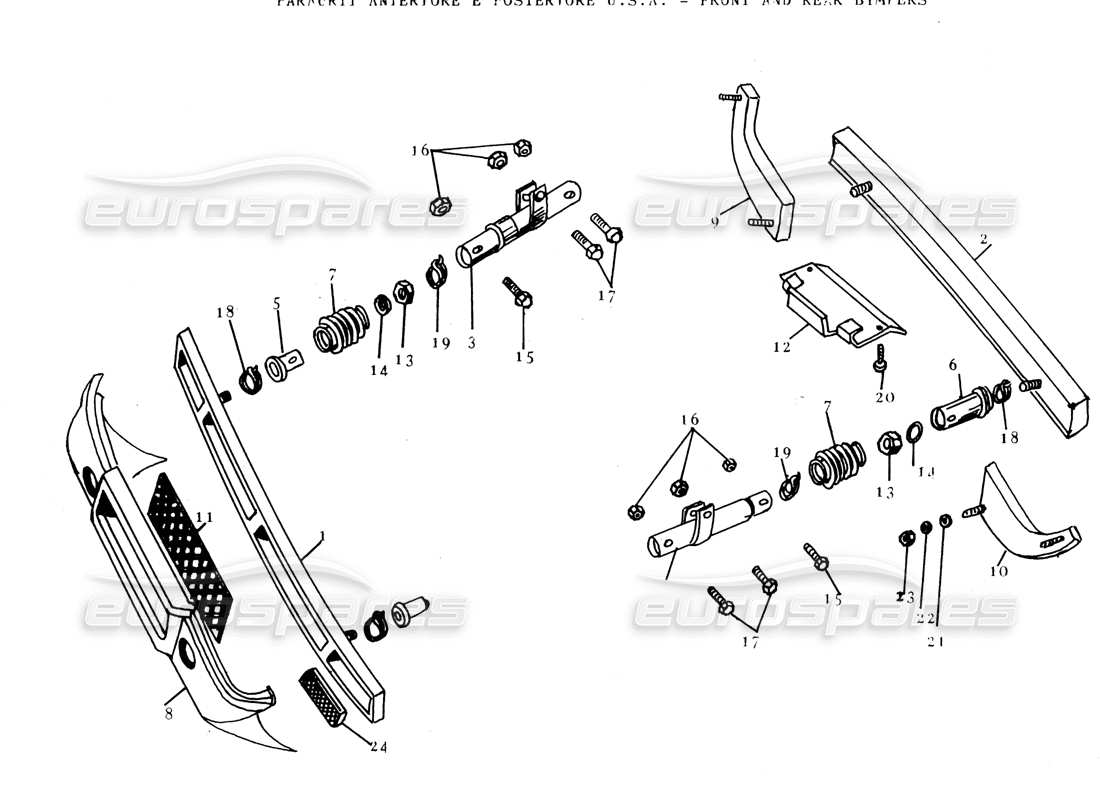

Lamborghini Espada Front & rear bumpers USA Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
006112072
PARAURTI ANTERIORE
#
002
MPN:
006112073
PARAURTI POSTERIORE
#
003
MPN:
006112071
A MMORTIZZATORE PARAURTO ANTERIORE
#
004
MPN:
006110077
AMMORTIZZATORE PARAURTO POSTERIORE
from
£168.52
from
£168.52
#
005
MPN:
006112076
SUPPORT
from
£55.19
from
£55.19
#
006
MPN:
006112079
SUPPORT
from
£59.27
from
£59.27
#
007
MPN:
005108120
SOFFIETTO DI PROTEZIONE
from
£78.06
from
£78.06
#
008
MPN:
006763130
MASCHERINA
from
£543.81
from
£543.81
#
009
MPN:
006763131
CORNICE POSTERIORE DESTRA
from
£105.84
from
£105.84
#
010
MPN:
006763132
CORNICE POSTERIORE SINISTRA
from
£110.31
from
£110.31
#
011
MPN:
006112805
RETE PER MASCHERINA
#
012
MPN:
006112806
PROTECTION FOR Tubi EXHAUST
#
013
MPN:
008201406
NUT
from
£0.62
from
£0.62
#
014
MPN:
008401413
WASHER
from
£0.60
from
£0.60
#
015
MPN:
008101032
SCREW
from
£4.80
from
£4.80
#
016
MPN:
008201008
NUT
from
£0.53
from
£0.53
#
017
MPN:
008101029
SCREW
from
£12.99
from
£12.99
#
018
MPN:
008830107
JUBILEE CLIP
from
£13.07
from
£13.07
#
019
MPN:
008830119
JUBILEE CLIP
from
£12.24
from
£12.24
#
020
MPN:
008700203
SCREW
from
£1.65
from
£1.65
#
021
MPN:
008410603
WASHER
Supersession
Supersession
#
022
MPN:
008400606
WASHER
Supersession
Supersession
#
023
MPN:
008200604
NUT
from
£0.53
from
£0.53
#
024
MPN:
006743108
FANALINO DIREZIONE ANTERIORE
