maserati 4200 coupe (2002) rh side trunk bonnet sensor and control units parts diagram

138 - RH Side Trunk Bonnet Sensor and Control Units

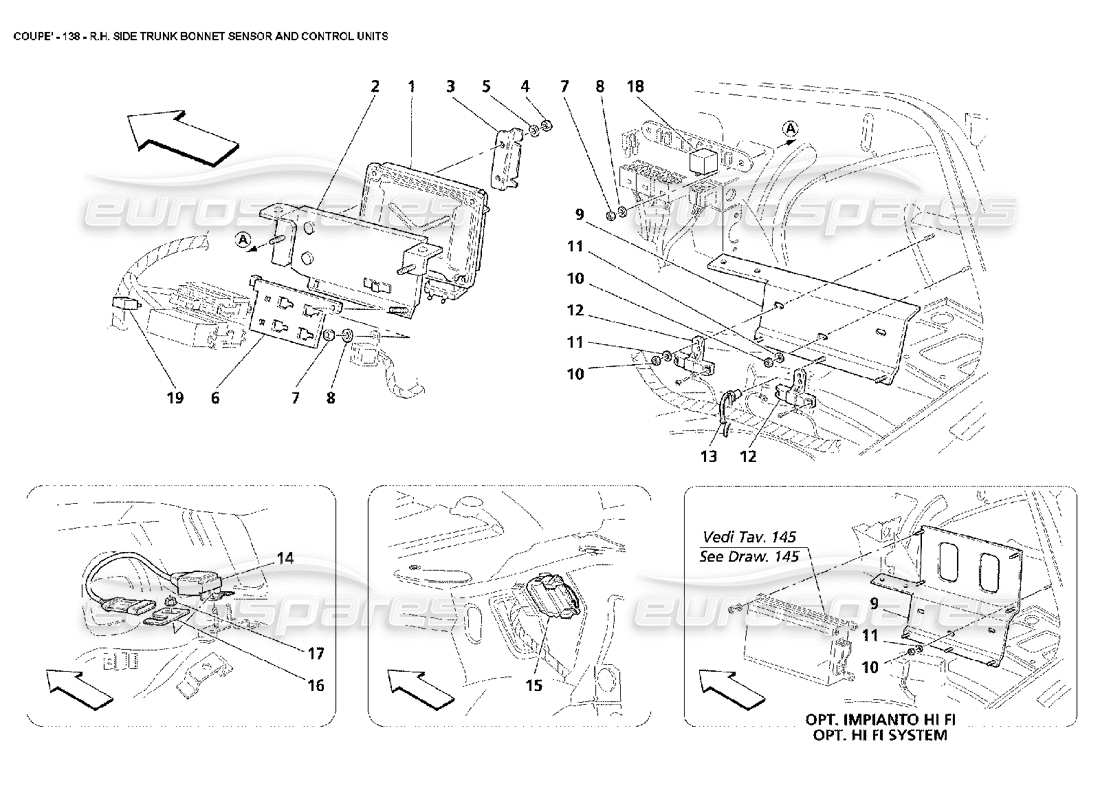

Maserati 4200 Coupe (2002) R.H. Side Trunk Bonnet Sensor and Control Units Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 192622
            F1 GEARBOX CONTROL STATION
            - Valid for F1 - Not for USA and CDN - Valid till car Ass. Nr. 9253 - Not for cars with clutch cod. 196335 - on exhaustion use part number: 196833
            Supersession
            Supersession
            Genuine Maserati Part (no longer available to order)
            # 001
            MPN: 194585
            F1 GEARBOX CONTROL STATION
            - Valid for F1 - Valid for USA and CDN - Valid till car Ass. Nr. 9253 - Not for cars with clutch cod. 196335
            Supersession
            Supersession
            Genuine Maserati Part (no longer available to order)
            # 001
            MPN: 196833
            F1 GEARBOX CONTROL STATION
            - Valid for F1 - Not for USA and CDN - Valid from car Ass. Nr. 9254 - Valid for cars with clutch cod. 196335
            from £2,353.40
            from £2,353.40
            This part replaces part number 197540 - and 1 more. Click to view details
            ECU Genuine Maserati Part - New (to order)
            # 001
            MPN: 197094
            F1 GEARBOX CONTROL STATION
            - Valid for F1 - Valid for USA and CDN - Valid from car Ass. Nr. 9254 - Valid for cars with clutch cod. 196335
            Supersession
            Supersession
            Genuine Maserati Part (no longer available to order)
            # 002
            MPN: 185965
            BRACKET FOR CONTROL UNIT FIXING
            - Valid for F1
            from £23.47
            from £23.47
            F1 GEARB.AND FUSE HOLDER FAS Genuine Maserati Part - New (to order)
            # 003
            MPN: 186718

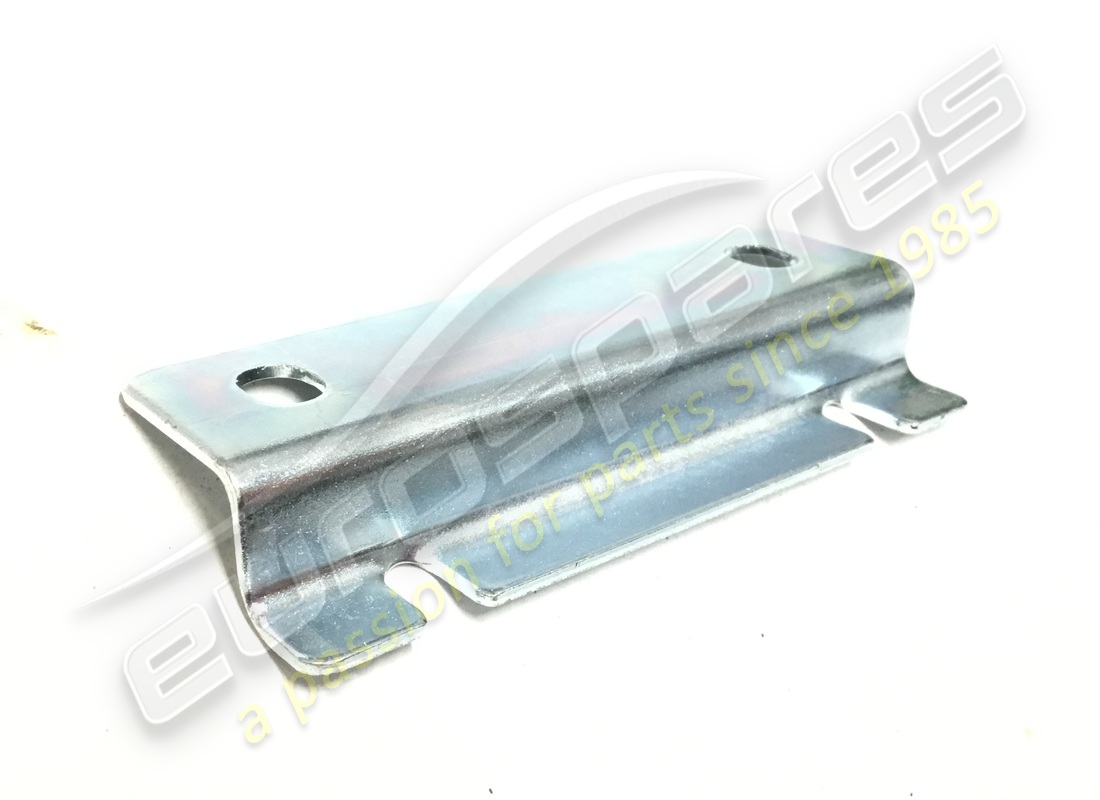

            MOBILE BRACKET
            - Valid for F1
            from £3.95
            from £3.95
            BRACKET FOR F1 GEARBOX ECU Genuine Maserati Part - New In stock
            # 004
            MPN: 15896211
            NUT
            - Valid for F1
            Supersession
            Supersession
            Genuine Maserati Part (no longer available to order)
            Genuine Ferrari Part (no longer available to order)
            # 005
            MPN: 13579224
            WASHER
            - Valid for F1
            from £0.53
            from £0.53
            SPLIT WASHER D.6.15-12X0.5 Genuine Maserati Part - New (to order)
            WASHER Genuine Ferrari Part - New In stock
            # 006
            MPN: 189794
            BRACKET
            - Valid for F1
            from £6.06
            from £6.06
            FUSE BOX BRACKET Genuine Maserati Part - New (to order)
            # 007
            MPN: 10788811
            NUT
            - Valid for F1
            from £0.71
            from £0.71
            HEX.NUT M5X3.5 Genuine Maserati Part - New In stock
            NUT Genuine Ferrari Part - New (to order)
            # 008
            MPN: 12637801
            WASHER
            - Valid for F1
            from £0.53
            from £0.53
            SPLIT WASHER D.2 5.15 -11X 1 Genuine Maserati Part - New In stock
            WASHER Genuine Ferrari Part - New In stock
            # 009
            MPN: 185966
            BRACKET FOR FIXING RESISTORS
            - Standard
            from £10.01
            from £10.01
            FUEL PUMP RESIST. FASTENING BRACK Genuine Maserati Part - New In stock
            # 009
            MPN: 185967
            BRACKET FOR FIXING RESISTORS AND AMPLIFIER
            - Optional - HI FI system
            from £84.93
            from £84.93
            COMPLETE HI-FI AMPLIFIER FASTENING BRA Genuine Maserati Part - New (to order)
            # 011
            MPN: 13579224
            WASHER
            from £0.53
            from £0.53
            SPLIT WASHER D.6.15-12X0.5 Genuine Maserati Part - New (to order)
            WASHER Genuine Ferrari Part - New In stock
            # 012
            MPN: 183276
            FUEL PUMPS RESISTOR
            from £43.06
            from £43.06
            BOSCH RESISTOR FOR FUEL PUMPS Genuine Maserati Part - New (to order)
            BOSCH RESISTOR FOR FUEL PUMPS Genuine Maserati Part - Used In stock
            # 013
            MPN: 177553
            CLAMP
            from £0.53
            from £0.53
            CLAMP Genuine Maserati Part - New (to order)
            CLIP Genuine Ferrari Part - New In stock
            # 014
            MPN: 184849
            COMPLETE VERTICAL ACCELERATION SENSOR
            See also 279398
            from £58.80
            from £58.80
            Genuine Maserati Part (no longer available to order)
            VERTICAL ACCELERATION SENSOR Genuine Maserati Part - Used In stock
            # 014
            MPN: 279398
            COMPLETE VERTICAL ACCELERATION SENSOR
            - Optional - Version sport
            from £65.05
            from £65.05
            This part replaces part number 232082 which we have in stock - and 1 more. Click to view details
            VERTICAL ACCELERATOR SENSOR (SKYH Genuine Maserati Part - New (to order)
            VERTICAL ACCELERATOR SENSOR (SKYH Genuine Maserati Part - Used In stock
            # 015
            MPN: 184931
            CONNECTOR
            - Not for F1
            from £8.57
            from £8.57
            CONNECTOR Genuine Maserati Part - New (to order)
            # 016
            MPN: 162606
            CLIP
            - Optional - Version sport
            from £0.45
            from £0.45
            CLIP Genuine Maserati Part - New In stock
            CLIP Genuine Ferrari Part - New In stock
            CLIP Genuine Ferrari Part - Used In stock
            # 017
            MPN: 14059121
            NUT
            - Optional - Version sport
            from £0.54
            from £0.54
            NUT Genuine Maserati Part - New In stock
            NUT Genuine Ferrari Part - New In stock
            # 018
            MPN: 155437
            RELAY
            - Valid for F1
            from £43.40
            from £43.40
            ABS MOTOR PUMP RELE' (GREY) Genuine Maserati Part - New (to order)
            RELAY Genuine Ferrari Part - New (to order)
            # 019
            MPN: 161590
            MICRO-RELAY 20 A.
            from £14.47
            from £14.47
            MICRO-RELAY 20 AMP (SWITCH) Genuine Maserati Part - New (to order)
            MICRO-RELAY 20 AMP (SWITCH) Genuine Ferrari Part - New In stock
            # 019
            MPN: 184102
            MICRO-RELAY 20 A.
            from £3.82
            from £3.82
            This part replaces part number 373330139 which we have in stock
            Genuine Maserati Part (no longer available to order)
            MICRO-RELAY SWITCH 20 A. Genuine Ferrari Part - New In stock
            # 019
            MPN: 184103
            CHANGE-OVER SWITCH MICRO-RELAY 20/10 A.
            from £6.26
            from £6.26
            This part replaces part number 373308162 which we have in stock
            Maserati PART 184103 Genuine Maserati Part - New In stock
            MICRO-RELAY 10/20 A. Genuine Ferrari Part - New (to order)
            # 019
            MPN: 184104
            MICRO-RELAY 20 A.
            from £8.71
            from £8.71
            MICRO-RELAY SWITCH 30A Genuine Maserati Part - New (to order)
